Hi
It is glad to have REST API for new RouterOS beta v7.
We are trying to implement REST API automation for RouterOS V7 but we found there is a lot of effort to research API usage to map with command interface.
I was wondering if we can have OpenAPI specification json document to speed up development for user.
Chang
Did you ever find one OpenAPI or swagger doc for the REST API? Has someone already built one already?
+1. Also looking for this. Any news yet?
Maybe this is useful? You can get the list by calling:
http://ros_adrese/webfig/list
Thanks @mrz – that’s useful. More so for pragmatically creating skins (since /webfig/list seems to match values that go in the a “skin” file).
But it’s a bit away from being usable in REST tools like Postman, etc…
Still helpful however: the files referenced by the /webfig/list actually list all the attributes, which is useful. But the JG file output seems to use the “Webfig” names (make sense given context), but doesn’t seem to contain anywhere the equivalent CLI/REST name (e.g. “DHCP Client” vs. “dhcp-client”) so any transformation need to map those, somehow. That seems like a big project.
If this helps anyone, I wrote some JavaScript code to parse the output – since /webfig/list doesn’t seem to be modern JSON (but similar to the “webfig skin JSON” format) you need eval() to parse the output. I don’t do anything with it, but you can at least view it more reasonably. OR, perhaps collect some from various versions to compare the schema deltas release to release.
function webfiglist(ip) {
if (typeof window === "object" && !ip) {
ip = (new URL(window.location.href)).host
}
return new Promise((done) => {
fetch(`http://${ip}/webfig/list`)
.then((req) => req.text())
.then((txt) => {
var results = {};
/* this is critical...
the /webfig/list is not valid JSON document, it's a JS "fragment"
...so we need eval() to "convert it" to a variable to then return */
eval(`results = [${txt}]`);
done(results);
});
});
}
function webfigschemas(ip) {
if (typeof window === "object" && !ip) {
ip = (new URL(window.location.href)).host
}
return webfiglist(ip).then((list) =>
Promise.all(
list
.filter((i) => i.unique)
.map((i) => {
return new Promise((done) => {
let file = i.name
fetch(`http://${ip}/webfig/${file}`)
.then((req) => req.text())
.then((txt) => {
/* same eval() trick as the webfiglist, except return a "tuple" with [filename, data] */
var results
eval(`results = ${txt}`)
done([ file, results ])
})
})
})
)
)
}
webfiglist().then(console.log)
webfigschemas().then(console.log)
// NODE.JS save to file
// let ip = "192.168.88.1"
// const fs = require('fs');
// webfigschemas(ip).then(d => fs.writeFileSync("./webfig-list-schema.json", JSON.stringify(d)))
If you paste that into JavaScript console from a browser “Inspect” option while on webfig page, it should show the “schema data” in the console output. If you use nodeJS, you should be able pass an ip address to the webfiglist(“192.168.88.1”) to get it from any RouterOS device (might be possible in browser, but cross-site scripting checks would need tweaks).
Another useful tool could be /console/inspect.
You can request completion, the list of child menu commands and parameters
Interesting, are inspect request=child and other related features documented anywhere?
It’s an easter egg
Except now we can find them
It’s not critical for my needs, but I wrote some code to pull out all the “chicks” ( request=child) in the /console/inspect.
It uses recursion with a ROS function to walk the tree of “child” and returns a ROS ::array (& shoves it into a :global variable called “$ast” too). Surprisingly this DOES NOT get ANY stack overflow or memory limits, at least in v7.6. In fact, after walking the tree, even on a little cAP ac, there are 4329 unique “cmd”, “args”, and “path” branches, with a few leafs each.
:global ast [:toarray ""]
:global mkast do={
:global mkast
:global ast
:local path ""
:if ([:typeof $1] ~ "str|array") do={ :set path $1 }
:local pchild [/console/inspect as-value request=child path=$path]
:foreach k,v in=$pchild do={
:if (($v->"type") = "child") do={
:local astkey ""
:local arrpath [:toarray $path]
:foreach part in=$arrpath do={
:set astkey "$astkey/$part"
}
:set ($ast->$astkey->($v->"name")) $v
:put "Processing: $astkey $($v->"name") $($v->"node-type")"
:local newpath "$($path),$($v->"name")"
# TODO use [/console/inspect as-value request=syntax path=$path]
[$mkast $newpath]
}
}
return $ast
}
# & this call start the recursion
:put [$mkast]
$ast will also contain the schema as an nested array, reflecting the parent/child relationships… so can use like this:
:put ($ast->"/ip/address")
add=.id=*2;name=add;node-type=cmd;type=child;comment=.id=*3;name=comment;node-type
=cmd;type=child;disable=.id=*4;name=disable;node-type=cmd;type=child;edit=.id=*5;n
ame=edit;node-type=cmd;type=child;enable=.id=*6;name=enable;node-type=cmd;type=chi
ld;export=.id=*7;name=export;node-type=cmd;type=child;find=.id=*8;name=find;node-t
ype=cmd;type=child;get=.id=*9;name=get;node-type=cmd;type=child;print=.id=*a;name=
print;node-type=cmd;type=child;remove=.id=*b;name=remove;node-type=cmd;type=child;
reset=.id=*c;name=reset;node-type=cmd;type=child;set=.id=*d;name=set;node-type=cmd
;type=child
Another example, this is one part of the output $ast array above in YAML-ized style output:
/zerotier/edit:
number:
.id: *2
name: number
node-type: arg
type: child
value-name:
.id: *3
name: value-name
node-type: arg
type: child
/zerotier/enable:
numbers:
.id: *2
name: numbers
node-type: arg
type: child
I don’t do it here, but adding another call to “/console/inspect request=syntax …” for each child with same path would get a description (e.g. type of “explanation”). With that you’d have all the info for a REST schema. My thought is RAML might be easier to generate from ROS script, since it uses “YAML format”, not JSON, and YAML is easier to generate in ROS script. I think the keys from my code are close to the REST POST things, so that be easiest to model into RAML. And I believe some tools can use or convert from the RAML schema format to swagger / OpenAPI.
But /console/inspect does seem to have the info for a REST schema, now converting is still more work.
One note is /console/inspect seems to know about ALL of the packages (e.g. “extra-packages”), even if not installed – so you’ll see child entries for calea, iot, etc. even if not available.
Great info, thanks! It seems that the metadata proxy-repository is pretty coherent and well worth exploring for building a command tree for automatic integration. I concur regarding RAML.
Took another look at this today, thought it be easy to get the “explanation”.
While “request=child” works with issue, some “request=syntax” (e.g. “path=ip,address,add,interface”, see below), cause the entire terminal to terminate (“Console has crashed; please log in again.”) – most things seem to work with request=syntax.
[user@router] > /console/inspect request=syntax path=ip,address,add
Columns: TYPE, SYMBOL, SYMBOL-TYPE, NESTED, NONORM, TEXT
TYPE SYMBOL SYMBOL-TYPE NESTED NONORM TEXT
syntax collection 0 yes
syntax address explanation 1 no Local IP address
syntax broadcast explanation 1 no Broadcast address
syntax comment explanation 1 no Short description of the item
syntax copy-from explanation 1 no Item number
syntax disabled explanation 1 no Defines whether item is ignored or used
syntax interface explanation 1 no Interface name
syntax netmask explanation 1 no Network mask
syntax network explanation 1 no Network prefix
[user@router] > /console/inspect request=syntax path=ip,address,add,address
Columns: TYPE, SYMBOL, SYMBOL-TYPE, NESTED, NONORM, TEXT
TYPE SYMBOL SYMBOL-TYPE NESTED NONORM TEXT
syntax Address definition 0 no A.B.C.D (IP address)
[user@router] > /console/inspect request=syntax path=ip,address,add,interface
Console has crashed; please log in again.
Even wrapping it a “:do {} on-error={}” does NOT catch the crash so that didn’t work to avoid the issue.
:do {
/console/inspect request=syntax path=ip,address,add,interface
} on-error={:put "got error"}
While that would not be critical for schema per-se, it does have a description to set, and there is some “collection” node-type that likely indicates an possible array (instead of just string) as JSON param.
FWIW you can call the same /console/inspect via REST API too. But the same params in REST "{ “request”: “syntax”, “path”: “ip,address,add,interface” } while don’t “crash” it timeouts with no data (empty JSON array).
In fact, here the RAML for just the /console/inspect:
#%RAML 1.0
title: ROS.RAML sample
version: 7.6
protocols: [HTTPS]
mediaType: [application/json]
securitySchemes:
basic:
description: |
Mikrotik REST API only supports Basic Authentication, secured by HTTPS
type: Basic Authentication
securedBy: [basic]
baseUri: https://{host}:{port}/rest
baseUriParameters:
host:
description: RouterOS device IP or host name
default: "192.168.88.1"
port:
description: RouterOS https port to use
default: "443"
documentation:
- title: RouterOS RAML Schema
content: |
Schema is generated using `/console/inspect` on a RouterOS devices and
interpreted into a schema based on the rules in
[Mikrotik REST documentation](https://help.mikrotik.com)
- title: Demo Only
content: We just try a few commands
/console:
/inspect:
post:
description: Inspects the RouterOS AST
body:
application/json:
type: object
properties:
.proplist?:
type: string
description: List of properties to return (see RouterOS docs)
.query?:
type: string
description: List of properties to return (see RouterOS docs)
path?:
type: string
description: Comma-seperated string of RouterOS path
example:
input?:
type: string
request:
type: string
enum: [self|child|completion|highlight|syntax|error]
example:
path: "ip,address,add,interface"
request: syntax
responses:
200:
body:
application/json:
type: array
I kinda forgot about this one. But I do have a JavaScript implementation that using /system/console via REST, and generate a RAML 1.0 scheme.
See https://forum.mikrotik.com/viewtopic.php?t=199476 for RAML-based alternative.
edit: I noticed this was the beta forum, so moved the RAML approach to new thread in Scripting topic
Here is an OpenAPI schema I generated from above RAML schema.
OpenAPI 3.0 / swagger schema
https://tikoci.github.io/restraml/routeros-openapi3.json
It may have some calls that aren't allowed, and other things may not have translated perfectly. But it loads:
Mar 2026 Edit "Retired" as a one-off and built per-version. It was not actually validate OAS3. Some tools like Postman could load it, but not all. See Feature Request : OpenAPI for REST API - #17 by Amm0 for new version of OpenAPI 3 schema.
Wow! Thank you nice work!
OpenAPI 2.0 schema "Retired"
OAS2 was published for most RouterOS versions in past, but new version will only have OpenAPI 3 schema. See Feature Request : OpenAPI for REST API - #17 by Amm0 below
I recently automated building the schema files at GitHub, including OpenAPI 2.0 (OAS2). So newer (and older) versions of the RAML and OpenAPI schemas are available at:
The same page has a nifty "diff" tool, to compare RouterOS versions.
So you can more easily see changes between versions...
Come a long way with the /console/inspect. In fact, between restraml schemas+diff (using request=syntax & request=child), which has RAML and OpenAPI schemas, and an RouterOS LSP for syntax colors/errors/completion (using request=completion & request=highlight) — using most what /console/inspect has to offer.
While the LSP gets pretty far with inspect's completion and highlight data. RouterOS LSP does gets limited since I have not been able to figure out, reliably, what the "current working directory" is when using any /console/inspect request=... input="some code" things. The LSP's view of RouterOS script is only "highlight" tokens associated with text position in an LSP client editor (VSCode, nvim, etc). But Inspect's tokenizer knows definitively the current path= (in the ip,address sense) since it resolve subshells like [find] and other syntax which inherent some path perfectly. While in some cases path could be inferred like /ip/address/add... where it's "fully qualified". This limited the possibility to a request=syntax in the LSP to offer editor the "signature" (i.e. CLI's F1 help).
So if you had a new "easter eggs" for this cwd problem, be good to know. The full set of issues where /console/inspect is limited is here:
With the added question/mystery... /console/inspect request=error is one I not been able to figure out what it does. Any new clues? It's always nil regardless of what is provided (both valid or all sorts of invalid syntax)
:put [:typeof [/console/inspect request=error input=":put [/system/identity/get name]"]]
# nil
:put [:typeof [/console/inspect request=error input="/somebadcommand"]]
# nil
But guessing it does something, just don't know what. Right now it's riddle in within in the easter egg inspection.
Finally, years after topic was opened, there is a proper OpenAPI 3.0 schema for REST API using our friend /console/inspect.
https://tikoci.github.io/restraml/7.22.1/openapi.json (routeros.npk only)
https://tikoci.github.io/restraml/7.22.1/extra/openapi.json (with all extra-packages for CHR, so most of them)
Only versions newer than 7.22.1 will have OpenAPI 3 schemes, RAML remains for older versions, and still be built. All new beta/rc and releases will include OpenAPI, so you can change the URL above to match versions (within ~24 hours of a new public RouterOS build).
RAML really only works in Postman, and slowly. Modern tools want OpenAPI format. Now OpenAPI 3 schema is still big (11MB, 5000+ methods)... so it takes most visual tools a while to render still. CLI / CI validation using the OAS3 schema works better, since it not 5000 x x UI controls to track/draw.

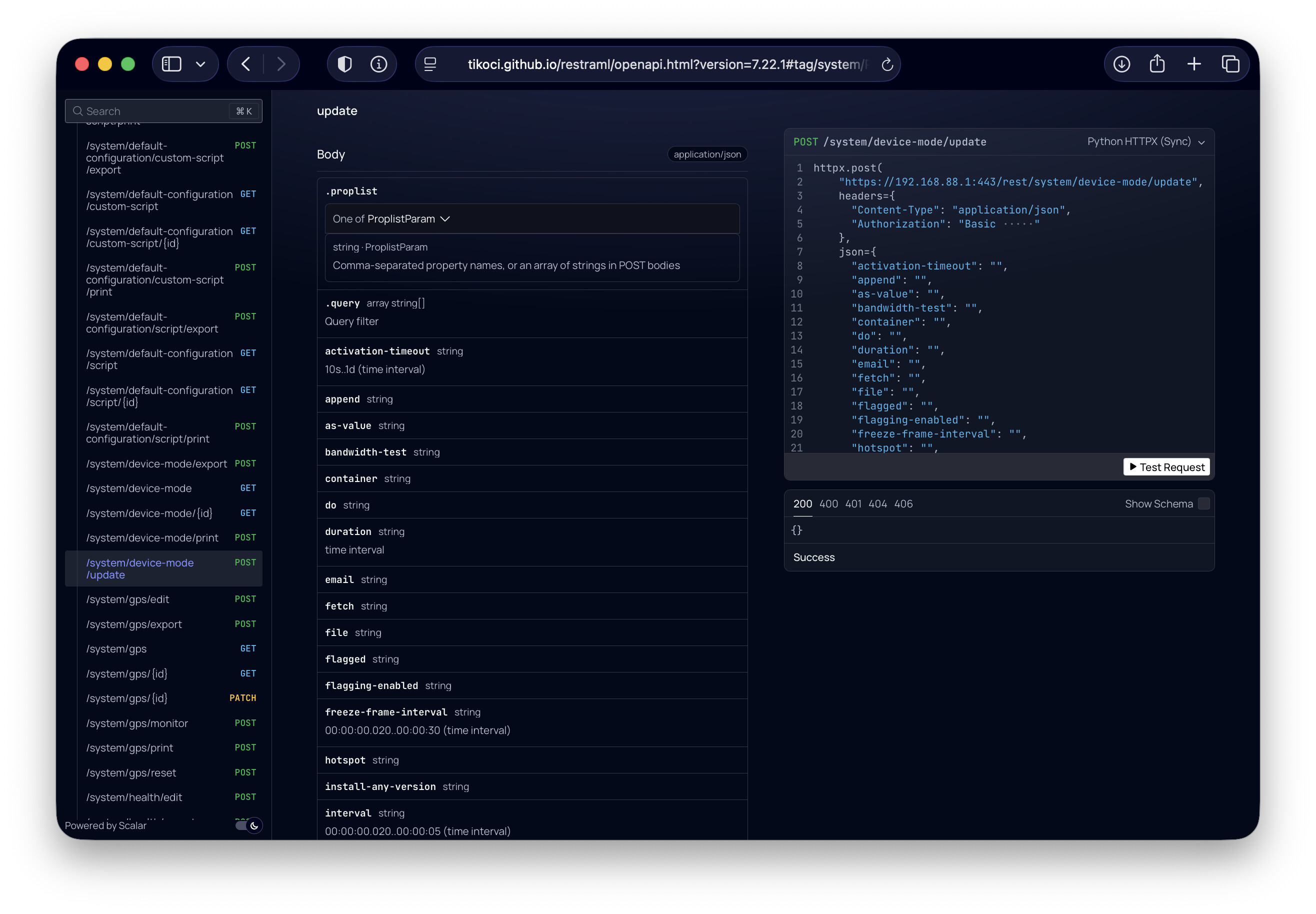

There is also new Scalar-based web viewer of the schema.
"Test Request" requires CORS Proxy
You cannot "run" anything since RouterOS does not support "CORS" in REST API. You can setup a "CORS Proxy" to allow using the "Test Request" control. Search forum, you can use ngnix, Traefik, or Caddy server - all should work with the new "API Explorer". I tested Traefik as CORS Proxy, and webpage works with the requests.
The OpenAPI 3 version adds doc links to help.mikrotik.com in selected spots. It just contains links and it pretty conservative in matching them, so should generally be right... but many elements do have some doc page that could be links. This is a work in progress.
The doc links here from a SQLite database after converting the help.mikrotik.com's "monthly" PDF/HTML offline to FTS5-enabled SQLite tables, breaking out fragments, "callout", and attribute tables.
The database used is actual built in tikoci/rosetta, which is also an MCP Server that allows LLM agents can more easily consume MikrotTik's help.mikrotik.com docs. See GitHub - tikoci/rosetta: MCP Server with RouterOS docs + commands + products + changelogs, using SQLite-as-RAG, sourced from MikroTik · GitHub for details.
NOTE OpenAPI schema generation does not use an LLM for the docs. Rather it shares the same database as the MCP Server. The doc links come the table generated by Python scripts that parse Confluence HTML into SQLite.
For every RouterOS build, the following process essentially calls /console/inspect with ~50K request. The exact process was captured by CoPilot in GraphViz (which forum supports via [graphviz] BBtags).
And that whole process essentially ends up back in GitHub here: https://github.com/tikoci/restraml/tree/main/docs which is "raw" downloads for all the schemas produced.
(GitHub Pages serves same directory as normal HTTPS that download link and API Explorer use)
OpenAPI 3 and other schemas are also downloadable from the main "Schema Download" page on my TIKOCI site:
https://tikoci.github.io/restraml/
