LTE APN with fix IP

Howdy,

just got my Chateau LTE12 and it came with latest beta preinstalled v7.0beta6. Seems like this release is not in public channels yet, it’s OK but, I have just configured it to use with Telia LT fixed IP APN, and I’am still getting dynamic IP. It works as expected with same SIM and APN config on Huawei router. May be there some known issues with beta release? Should I downgrade to stable instead? Which debug information should I provide?

Thx.

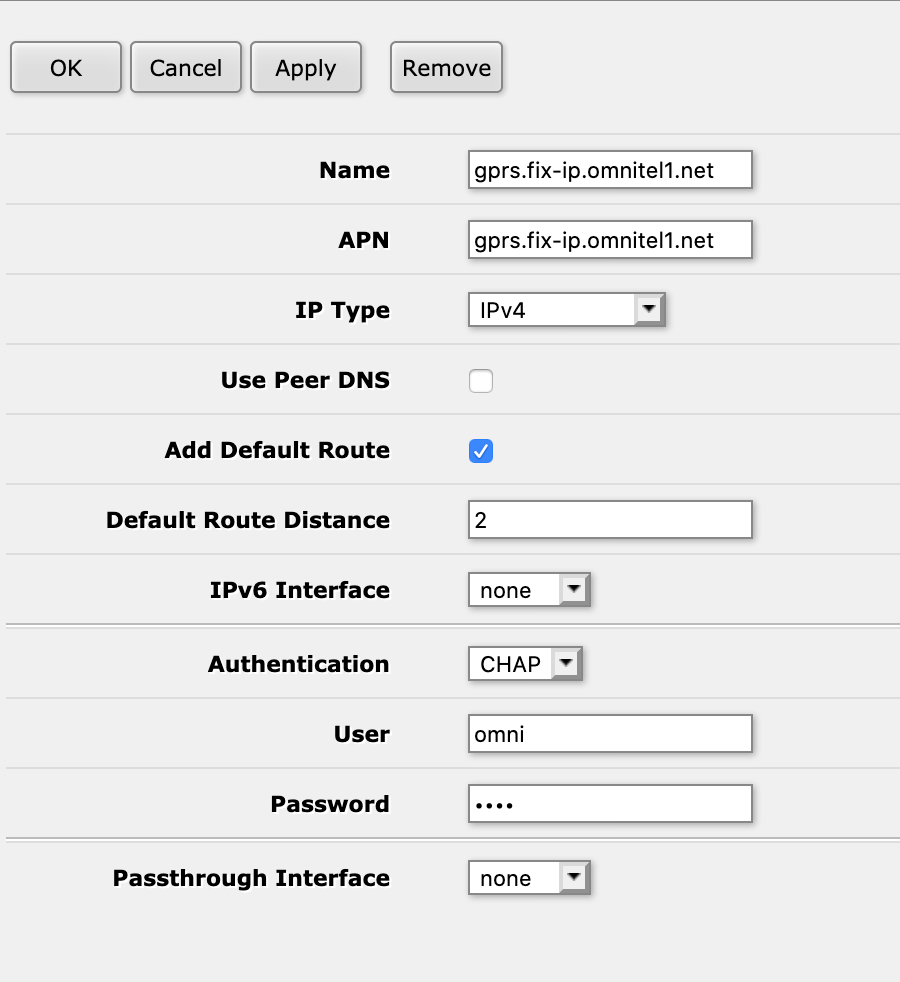

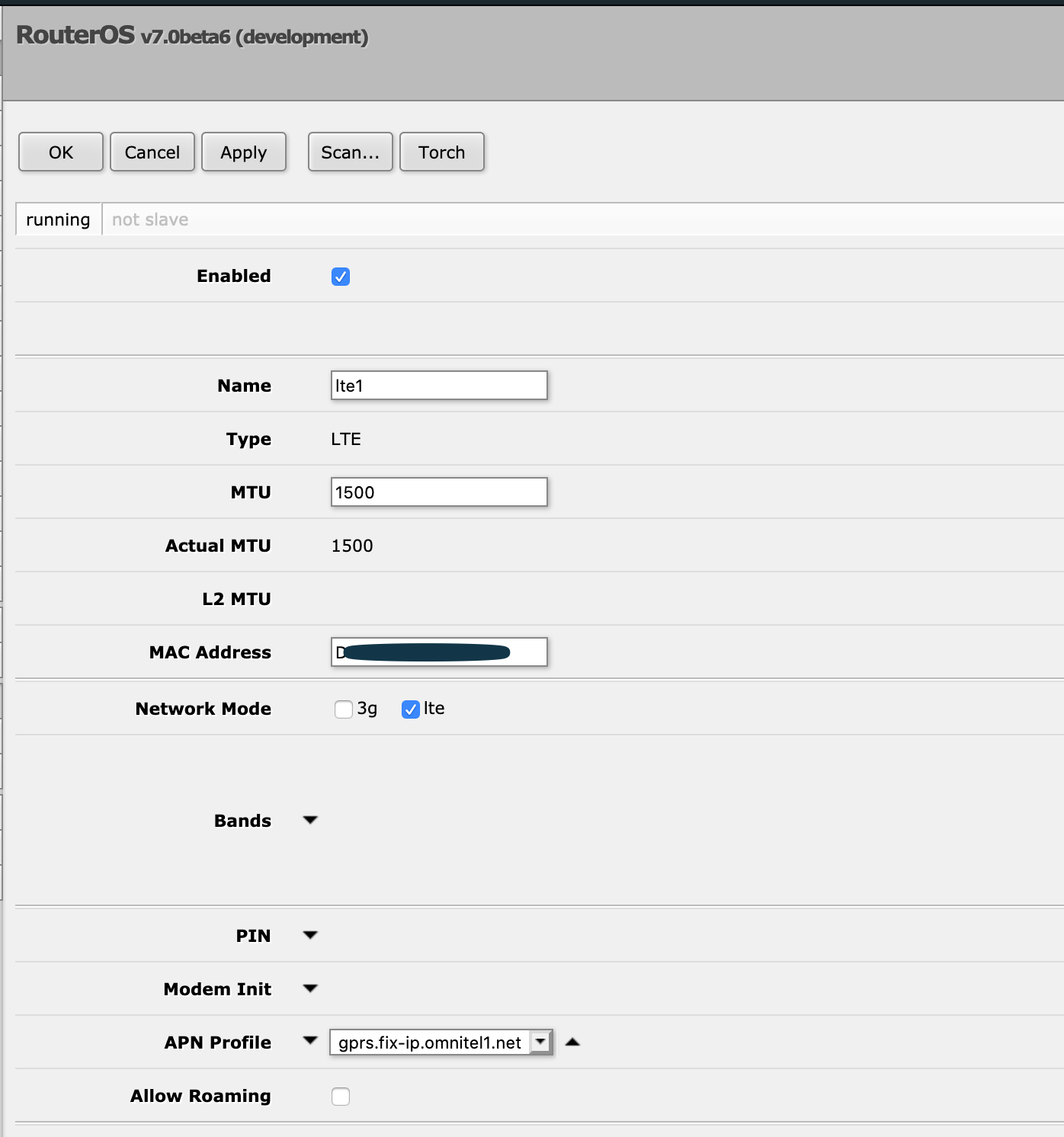

Screenshot 2020-05-27 at 10.09.20.png
Screenshot 2020-05-27 at 10.03.37.png

Please read a documentation, general about lte: https://wiki.mikrotik.com/wiki/Manual:Interface/LTE

Please activate log-s:
/system logging add topics=lte

In logs try search what APN is used in reality… I know that APN can be not used, or used after usb power-reset, or just works only 1x after reboot… some strange behaviors with APN at ros7b6.

I not have Chateau then cannot test the ros7b6, at public7b5 I have more problems and just wait for new betas.

Sounds a bit strange that it was shipped with beta software. Sure it hasn’t been used before?

Chateau is with ROS7 only, the official release is ROS7beta5 but at Chateau is ROS7beta6.
MikroTik never publish release candidate or stable ros7 and all person who buy Chateau receive ros7b6.

Thanks for the reply. After digging through logs I see this:

08:12:54 lte,debug lte1 mbim: lte status: attached apn: omnitel
08:12:54 lte,debug lte1 mbim: apn: omnitel user: omni

seems like You right, and LTE apn is ignored, so then default is taken from BS?

probably.
you can try few actions to check they behhavior

  • usb power-reset
  • at+reset or proper for that modem
  • re-enable lte1
  • reboot

maybe apn is used after one of that action and you can found some schema to fix it.

I had the same problem. Turns out there is an option for the APN profile “use-network-apn”, which is only accessible via CLI and default yes.
Enabled, it ignores your APN settings and uses the APN provided by the network. Set this to no and it starts using your configured APN.

True, I just have access to one of Chateau and grab all possibility options.

[admin@MikroTik] > interface/lte apn/set
add-default-route       ipv6-interface         passthrough-subnet-selection
apn                     name                   password
authentication          numbers                use-network-apn
default-route-distance  passthrough-interface  use-peer-dns
ip-type                 passthrough-mac        user
[admin@MikroTik] > interface/lte apn/set use-network-apn=
no  yes
[admin@MikroTik] > interface/lte apn/set passthrough-subnet-selection=
auto  p2p
[admin@MikroTik] > interface/lte apn/set ip-type=ipv
ipv4  ipv4-ipv6  ipv6

This solves the issue. Thx SIB

Thank you SIB, this helped me alot.

good evening I have Château LTE12 which was in beta v7.0beta6 which works very well in my country but since then I went to beta 7.1beta 2 its not working poorly lost connection lte that I did not have before, I would like to go back to the old one beta but not found on the net someone can help me find this firmware thank you

Go to https://mikrotik.com/download
CTRL + F for searching: Chateau and you discover it at ARM family
RMouseB and copy URL
https://download.mikrotik.com/routeros/7.1beta2/routeros-7.1beta2-arm.npk
and edit it to:
https://download.mikrotik.com/routeros/7.0beta5/routeros-7.0beta5-arm.npk ← WORK :check_mark:
https://download.mikrotik.com/routeros/7.0beta6/routeros-7.0beta6-arm.npk ← NOT WORK
https://download.mikrotik.com/routeros/7.0beta7/routeros-7.0beta7-arm.npk ← WORK :check_mark:
https://download.mikrotik.com/routeros/7.0beta8/routeros-7.0beta8-arm.npk ← WORK :check_mark:

Thanks SiB. I am wondering why v7.0beta6 is not available? Does anyone have the beta6 npk? I tried searching all over the web and even mailed on support.

We not know, ask directly support@mikrotik.com or https://mikrotik.com/support :slight_smile:

any one can post export settings with telia operator? i need set settings via terminal. and i am away from router 3000km. so don’t what to do mistake :smiley:
thanks.

use safe mode…
or create backup and schedule it’s reload after 1 hour.
when you done remove item on the scheduler…

ops… I revealed so much…

thanks for tip. i tried safe mode. but i loose terminal and save mode make it back.
i try do backup tip.

can you explaine more ? theres no log in hap ac lite v.644.6, or i just did wrong setting. I need to find good APN, and i cant use CLI to set “use-network-apn”

Update your RouterOS.

Regards.

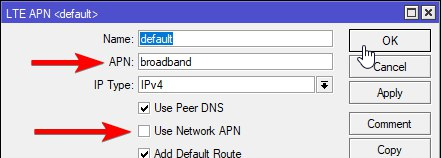

APN in RouterOS 7
ros7 APN.png
or all steps
