Making Mikrotik Hotspot User MAC/IP appear in Sonicwall in order to exclude some users from website blocking

[Mik888]

Only Mikrotik device appears in Sonicwall ARP table, Mikrotik Hotspot User MAC/IP do not.

We use Sonicwall Content Filtering Service to Block websites, and we Exclude some devices by MAC.

Sonicwall DHCP range is 190.180.100.* (Sonicwall IP is 190.180.100.2)
Mikrotik DHCP Server range is 192.168.6.* (Mikrotik device IP is coming from Sonicwall DHCP: 190.180.100.36)

How to make Mikrotik Hotspot User MAC/IP appear in Sonicwall?

[Domenico]

Hi,
i have a similar issue.
Has anyone solved it?

Thank’s.

[anav]

Keeping all this in one thread, to ensure completeness…

Hello,
I have a little problem / challenge.
I have a mikrotik routerboard configured in bridge with 2 vlan.
The goal is to configure 2 different hotspots on the 2 vlan and then, after the users log in, delegate the Sonicwall firewall for the management of bandwidth control and content filtering.

I can’t get both to work.
If I set the IP of the VLAN interface as a gateway to the hotspot clients, the hotspot works fine.
If I set the Sonicwall IP as gateway to the hotspot clients, the bandwidth and content filtering control management works well (but I am not intercepted by the hotspot).

Thanks a lot to those who can help me.

[Domenico]

ook…thank’s.
I hope someone can help me or @Mik888 has solved it and therefore has a solution.
I’ve been banging my head on this problem for months.

[rextended]

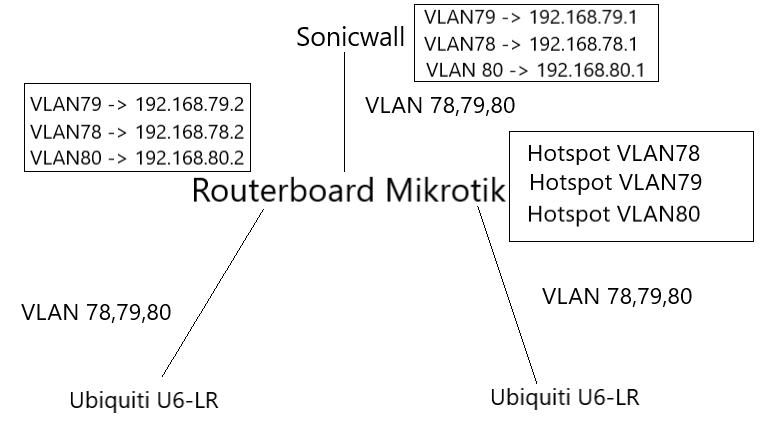

One block diagram can help, but probably the only mac you can see on sonicwall is the routerboard MAC because it act as router…

[Domenico]

In fact, exactly the only MAC that Sonicwall sees is that of the routerboard.
The routerboard is configured as a bridge on eth1-eth5 with the 3 VLANs and DHCP server on the various VLANs.
If I set the sonicwall ip (192.168. *. 1) as a gateway in the various VLANs, everything works perfectly and Sonicwall sees the ip / mac of the wireless client (but the hotspot does not work).
If, on the other hand, I set the routerboard IP as gateway (192.168. *. 2), the hotspot works perfectly but does not pass the wireless client’s ip / mac to the Sonicwall.
I also tried with mangle and routing rules for authenticated user (hotspot + ip / mac of the client visible to Sonicwall works all, but only on Windows PCs while the android clients do not browse):

• /ip firewall mangle
  add action=mark-routing chain=prerouting dst-address-type=“” hotspot=auth log=yes log-prefix="MARK: " new-routing-mark=gw_vlan79 passthrough=no src-address=192.168.79.0/24



• /ip route
  add distance=1 gateway=192.168.79.1 routing-mark=gw_vlan79
  add distance=1 gateway=192.168.80.1

I am going crazy

[Domenico]

Anyone who can help me?
Mik888 did you then solve it yourself?
