v6.16 RC test release now includes 802.11ac support

We are happy to announce 802.11ac support in RouterOS. Before we make this a general release, we would like to give you, the forum users, the ability to test it first.
802.11ac support is enabled for QCA9880/9882 rev2 (-BR4A) wireless chipsets, and wireless-fp package must be used. It is included in the general combined package, no separate downoad necessary

Other changes:

What’s new in 6.16 (2014-Jul-17 13:12):

*) winbox - fixed random disconnection over encrypted tunnels;
*) l2tp, pptp, pppoe - fixed possible packet corruption when encryption was enabled;
*) ovpn - fixed ethernet mode;
*) certificates - use SHA256 for fingerprinting;
*) ipsec - fix AH proposal and problem when sometimes policy was not generated;
*) snmp - support AES encryption (rfc3826);
*) l2tp server: added option to enable IPsec automatically;
*) poe-out: added power-cycle-ping and power-cycle-interval settings;
*) gps - increased retry duration to 30 seconds;
*) time - on routerboards, current time is saved in configuration on reboot
and on clock adjustment, and is used to set initial time after reboot;
*) sntp - disabling/enabling client was causing dynamic-servers to be ignored
(bug introduced in 6.14);
*) CCR - fixed rare file system corruption when none
of configuration could be changed or some of it disappeared;
*) ipsec - allow multiple encryption algorithms per peer;
*) email - support tls only connections;
*) smb - fixed usb share issues after reboot
*) snmp - fix v3 protocol time window checks;
*) updated timezone information;
*) quickset - added VPN settings for HomeAP mode;
*) latency improvements on CCR devices;

Download links

CCR: http://www.mikrotik.com/download/share/routeros-tile-6latest.npk
MIPS-BE: http://www.mikrotik.com/download/share/routeros-mipsbe-6latest.npk
MIPS-LE: http://www.mikrotik.com/download/share/routeros-mipsle-6latest.npk
PPC: http://www.mikrotik.com/download/share/routeros-powerpc-6latest.npk
x86: http://www.mikrotik.com/download/share/routeros-x86-6latest.npk
ALL file ZIP: http://www.mikrotik.com/download/share/all_files_6latest.zip

Do you support only the v2 cards (-AR4A ?) and not the v1 cards (-AR1A?), like many other AC implementations?

AR1A

no, we do not support v1 cards, only Peregrin v2

Hi,

i updated my RB493G (running as AP) from 6.15 and got a reboot loop. On the serial console i see no error, just repeating boot/login prompt and a reboot around 5-10 sec after the boot . No chance to get a supout :confused:

MikroTik 6.16rc17
mtr17 Login:

RouterBOOT booter 3.10

RouterBoard 493G

CPU frequency: 680 MHz
Memory size: 256 MiB
NAND size: 128 MiB
NAND partitions: 2

Press any key within 5 seconds to enter setup.

Update: ok was able to login fast enough and get this:

01:00:43 system,info,account user xxx logged in via local

[xxx@mtr17] /log>
echo: system,error,critical System rebooted because of kernel failure

It looks like a Ethernet issue, as soon as i plug in Ethernet, the kernel crashes after short moment after the auto Negotiation. Wireless connection is ok.

I was able to get the autosupout file and made a Ticket to MT, id is: Ticket#2014070966000634

missing on changelog:

*) user-manager - now profile and limitation can be added / imported correctly for each owner;

Shiro, thank you very much for very fast report.

Now there is updated 6.16rc version available from the same links, that has fix for RB4xx boards.
We will be happy to receive feedback on this version.

Hi Sergejs,

i installed RC18 and the issue is gone.

Thanks for the fast update :slight_smile:

Sven

Looking stable and all working OK on first glance on PPC (RB1100AHx2).
Date/Time save feature works nicely. Tnx.

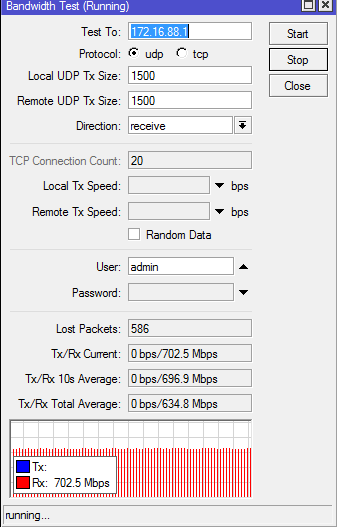

Tested on RB912G-2HnD and 802.11ac QCA9880 mini-pcie card. Seems works well - 702 mbps udp between 2 of these.

Stable on bandwith test 1 hour.

Good job.

On CRS-125-24G-1S firmware 6.16rc18 kills the primary bootloader (3.17 - no message on the serial console, no access, nothing on the display, just the switch chip working and usr1 LED blinking fast).
It starts up correctly with the backup(3.08) and is working.

Reverted to 6.15 and still no boot with the primary. After rewriting the primary bootloader from 6.15 (3.16) everything is back to normal.

I think that giving the opportunity to test the latest RC a few days before publishing a new release is a great idea! People can test the system on non critical devices…

:slight_smile: Thanks for support 802.11ac :slight_smile:

I tested 6.16rc18 on following devices:

CCR-1009-8G-1S-1S+
RB493G
x86

So far no issues.

*) l2tp server: added option to enable IPsec automatically;

Tested this on CCR and x86:
At first, i expected that it forces the client to do ipsec for a successfull connection, but it looks like, it just creates a peer entry for l2tp/ipsec.

Sadly can’t find any Minipci based card with QCA9880/9882 Chipset, only Minipci-e

Any idea where I can buy the QCA9880/9882 rev2?

What antennas are people using?

Many thanks

R

Can you share other informations?
Like: distance, signal, channel, modulation (256 qam??), ping, protocol..nv2 ?!!?
and some screenshots?

Isn’t time to have demo3.mt.lv
with some new board as RB953GS-5HnT + 802.11AC card
with some continuous traffic

by the way is there will have antennas with 3 polarisations for 3 chain cards
for example mANT30 x3

111111, you are 100% correct. We are preparing new demo routers, instead of current ones with AC cards and links. Thank you very much for the interest.

10x for understand maby all products must have sub-domains
ex RB953GS-5HnT.mt.lv
and connected each other by all possible scenarios
ex. MESH, bridge, BGP, OSPF, GSM network etc.

Waiting for SXT - Sextant with AC support and BaseBox …

Does this release fix port flapping? Don’t bother releasing it without
