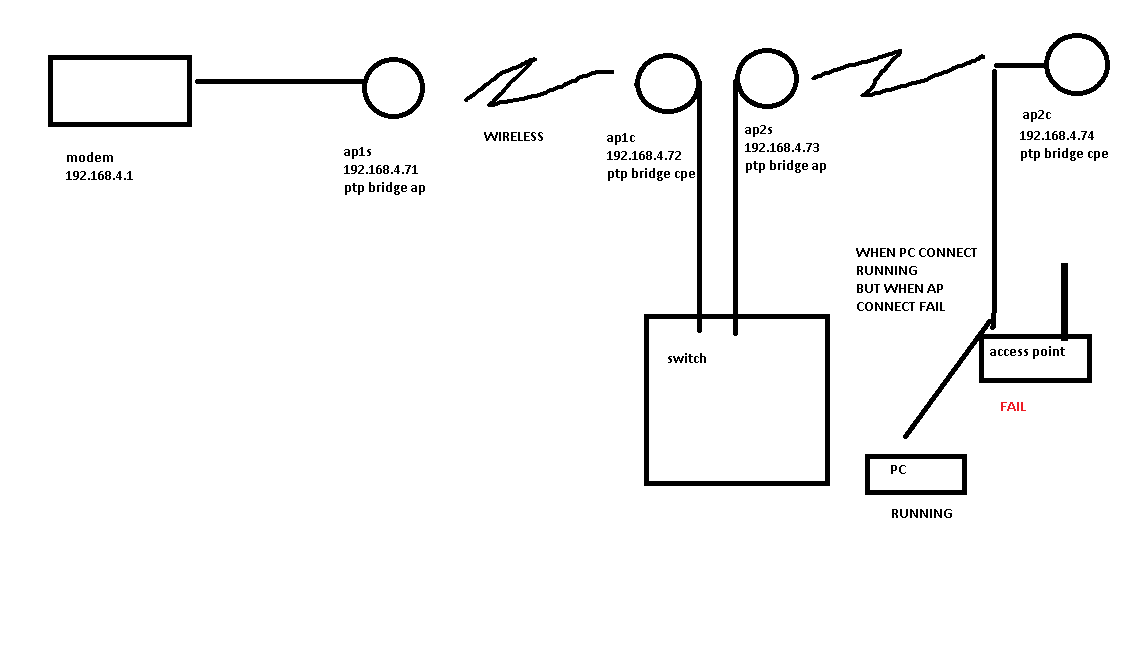

i have got 4 mikrotik device. i am attached network topology. everything works fine but when i what to connect over 2 ptp connection wireless with ap i can’t connect the internet. but when i am plug the pc internet is running. what am i doing wrong. please help me. thank you.
Do clients (wired and wireless) of AP request IP settings (address etc.) using DHCP? Where’s your DHCP server?
Which particular modes do the PtP devices (ap1s, ap1c, ap2s and ap2c) run? Is the right-most device running bot PtP (ap2c) and WiFi AP or are those different devices?
modem is dhcp server.
ap devices are static ip.
another pc and phones are using dhcp.
ap1s ptp bridge ap
ap1c ptp bridge cpe
ap2s ptp bridge ap
ap2c ptp bridge cpe
ap1s mikrotik
ap1c mikrotik
ap2s mikrotik
ap2c mikrotik
We want to now, what you have selected in wireless tab, like
- AP Bridge
- Bridge
- Station
- Station Bridge
Etc…
Excuse me.
ap1s bridge
ap1c station bridge
ap2s bridge
ap2c station pseudobridge
For all Mikrotik don’t use pseudobridge
thank you very much. i will test and send test result.
