Hey Community’

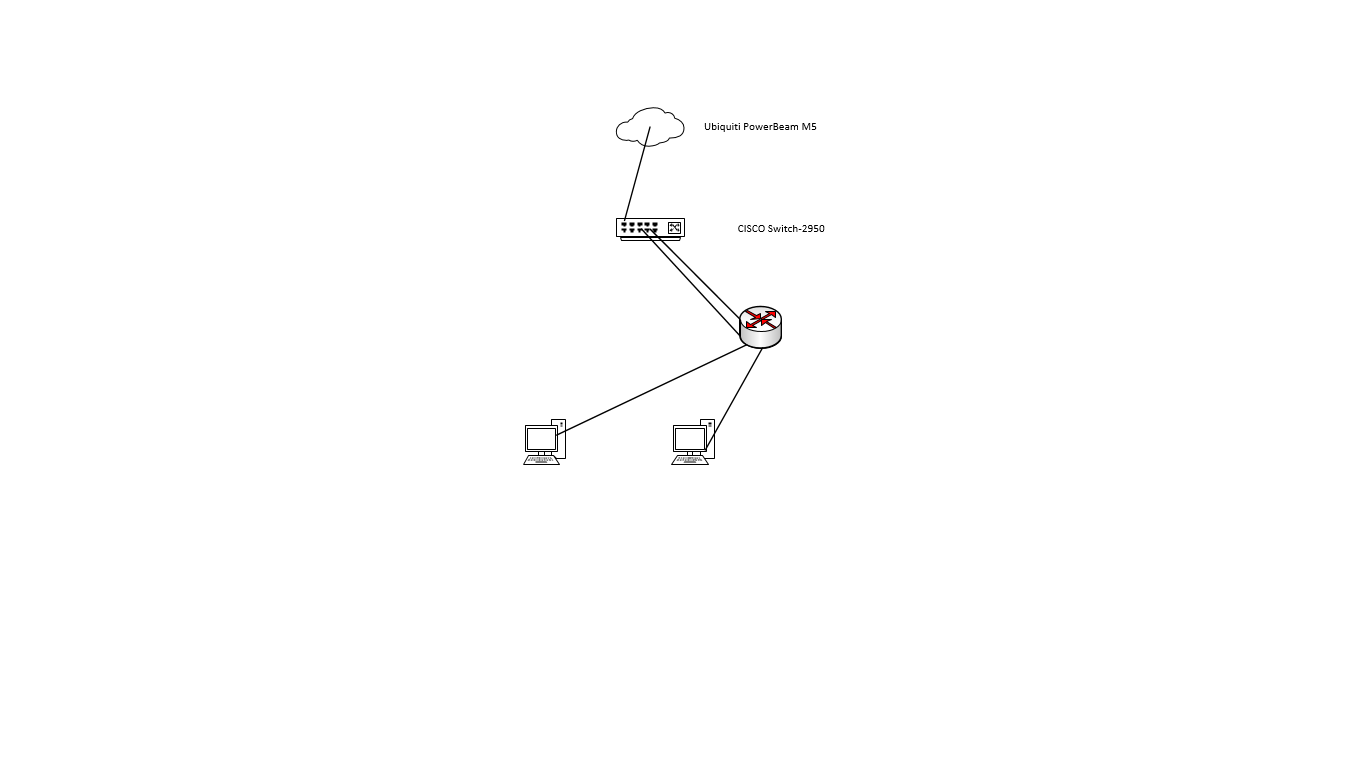

I need to know that how can I configure 2 up-links in mikrotik. I have attached network diagram for review. In network diagram Upiquiti device connected to CISCO 2950 Switch. In mikrotik 2 ports configured as WAN1 & WAN2 & 2 ports are configured LAN1 & LAN2. If I send all the traffic using WAN1 it’s working well but WAN2 isn’t working. Please suggest how can I deploy both WAN1 & WAN2 as working condition.
Any other configuration will be provided.
Regards’
Hi,
If you want LAN1 to use WAN1 and LAN2 to use WAN2, you should configure policy routing.
https://wiki.mikrotik.com/wiki/Policy_Base_Routing
If you want to configure load balancing, RouterOS has many load balancing methods, I would suggest PCC.
https://wiki.mikrotik.com/wiki/Manual:PCC
Osman Kazdal
Hey Osman Kazdal’
It’s really helpful. Both WAN links are working but now I am unable to ping from LAN2 to LAN1. For Example I have set private IP Address on LAN2 is 192.168.50.0/24 & on LAN is 192.168.1.0/24. If I ping from 192.168.50.0/24 to 192.168.1.0/24, unsuccessful, but if ping from 192.168.1.0/24 to 192.168.50.0/24, it’s successful.
Regards’
What did you used?
Policy base routing or PCC ?
Hey francisconeto’
I am using PBR.
Regards’
Try add a new entry with dst-address=192.168.0.0/16 to lookup to main table.
Put this new entry at the top.
Hey francisconeto
Where I have to add this entry? Mean to say add into firewall or add into routes? Please guide.
Regards’
Add this new entry in your PBRs.
Now that I see that maybe you use PBR with firewall mangle.
In this case just create a new mangle rule with dst-address=192.168.0.0/16 action=accept and put on the top.
Hey francisconeto
Yes, I am using PBR with mangle rule. I have created suggested entry. Right now I am not on the location. I will update you after check.
Regards’
Hey francisconeto’
I have checked but I am unable to Ping client addresses from 192.168.1.1. For example: if I ping from 192.168.1.1 to 192.168.50.1 it is successful but if I ping from 192.168.1.1 to 192.168.50.101, 102 etc it is unsuccessful. Please guide. One thing more, when I ping from 192.168.50.1 everything is accessible.
Regards’
