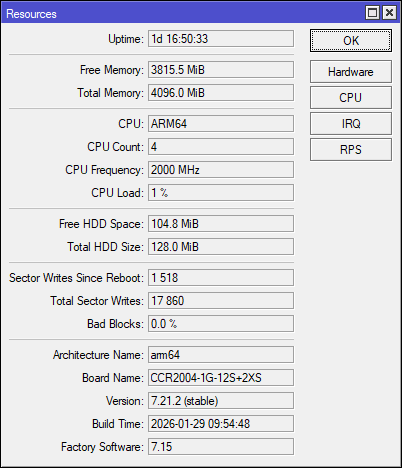

Recently I bought new CCR2004-1G-12S+2XS, it appear that has 2GHz CPU speed, and handling 2Gbps PON + PPPoE is stable
but other CCR2004-1G-12S+2XS just tun at 1.7GHz, is not possible to increase CPU speed?
give extra 300MHz would help 2Gbps PON PPPoE stability
The two items "belong" to different production batches/board revisions, one is factory software 7.9 (older, 1700 MHz) and one is 7.15 (newer, 2000 MHz), sometimes Mikrotik makes these kinds of changes without publishing anything about it, if you check the device page:
https://mikrotik.com/product/ccr2004_1g_12s_2xs
it still has 1700 MHz listed as CPU speed.
You can check what you have as options under:
/system routerboard settings set cpu-frequency=[TAB]
> /system device-mode print
mode: advanced
allowed-versions: 7.13+,6.49.8+
flagged: no
flagging-enabled: yes
scheduler: yes
socks: yes
fetch: yes
pptp: yes
l2tp: yes
bandwidth-test: yes
traffic-gen: no
sniffer: yes
ipsec: yes
romon: yes
proxy: yes
hotspot: yes
smb: yes
email: yes
zerotier: yes
container: no
install-any-version: no
partitions: no
routerboard: yes
attempt-count: 0
> /system routerboard settings set
auto-upgrade boot-protocol etherboot-port preboot-etherboot-server
baud-rate cpu-frequency force-backup-booter protected-routerboot
boot-delay disable-pci gpio-function reformat-hold-button
boot-device enable-jumper-reset init-delay reformat-hold-button-max
boot-os enter-setup-on preboot-etherboot silent-boot
> /system routerboard settings set cpu-frequency=2000
input does not match any value of cpu-frequency
> /system routerboard settings set cpu-frequency=2000MHz
input does not match any value of cpu-frequency
> /system routerboard settings set cpu-frequency=2GHz
input does not match any value of cpu-frequency
> /system routerboard settings get cpu-frequency
> /system routerboard settings print
auto-upgrade: no
baud-rate: 115200
boot-delay: 2s
enter-setup-on: delete-key
boot-device: nand-if-fail-then-ethernet
preboot-etherboot: disabled
preboot-etherboot-server: any
boot-protocol: bootp
enable-jumper-reset: yes
force-backup-booter: no
silent-boot: no
protected-routerboot: disabled
reformat-hold-button: 20s
reformat-hold-button-max: 10m
seem can't set CPU Speed
It’s not possible to increase CPU speed. The newer one with 2GHz ist a different hardware revision.
Could you check for any "/r2" or other discriminator to the first model? Just asking but it could explain the "mistery".
just type /r2 in terminal?
No, on the label on the chasiss or box it camoe in. Maybe model could show it.
/system/routerboard/print
It shows up in /system/routerboard/print as revision. It is not present for the base version.

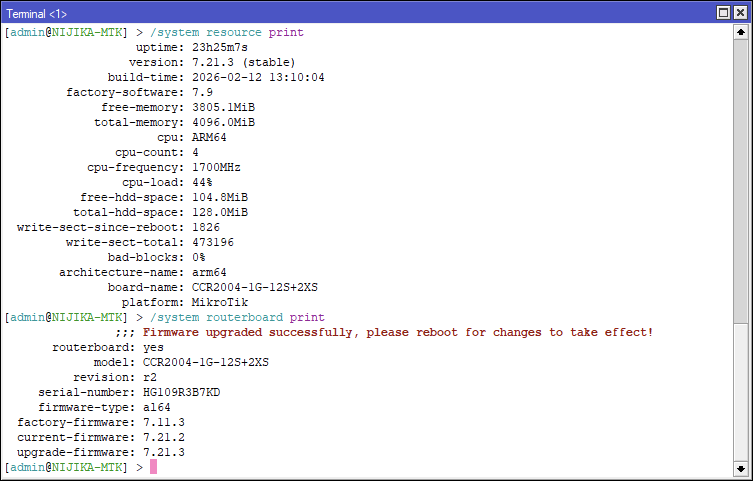

[admin@NIJIKA-MTK] > /system resource print
uptime: 23h25m7s
version: 7.21.3 (stable)
build-time: 2026-02-12 13:10:04
factory-software: 7.9
free-memory: 3805.1MiB
total-memory: 4096.0MiB
cpu: ARM64
cpu-count: 4
cpu-frequency: 1700MHz
cpu-load: 44%
free-hdd-space: 104.8MiB
total-hdd-space: 128.0MiB
write-sect-since-reboot: 1826
write-sect-total: 473196
bad-blocks: 0%
architecture-name: arm64
board-name: CCR2004-1G-12S+2XS
platform: MikroTik
[admin@NIJIKA-MTK] > /system routerboard print
;;; Firmware upgraded successfully, please reboot for changes to take effect!
routerboard: yes
model: CCR2004-1G-12S+2XS
revision: r2
serial-number: HG109R3B7KD
firmware-type: al64
factory-firmware: 7.11.3
current-firmware: 7.21.2
upgrade-firmware: 7.21.3
This CCR2004 really can't handle 2Gbps, the FastPath & FastTrack didn't work because of PPPoE Client pegging cpu0
I wish Mikrotik release 3GHz CCR just to support stupid ISP and stupid ancient PPPoE
So you have the newer faster model.
Are you sure it cant handle?I have CCR2004-16G-2S+ with exact same CPU(1700mhz), it handles 2200mbit on pppoe client without breaking a sweat, only 25% CPU usage with 25+FW rules.
but not fast enough to handle 2Gbps plan
yours on XGSPON?

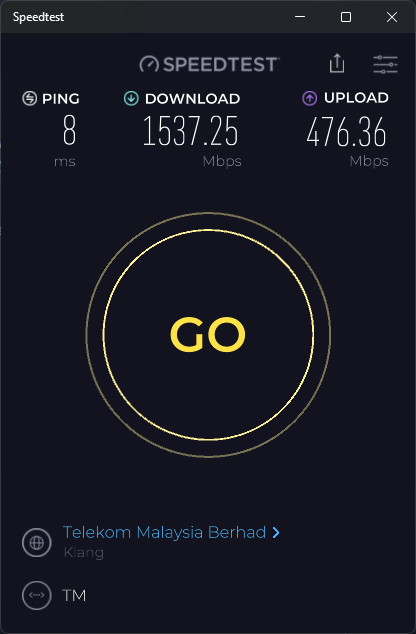

mine still in GPON, this speed test already peg the cpu2 at 100%
I conclude that CCR2004 incapable to handle 2Gbps PPPoE, the SoC lacks of any NPU
Perhaps Mikrotik build new router using MediaTek Filogic 880 that has NPU build-in, 2.5GbE x 4 + 2 x SFP+ and PPPoE can be offload to SoC
