Hello,
I am trying the last couple of days to find a solution to a problem I have.

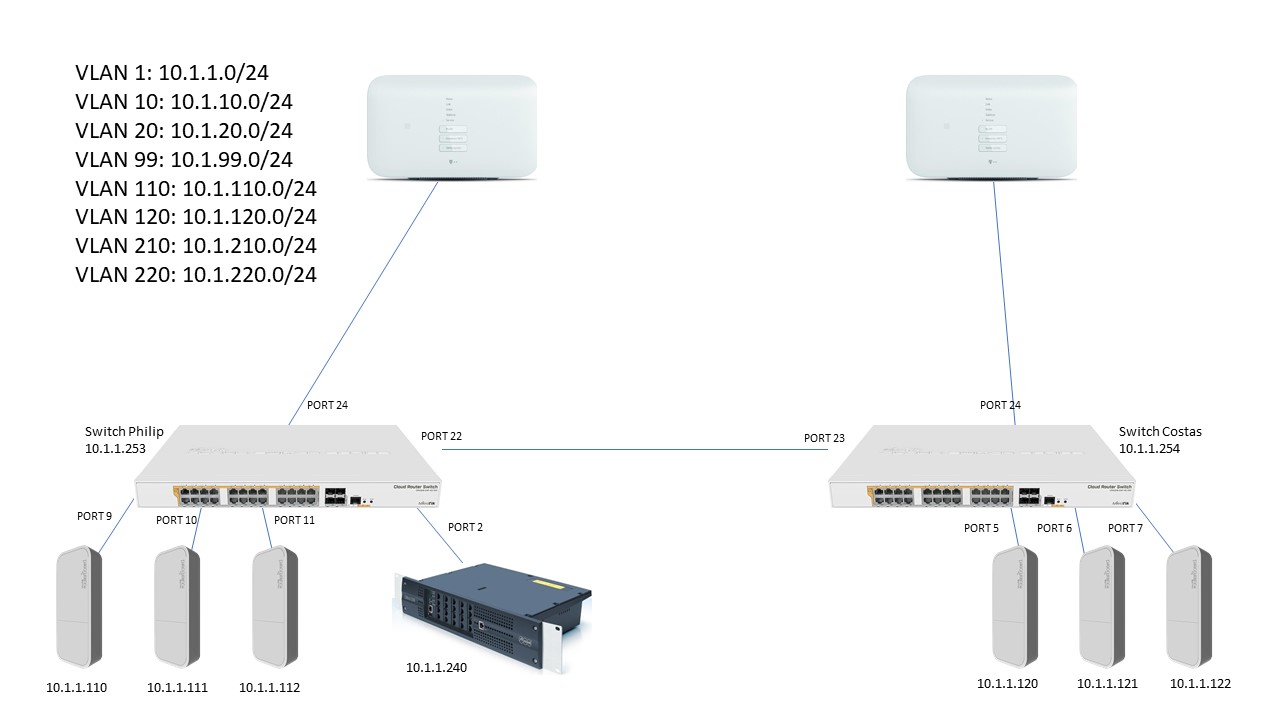

Currently we have installed two CRS328 which are connected together. These are installed in two houses.
I have configured various VLANs. Most of them are personal for each house, but we also have at least a couple shared.
By the way, I have changed something and the first VLAN is not 1 but 100.
The problem is that intervlan routing is working partially. The clients from VLAN 20 can access VLAN 100 and vice versa, but the clients from VLAN 10 not.
I am not sure what I am missing in the config.
Here is the config of 10.1.1.253:
/caps-man channel
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2412 name=ch_01_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2417 name=ch_02_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2422 name=ch_03_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2427 name=ch_04_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2432 name=ch_05_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2437 name=ch_06_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2442 name=ch_07_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2447 name=ch_08_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2452 name=ch_09_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2457 name=ch_10_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2462 name=ch_11_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2467 name=ch_12_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2472 name=ch_13_2400_20_bgn
/interface bridge
add admin-mac=B8:69:F4:E5:1E:AC auto-mac=no comment=defconf name=bridge vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] comment="*** Sony TV ***"
set [ find default-name=ether2 ] comment="*** COMpact 5500R ***"
set [ find default-name=ether3 ] comment="*** COMfortel WS-400 ***"
set [ find default-name=ether4 ] comment="*** COMfortel 3600IP ***"
set [ find default-name=ether9 ] comment="*** AP basement ***"
set [ find default-name=ether10 ] comment="*** AP ground floor ***"
set [ find default-name=ether11 ] comment="*** AP 1st floor ***"
set [ find default-name=ether22 ] comment="*** Link ***"
set [ find default-name=ether23 ] comment="*** Nova ***"
set [ find default-name=ether24 ] comment="*** Modem ***"
set [ find default-name=sfp-sfpplus1 ] auto-negotiation=no speed=10Gbps
set [ find default-name=sfp-sfpplus2 ] disabled=yes
set [ find default-name=sfp-sfpplus3 ] disabled=yes
set [ find default-name=sfp-sfpplus4 ] disabled=yes
/interface pppoe-client
add allow=pap,chap disabled=no interface=ether24 keepalive-timeout=900 max-mru=1492 max-mtu=1492 name=pppoe-Philip password=***** user=************
/interface vlan
add comment=Native interface=bridge mtu=1492 name="VLAN 1 - Native" vlan-id=1
add comment=Philip interface=bridge mtu=1492 name="VLAN 10 - Philip" vlan-id=10
add comment=Costas interface=bridge mtu=1492 name="VLAN 20 - Costas" vlan-id=20
add comment=Security interface=bridge mtu=1492 name="VLAN 99 - Security" vlan-id=99
add comment="Common " interface=bridge name="VLAN 100 - Common" vlan-id=100
add comment="Philip guest " interface=bridge mtu=1492 name="VLAN 110 - PL Guest" vlan-id=110
add comment="Costas guest " interface=bridge mtu=1492 name="VLAN 120 - CL Guest" vlan-id=120
add comment=PL_Shelly interface=bridge mtu=1492 name="VLAN 210 - PL_Shelly" vlan-id=210
add comment=CL_Shelly interface=bridge mtu=1492 name="VLAN 220 - CL_Shelly" vlan-id=220
/caps-man datapath
add bridge=bridge client-to-client-forwarding=yes name=datapath1
/caps-man security
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=Costas_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=Philip_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=CL_guest_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=PL_guest_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=CLShelly passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=PLShelly passphrase=******
/caps-man configuration
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=20 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=CL rx-chains=0,1 security=Costas_sec \
ssid=LCHome tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=10 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=PL rx-chains=0,1 security=Philip_sec \
ssid="Philip Home" tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=110 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=PL_guest rx-chains=0,1 security=\
PL_guest_sec ssid="Philip Guest" tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=120 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=CL_guest rx-chains=0,1 security=\
CL_guest_sec ssid="Costas Guest" tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=220 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hide-ssid=yes hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name="CL Shelly" rx-chains=\
0,1 security=CLShelly ssid=CLShelly tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=210 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hide-ssid=yes hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name="PL Shelly" rx-chains=\
0,1 security=PLShelly ssid=PLShelly tx-chains=0,1
/caps-man interface
add configuration=CL disabled=no l2mtu=1600 mac-address=CC:2D:E0:7B:C5:EB master-interface=none name="LP 1st floor-1" radio-mac=CC:2D:E0:7B:C5:EB radio-name=CC2DE07BC5EB
add configuration=PL disabled=no l2mtu=1600 mac-address=CE:2D:E0:7B:C5:EB master-interface="LP 1st floor-1" name="LP 1st floor-1-1" radio-mac=00:00:00:00:00:00 radio-name=CE2DE07BC5EB
add configuration=CL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:7B:C5:EC master-interface="LP 1st floor-1" name="LP 1st floor-1-2" radio-mac=00:00:00:00:00:00 radio-name=CE2DE07BC5EC
add configuration=PL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:7B:C5:ED master-interface="LP 1st floor-1" name="LP 1st floor-1-3" radio-mac=00:00:00:00:00:00 radio-name=CE2DE07BC5ED
add configuration="CL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:7B:C5:EE master-interface="LP 1st floor-1" name="LP 1st floor-1-4" radio-mac=00:00:00:00:00:00 radio-name=CE2DE07BC5EE
add configuration="PL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:7B:C5:EF master-interface="LP 1st floor-1" name="LP 1st floor-1-5" radio-mac=00:00:00:00:00:00 radio-name=CE2DE07BC5EF
add configuration=CL disabled=no l2mtu=1600 mac-address=CC:2D:E0:96:95:DB master-interface=none name="LP basement-1" radio-mac=CC:2D:E0:96:95:DB radio-name=CC2DE09695DB
add configuration=PL disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:95:DB master-interface="LP basement-1" name="LP basement-1-1" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09695DB
add configuration=CL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:95:DC master-interface="LP basement-1" name="LP basement-1-2" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09695DC
add configuration=PL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:95:DD master-interface="LP basement-1" name="LP basement-1-3" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09695DD
add configuration="CL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:95:DE master-interface="LP basement-1" name="LP basement-1-4" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09695DE
add configuration="PL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:95:DF master-interface="LP basement-1" name="LP basement-1-5" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09695DF
add configuration=CL disabled=no l2mtu=1600 mac-address=CC:2D:E0:96:92:F5 master-interface=none name="LP ground floor-1" radio-mac=CC:2D:E0:96:92:F5 radio-name=CC2DE09692F5
add configuration=PL disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:92:F5 master-interface="LP ground floor-1" name="LP ground floor-1-1" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09692F5
add configuration=CL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:92:F6 master-interface="LP ground floor-1" name="LP ground floor-1-2" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09692F6
add configuration=PL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:92:F7 master-interface="LP ground floor-1" name="LP ground floor-1-3" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09692F7
add configuration="CL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:92:F8 master-interface="LP ground floor-1" name="LP ground floor-1-4" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09692F8
add configuration="PL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:92:F9 master-interface="LP ground floor-1" name="LP ground floor-1-5" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09692F9
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
add name=GW10
add name=GW20
add name=GW110
add name=GW120
add name=GW99
add name=GW210
add name=GW220
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/ip pool
add name=Philip ranges=10.1.10.50-10.1.10.149
add name="PL Guest" ranges=10.1.110.50-10.1.110.149
add name="PL Shelly" ranges=10.1.210.50-10.1.210.149
add name=Common ranges=10.1.1.50-10.1.1.99
add name=Native ranges=10.1.100.50-10.1.100.99
/ip dhcp-server
add address-pool=Philip disabled=no interface="VLAN 10 - Philip" lease-time=1d name="Philip DHCP"
add address-pool="PL Guest" disabled=no interface="VLAN 110 - PL Guest" lease-time=30m name="PL Guest DHCP"
add address-pool="PL Shelly" disabled=no interface="VLAN 210 - PL_Shelly" lease-time=1d name="PL Shelly DHCP"
add address-pool=Native disabled=no interface="VLAN 1 - Native" lease-time=1d name="Native DHCP"
add address-pool=Common disabled=no interface="VLAN 100 - Common" lease-time=1d name="Common DHCP"
/ppp profile
add bridge=bridge dns-server=10.1.1.254 local-address=10.1.1.254 name=OVPNprofile remote-address=Common
/caps-man manager
set ca-certificate=CAPsMAN-CA-B869F4E51EAC certificate=CAPsMAN-B869F4E51EAC enabled=yes
/caps-man manager interface
add disabled=no interface=bridge
/caps-man provisioning
add action=create-enabled hw-supported-modes=gn,b master-configuration=CL name-format=identity slave-configurations="PL,CL_guest,PL_guest,CL Shelly,PL Shelly"
/interface bridge port
add bridge=bridge comment=VLAN10 frame-types=admit-only-untagged-and-priority-tagged interface=ether1 pvid=10
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether2 pvid=100
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether3 pvid=100
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether4 pvid=100
add bridge=bridge comment=VLAN10 frame-types=admit-only-untagged-and-priority-tagged interface=ether5 pvid=10
add bridge=bridge comment=VLAN10 frame-types=admit-only-untagged-and-priority-tagged interface=ether6 pvid=10
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether7
add bridge=bridge comment=VLAN10 frame-types=admit-only-untagged-and-priority-tagged interface=ether8 pvid=10
add bridge=bridge comment=defconf interface=ether9 pvid=100
add bridge=bridge comment=defconf interface=ether10 pvid=100
add bridge=bridge comment=defconf interface=ether11 pvid=100
add bridge=bridge comment=defconf interface=ether12
add bridge=bridge comment=defconf interface=ether13
add bridge=bridge comment=defconf interface=ether14
add bridge=bridge comment=defconf interface=ether15
add bridge=bridge comment=defconf interface=ether16
add bridge=bridge comment=defconf interface=ether17
add bridge=bridge comment=defconf interface=ether18
add bridge=bridge comment=defconf interface=ether19
add bridge=bridge comment=defconf interface=ether20
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether21
add bridge=bridge comment=defconf interface=ether22
add bridge=bridge comment=defconf interface=ether23 pvid=100
add bridge=bridge comment=defconf interface=sfp-sfpplus1
add bridge=bridge comment=defconf interface=sfp-sfpplus2
add bridge=bridge comment=defconf interface=sfp-sfpplus3
add bridge=bridge comment=defconf interface=sfp-sfpplus4
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 1 - Native"
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 10 - Philip" pvid=10
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 20 - Costas" pvid=20
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 99 - Security" pvid=99
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 110 - PL Guest" pvid=110
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 120 - CL Guest" pvid=120
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 210 - PL_Shelly" pvid=210
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 220 - CL_Shelly" pvid=220
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 100 - Common" pvid=100
/ip settings
set allow-fast-path=no
/interface bridge vlan
add bridge=bridge tagged="ether22,bridge,ether9,ether10,ether11,VLAN 10 - Philip" vlan-ids=10
add bridge=bridge tagged="ether9,bridge,ether11,ether10,ether22,VLAN 20 - Costas" vlan-ids=20
add bridge=bridge tagged="bridge,VLAN 1 - Native" vlan-ids=1
add bridge=bridge tagged="ether22,bridge,ether9,ether10,ether11,VLAN 110 - PL Guest" vlan-ids=110
add bridge=bridge tagged="ether22,bridge,ether9,ether10,ether11,VLAN 120 - CL Guest" vlan-ids=120
add bridge=bridge tagged="ether22,bridge,ether9,ether10,ether11,VLAN 210 - PL_Shelly" vlan-ids=210
add bridge=bridge tagged="ether22,bridge,ether9,ether10,ether11,VLAN 220 - CL_Shelly" vlan-ids=220
add bridge=bridge tagged="ether22,bridge,VLAN 99 - Security" vlan-ids=99
add bridge=bridge tagged="bridge,ether22,VLAN 100 - Common" vlan-ids=100
/interface list member
add interface=ether24 list=WAN
add interface=bridge list=LAN
add interface=pppoe-Philip list=WAN
add interface=pppoe-Philip list=GW110
add interface=pppoe-Philip list=GW210
/interface ovpn-server server
set auth=sha1 certificate=cert_export_ca.crt_0.crt_0 cipher=aes256 default-profile=OVPNprofile enabled=yes port=1443
/ip address
add address=10.1.1.253/24 comment=Common interface="VLAN 100 - Common" network=10.1.1.0
add address=10.1.10.1/24 comment="Philip Gateway" interface="VLAN 10 - Philip" network=10.1.10.0
add address=10.1.110.1/24 comment="PL Guest Gateway" interface="VLAN 110 - PL Guest" network=10.1.110.0
add address=10.1.210.1/24 comment="PL Shelly Gateway" interface="VLAN 210 - PL_Shelly" network=10.1.210.0
add address=10.1.252.1/30 interface=ether24 network=10.1.252.0
add address=10.1.20.254/24 comment="Costas VLAN" interface="VLAN 20 - Costas" network=10.1.20.0
add address=10.1.120.254/24 comment="CL Guest VLAN" interface="VLAN 120 - CL Guest" network=10.1.120.0
add address=10.1.220.254/24 comment="CL_Selly VLAN" interface="VLAN 220 - CL_Shelly" network=10.1.220.0
add address=10.1.99.254/24 comment="Security VLAN" interface="VLAN 99 - Security" network=10.1.99.0
add address=10.1.100.253/24 interface="VLAN 1 - Native" network=10.1.100.0
/ip dhcp-server lease
add address=10.1.1.50 comment="Nova Costas" mac-address=B4:F2:E8:96:8B:64 server="Native DHCP"
add address=10.1.1.51 comment="Nova Philip" mac-address=E8:82:5B:5C:C5:07 server="Native DHCP"
add address=10.1.1.120 client-id=1:e4:8d:8c:ce:d1:a6 mac-address=E4:8D:8C:CE:D1:A6 server="Native DHCP"
add address=10.1.1.121 client-id=1:cc:2d:e0:96:96:cc mac-address=CC:2D:E0:96:96:CC server="Native DHCP"
add address=10.1.1.122 client-id=1:cc:2d:e0:9d:73:bc mac-address=CC:2D:E0:9D:73:BC server="Native DHCP"
add address=10.1.1.111 client-id=1:cc:2d:e0:96:92:f4 mac-address=CC:2D:E0:96:92:F4 server="Native DHCP"
add address=10.1.1.110 client-id=1:cc:2d:e0:96:95:da mac-address=CC:2D:E0:96:95:DA server="Native DHCP"
add address=10.1.1.112 mac-address=CC:2D:E0:7B:C5:EA server="Native DHCP"
/ip dhcp-server network
add address=10.1.1.0/24 comment="Common Network" dns-server=8.8.8.8,8.8.4.4 gateway=10.1.1.254
add address=10.1.10.0/24 comment="Philip Network" dns-server=1.1.1.1,1.0.0.1 gateway=10.1.10.1
add address=10.1.100.0/24 comment="Native Network" dns-server=1.1.1.1,1.0.0.1 gateway=10.1.100.254 netmask=24
add address=10.1.110.0/24 comment="PL Guest Network" dns-server=8.8.8.8,8.8.4.4 gateway=10.1.110.1
add address=10.1.210.0/24 comment="PL Shelly network " dns-server=1.1.1.1,1.0.0.1 gateway=10.1.210.1 ntp-server=10.1.1.240
/ip dns
set servers=1.1.1.1,1.0.0.1
/ip firewall address-list
add address=10.1.1.0/24 list=Common
add address=10.1.10.0/24 list=Philip
add address=10.1.20.0/24 list=Costas
add address=192.168.2.0/24 list=Office
add address=10.1.99.0/24 list=Security
add address=10.1.110.0/24 list="PL Guest"
add address=10.1.120.0/24 list="CL Guest"
add address=10.1.210.0/24 list=PL_Shelly
add address=10.1.220.0/24 list=CL_Shelly
add address=10.1.1.0/24 list=Local
add address=10.1.10.0/24 list=Local
add address=10.1.20.0/24 list=Local
add address=10.1.99.0/24 list=Local
add address=192.168.2.0/24 list=Local
add address=10.1.100.0/24 list=Local
add address=10.1.252.0/30 list=Local
add address=10.1.252.4/30 list=Local
add address=10.1.199.0/24 list=Local
/ip firewall filter
add action=accept chain=input protocol=ipsec-ah
add action=accept chain=input protocol=ipsec-esp
add action=accept chain=input port=500 protocol=udp
add action=accept chain=input port=4500 protocol=udp
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=accept chain=input comment="VPN connections" dst-port=443 protocol=tcp
add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
add action=jump chain=input comment="Jump to DNS_DDoS Chain" jump-target=DNS_DDoS
add action=accept chain=DNS_DDoS comment="Make exceptions for DNS" port=53 protocol=udp src-address-list=DNS_Accept
add action=accept chain=DNS_DDoS comment="Make exceptions for DNS" dst-address-list=DNS_Accept port=53 protocol=tcp
add action=add-src-to-address-list address-list=DNS_DDoS address-list-timeout=none-dynamic chain=DNS_DDoS comment="Add DNS_DDoS Offenders to Blacklist" port=53 protocol=udp src-address-list=!DNS_Accept
add action=drop chain=DNS_DDoS comment="Drop DNS_DDoS Offenders" src-address-list=DNS_DDoS
add action=return chain=DNS_DDoS comment="Return from DNS_DDoS Chain"
add action=accept chain=icmp comment="Echo reply" icmp-options=0:0 protocol=icmp
add action=accept chain=icmp comment="Net unreachable" icmp-options=3:0 protocol=icmp
add action=accept chain=icmp comment="Host unreachable" icmp-options=3:1 protocol=icmp
add action=accept chain=icmp comment="Allow source quench" icmp-options=4:0 protocol=icmp
add action=accept chain=icmp comment="Allow echo request" icmp-options=8:0 protocol=icmp
add action=accept chain=icmp comment="Allow time exceed" icmp-options=11:0 protocol=icmp
add action=accept chain=icmp comment="Allow parameter bad" icmp-options=12:0 protocol=icmp
add action=drop chain=icmp comment="Deny all other types"
add action=drop chain=input comment="Disable ICMP ping" in-interface=pppoe-Philip protocol=icmp
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="Port scanners to list " in-interface=pppoe-Philip protocol=tcp psd=21,3s,3,1
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="NMAP FIN Stealth scan" protocol=tcp tcp-flags=fin,!syn,!rst,!psh,!ack,!urg
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="SYN/FIN scan" protocol=tcp tcp-flags=fin,syn
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="SYN/RST scan" protocol=tcp tcp-flags=syn,rst
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="FIN/PSH/URG scan" protocol=tcp tcp-flags=fin,psh,urg,!syn,!rst,!ack
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="ALL/ALL scan" protocol=tcp tcp-flags=fin,syn,rst,psh,ack,urg
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="NMAP NULL scan" protocol=tcp tcp-flags=!fin,!syn,!rst,!psh,!ack,!urg
add action=drop chain=input comment="Dropping port scanners" src-address-list="port scanners"
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=accept chain=input in-interface=pppoe-Philip
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
add action=drop chain=input comment="defconf: drop all not coming from LAN" disabled=yes in-interface-list=!LAN
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
/ip firewall mangle
add action=mark-routing chain=prerouting dst-address-list=Local new-routing-mark=Intervlan passthrough=no src-address-list=Local
add action=mark-routing chain=prerouting dst-address-list=Local in-interface=bridge new-routing-mark=Intervlan passthrough=no
add action=mark-routing chain=prerouting dst-address-type=!local new-routing-mark=Nova_Costas passthrough=no src-address=10.1.1.50
add action=mark-routing chain=prerouting new-routing-mark=Nova_Philip passthrough=no src-address=10.1.1.51 src-address-type=!local
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type=!local new-routing-mark=Common passthrough=yes src-address-list=Common
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type=!local new-routing-mark=Philip passthrough=yes src-address-list=Philip
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type=!local new-routing-mark=Costas passthrough=yes src-address-list=Costas
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type="" new-routing-mark=CL_Guest passthrough=no src-address-list="CL Guest"
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type="" new-routing-mark=PL_Guest passthrough=no src-address-list="PL Guest"
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type=!local new-routing-mark=PL_Shelly passthrough=yes src-address-list=PL_Shelly
add action=mark-routing chain=prerouting dst-address-list=!Local dst-address-type=!local new-routing-mark=CL_Shelly passthrough=yes src-address-list=CL_Shelly
add action=change-mss chain=forward new-mss=1452 out-interface=pppoe-Philip passthrough=yes protocol=tcp tcp-flags=syn,!rst tcp-mss=1453-65535
add action=change-mss chain=forward in-interface=pppoe-Philip new-mss=1452 passthrough=yes protocol=tcp tcp-flags=syn,!rst tcp-mss=1453-65535
/ip firewall nat
add action=accept chain=input in-interface=bridge ipsec-policy=in,ipsec
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.1.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.10.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.20.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.99.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.120.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.110.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.210.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.220.0/24
add action=masquerade chain=srcnat comment="NAT for Modem" dst-address=10.1.252.2 out-interface=ether24 src-address-list=Local
add action=masquerade chain=srcnat out-interface=pppoe-Philip
/ip firewall service-port
set sip disabled=yes
/ip route
add check-gateway=ping distance=1 gateway=10.1.1.254 routing-mark=Nova_Costas
add check-gateway=ping distance=1 gateway=pppoe-Philip routing-mark=Nova_Philip
add check-gateway=ping distance=1 gateway=10.1.1.254 routing-mark=Common
add check-gateway=ping distance=2 gateway=pppoe-Philip routing-mark=Common
add check-gateway=ping distance=1 gateway=pppoe-Philip routing-mark=Philip
add check-gateway=ping distance=2 gateway=10.1.1.254 routing-mark=Philip
add check-gateway=ping distance=1 gateway=10.1.1.254 routing-mark=Costas
add check-gateway=ping distance=2 gateway=pppoe-Philip routing-mark=Costas
add check-gateway=ping distance=1 gateway=10.1.1.254 routing-mark=CL_Guest
add check-gateway=ping distance=1 gateway=pppoe-Philip routing-mark=PL_Guest
add check-gateway=ping distance=1 gateway=pppoe-Philip routing-mark=PL_Shelly
add check-gateway=ping distance=2 gateway=10.1.1.254 routing-mark=PL_Shelly
add check-gateway=ping distance=1 gateway=10.1.1.254 routing-mark=CL_Shelly
add check-gateway=ping distance=2 gateway=pppoe-Philip routing-mark=CL_Shelly
add check-gateway=ping distance=1 gateway=pppoe-Philip
add check-gateway=ping distance=1 gateway=10.1.1.254
add check-gateway=ping distance=2 gateway=pppoe-Philip
add distance=1 dst-address=192.168.2.0/24 gateway=10.1.1.254
add check-gateway=ping distance=1 dst-address=xxx.xxx.xxx.xxx/32 gateway=10.1.1.254
add check-gateway=ping distance=2 dst-address=xxx.xxx.xxx.xxx/32 gateway=pppoe-Philip
/ip service
set telnet address=10.1.0.0/16,192.168.2.0/24
set ftp address=10.1.0.0/16,192.168.2.0/24
set www address=10.1.0.0/16,192.168.2.0/24
set ssh address=10.1.0.0/16,192.168.2.0/24
set api address=10.1.0.0/16,192.168.2.0/24
set winbox address=10.1.0.0/16,192.168.2.0/24
set api-ssl address=10.1.0.0/16,192.168.2.0/24
/ip ssh
set allow-none-crypto=yes forwarding-enabled=remote
/ppp secret
add name=******** password=*********** service=ovpn
/system clock
set time-zone-name=Europe/Athens
/system identity
set name="Switch Philip"
/system ntp client
set enabled=yes primary-ntp=194.177.210.54 secondary-ntp=62.217.127.33 server-dns-names=gr.pool.ntp.org
/system routerboard settings
set boot-os=router-os
And the one from 10.1.1.254:
/caps-man channel
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2412 name=ch_01_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2417 name=ch_02_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2422 name=ch_03_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2427 name=ch_04_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2432 name=ch_05_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2437 name=ch_06_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2442 name=ch_07_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2447 name=ch_08_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2452 name=ch_09_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2457 name=ch_10_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2462 name=ch_11_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2467 name=ch_12_2400_20_bgn
add band=2ghz-b/g/n control-channel-width=20mhz extension-channel=disabled frequency=2472 name=ch_13_2400_20_bgn
/interface bridge
add admin-mac=74:4D:28:E3:E8:86 auto-mac=no comment=defconf name=bridge vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] comment="*** PC office ***"
set [ find default-name=ether2 ] comment="*** Sony TV/PS4/Home Cinema ***"
set [ find default-name=ether3 ] comment="*** COMfortel 3600IP ***"
set [ find default-name=ether4 ] comment="*** COMfortel WS-Base ***"
set [ find default-name=ether5 ] comment="*** AP basement ***"
set [ find default-name=ether6 ] comment="*** AP ground floor ***"
set [ find default-name=ether7 ] comment="*** AP 1st floor ***"
set [ find default-name=ether8 ] comment="*** NAS ***"
set [ find default-name=ether22 ] comment="*** Link ***"
set [ find default-name=ether23 ] poe-out=off
set [ find default-name=ether24 ] comment="*** Modem ***"
set [ find default-name=sfp-sfpplus1 ] auto-negotiation=no comment="*** Link ***" disabled=yes speed=10Gbps
set [ find default-name=sfp-sfpplus2 ] disabled=yes
set [ find default-name=sfp-sfpplus3 ] disabled=yes
set [ find default-name=sfp-sfpplus4 ] disabled=yes
/interface pppoe-client
add allow=pap,chap disabled=no interface=ether24 keepalive-timeout=900 max-mru=1492 max-mtu=1492 name=pppoe-Costas password=o5-1mlc user=oujphk@otenet.gr
/interface vlan
add comment=Native interface=bridge mtu=1492 name="VLAN 1 - Native" vlan-id=1
add comment=Philip interface=bridge mtu=1492 name="VLAN 10 - Philip" vlan-id=10
add comment=Costas interface=bridge mtu=1492 name="VLAN 20 - Costas" vlan-id=20
add comment=Security interface=bridge mtu=1492 name="VLAN 99 - Security" vlan-id=99
add comment=Common interface=bridge name="VLAN 100 - Common" vlan-id=100
add comment="Philip guest " interface=bridge mtu=1492 name="VLAN 110 - PL Guest" vlan-id=110
add comment="Costas guest " interface=bridge mtu=1492 name="VLAN 120 - CL Guest" vlan-id=120
add comment=PL_Shelly interface=bridge mtu=1492 name="VLAN 210 - PL_Shelly" vlan-id=210
add comment=CL_Shelly interface=bridge mtu=1492 name="VLAN 220 - CL_Shelly" vlan-id=220
/caps-man datapath
add bridge=bridge client-to-client-forwarding=yes name=datapath1
/caps-man security
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=Costas_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=Philip_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=CL_guest_sec passphrase=******
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=PL_guest_sec passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=CLShelly passphrase=*****
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=PLShelly passphrase=*****
/caps-man configuration
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=20 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=CL rx-chains=0,1 security=Costas_sec \
ssid=LCHome tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=10 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=PL rx-chains=0,1 security=Philip_sec \
ssid="Philip Home" tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=110 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=PL_guest rx-chains=0,1 security=\
PL_guest_sec ssid="Philip Guest" tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=120 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name=CL_guest rx-chains=0,1 security=\
CL_guest_sec ssid="Costas Guest" tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=220 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hide-ssid=yes hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name="CL Shelly" rx-chains=\
0,1 security=CLShelly ssid=CLShelly tx-chains=0,1
add country=greece datapath=datapath1 datapath.local-forwarding=yes datapath.vlan-id=210 datapath.vlan-mode=use-tag distance=indoors guard-interval=long hide-ssid=yes hw-protection-mode=cts-to-self hw-retries=4 installation=indoor mode=ap name="PL Shelly" rx-chains=\
0,1 security=PLShelly ssid=PLShelly tx-chains=0,1
/caps-man interface
add configuration=CL disabled=no l2mtu=1600 mac-address=CC:2D:E0:9D:73:BD master-interface=none name="LC 1st floor -1" radio-mac=CC:2D:E0:9D:73:BD radio-name=CC2DE09D73BD
add configuration=PL disabled=no l2mtu=1600 mac-address=CE:2D:E0:9D:73:BD master-interface="LC 1st floor -1" name="LC 1st floor -1-1" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09D73BD
add configuration=CL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:9D:73:BE master-interface="LC 1st floor -1" name="LC 1st floor -1-2" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09D73BE
add configuration=PL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:9D:73:BF master-interface="LC 1st floor -1" name="LC 1st floor -1-3" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09D73BF
add configuration="CL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:9D:73:C0 master-interface="LC 1st floor -1" name="LC 1st floor -1-4" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09D73C0
add configuration="PL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:9D:73:C1 master-interface="LC 1st floor -1" name="LC 1st floor -1-5" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09D73C1
add configuration=CL disabled=no l2mtu=1600 mac-address=E4:8D:8C:CE:D1:A7 master-interface=none name="LC basement-1" radio-mac=E4:8D:8C:CE:D1:A7 radio-name=E48D8CCED1A7
add configuration=PL disabled=no l2mtu=1600 mac-address=E6:8D:8C:CE:D1:A7 master-interface="LC basement-1" name="LC basement-1-1" radio-mac=00:00:00:00:00:00 radio-name=E68D8CCED1A7
add configuration=CL_guest disabled=no l2mtu=1600 mac-address=E6:8D:8C:CE:D1:A8 master-interface="LC basement-1" name="LC basement-1-2" radio-mac=00:00:00:00:00:00 radio-name=E68D8CCED1A8
add configuration=PL_guest disabled=no l2mtu=1600 mac-address=E6:8D:8C:CE:D1:A9 master-interface="LC basement-1" name="LC basement-1-3" radio-mac=00:00:00:00:00:00 radio-name=E68D8CCED1A9
add configuration="CL Shelly" disabled=no l2mtu=1600 mac-address=E6:8D:8C:CE:D1:AA master-interface="LC basement-1" name="LC basement-1-4" radio-mac=00:00:00:00:00:00 radio-name=E68D8CCED1AA
add configuration="PL Shelly" disabled=no l2mtu=1600 mac-address=E6:8D:8C:CE:D1:AB master-interface="LC basement-1" name="LC basement-1-5" radio-mac=00:00:00:00:00:00 radio-name=E68D8CCED1AB
add configuration=CL disabled=no l2mtu=1600 mac-address=CC:2D:E0:96:96:CD master-interface=none name="LC ground floor-1" radio-mac=CC:2D:E0:96:96:CD radio-name=CC2DE09696CD
add configuration=PL disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:96:CD master-interface="LC ground floor-1" name="LC ground floor-1-1" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09696CD
add configuration=CL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:96:CE master-interface="LC ground floor-1" name="LC ground floor-1-2" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09696CE
add configuration=PL_guest disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:96:CF master-interface="LC ground floor-1" name="LC ground floor-1-3" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09696CF
add configuration="CL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:96:D0 master-interface="LC ground floor-1" name="LC ground floor-1-4" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09696D0
add configuration="PL Shelly" disabled=no l2mtu=1600 mac-address=CE:2D:E0:96:96:D1 master-interface="LC ground floor-1" name="LC ground floor-1-5" radio-mac=00:00:00:00:00:00 radio-name=CE2DE09696D1
/interface list
add name=GW10
add name=GW20
add name=GW110
add name=GW120
add name=GW99
add name=GW210
add name=GW220
add name=WAN
add name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip hotspot profile
set [ find default=yes ] html-directory=flash/hotspot
/ip ipsec profile
add dh-group=modp1024 enc-algorithm=3des hash-algorithm=md5 lifetime=1d1h name=profile_1
add dh-group=modp1024 name=profile_2
/ip ipsec peer
add address=xxx.xxx.xxx.xxx/32 name=VPN profile=profile_1
add name=peer5 passive=yes profile=profile_2
/ip ipsec proposal
set [ find default=yes ] enc-algorithms=3des
add auth-algorithms=md5 enc-algorithms=3des name=VPN pfs-group=none
/ip pool
add name=Costas ranges=10.1.20.50-10.1.20.99
add name="CL Guest" ranges=10.1.120.50-10.1.120.149
add name="CL Shelly" ranges=10.1.220.50-10.1.220.149
add name=Security ranges=10.1.99.50-10.1.99.99
add name=VPN ranges=10.1.20.190-10.1.20.199
/ip dhcp-server
add address-pool=Costas disabled=no interface="VLAN 20 - Costas" lease-time=1d name="Costas DHCP"
add address-pool="CL Guest" disabled=no interface="VLAN 120 - CL Guest" lease-time=30m name="CL Guest DHCP"
add address-pool="CL Shelly" disabled=no interface="VLAN 220 - CL_Shelly" lease-time=1d name="CL Shelly DHCP"
add address-pool=Security disabled=no interface="VLAN 99 - Security" lease-time=1d name="Security DHCP"
/ppp profile
add bridge=bridge dns-server=10.1.1.254 local-address=10.1.1.254 name=OVPNprofile remote-address=VPN
/caps-man manager
set ca-certificate=CAPsMAN-CA-8D58E7D1FAD5 certificate=CAPsMAN-8D58E7D1FAD5 enabled=yes
/caps-man manager interface
add disabled=no interface=bridge
/caps-man provisioning
add action=create-enabled hw-supported-modes=gn,b master-configuration=CL name-format=identity slave-configurations="PL,CL_guest,PL_guest,CL Shelly,PL Shelly"
/interface bridge port
add bridge=bridge comment=VLAN20 frame-types=admit-only-untagged-and-priority-tagged interface=ether1 pvid=20
add bridge=bridge comment=VLAN20 frame-types=admit-only-untagged-and-priority-tagged interface=ether2 pvid=20
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether3 pvid=100
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether4 pvid=100
add bridge=bridge comment=defconf interface=ether5 pvid=100
add bridge=bridge comment=defconf interface=ether6 pvid=100
add bridge=bridge comment=defconf interface=ether7 pvid=100
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether8 pvid=100
add bridge=bridge comment=defconf interface=ether9
add bridge=bridge comment=defconf interface=ether10
add bridge=bridge comment=defconf interface=ether11
add bridge=bridge comment=defconf interface=ether12
add bridge=bridge comment=defconf interface=ether13
add bridge=bridge comment=defconf interface=ether14
add bridge=bridge comment=defconf interface=ether15
add bridge=bridge comment=defconf interface=ether16
add bridge=bridge comment=defconf interface=ether17
add bridge=bridge comment=defconf interface=ether18
add bridge=bridge comment=defconf interface=ether19
add bridge=bridge comment=defconf interface=ether20
add bridge=bridge comment=defconf frame-types=admit-only-untagged-and-priority-tagged interface=ether21
add bridge=bridge comment=defconf interface=ether22
add bridge=bridge comment=defconf interface=ether23
add bridge=bridge comment=defconf interface=sfp-sfpplus1
add bridge=bridge comment=defconf interface=sfp-sfpplus2
add bridge=bridge comment=defconf interface=sfp-sfpplus3
add bridge=bridge comment=defconf interface=sfp-sfpplus4
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 1 - Native"
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 10 - Philip" pvid=10
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 20 - Costas" pvid=20
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 99 - Security" pvid=99
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 110 - PL Guest" pvid=110
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 120 - CL Guest" pvid=120
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 210 - PL_Shelly" pvid=210
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 220 - CL_Shelly" pvid=220
add bridge=bridge frame-types=admit-only-vlan-tagged interface="VLAN 100 - Common" pvid=100
/interface bridge settings
set use-ip-firewall-for-vlan=yes
/ip settings
set allow-fast-path=no
/interface bridge vlan
add bridge=bridge tagged="bridge,ether5,ether6,ether7,ether23,ether22,VLAN 10 - Philip" vlan-ids=10
add bridge=bridge tagged="ether5,bridge,ether6,ether7,ether23,ether22,VLAN 20 - Costas" vlan-ids=20
add bridge=bridge tagged="bridge,VLAN 1 - Native" vlan-ids=1
add bridge=bridge tagged="ether23,bridge,ether5,ether6,ether7,ether22,VLAN 110 - PL Guest" vlan-ids=110
add bridge=bridge tagged="ether23,bridge,ether5,ether6,ether7,ether22,VLAN 210 - PL_Shelly" vlan-ids=210
add bridge=bridge tagged="ether23,bridge,ether5,ether6,ether7,ether22,VLAN 220 - CL_Shelly" vlan-ids=220
add bridge=bridge tagged="ether23,bridge,ether5,ether6,ether7,ether22,VLAN 120 - CL Guest" vlan-ids=120
add bridge=bridge tagged="ether23,bridge,ether22,VLAN 99 - Security" vlan-ids=99
add bridge=bridge tagged="bridge,ether22,ether23,VLAN 100 - Common" vlan-ids=100
/interface list member
add interface=pppoe-Costas list=GW120
add interface=pppoe-Costas list=GW220
add interface=ether24 list=WAN
add interface=bridge list=LAN
add interface=pppoe-Costas list=WAN
/ip address
add address=10.1.1.254/24 comment=Common interface="VLAN 100 - Common" network=10.1.1.0
add address=10.1.20.1/24 comment="Costas Gateway" interface="VLAN 20 - Costas" network=10.1.20.0
add address=10.1.99.1/24 comment="Security Gateway" interface="VLAN 99 - Security" network=10.1.99.0
add address=10.1.110.254/24 comment="PL Guest VLAN" interface="VLAN 110 - PL Guest" network=10.1.110.0
add address=10.1.120.1/24 comment="CL Guest Gateway" interface="VLAN 120 - CL Guest" network=10.1.120.0
add address=10.1.210.254/24 comment="PL Shelly Gateway" interface="VLAN 210 - PL_Shelly" network=10.1.210.0
add address=10.1.220.1/24 comment="CL Shelly Gateway" interface="VLAN 220 - CL_Shelly" network=10.1.220.0
add address=10.1.252.5/30 interface=ether24 network=10.1.252.4
add address=10.1.10.254/24 comment="Philip VLAN" interface="VLAN 10 - Philip" network=10.1.10.0
add address=10.1.100.254/24 interface="VLAN 1 - Native" network=10.1.100.0
/ip dhcp-server lease
add address=10.1.20.161 client-id=1:cc:98:8b:1c:2b:da mac-address=CC:98:8B:1C:2B:DA server="Costas DHCP"
add address=10.1.20.162 client-id=1:bc:60:a7:f5:9e:c1 mac-address=BC:60:A7:F5:9E:C1 server="Costas DHCP"
add address=10.1.20.160 client-id=1:70:26:5:2b:a8:da mac-address=70:26:05:2B:A8:DA server="Costas DHCP"
add address=10.1.20.150 client-id=1:0:1f:c6:ca:15:87 mac-address=00:1F:C6:CA:15:87 server="Costas DHCP"
add address=10.1.20.140 mac-address=04:CF:8C:FA:36:F1 server="Costas DHCP"
/ip dhcp-server network
add address=10.1.20.0/24 comment="Costas Network" dns-server=1.1.1.1,1.0.0.1 gateway=10.1.20.1
add address=10.1.99.0/24 comment="Security Network" dns-server=8.8.8.8,8.8.4.4 gateway=10.1.99.1
add address=10.1.120.0/24 comment="Costas Guest" dns-server=8.8.8.8,8.8.4.4 gateway=10.1.120.1
add address=10.1.220.0/24 comment="CL Shelly" dns-server=8.8.8.8,8.8.4.4 gateway=10.1.220.1
/ip dns
set servers=1.1.1.1,1.0.0.1
/ip firewall address-list
add address=10.1.1.0/24 list=Common
add address=10.1.10.0/24 list=Philip
add address=10.1.20.0/24 list=Costas
add address=192.168.2.0/24 list=Office
add address=10.1.99.0/24 list=Security
add address=10.1.110.0/24 list="PL Guest"
add address=10.1.120.0/24 list="CL Guest"
add address=10.1.210.0/24 list=PL_Shelly
add address=10.1.220.0/24 list=CL_Shelly
add address=10.1.1.0/24 list=Local
add address=10.1.10.0/24 list=Local
add address=10.1.20.0/24 list=Local
add address=192.168.2.0/24 list=Local
add address=10.1.252.4/30 list=Local
add address=10.1.100.0/24 list=Local
add address=10.1.252.0/30 list=Local
add address=10.1.199.0/24 list=Local
/ip firewall filter
add action=accept chain=input protocol=ipsec-ah
add action=accept chain=input protocol=ipsec-esp
add action=accept chain=input port=500 protocol=udp
add action=accept chain=input port=4500 protocol=udp
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=accept chain=input comment="VPN connections" dst-port=443 protocol=tcp
add action=accept chain=forward comment="defconf: accept in ipsec policy" ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" ipsec-policy=out,ipsec
add action=jump chain=input comment="Jump to DNS_DDoS Chain" jump-target=DNS_DDoS
add action=accept chain=DNS_DDoS comment="Make exceptions for DNS" port=53 protocol=udp src-address-list=DNS_Accept
add action=accept chain=DNS_DDoS comment="Make exceptions for DNS" dst-address-list=DNS_Accept port=53 protocol=tcp
add action=add-src-to-address-list address-list=DNS_DDoS address-list-timeout=none-dynamic chain=DNS_DDoS comment="Add DNS_DDoS Offenders to Blacklist" port=53 protocol=udp src-address-list=!DNS_Accept
add action=drop chain=DNS_DDoS comment="Drop DNS_DDoS Offenders" src-address-list=DNS_DDoS
add action=return chain=DNS_DDoS comment="Return from DNS_DDoS Chain"
add action=accept chain=icmp comment="Echo reply" icmp-options=0:0 protocol=icmp
add action=accept chain=icmp comment="Net unreachable" icmp-options=3:0 protocol=icmp
add action=accept chain=icmp comment="Host unreachable" icmp-options=3:1 protocol=icmp
add action=accept chain=icmp comment="Allow source quench" icmp-options=4:0 protocol=icmp
add action=accept chain=icmp comment="Allow echo request" icmp-options=8:0 protocol=icmp
add action=accept chain=icmp comment="Allow time exceed" icmp-options=11:0 protocol=icmp
add action=accept chain=icmp comment="Allow parameter bad" icmp-options=12:0 protocol=icmp
add action=drop chain=icmp comment="Deny all other types"
add action=drop chain=input comment="Disable ICMP ping" in-interface=pppoe-Costas protocol=icmp
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="Port scanners to list " in-interface=pppoe-Costas protocol=tcp psd=21,3s,3,1
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="NMAP FIN Stealth scan" protocol=tcp tcp-flags=fin,!syn,!rst,!psh,!ack,!urg
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="SYN/FIN scan" protocol=tcp tcp-flags=fin,syn
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="SYN/RST scan" protocol=tcp tcp-flags=syn,rst
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="FIN/PSH/URG scan" protocol=tcp tcp-flags=fin,psh,urg,!syn,!rst,!ack
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="ALL/ALL scan" protocol=tcp tcp-flags=fin,syn,rst,psh,ack,urg
add action=add-src-to-address-list address-list="port scanners" address-list-timeout=2w chain=input comment="NMAP NULL scan" protocol=tcp tcp-flags=!fin,!syn,!rst,!psh,!ack,!urg
add action=drop chain=input comment="Dropping port scanners" src-address-list="port scanners"
add action=accept chain=forward comment="defconf: accept established,related, untracked" connection-state=established,related,untracked
add action=accept chain=input in-interface=pppoe-Costas
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
add action=drop chain=input comment="defconf: drop all not coming from LAN" disabled=yes in-interface-list=!LAN
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
/ip firewall mangle
add action=mark-routing chain=prerouting dst-address-list=Local new-routing-mark=Intervlan passthrough=no src-address-list=Local
add action=mark-routing chain=prerouting dst-address-list=Local in-interface=bridge new-routing-mark=Intervlan passthrough=no
add action=mark-routing chain=prerouting dst-address-type=!local new-routing-mark=Nova_Costas passthrough=no src-address=10.1.1.50
add action=mark-routing chain=prerouting new-routing-mark=Nova_Philip passthrough=no src-address=10.1.1.51 src-address-type=!local
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=Common passthrough=no src-address-list=Common
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=Philip passthrough=yes src-address-list=Philip
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=Costas passthrough=yes src-address-list=Costas
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=PL_Shelly passthrough=yes src-address-list=PL_Shelly
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=CL_Shelly passthrough=yes src-address-list=CL_Shelly
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=Security passthrough=yes src-address-list=Security
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=CL_Guest passthrough=no src-address-list="CL Guest"
add action=mark-routing chain=prerouting dst-address-list=!Local new-routing-mark=PL_Guest passthrough=no src-address-list="PL Guest"
add action=change-mss chain=forward new-mss=1452 out-interface=pppoe-Costas passthrough=yes protocol=tcp tcp-flags=syn,!rst tcp-mss=1453-65535
add action=change-mss chain=forward in-interface=pppoe-Costas new-mss=1452 passthrough=yes protocol=tcp tcp-flags=syn,!rst tcp-mss=1453-65535
/ip firewall nat
add action=accept chain=input in-interface=bridge ipsec-policy=in,ipsec
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.1.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.10.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.20.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.99.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.100.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.120.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.110.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.210.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.220.0/24
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.252.0/30
add action=accept chain=srcnat dst-address=192.168.2.0/24 src-address=10.1.252.4/30
add action=masquerade chain=srcnat comment="NAT for Modem" dst-address=10.1.252.6 out-interface=ether24 src-address-list=Local
add action=masquerade chain=srcnat out-interface=pppoe-Costas
/ip firewall service-port
set sip disabled=yes
/ip ipsec identity
add peer=VPN secret=*****
add auth-method=pre-shared-key-xauth password=***** peer=peer5 secret=***** username=clouk
/ip ipsec policy
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.10.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.20.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=0.0.0.0 src-address=10.1.1.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.99.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.210.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.220.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.100.0/24 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.252.0/30 tunnel=yes
add dst-address=192.168.2.0/24 level=unique peer=VPN proposal=proposal sa-dst-address=xxx.xxx.xxx.xxx sa-src-address=10.1.1.254 src-address=10.1.252.4/30 tunnel=yes
/ip route
add check-gateway=ping distance=1 gateway=pppoe-Costas routing-mark=Nova_Costas
add check-gateway=ping distance=1 gateway=10.1.1.253 routing-mark=Nova_Philip
add check-gateway=ping distance=1 gateway=pppoe-Costas routing-mark=Common
add check-gateway=ping distance=2 gateway=10.1.1.253 routing-mark=Common
add check-gateway=ping distance=1 gateway=10.1.1.253 routing-mark=Philip
add check-gateway=ping distance=2 gateway=pppoe-Costas routing-mark=Philip
add check-gateway=ping distance=1 gateway=pppoe-Costas routing-mark=Costas
add check-gateway=ping distance=2 gateway=10.1.1.253 routing-mark=Costas
add check-gateway=ping distance=1 gateway=10.1.1.253 routing-mark=PL_Shelly
add check-gateway=ping distance=2 gateway=pppoe-Costas routing-mark=PL_Shelly
add check-gateway=ping distance=1 gateway=pppoe-Costas routing-mark=CL_Shelly
add check-gateway=ping distance=2 gateway=10.1.1.253 routing-mark=CL_Shelly
add check-gateway=ping distance=1 gateway=pppoe-Costas routing-mark=Security
add check-gateway=ping distance=2 gateway=10.1.1.253 routing-mark=Security
add check-gateway=ping distance=1 gateway=pppoe-Costas routing-mark=CL_Guest
add check-gateway=ping distance=1 gateway=10.1.1.253 routing-mark=PL_Guest
add check-gateway=ping distance=1 gateway=pppoe-Costas
add check-gateway=ping distance=2 gateway=10.1.1.253
add check-gateway=ping distance=1 dst-address=10.1.252.0/30 gateway=10.1.1.253
add check-gateway=ping distance=1 dst-address=xxx.xxx.xxx.xxx/32 gateway=pppoe-Costas
add check-gateway=ping distance=2 dst-address=xxx.xxx.xxx.xxx/32 gateway=10.1.1.253
/ip service
set telnet address=10.1.0.0/16,192.168.2.0/24
set ftp address=10.1.0.0/16,192.168.2.0/24
set www address=10.1.0.0/16,192.168.2.0/24
set ssh address=10.1.0.0/16,192.168.2.0/24
set api address=10.1.0.0/16,192.168.2.0/24
set winbox address=10.1.0.0/16,192.168.2.0/24
set api-ssl address=10.1.0.0/16,192.168.2.0/24
/ppp secret
add name=clouk password=******* service=ovpn
/system clock
set time-zone-name=Europe/Athens
/system identity
set name="Switch Costas"
/system ntp client
set enabled=yes primary-ntp=194.177.210.54 secondary-ntp=62.217.127.33 server-dns-names=gr.pool.ntp.org
/system routerboard settings
set boot-os=router-os
Any help would be very welcome.
Thank you very much in advance!
