3.6 Km Ptp Link -- bad RX ccq and BW

RouterOS Wireless Networking
1

Good morning
I was wondering if someone could give me any suggestions to improve my situation.
In theory, I should have a signal strength of around -65db.

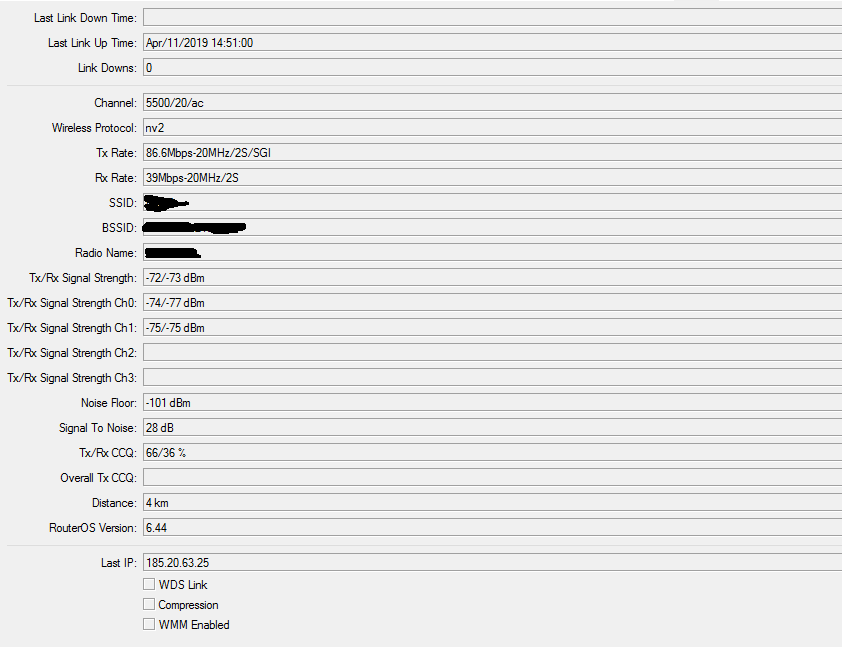

The screenshot can only show a shot, but the RX values actually keep changing (ccq ranges from 29% to 70% and bw can go up to 86.6Mbs)
TX is quite stable around those values.

The thing that I cannot explain very well is why the link is so asymmetric.
It is bad in the direction that I am actually interested to. RX

Q1) Would a bad alignment create situations like above? Should not I see the same on both sides if the link is badly aligned?
Q2) Would interference create such a situation?

Any advice to troubleshoot the link are appreciated

many thanks
gianrico

2

Hi Gianrico,

Your link physically fine tuned because of the signal strength that you reach in the picture and the Noise floor is -101 dbm so it means the Noise is less, did you use 802.11 and test a bandwidth of the link?

3

What Devices you are using?
I Think Antennas are too small for this distance

4

Hi
thanks for your answer
The antennas are both like this one:

https://www.sicetelecom.it/prodotto/wireless/hiperlink/cpe-ac-atrh0595/

They are 23dbi have an rb911g-5hpacd inside.

5
  1. check alignment
  2. check Current Tx Power
6

To me seems also too low a signal for 3.6 km and 23dbi antennas. Alignment is the first thing to check. Than what is happening around you, frequency usage, etc.

7

This will not resolve the main problem - signal to low.

8

That is why I wrote: Check alignment (meaning: and when it is fixed, the signal should be higher) THAN check what is happening around you.
