3G mini pci e for RB/912UAG-2HPnD-OUT

Hardware MikroTik hardware general
1

Hi,

Can anyone recommend a reliable 3G modem (mini pci-e) that working properly on RB/912UAG-2HPnD-OUT ? Have any tested/working solution?

I’ve tried few Sierra Wireless modems (MC8780, MC8775) - but no internet connection, both modems are supported by mikrotik according to: http://wiki.mikrotik.com/wiki/Supported_Hardware

I’m using ROS v.6.11 and routerboard firmware : 3.13.2 - default configuration.

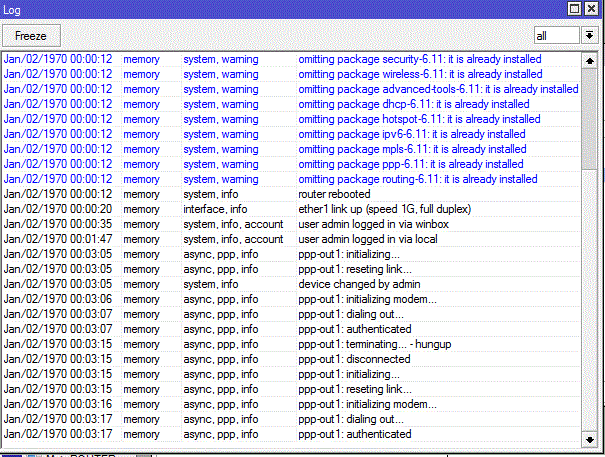

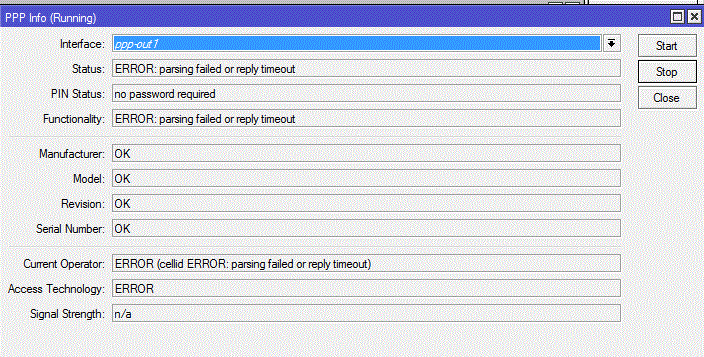

I have attached some prtscreens in case that somebody encountered the same isusse.

Thanks in advance for your support.

2

Which carrier are you trying to use?

3

I have used several SIMs from different european mobile operators : T-Mobile (Germany), Vodafone (Romania), OTE (Greece).

The result is the same - no internet connection.

Are you using any RB/912UAG-2HPnD-OUT with a functional 3G modem (mini pci-3)?

4

Hi,

I’ve used several different SIMs from european operators (T-Mobile -Germany, Vodafone Romania, OTE - Greece) - the result was the same - no internet connection.

Have you used any 3G mini pci 3 card that working for RB912UAG?

Thanks.

5

Disable PPP-Client interface made by MC8775 Module and then get INFO. you will be see more info like:

[admin@MikroTik] /interface ppp-client> info
number: 0
modem-status: ready
pin-status: no password required
functionality: full
manufacturer: Sierra Wireless, Inc.
model: MC8775
revision: H1_0_0_7MCAP G:/WS/FW/H1_0_0_7MCAP/MSM6280/SRC
2006/10/26 17:31:03
serial-number: 352905010206401
current-operator: Limited Service (cellid unknown)
access-technology: 3G
signal-strengh: -87 dBm
frame-error-rate: n/a
