4.13 Nv2 great but loss of some monitoring parameters?

RouterOS Wireless Networking
1

Since i installed 4.13 i gained Nv2 great but have lost,

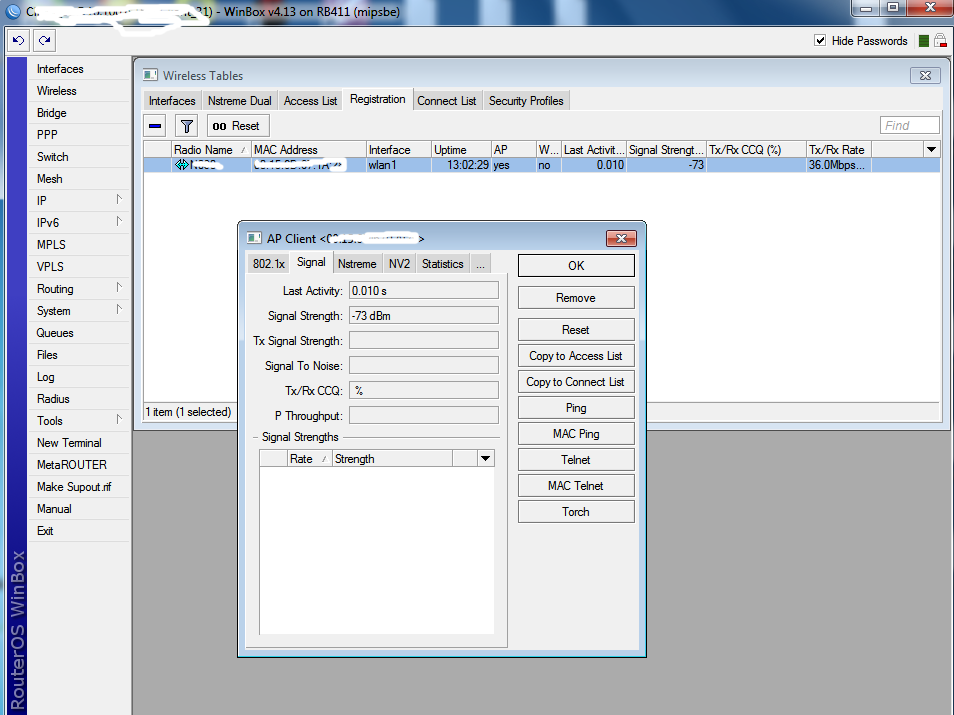

in wireless status tab - CCQ, in wireless registration signal tab - Tx signal, signal to noise, CCQ
system health - incorrect voltage

Can i ask when will these be back in winbox.

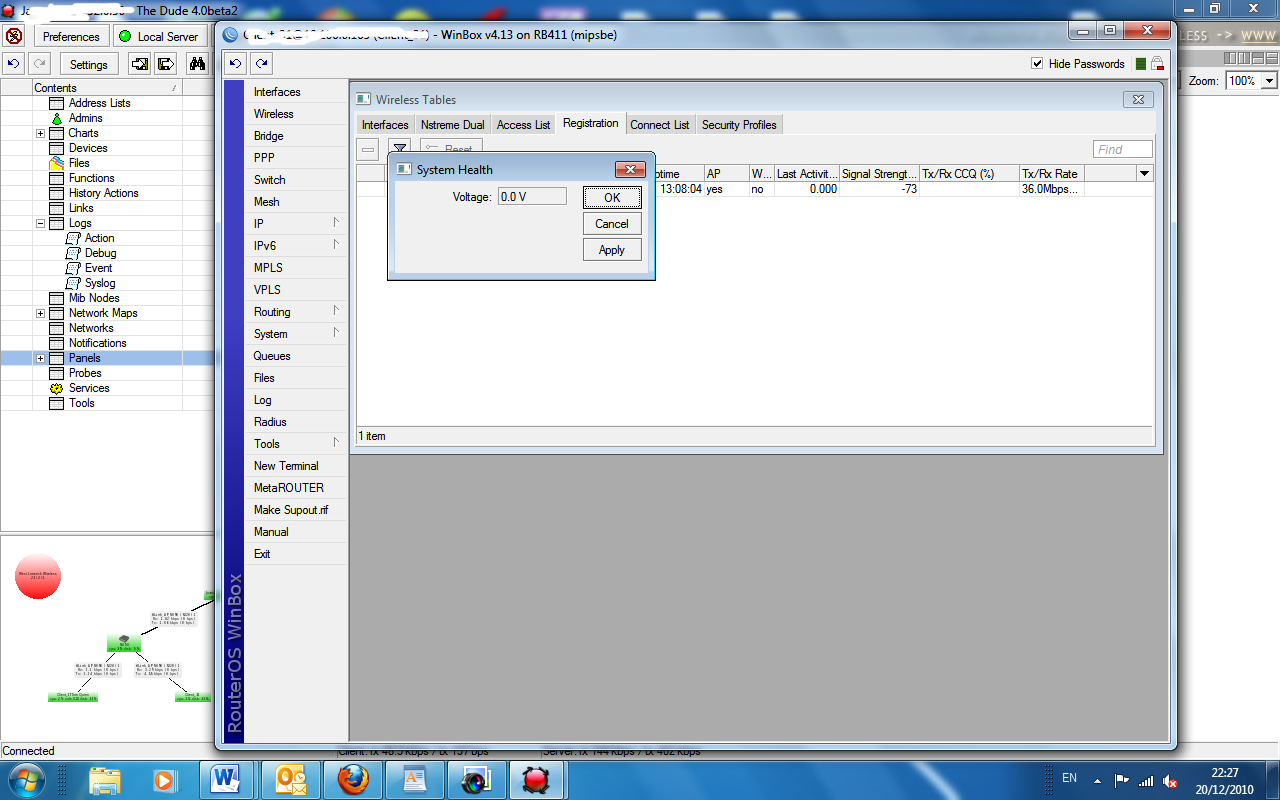

4-13 Status.png

2

please upgrade to RouterOS v4.16 and check again.

3

Upgraded to 4.16
This version has solved under wireless status & registration CCQ and signal to noise, thank you,
But in system health voltage is still incorrect at 0.0v?

4

To measure the voltage is needed RouterBOARD with 633Mhz Processing (433AH, 493AH, 450G).

5

NV2 is terrible on 5GHz-A, 40MHz channel width. x86 based routers are freezing if using NV2. On some machines, problem with this has been solved by reducing hw-retries value to 7 but still I have some routers which freeze constantly. Can someone post a picture with setting on nv2 links using 40MHz channel width but on 5GHz-A band, not N? I wrote to support and was sending supout file but without solution for me, thanks Uldis anyway. :slight_smile:

Thanks in advance.

6

I’m not 100% certain, but most n cards do not support A mode in a 40mhz channel.

We are using the R5H cards in 40mhz mode with nv2 over 35km and get 75mbit.
We tried multiple n cards but didn’t get any reliable results.

7

I have a 493AH and get this:

[@RamTrail493] /system health> print
fan-mode: auto
use-fan: main
active-fan: none

Winbox shows 0.0V (v4.16)

8

We’re using CM9 or XR5 cards, classic 108mbps A cards. This is happening under those conditions. Can you post a picture with the setting page of wireless interface, tabs wireless and advanced because I think the problem is there, nothing more?

Thanks.

9

I also miss voltage correct values on RB493AH, I’ve mailed support, but answer was for me
useless. Does anybody know on which version of ROS / RB493AH volt reading works correctly?\

10

Voltage reading is working OK for me using 4.16 on the RB493AH and UAH with dude v4.0 beta2

11

unfortunately my rb493ah still
shows 0.0V in winbox and via snmp/oid too.
i’ve upgraded to 4.16 and no luck.
:confused:

12

me too. did they forget the sensor chip on the newer 493ah boards?

13

Voltage reading is working OK for me using 4.16 on the RB493AH and UAH with dude v4.0 beta2

Sorry typo error should have been RB433AH is OK but not as posted RB493AH which still has voltage at 0.0v?

14

Did anybody managed rb493ah to show voltage readings??
please HELP!
