Hi…
I saw there is the wireless connection can go up to the 450M/450M on with the AR9380 wireless card.
this information is from the China 2011 MUM presentation slide.
just want to know, it’s this possible and what’s the actual throughput we can have it?
thanks

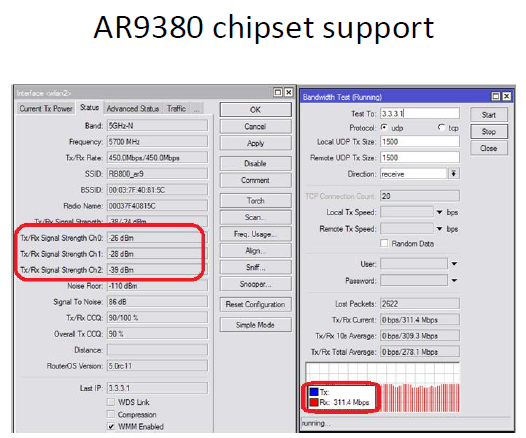

you are already looking at the picture, so it can be done and you can see the speed.
angboontiong why are you asking, if you already know the answer
it’s in the screenshot!!
i believe this should in the indoor unit…
where can we get the 3T3R antenna?
if circular wave type, can they make it 3T3R on parabolic antenna?
searching mode now…
Read some more info here: http://forum.mikrotik.com/t/mimo-3x3/51119/1
can you please post your setup? I have a link on a simillar hardware, but even when i have active all 3 chains the link speed is still only at 300Mb/s
And this as well: http://forum.mikrotik.com/t/rb800-3x3-minipci-card/57457/1
We are still testing our 3x3 antenna/enclosure concept and have seen up to 300 Mbps throughputs, but still facing issues with NV2 and disconnects. Like others have reported, 5.14 seems to be more stable – but we still have too much disconnects to move it into production and replace the 2x2 250 Mbps links. Maybe we’ll try 5.20 on AP and 5.11 on Station that some reports to be ok. Anyone else tried 3x3 and have version preferences?
TB
We have installed a few links in production environments. Most of them works now with 5.20, and we haven’t any problems with disconnections. Max distances of our links is about 4km.
