5Ghz not working

Hardware MikroTik hardware general
1

hello all

this is my first 5 GHz-n PT-MP setup. but i m not able to configure it. i have one RB711-UFL(level 4) fixed with 90 deg. 5GHz sector and 5 CPE ( RB-711-UFl in an enclosure with 5 GHz 20 Dbi pannel antenna

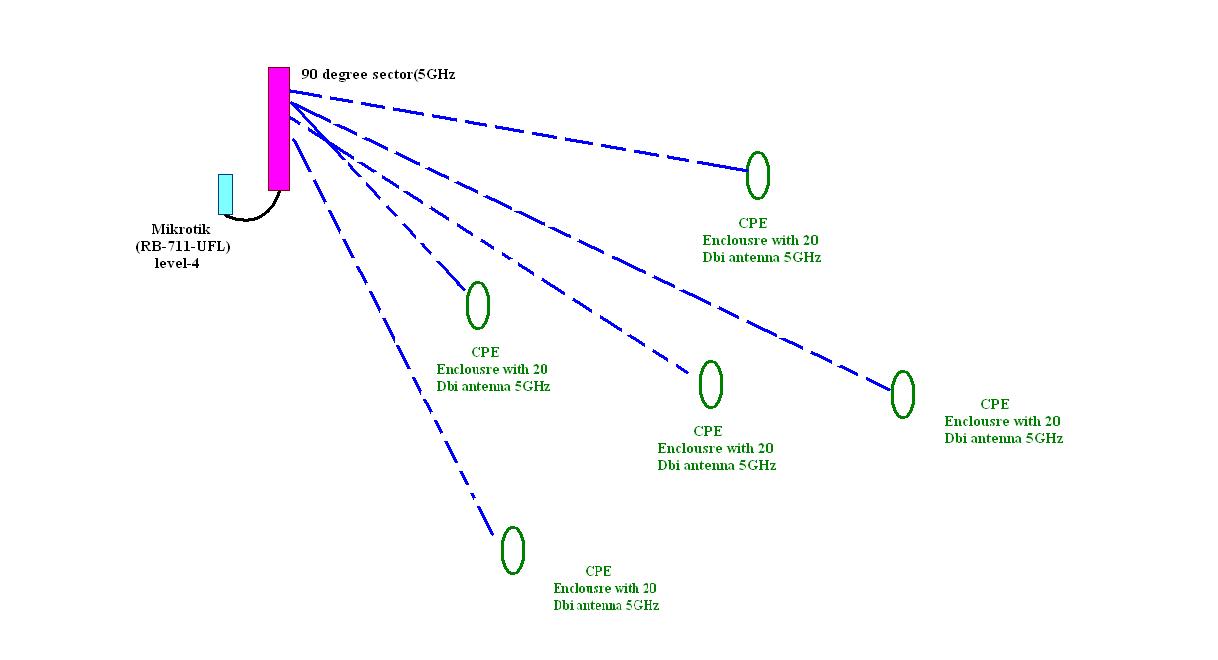

i want my setup work like this:
but when i configure my AP-bridge and one CPE just to test the connectivity(later on i was planning to connect all the remaining CPE one by one to this sector.) i was not able to ping the CPE from AP site and vice-versa. i dint understand why its happening. although i m able to see the CPE mac in the registration TAB of my AP-bridge.

below are the attachments of my AP and CPE

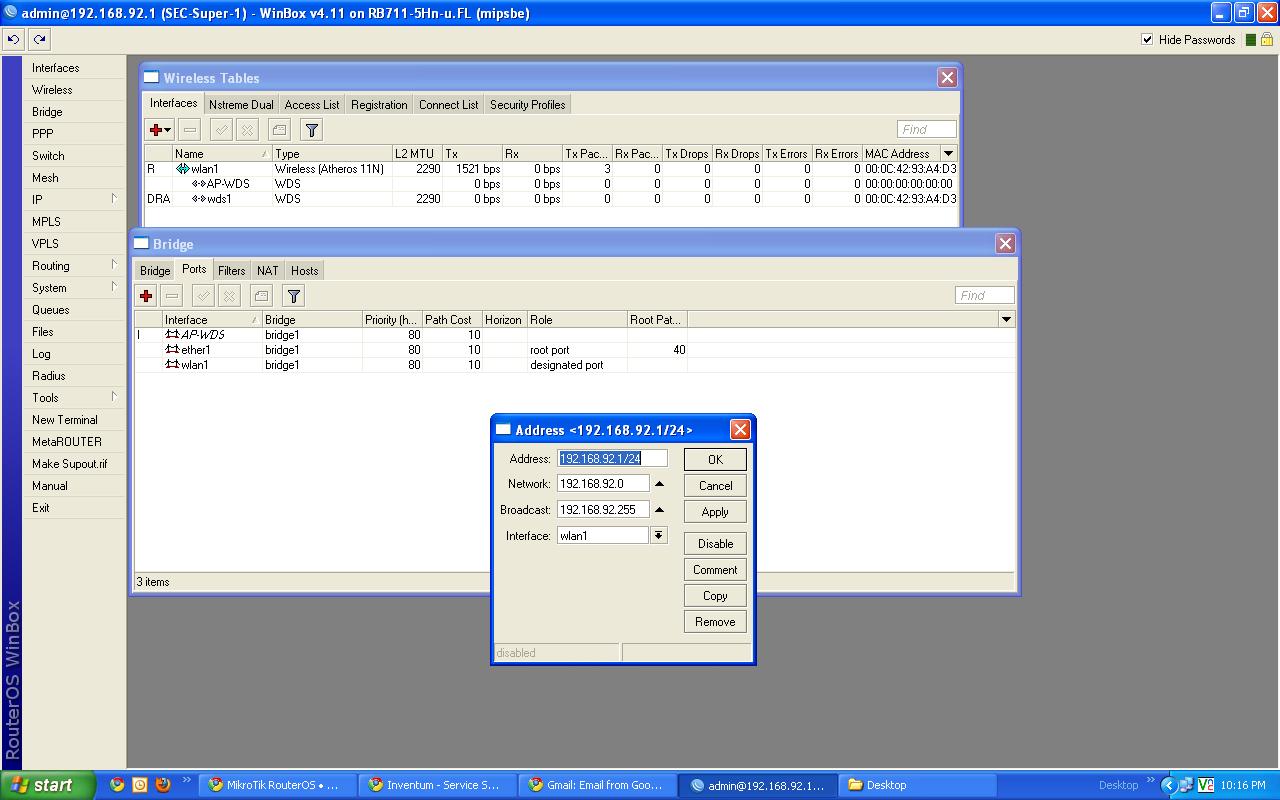

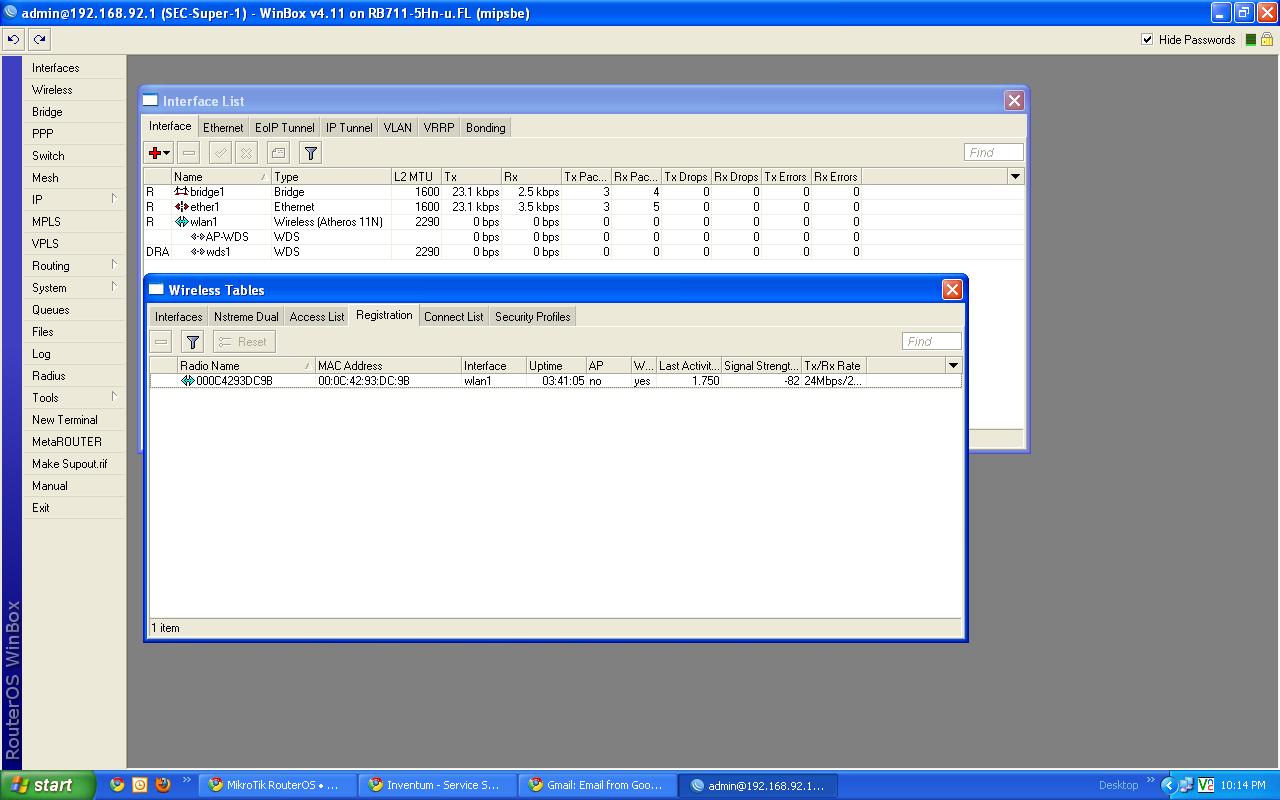

Ap_bridge

2

Add a bridge to the CPEs and include ether1 (with the CPE IP) and wds interface.

3

thx but its still not working

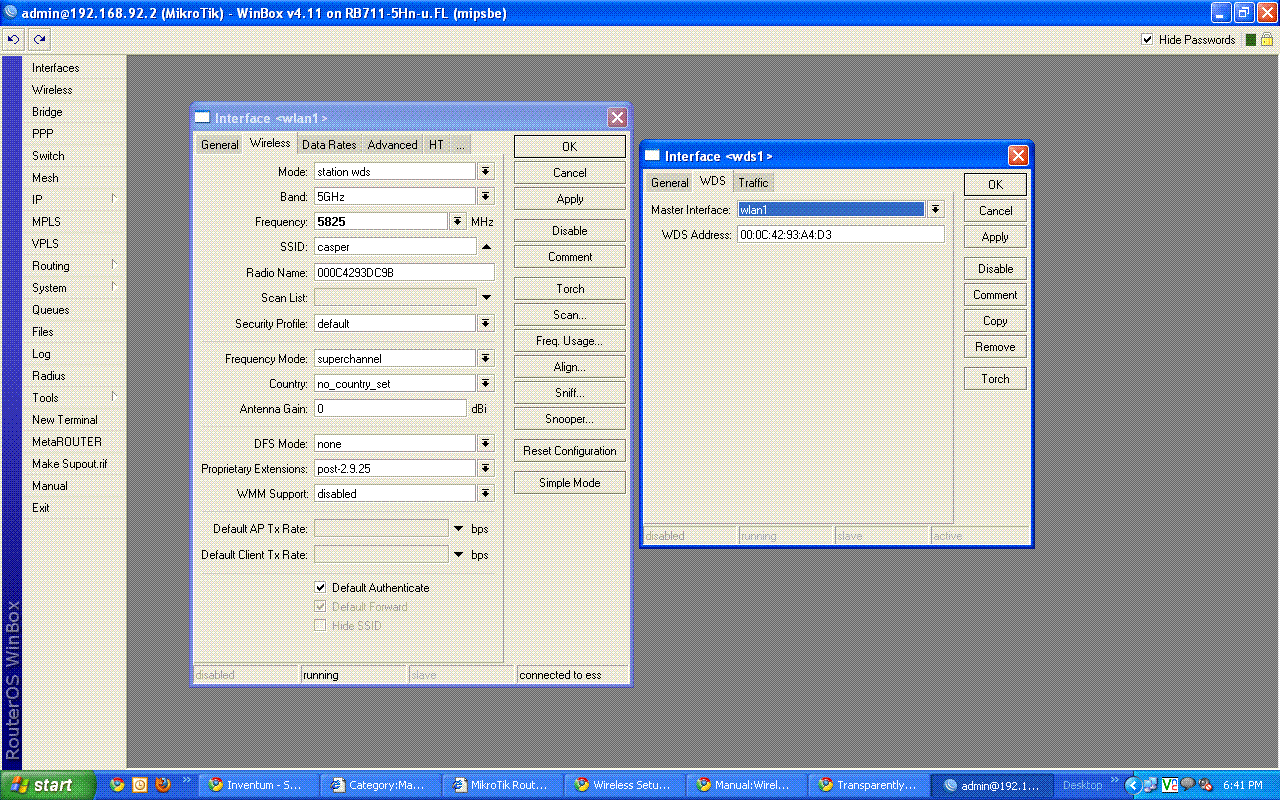

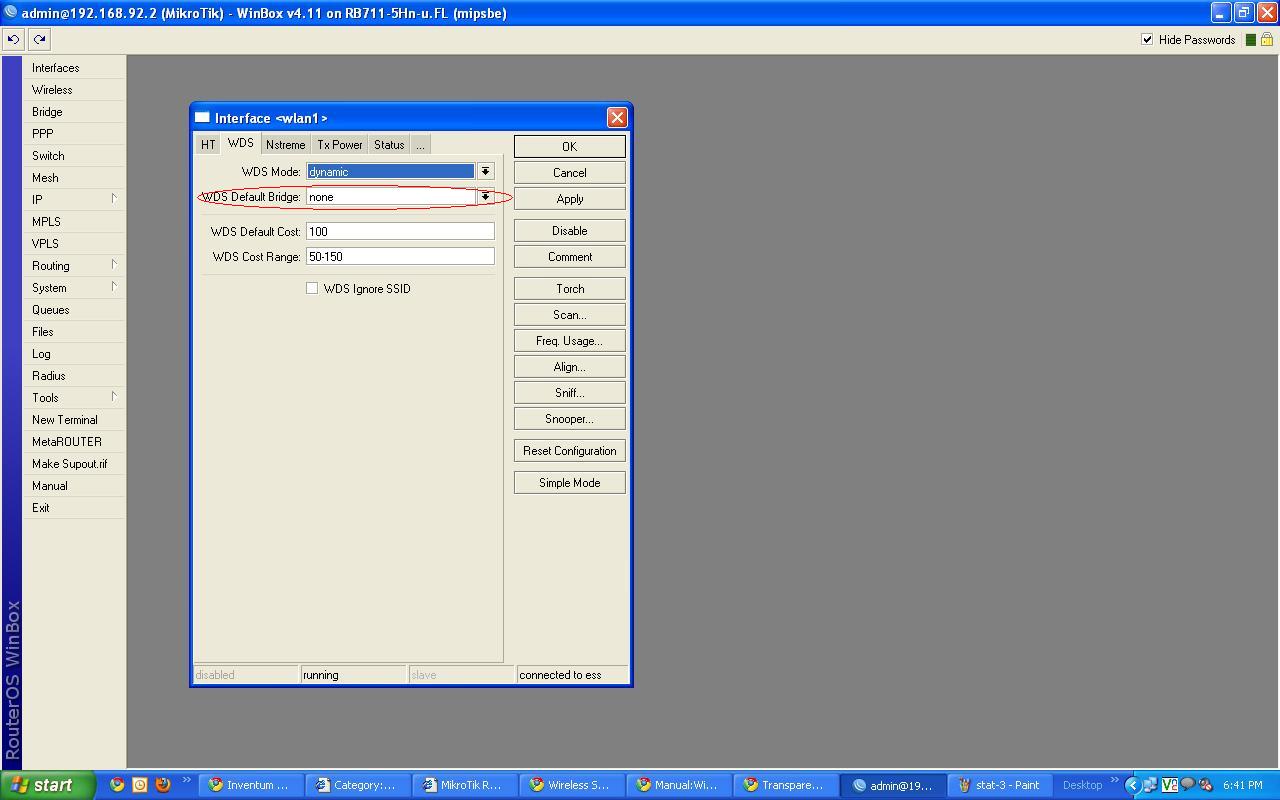

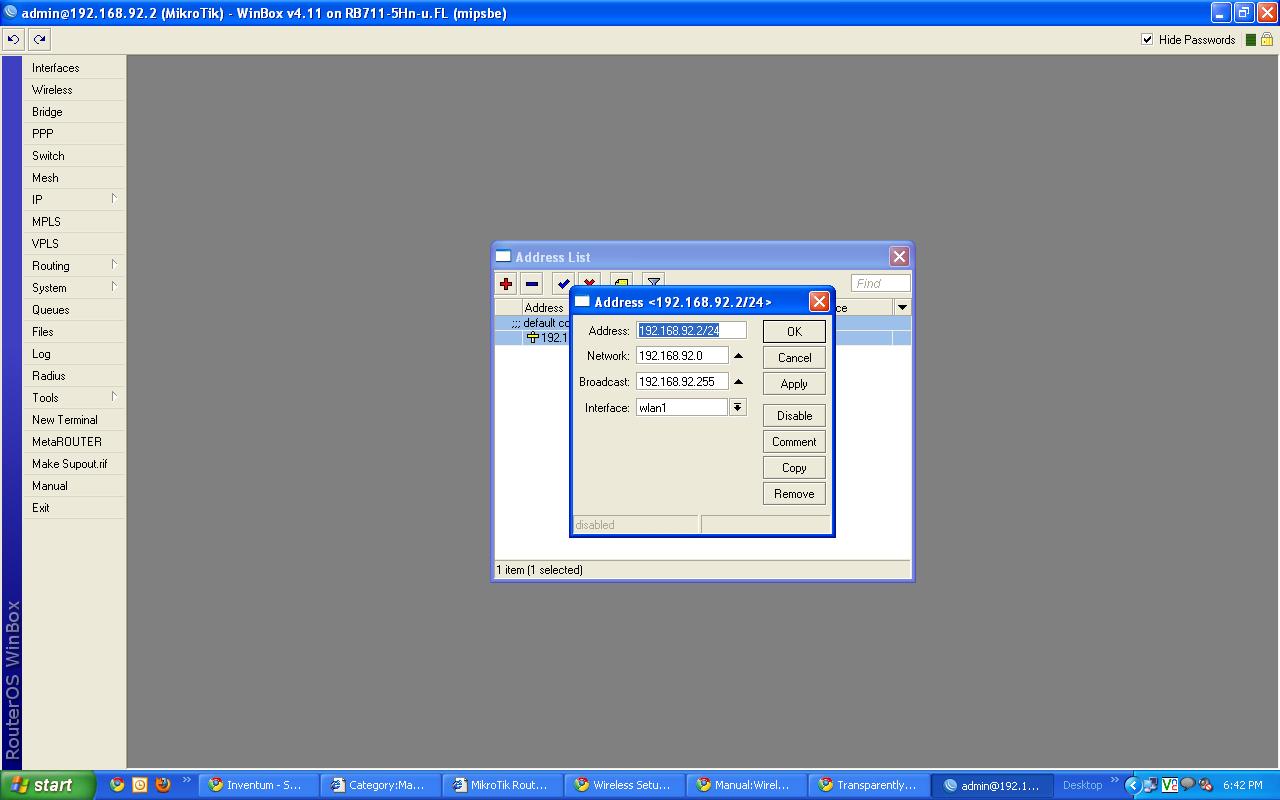

following r the attachments of my CPE

4

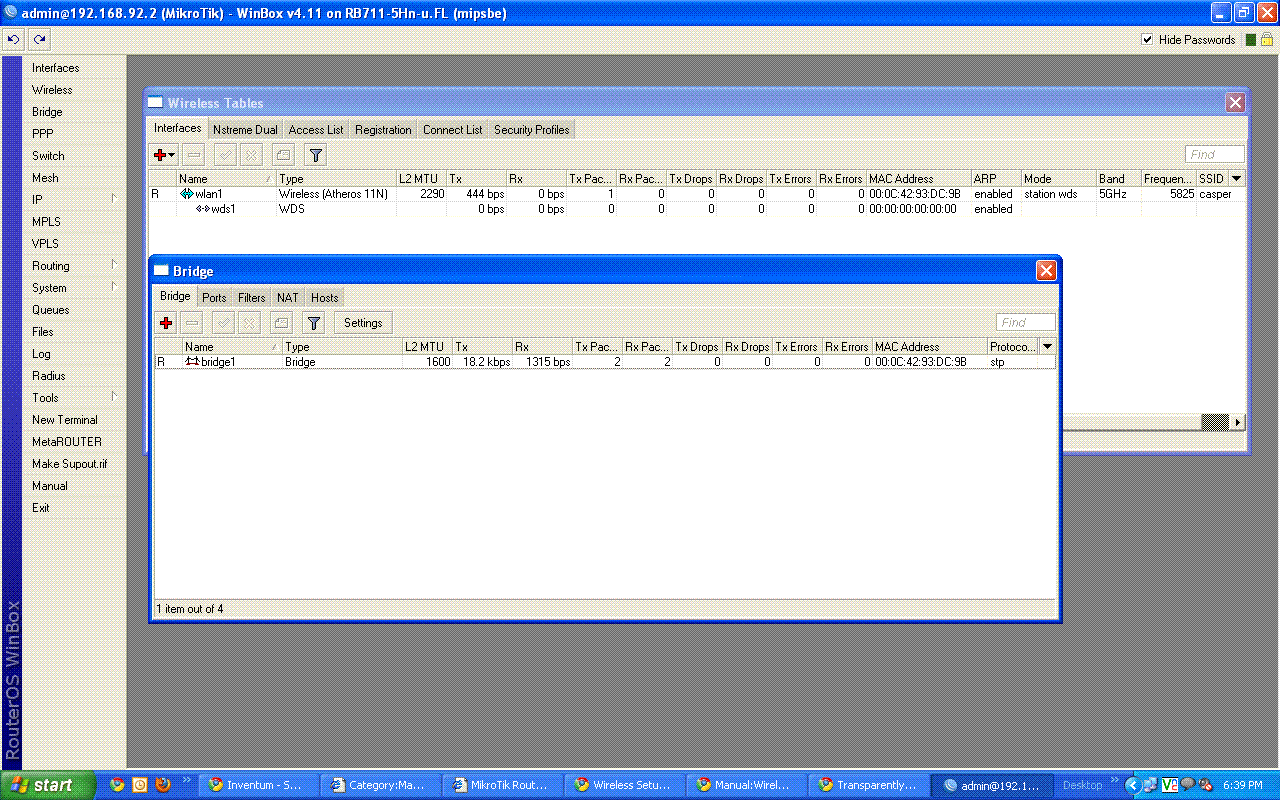

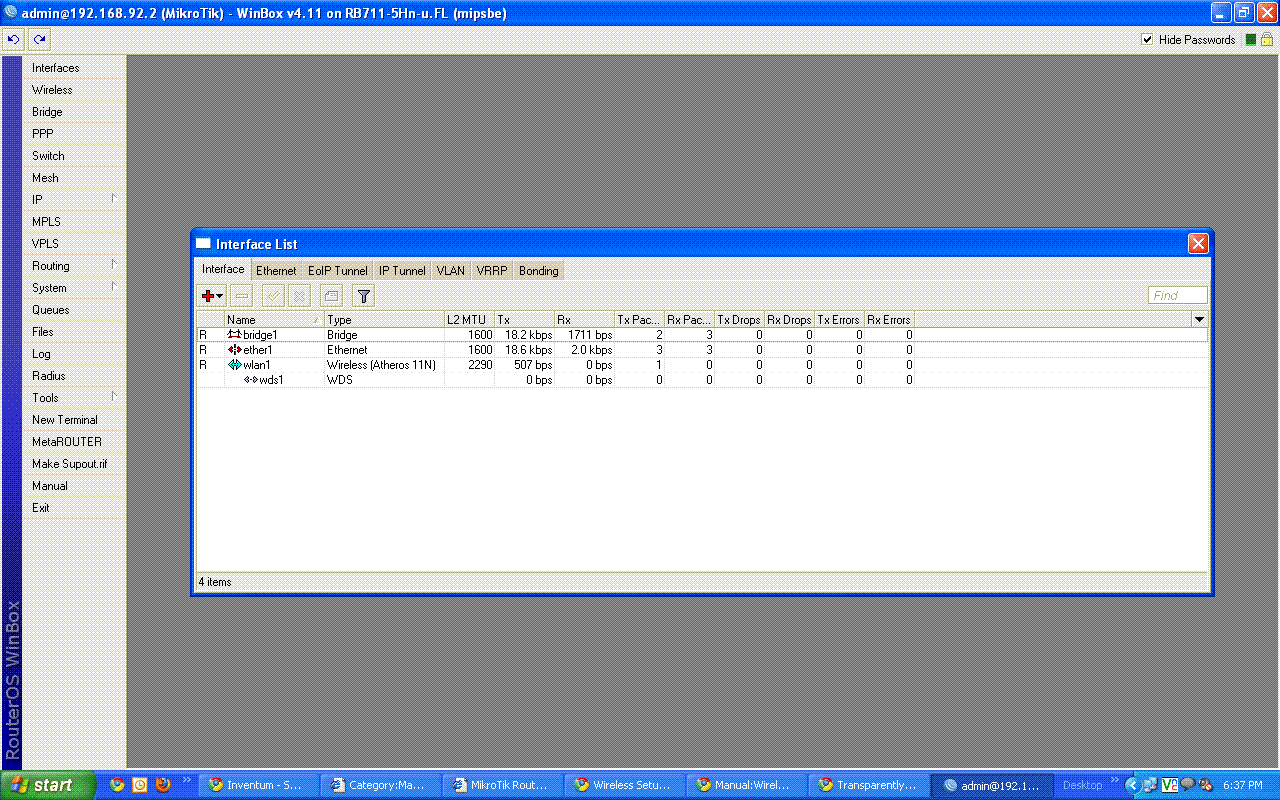

few more pic of my CPE.

thx, plz suggest me

5

one more thing, My AP is not supposed to be working like a DHCP. its simply must be passing the data to and fro.
i need the mac address of the client computer so that it can bind the mac with the issued IP in the internet server.

here is the scene =
Internet server(private FIX IP being given to users through this server >>> Access Point >>>CPE[>>> client PC and its MAC.

thx and regards.

6

one more thing, My AP is not supposed to be working like a DHCP. its simply must be passing the data to and fro.
i need the mac address of the client computer so that it can bind the mac with the issued IP in the internet server.

here is the scene =
Internet server(private FIX IP being given to users through this server >>> Access Point >>>CPE[>>> client PC and its MAC.

thx and regards.

7

Winbox: go to the wds tab and add the wds interface to the bridge1. Change the interface at the IP address to bridge1.
(If you added wlan1 to the bridge1 then delete it from the bridge / ports tab…)

Terminal:
/interface wireless set wlan1 wds-default-bridge=bridge1
/ip address set 0 interface=bridge1

dave003

8

For the AP (copy and paste in the new terminal:

interface bridge add name=wds-bridge-eth1 protocol-mode=none
interface bridge settings set use-ip-firewall=yes
interface set wlan1 disabled=no
interface wireless set wlan1 mode=ap-bridge band=5ghz ssid=iGate radio-name=Acess_Point frequency-mode=superchannel default-forwarding=no hide-ssid=yes
interface wireless set wlan1 scan-list=5150,5160,5170,5180,5190,5200,5210,5220,5230,5240,5250,5260,5270,5280,5290,5300,5310,5320,5330,5340,5350,5360,5370,5380,5390,5400,5410,5420,5430,5440,5450,5460,5470,5480,5490,5500,5510,5520,5530,5540,5550,5560,5570,5580,5590,5600,5610,5620,5630,5640,5650,5660,5670,5680,5690,5700,5710,5720,5730,5740,5750,5760,5770,5780,5790,5800,5810,5820,5830,5840,5850
interface wireless set wlan1 hw-retries=10
interface wireless set wlan1 wds-mode=dynamic wds-default-bridge=wds-bridge-eth1
interface wireless nstreme set enable-nstreme=yes enable-polling=yes disable-csma=yes wlan1
interface bridge port add interface=ether1 bridge=wds-bridge-eth1


For the CPE:

interface bridge add name=wds-bridge-eth1 protocol-mode=none
interface bridge settings set use-ip-firewall=yes
interface set wlan1 disabled=no
interface wireless set wlan1 mode=station-wds band=5ghz ssid=iGate radio-name=Customer_Premise_Equipment frequency-mode=superchannel default-forwarding=no hide-ssid=yes
interface wireless set wlan1 scan-list=5150,5160,5170,5180,5190,5200,5210,5220,5230,5240,5250,5260,5270,5280,5290,5300,5310,5320,5330,5340,5350,5360,5370,5380,5390,5400,5410,5420,5430,5440,5450,5460,5470,5480,5490,5500,5510,5520,5530,5540,5550,5560,5570,5580,5590,5600,5610,5620,5630,5640,5650,5660,5670,5680,5690,5700,5710,5720,5730,5740,5750,5760,5770,5780,5790,5800,5810,5820,5830,5840,5850
interface wireless set wlan1 hw-retries=10
interface wireless set wlan1 wds-mode=dynamic wds-default-bridge=wds-bridge-eth1
interface wireless nstreme set enable-nstreme=yes disable-csma=yes wlan1
interface bridge port add interface=ether1 bridge=wds-bridge-eth1
interface bridge port add interface=wlan1 bridge=wds-bridge-eth1
