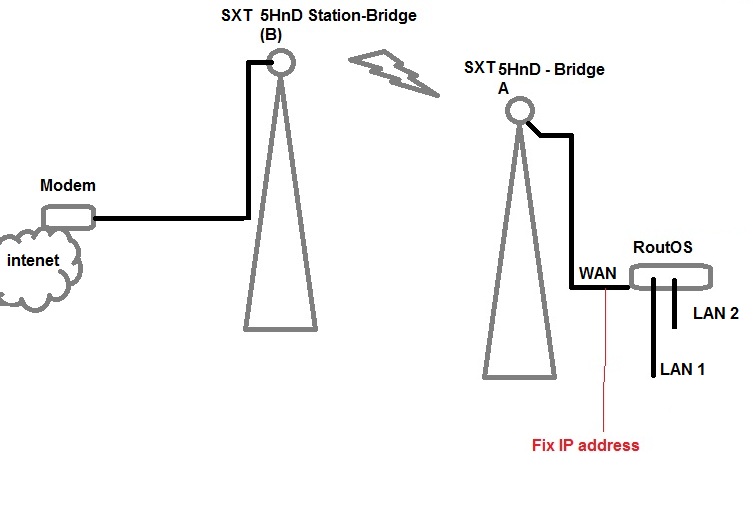

i have the scenario in the picture (modem → antenna B as station bridge → Antenna A as bridge - RouteOS receive Static IP address from ISP normally with 9 KM max speed i got 3 MB ) configured and working, but always in 3 or 4 days need to reboot one of the antennas to get then connected , and here also i want to know what is the way to configure the antennas to avoid this issue and to get the better bandwidth , and note that when i select all HT AMPDU 1-7 i got signal loss just up to 4 will work .
what is the model from your routerboards
What for antenna you use
Have you a line of sight

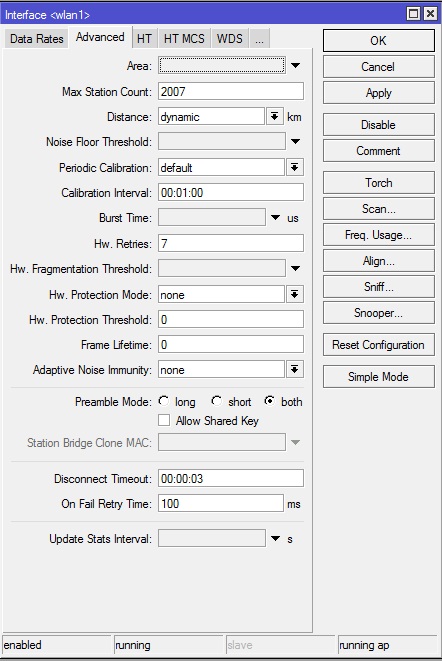

Have you add the distance for ack-timing, see printscreens
Set the wireless settings on advanced then see you more.
What is the signal strengt
what is the model from your routerboards : SXT 5Hnd 16 dbi
What for antenna you use: modem in B Location , office in location A (to get connect office to internet)
Have you a line of sight : Yes
Have you add the distance for ack-timing, see printscreens : Default Value 40 KM

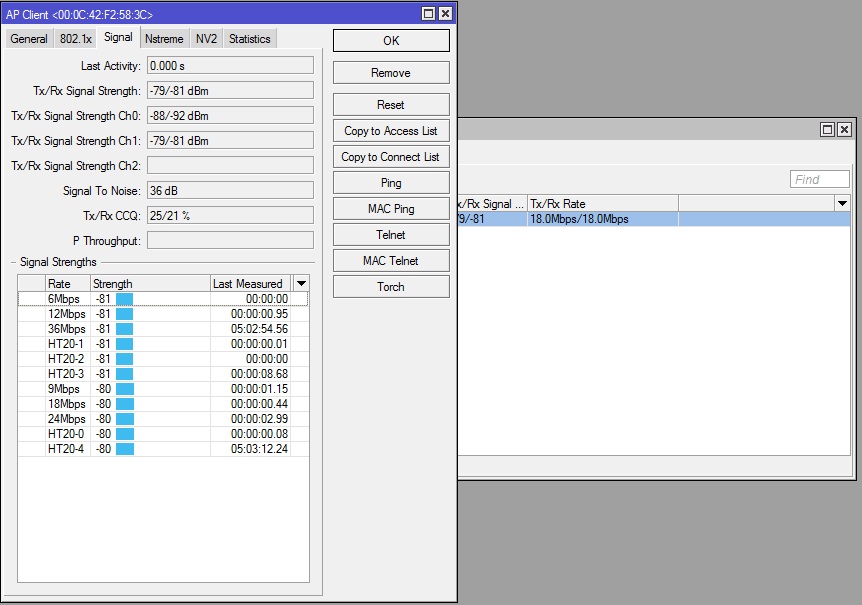

What is the signal streght signal / noice
The distance is that 9km?
Sorry for te quenstions before but i want to know how the setup is made.
Ack timeout must an both sites the same setup of cource
and the max speed from antenna to another is 1.2MB / 3.2MB that mean from office site the download is 1.2 MB and upload is 3.2 MB and what i read on Mikrotik that we can reach a lot more then this and it costing me a lot of problem because i have internet speed 8 MB down / 1 MB up .
I heard WDS before that some guys are using i don’t know if this will help as well
please hope that you can help me to resolve this issue
I give you advice to use a stronger antenna 9 km is realy far for a small device.
The signal is not strong and the tx/rx ccq is very low, with this hardware config can’t you a good result.
I use a 24 dB pannel antenna or grid antenna.
Use a mikrotik device example the omnitik as router and exaple the ubiquiti nanobridge this sal
result in a better performance.
please upgrade the RouterOS on both boards to v5.24 and then reset the wireless interface configuration by using this command:
/interface wireless reset-configuration wlan1
Then reconfigue the wireless interface - configure the option you only need and after that check the speed again.
Also please provide us with a export compact form the wireless menu from both boards:
/interface wireless export compact
