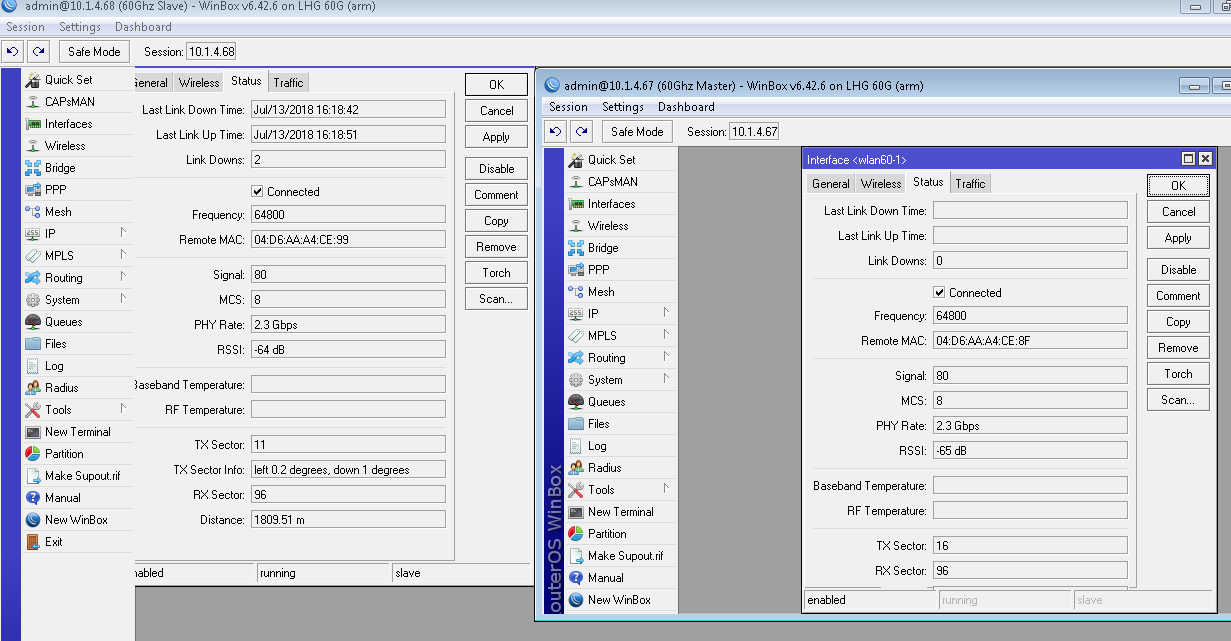

we have installed our first LHG 60 ghz link and we are very surprised: 1809.48m and we get 2.3Gbps..WOW
And -65 RSSI… now wait for a little rain and see what happen.
60Ghz is right in the oxygen absorption band. Which mean that the signal will drop very fast with distance. 2.5Km is very long range for 60Ghz. That’s one of the drawback of 60Ghz and one of the the benefit: There is nearly no interferences between links on the same channel and in the same area as their signals are be absorbed.
There is also a significant signal lose when raining especially over a few hundred meters. Less than with 24Ghz but still very pretty big. At 1Km+, you can easely lose 10 to 20 dbm during heavy rain and it only get worse with longer distances so if you don’t have plenty of margin to begin with…
Or Ubiquiti AF24 (1.4Gbps) or AF24HD (2Gps). 24Ghz is unlicensed and they can do longer distance easely. Problem with the 24Ghz is that there is only 2 channels available (and it’s more expensive).
Now rain and one side not adjust work ok
right now rain , normal rain has no effect only very very hard rain was link down 2min
MulderSk are you using a couple of “normal” LHG60?
yes
Congrats, nice results MulderSk!
it would be nice to have a better mounting kit, we tested both the orginal and the pro there must be a more professional kit with screws for fine adjustment
Not really needed, the beamforming antenna adjusts the beam, and result is identical, even if the antenna is slightly misaligned.
Did an alignment today (750m). It was easier to do it optical than follow the directions of the LEDs/Interface (they where a bit misleading). The mount angle is no perfect 90 degree so it could not be used to look along. Best is to go 3m behind the antenna and look through it to the target. Beeing a mesh antenna helps as you could look through.
LEDs currently are in fact miss-leading - we will address this in future releases.
i am wonder why nobody ask about a LHG XL60 antenna

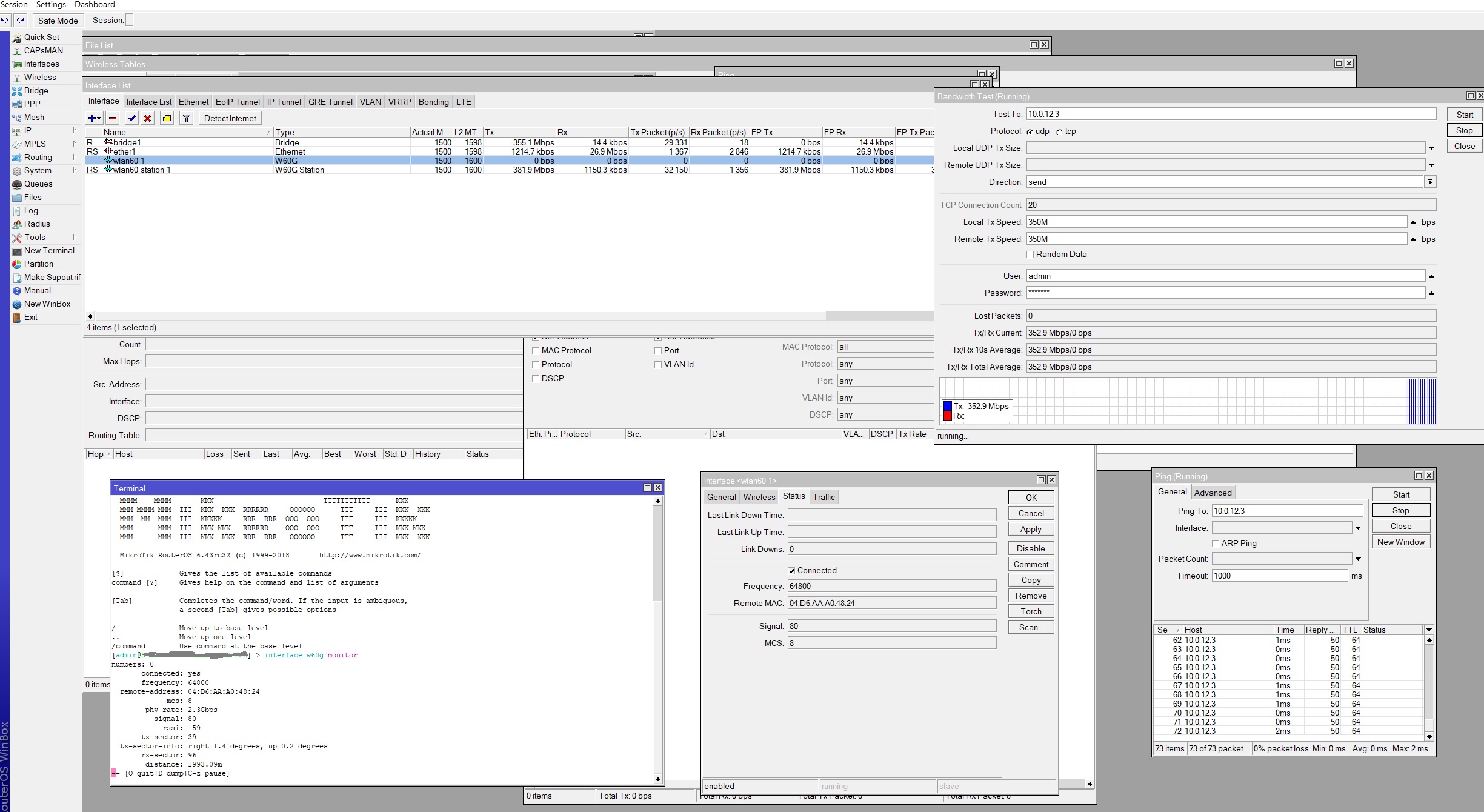

So, a 2,5km link would be easily possible
+1
Wire Dish 60 GHz XL + 5Ghz BackUp
The LHG 60 PCBA has a 5Ghz Wifi part
when you make LHG 60 XL + 5GHz ?
LHG 391 mm
LHG XL 550 mm
This is mine
Just use a weird 5GHz channel nobody else is using
Losing a bucket of throughput, opening yourself up to local noise and losing full duplex.

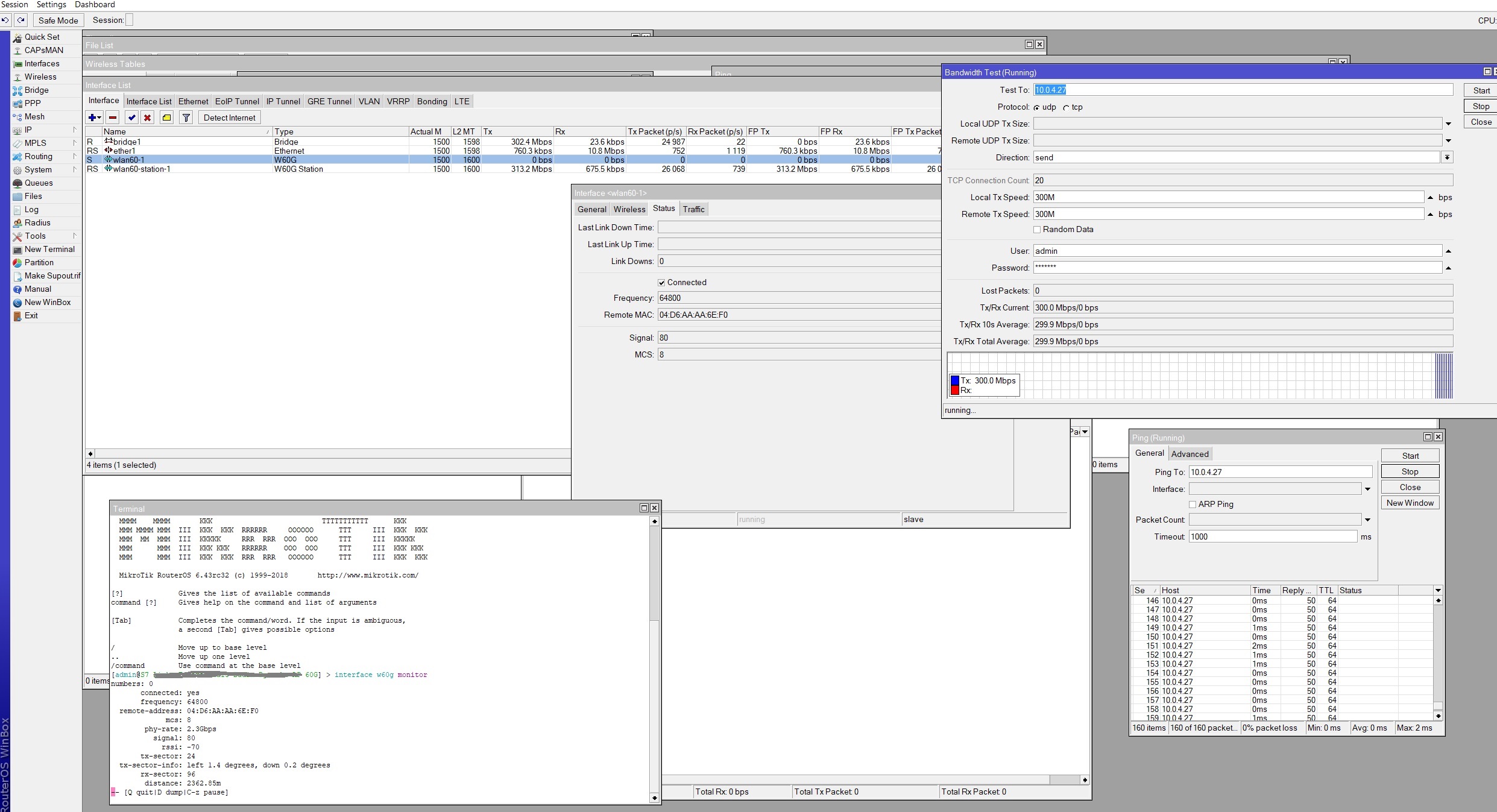

I currently have a 2.4Km link on trial, it’s struggling.
Even 4km+ is possible on 66GHz but not stable for using.
