Helo,
I am setting up 70 Kms Point 2 Point link to achieve at least 30mbps throughput, can anyone suggest whats radio model and antenna should be used
Netmetal5 + mant30 antenna dish
Sent from my C6833 using Tapatalk
Maybe two DynaDishes if the line of sight is clear:
http://i.mt.lv/routerboard/files/antenas-160404123306.pdf
Can i go with Netbox5
Yes, of course, it is similar to Netmetal.
Yes you can.
use 24 volt and 3 amp power adapter
I have a 50 km link with dynadish in clear area ( desert ) link speed is under 20 or 15 Mb/s
and another link 82 km with netmetal5 and mant30 the link speed is 35Mb/s
Thanks…!!!
Planning to go with Netbox5 with Ubnt 31or 34 dbi dish antenna as per suggestion from my isp
Is there any updates?
Sent from my iPhone using Tapatalk
OK Here it is!!!
45 km clear area p2p not being happened please suggest me the configuration of net metal 5 30 dbi for the p2p
what’s your update?? did it work?

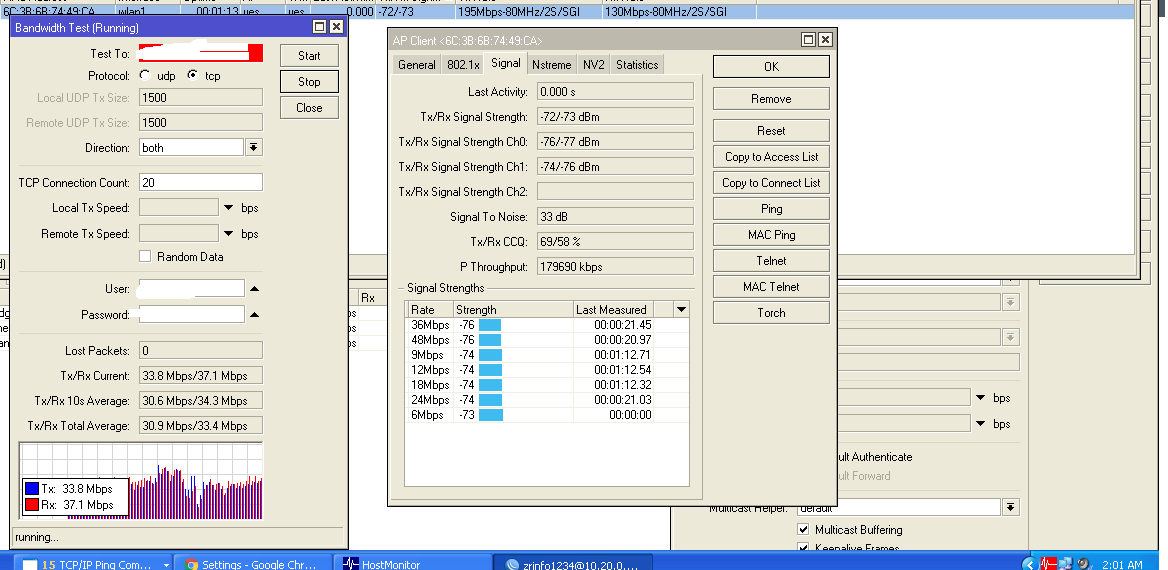

Here, link 38 km … with dynadish 5
wonderful!!!
Is this Link in Swiss? When yes, you are a little bit above 30dbm…
Dynadish has 24 dbI you have to set this as Antenna gain…
And then i believe your connection won´t work anymore …
You are now at 33db SNR -24db = 9db SNR
you are lucky if you get a connection…
Why you need to add 24dbi in antenna gain ? read the wiki carefully …
IMHO if you do not set then Mikrotik do not know that antenna gains output signal with 24dB and therefore total emitted power of Mikrotik + antenna could not meet regulatory limits.
