74km Link In Colombia.

RouterOS Wireless Networking
1

Hi, we wanna share our last longest link with all of you.
1Rb 433—Compex wlm54AGP23—3feet dishes
1Rb 600—1Compex----3Feet.
Both sides 1600 mts over sea.
10 mhz channel space
5600mhz freq.
Nstreme enabled, best fit,
and 18mbps bandwith, 2,3 ms latency.

2

Cortesia de E.D Enlaces Digitales y comunicaciones. Ibague, Colombia S.A

3

Nice!!!

:smiley:

4

Nice link guys,

It must be quite low noise where you have those links.

5

Congrats guys,

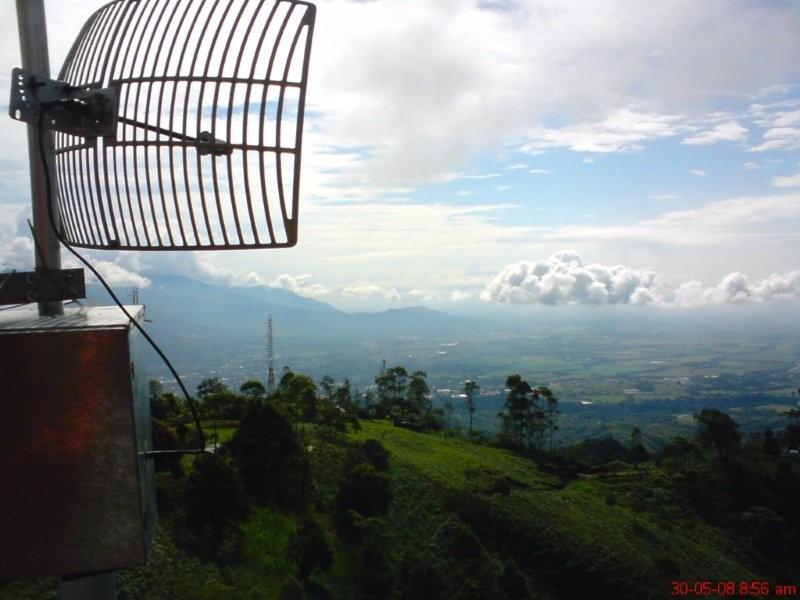

what’s was the antenna gain? Was it the grid antenna in the photos.

6

the antennas were, 32db gain dish hyperlink.

7

What are your signal strengths?

8

One side -62, other side -70, still needs more align…but strong link.

9

Hi,

Free Space Loss for 74Km@5600MHz is roundabout 145dB. So (without any cable loss) if you have -62 receive gain that mean you work with 51dB TX-Power EIRP. Don’t you have any kind of regulations in your country???

19dB TX-Power from card + 32dB antenna gain ./. 145 db FSL + 32dB antenna gain = -62 at receiver


Regards
Lutz

10

Yes , we have regulation about that, in this case, really i will ask for it beacause i’m not sure.
