A few quick questions

RouterOS The Dude
1

I’m currently setting up the dude over a large physical area, the current map that I’m using is quite small, causing some of our bases to get really cluttered, so I ask:

  1. is there a way to get a large area map that’s high detailed (without going through the trouble of stitching), so I can zoom in? The current one is of roughly 120km by 50km and the towns are hard to see with all the bases

And also:

  1. is there a way to have warnings through the dude’s polling to send email when a ping gets high to a certain base? Say, 100+ms
2

I think you are going to have to stitch the map together, unless you have access to satellite maps somewhere. Check your local government GIS? You could make a top map that just shows the connections between each location with a sub map for each location. Then you can have a map of only that city.

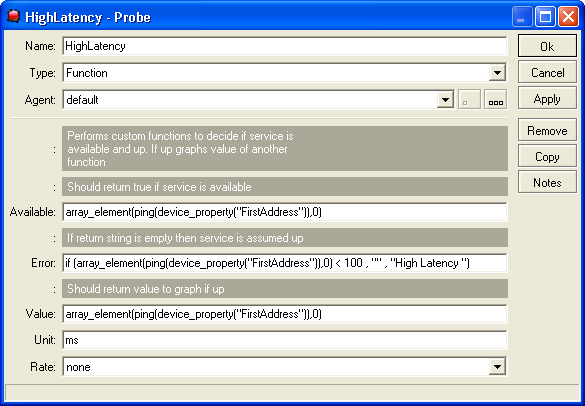

I here is a probe that complains when pings are high…
There might be a better way to do it.

3

Thanks a lot for that, Sweetdude, it’s working perfectly.
