I’m trying to reach PPPoE clientes on a routerboard, throught a subnet on that same routerboard. I have DHCP server on the routerboard, once I connect my PC to it I can access the routerboard. I can see pppoe clientes connected, but the routeboard just don’t masquerade my traffic to the pppoe addresses. I have added my subnet to NAT rules, with masquerade and it won’t work. It works to access every other subnet on the routerboard, but not for pppoe clientes.
How can I do that?
I guess you’re not being clear enough.
You are connected to the same router as the PPPoE clients?
Why are you trying to masquerade your traffic when it can simply just be routed?
Do the PPPoE clients have any firewall? Are the IP addresses of PPPoE clients properly visible in the status of PPPoE connections?
If I’m being wrong anywhere, please attach a schematic of the network connections.
Hi.
Yes, I am connected to the same router as the PPPoE clients, it’s a CRS125-24G.
I wasn’t trying to masquerade the traffic, not at first. But for some reason, if I don’t add that rule on NAT, my PC won’t get routed to any other network. My PC is connected to a port that is part of a switch configuration, porta 7-24 are switched, isolated, and I added cpu port also, so the switch traffic can be processed by RouterOS. PPPoE clientes are on port 20, and my PC on port 24. My PC have no direct access to port 20 as the switch are configured with ports isolated, so it must be routed by RouterOS.
The PPPoE clientes have no firewall, I can ping them from inside winbox or terminal, they respond normaly. But my PC can’t ping them, even tho it can ping other devices connected to the same ports in the switch.
The PPPoE clientes have their IP visible on routeros (PPP → Active Connections).

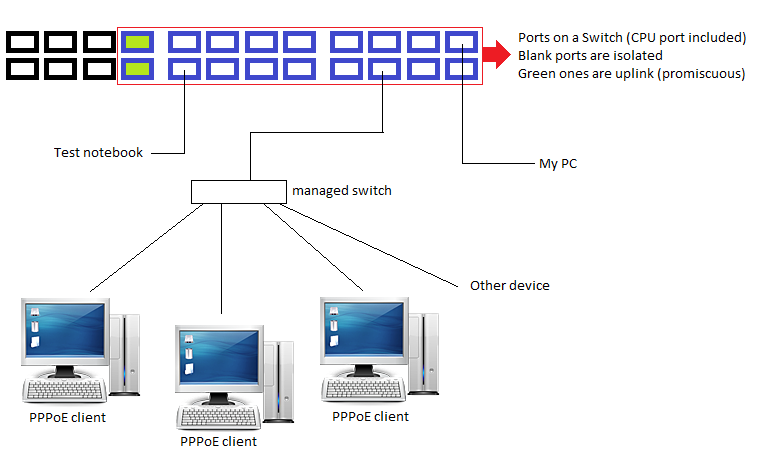

I drew a simples schematic on Paint. On the schematic, my PC gets routed to the “Test notebook” that is on another network, and to the “Other device”, that is also on a different network.
Post the output of /ip route print and /ip firewall nat print
Can the PPPoE clients access internet or WAN through the CRS?
From what you’ve written by now, it should all work properly.
The 10.254.0.0/24 is from a pool used for a DHCP server (my PC gets IP from that DHCP).
The 192.168.12.0/24 and 192.168.13.0/24 are PPPoE pool.
I also copied the result of “ip firewall mangle”, where I mark routing from addresses lists that are created dynamically. I use user-manager routeros package, for radius server, and I created users with limitations that add them to specific address list, so I can route each user to a different gateway at my choice.
The PPPoE clients can access internet normaly.
[admin@MikroTik] /ip firewall nat> print
Flags: X - disabled, I - invalid, D - dynamic
0 chain=srcnat action=masquerade src-address=10.254.0.0/24 log=no log-prefix=""
1 chain=srcnat action=masquerade src-address=192.168.12.0/24 log=no log-prefix=""
2 chain=srcnat action=masquerade src-address=192.168.13.0/24 log=no log-prefix=""
[admin@MikroTik] /ip firewall mangle> print
Flags: X - disabled, I - invalid, D - dynamic
0 ;;; Mark traffic for "addrlist-g1" address list with "routing-g1" routing mark
chain=prerouting action=mark-routing new-routing-mark=routing-g1 passthrough=yes
src-address-list=addrlist-g1 log=no log-prefix=""
1 ;;; Mark traffic for "addrlist-g2" address list with "routing-g2" routing mark
chain=prerouting action=mark-routing new-routing-mark=routing-g2 passthrough=yes
src-address-list=addrlist-g2 log=no log-prefix=""
[admin@MikroTik] /ip route> pr
Flags: X - disabled, A - active, D - dynamic, C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme,
B - blackhole, U - unreachable, P - prohibit
# DST-ADDRESS PREF-SRC GATEWAY DISTANCE
0 A S 0.0.0.0/0 192.168.1.1 1 (this one is for "routing-g1" routing table)
1 A S 0.0.0.0/0 192.168.201.254 1 (this one is for "routing-g2 routing table)
2 A S 0.0.0.0/0 192.168.1.1 1
3 ADC 10.254.0.0/24 10.254.0.1 ether7 0
4 ADC 192.168.1.0/24 192.168.1.13 wlan1 0
5 ADC 192.168.12.251/32 10.10.1.1 <pppoe-xxxxxxxx... 0
6 ADC 192.168.12.254/32 10.10.1.1 <pppoe-xxxxxxxx... 0
7 ADC 192.168.20.0/24 192.168.20.3 ether7 0
8 ADC 192.168.88.0/24 192.168.88.1 bridge1 0
9 ADC 192.168.100.0/24 192.168.100.3 ether7 0
10 ADC 192.168.201.0/24 192.168.201.3 ether4 0
11 ADC 192.168.254.1/32 192.168.254.1 Internal Bridge 0
[admin@MikroTik] /ppp active> pr
Flags: R - radius
# NAME SERVICE CALLER-ID ADDRESS UPTIME ENCODING
0 R xxxxxxxxxxxx pppoe xx:xx:xx:xx:xx:xx 192.168.12.254 1h12m36s
1 R xxxxxxxxxxx pppoe xx:xx:xx:xx:xx:xx 192.168.12.251 30m22s
ether7 is the master-port for the switch created between ports 7-24.
