Dear Mikrotik specialists.
I’m using a Mikrotik Routerboard 411U in order to setup a small Win7-PC and use it as a server for some small data exchange.
But for now I’m just trying to access the PC from outside via vnc.
The Router-Board has a SIM-Card and the PPP-Connection (A1net) is configured and running. The WAN IP is something like: 187.43.100.213
Spending quite some time with the wiki I managed to write a script which updates the WAN-IP to the dns-service dtdns.net
When I ping the ULR, the Domain-Name is resolved correctly, even though i get no packets back.
I configured NAT as well as DHCP, and the PC can access the Internet via the router(PPP).
Now, I tried to forward Port 5900 to the PC, which has a static DHCP-lease of 192.168.88.10
Using the manuals from the wiki, I try but fail. I think I configured everything right, yet I can’t seem to connect via VNC from outside.

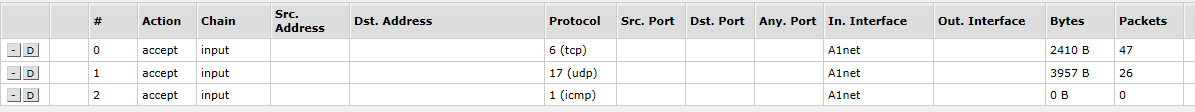

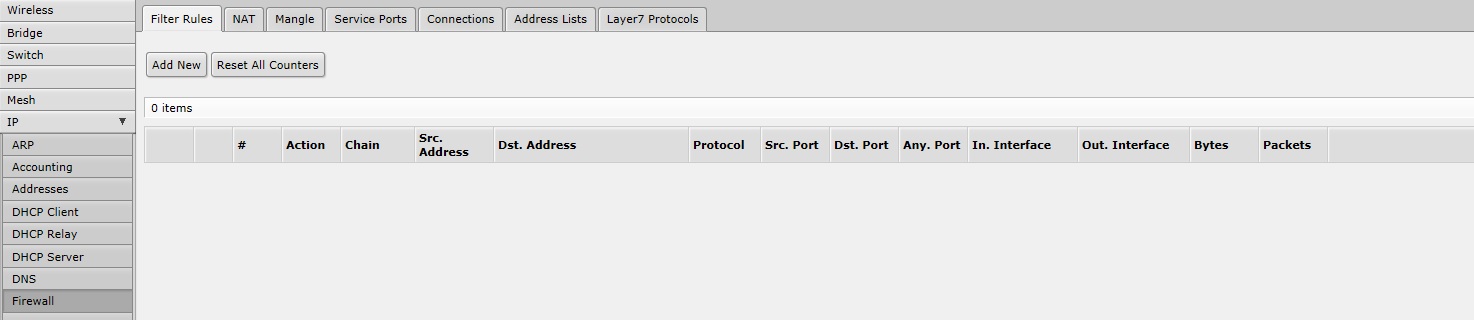

I attached some screenshots from my IP/Firewall-Configuration.

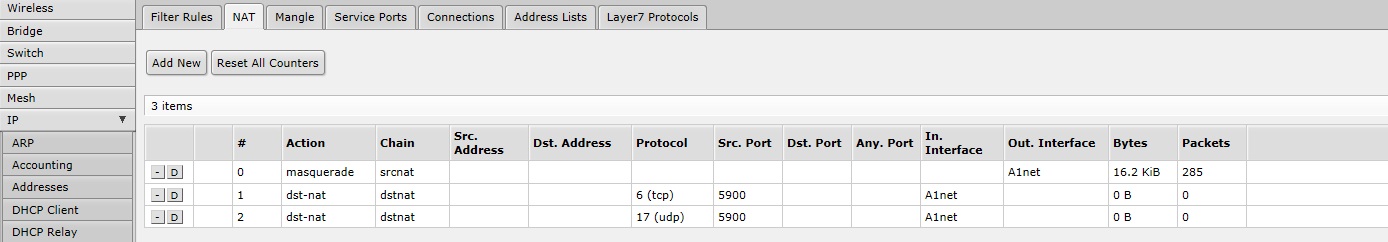

In the Picture “2.jpg”, the “To-Address” and “To-Port” are configured to 192.168.88.10 port 5900:
I hope you can help. Thank you.
