Thank you for your answers!
I stll have some doubts:
I don’t have too much experience with marking Packets, I understand the concept a little bit tho.. some time ago I used it to some queues.
Can a packet have 2 routing marks? If not, I don’t get it then, what would be the point of marking packets with routing mark? wouldn’t that be something like a Load Balance to split the traffic between the two WANs? Or, How should I manage it so all traffic goes to one route or the other when the check gateway fails?
Thanks, I’ll include that!
Roger That!! I think “automagic” recursive routes will do the job, and also I did used it some years ago to failover between links to a set of servers, not the whole internet. In that time, I didn’t used routing marks tho.
Another comment:
I remember having some troubles back then with the check-gateway=ping, and if a remember correctly, what I did was that I set the pref. source field with the specific IP address where the check ping should be generated.
Just out of curiosity, and based on your comment.. I don’t know if that its an alternative to
Again, please define your goal first. If you need failover - then just don’t use routing marks. For load balancing, you mark some packets with ISP1 mark and others with ISP2 mark. After that they go to the necessary uplinks.
That can be necessary if your connected route for the gateway has different pref. src for some reason.
I have tried this method of load balancing with fail over.
While I am able to successfully load balance; WAN1 without any routing marks but WAN2 with routing mark to_WAN2
Using Address lists and Mangle I now have most traffic on WAN1 but 2 devices on WAN2.
When WAN1 or WAN2 are power cycled, the recursive message changes to the alternative WAN IP address but the corresponding rule does not activate. What I mean in the 4 route, with 2 active (the default route) only those route change their recursive nature. The backup routes NEVER become active.
Sorry, the glass ball broke, this post exist to archive the documentation page from wiki.
it’s work properly in many my MultiWan situation. About LB…
I really recommended to learn and do this one HowTo who have got the best way to use many WAN’s at ones.
Next you can use any method netwatch/script/pcc etc to just flow the outgoing - then this is small stuff.
I had changed WAN1 to now be fully Conn marked. So now both WAN1 & WAN2 devices have conn marks. I obviously have the Route marks set in Mangle too.
Today I had an outage on WAN1. I turned WAN1 off and all the WAN1 devices did not switch over. The route did change to the backup. However, a Dynamic rule was created. I deleted the dynamic rule and still no connectivity on WAN1 devices. It wasn’t vital and the outage lasted only an hour, so I left it.

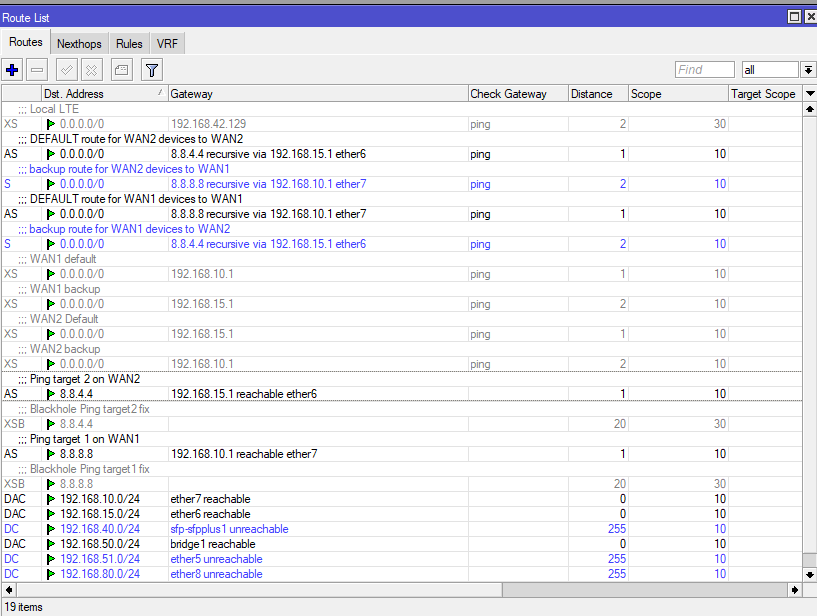

Flags: X - disabled, A - active, D - dynamic,
C - connect, S - static, r - rip, b - bgp, o - ospf, m - mme,
B - blackhole, U - unreachable, P - prohibit
0 X S ;;; Local LTE
dst-address=0.0.0.0/0 gateway=192.168.42.129
gateway-status=192.168.42.129 inactive check-gateway=ping distance=2
scope=30 target-scope=10 routing-mark=to_ISP2
1 A S ;;; DEFAULT route for WAN2 devices to WAN2
dst-address=0.0.0.0/0 gateway=8.8.4.4
gateway-status=8.8.4.4 recursive via 192.168.15.1 ether6
check-gateway=ping distance=1 scope=10 target-scope=10
routing-mark=to_WAN2
2 S ;;; backup route for WAN2 devices to WAN1
dst-address=0.0.0.0/0 gateway=8.8.8.8
gateway-status=8.8.8.8 recursive via 192.168.10.1 ether7
check-gateway=ping distance=2 scope=10 target-scope=10
routing-mark=to_WAN2
3 X S ;;; WAN2 Default
dst-address=0.0.0.0/0 gateway=192.168.15.1
gateway-status=192.168.15.1 inactive check-gateway=ping distance=1
scope=10 target-scope=30 routing-mark=to_WAN2
4 X S ;;; WAN2 backup
dst-address=0.0.0.0/0 gateway=192.168.10.1
gateway-status=192.168.10.1 inactive check-gateway=ping distance=2
scope=10 target-scope=30 routing-mark=to_WAN2
5 A S ;;; DEFAULT route for WAN1 devices to WAN1
dst-address=0.0.0.0/0 gateway=8.8.8.8
gateway-status=8.8.8.8 recursive via 192.168.10.1 ether7
check-gateway=ping distance=1 scope=10 target-scope=10
routing-mark=to_WAN1
6 S ;;; backup route for WAN1 devices to WAN2
dst-address=0.0.0.0/0 gateway=8.8.4.4
gateway-status=8.8.4.4 recursive via 192.168.15.1 ether6
check-gateway=ping distance=2 scope=10 target-scope=10
routing-mark=to_WAN1
7 ADS dst-address=0.0.0.0/0 gateway=192.168.15.1
gateway-status=192.168.15.1 reachable via ether6 distance=1 scope=30
Yes, that is correct.
For to_WAN1, When the modern on ether7 goes down then I expect it to switch to ether6. While that does happen in the router, additional dynamic rule is created. And the traffic does not actually flow to ether6. When I delete the dynamic rule traffic still does not flow.
By dynamic, I mean an automatically generated rule. Those are represented as D status rules.
no to_WAN1 data flows through WAN2
What error does, for example, ‘ping’ return on the client? Is it timeout? Did you check where actually packets marked as to_WAN1 go?
No idea what VRF is. I do not use BGP or anything. This router is in my house, I plugged 2 mobile broadband devices into it using Ethernet (1x Chateau, 1x Huawei). I no longer have a fixed line broadband.
All WAN1 traffic is conn tracked to WAN1conn and all WAN2 traffic is conn tracked to WAN2conn. All DNS goes to the respective conn track.
All devices except 3-4 are on WAN1. This is set using an address list. Mangle does this, grabbing all addresses on 192.168.50.x (my LAN) except address list marked to_WAN2list. Therefore, all devices ip not on to_WAN2list are ip listed as to_WAN1list. This works and I can see all that happening.
I have src nat on Ether7 and Ether6 with no route marking.
using various “what is my ip” websites, I have confirmed that devices are exposed to the correct mobile address.
I am assuming that the scope and target scope are correct and that the chaining of the rules (DEFAULT to Ping rule) is correct as that mirrors your original post. The Dynamic rule that is created when a WAN comes back on does not appear to have any negative effects.

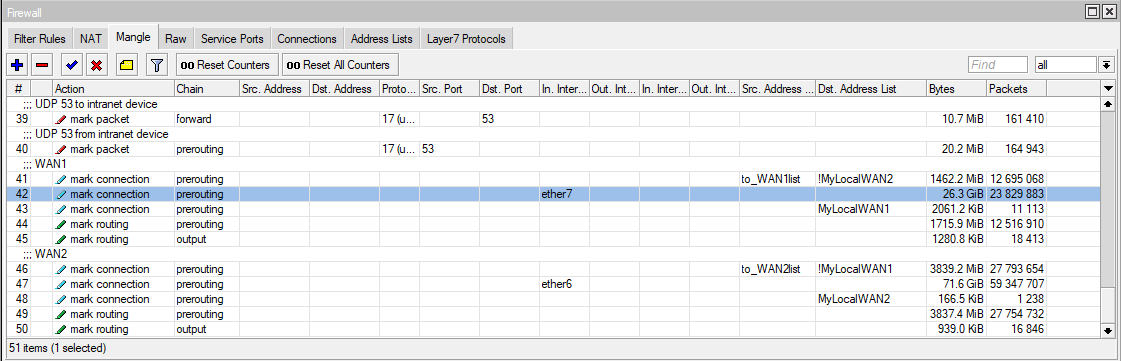

My Ether7 and Ether6 inputs are mangled to WAN1conn and WAN2conn.
So when my traffic on WAN1 swaps to WAN2, the incoming traffic gets conn marked as WAN2conn while its out going traffic remains at a WAN1conn mark. Do you agree, is this the problem?
I don’t see your exact rules. The rules from the manual mark only externally-initiated connections on WAN interfaces. So it should not affect your connections from LAN. You may add a logging rule to “forward” chain to see where some packets go (“out” interface in Log) when WAN1 is unavailable.
