Hello,
I have to perform a wireless network to broadcast several services. The idea is to set put a wireless network to cover a huge area using aproximately 20 Atheros AR9280, all of them conneted by means of WDS links PtMP. I was wondering if the following scheme could be done with mikrotik:
-
WLAN1 in “ap bridge 2.4GHz” mode to put on VAP for each service:
-Hotspot Internet for customers: VAP1 > VLAN100
-Hotspot Intranet for employers: VAP2 > VLAN200
-AP bridge for VoIP: VAP3 > 300 -
WLAN2: Station WDS mode (5.8GHz). The core network is accesible throught this interface, and Vlanes are sent on it.
-
ETH1: This interface is to connect a IP-camera (VLAN400).
-

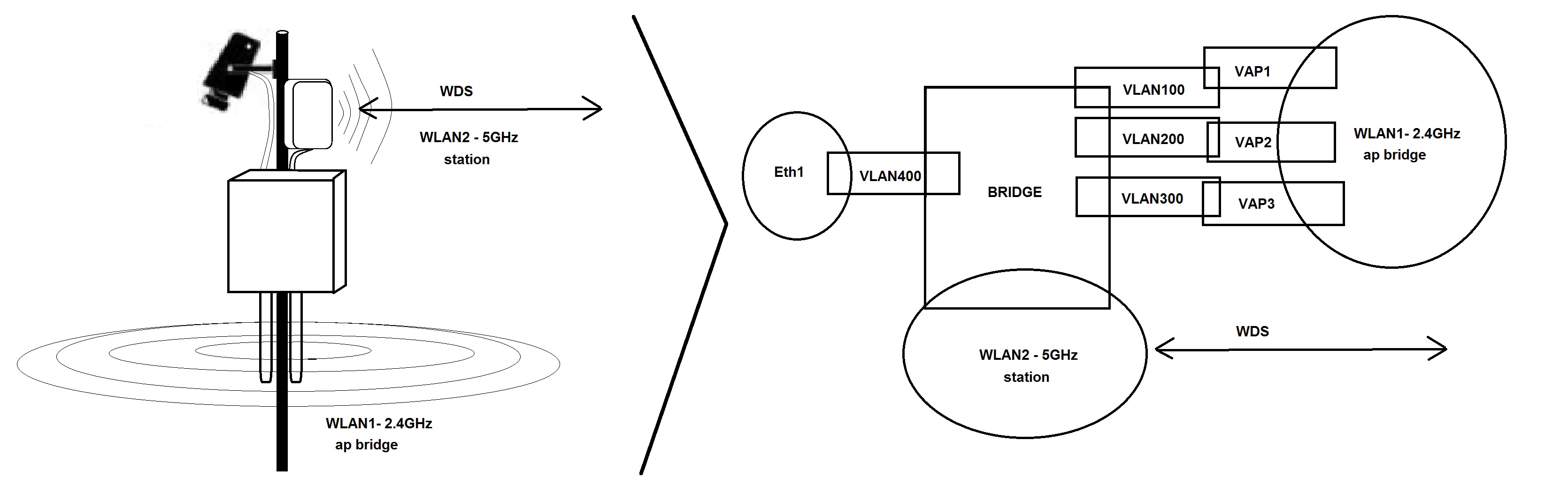

BRIDGE: To assign the differents Vlanes on it. Then pair each vlan to its own bridge to serparate services as it is shown in the diagram.
Could it work??? Any suggestions???
Thans very much!
