Another call for PCIe adapters reporting L2MTU

Inssomniak · October 1, 2012, 7:57pm

Please anyone using X86 and PCI-e bus cards please reports if your card is displaying/reporting L2MTU and what card type it is?

I need a card that reports L2MTU and the new RB44ge doesnt have a full height bracket!

Lakis · October 2, 2012, 12:03am

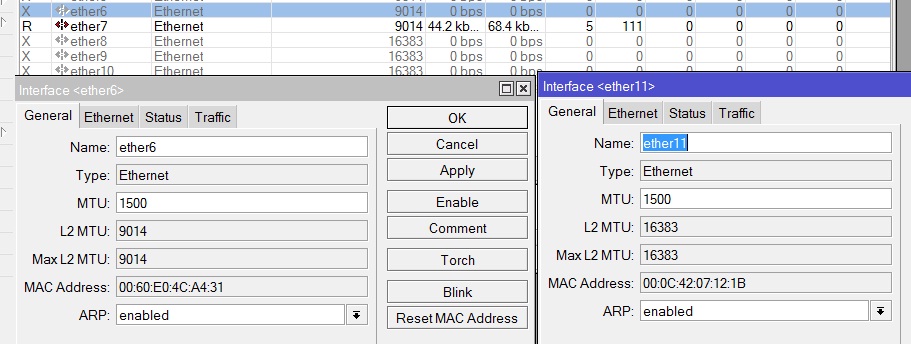

Intel PRO/1000 Ethernet
RealTek RTL8169 Gigabit Ethernet

Inssomniak · October 2, 2012, 12:15am

Can you tell me what specific cards? The particular Intel chipset? CT/PT etc of Intel card. (output of the system resources section) are they both PCIe ? how wide?

The Pro/1000 cards I have dont report it, (PCI bus though)

nz_monkey · October 2, 2012, 5:46am

None of our Pro1000’s do either. We have PT and ET cards mainly.

nz_monkey · October 2, 2012, 5:48am

Although tbh all our x86 routers are on 5.6 so maybe it does in newer releases?

Lakis · October 2, 2012, 6:16pm

Sorry inssomniak my mistake U need PCI-express card (I was reading like PCI-e = PCI Ethernet)
but hire u are

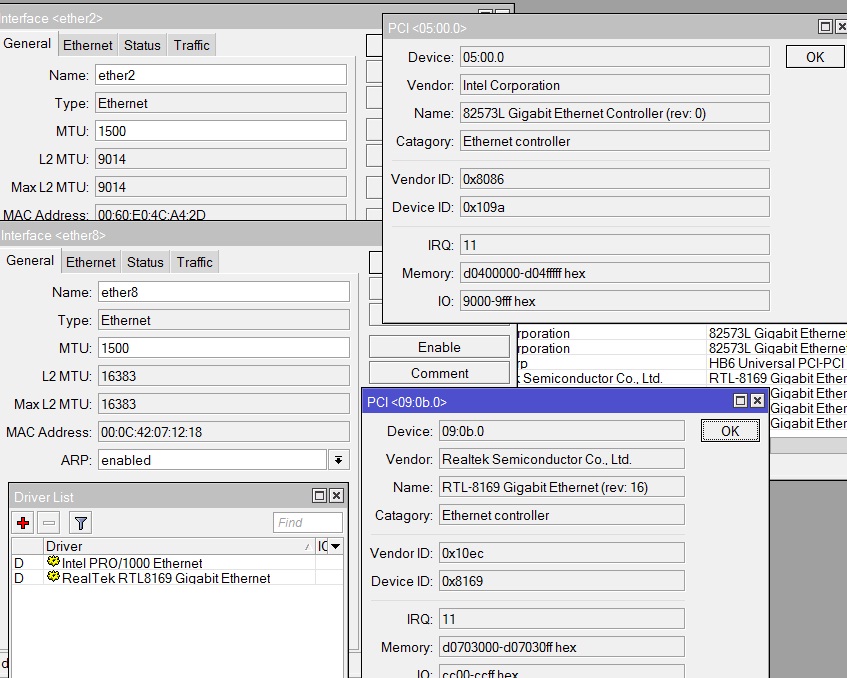

Intel Pro/1000 - 82573L Gigabit Ethernet Controller
RealTek RTL8169 Gigabit Ethernet is PCI x4 ports- RTL-8169 Gigabit Ethernet http://routerboard.com/ING44V

Inssomniak · October 2, 2012, 6:26pm

you know the family? CT/MT/PT/GT? Of the intel card.

EDIT that chip 82573L is a pci-express 1x chip but you say its a PCI NIC?
EDIT again actually more reading says that intel pro 1000 chipset doesnt support jumbo frames? I think maybe your mixed up on your cards?

frankie · October 2, 2012, 7:00pm

I have both 82571EB based Intel Pro 1000/PT (EXPI9402PTBLK) and 82576 based Intel Pro 1000/ET (E1G42ETBLK) Dual Server Adapters. They both shows MTU 9014. Onboard Realtek 8168 shows 16383. Unfortunately media sense (link state) doesn’t work on ROS on all ethernet ports, always show “R”.

Inssomniak · October 2, 2012, 7:11pm

Thanks!!

I have an 82574L based pro/1000 (pro/1000 CT PCI-e 1x) I wonder if that would work?

So Far we have 82571, 82573 and 82576 based adapters all reporting L2MTU confirmed.

Lakis · October 2, 2012, 9:50pm

Inssomniak · October 2, 2012, 10:04pm

I believe you but the Intel adapter is probably pci-express, and not PCI. that particular controller is a pci-e chip. On board?

frankie · October 3, 2012, 7:42am

At least both on-board Intel 82574L on Supermicro X7SPE-HF-D525 shows 9014 L2 MTU.

janisk · October 3, 2012, 12:31pm

RB44G used Realtek chips, while card you are linking to is called RB44GV and uses VIA chips.

Inssomniak · October 4, 2012, 2:23pm

Do you know what specific controller/chip it is? Bus is PCI or PCI-e?

nz_monkey · October 4, 2012, 5:55pm

PCI-e

Inssomniak · October 4, 2012, 11:13pm

Do ya know the particular controller chip?

Is it an 8257x series?
