hello friends
i connect my AP to AP using WDS static mode.my all access points are working fine but i have question
i m already made point to point link with base station and i want to make one point to point link with other side with same base station so how can i make that i hope any one help me to solve my problem.i m using 532A Router board with 2 mini pci cards.
i attach file here.
thanx in advance
james
Infact u want to connect clients from that side?.
yes i want to connect clients form that side.
so is it possible to make link with same base station or not?
or is there any other solution?
i hope u will give me quick response.
Well, that’s a common situation.
You can configure your Mikrotik as an ap-bridge and then register your clients to it, I have a network like that.
Regards.
yes my friend i know i have to add clients in access list.
but my question is

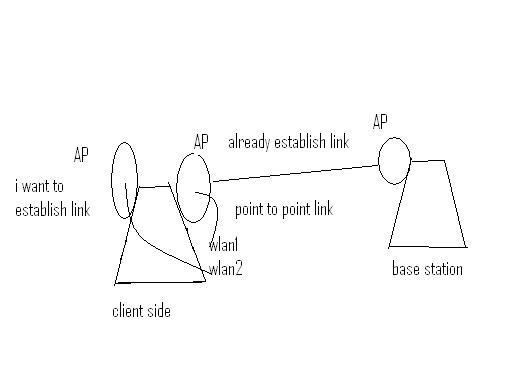

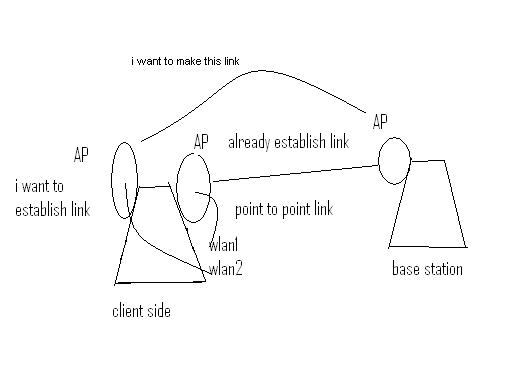

my AP connecting to base station and its working fine but below in the image
u can see that i have to make other link (which is opposite direction to first AP) to same base station with using 2 mini pci cards.so is it possible or not?
and i have one more question
i m trying to configure Cacti-graphic tool but i can’t sucessed .
if any body knows plz help me to configure cacti.
i m looking forward ur response.
thanx in advance
james21
WDS protocol is required if you want to establish link between two AP and allow clients to connect to these access points.
Make sure you have enabled SNMP on ‘snmp’ menu and correct SNMP community is used, other configuration and settings related to Cacti.
Point 1) is true between 2 Mikrotiks, but if u have another client, you can even register new clients without WDS functionality.
Regards.
thanx for everything.
