Hello,

we are experiencing problems with NV2 protocol and ARM devices (LHG AC, SXTsq AC, Disc AC). We have two testing setups:

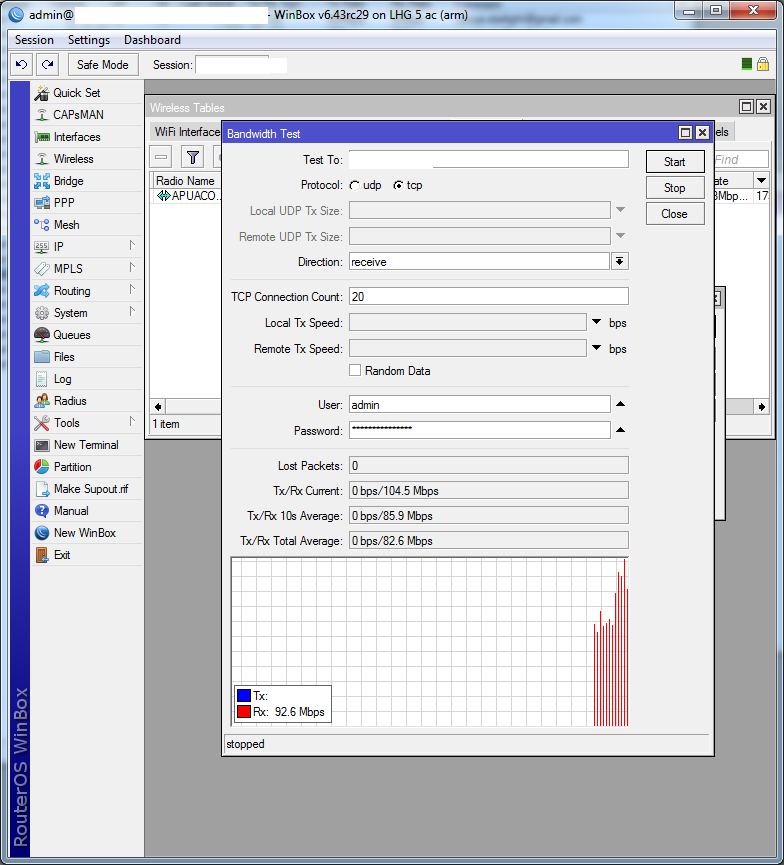

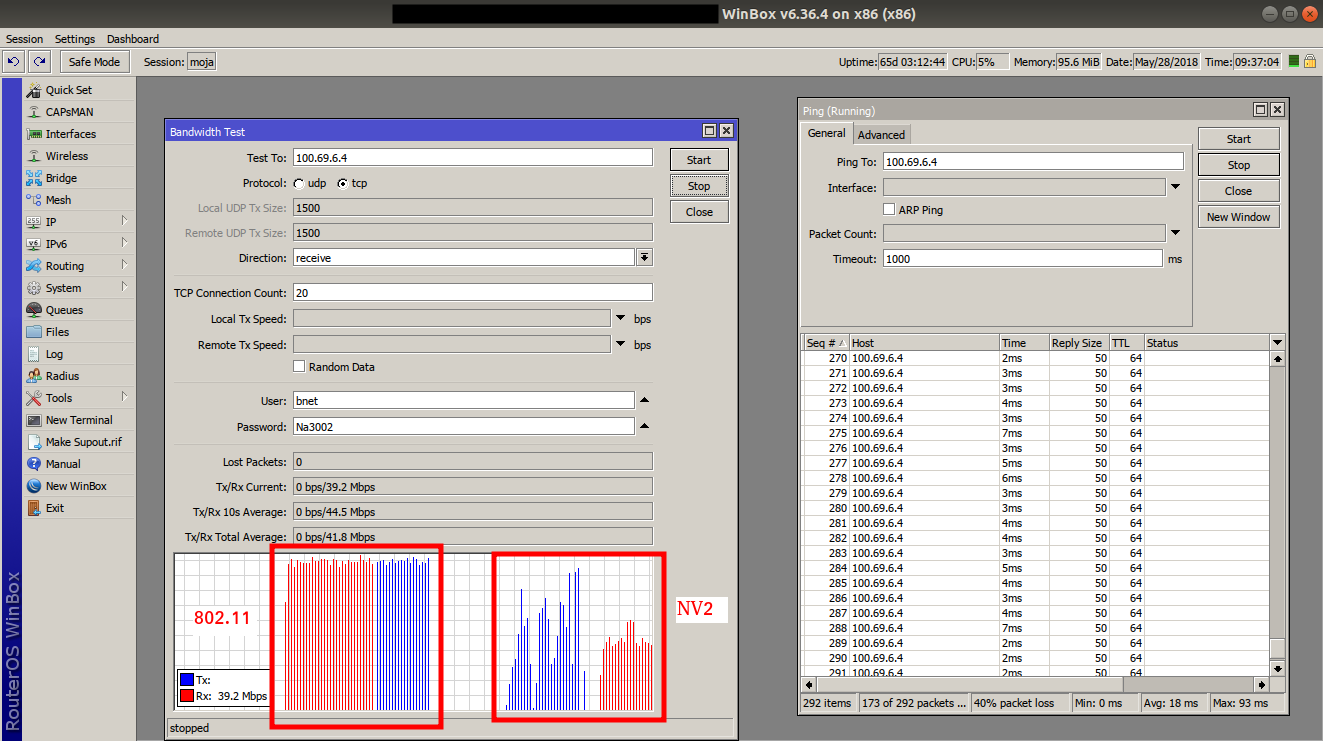

  1. PtP link with 2 LHGs AC (bridge mode, ROS 6.43rc29) - with 802.11 protocol we have 90/90 Mbps (download/upload) - limit of 100M ethernet on both ends, tested from x86 router to another x86 router (in between only two LHGs). When I changed to nv2 protocol (did not touch any other settings) throughput is not stable, as per image

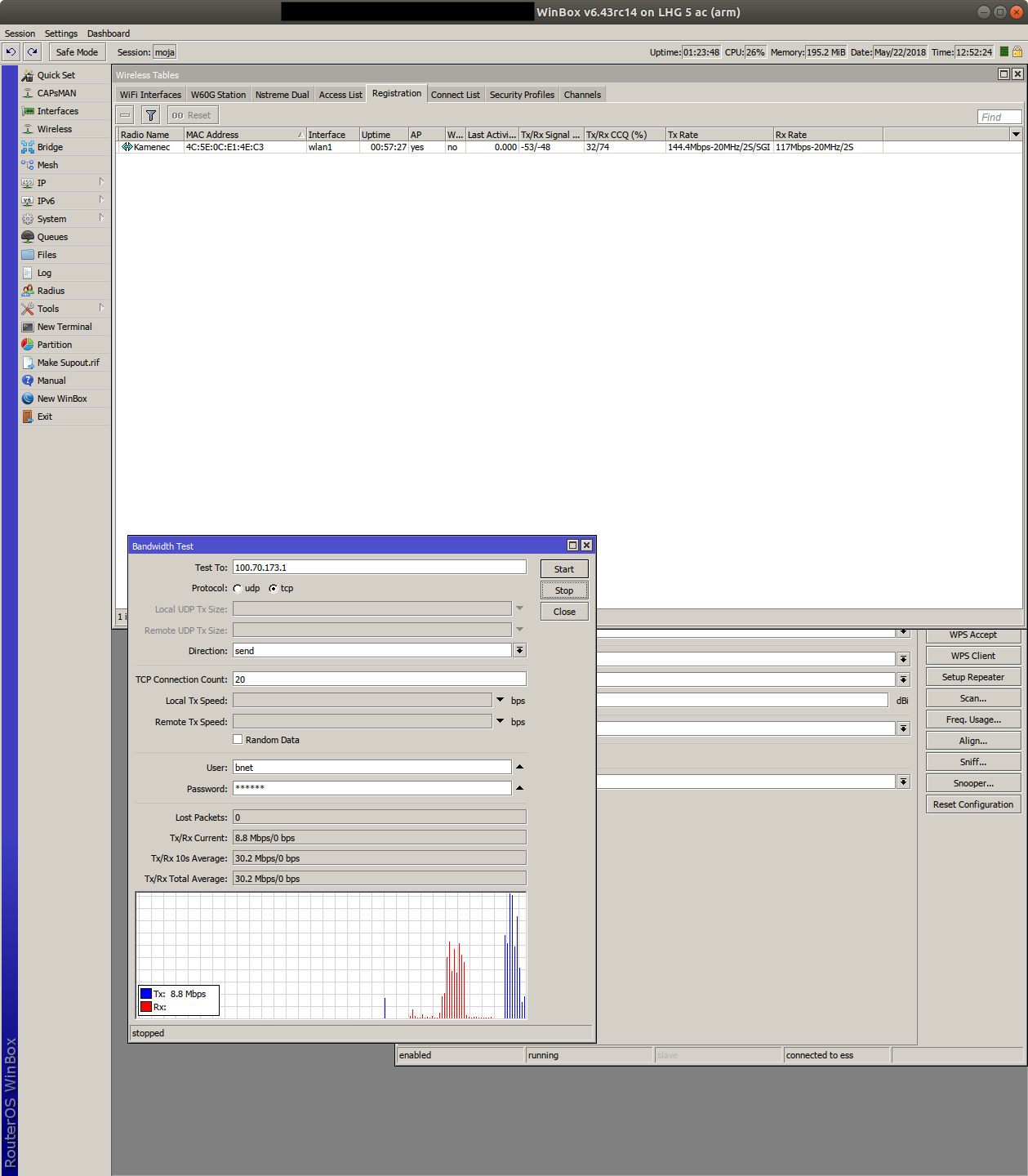

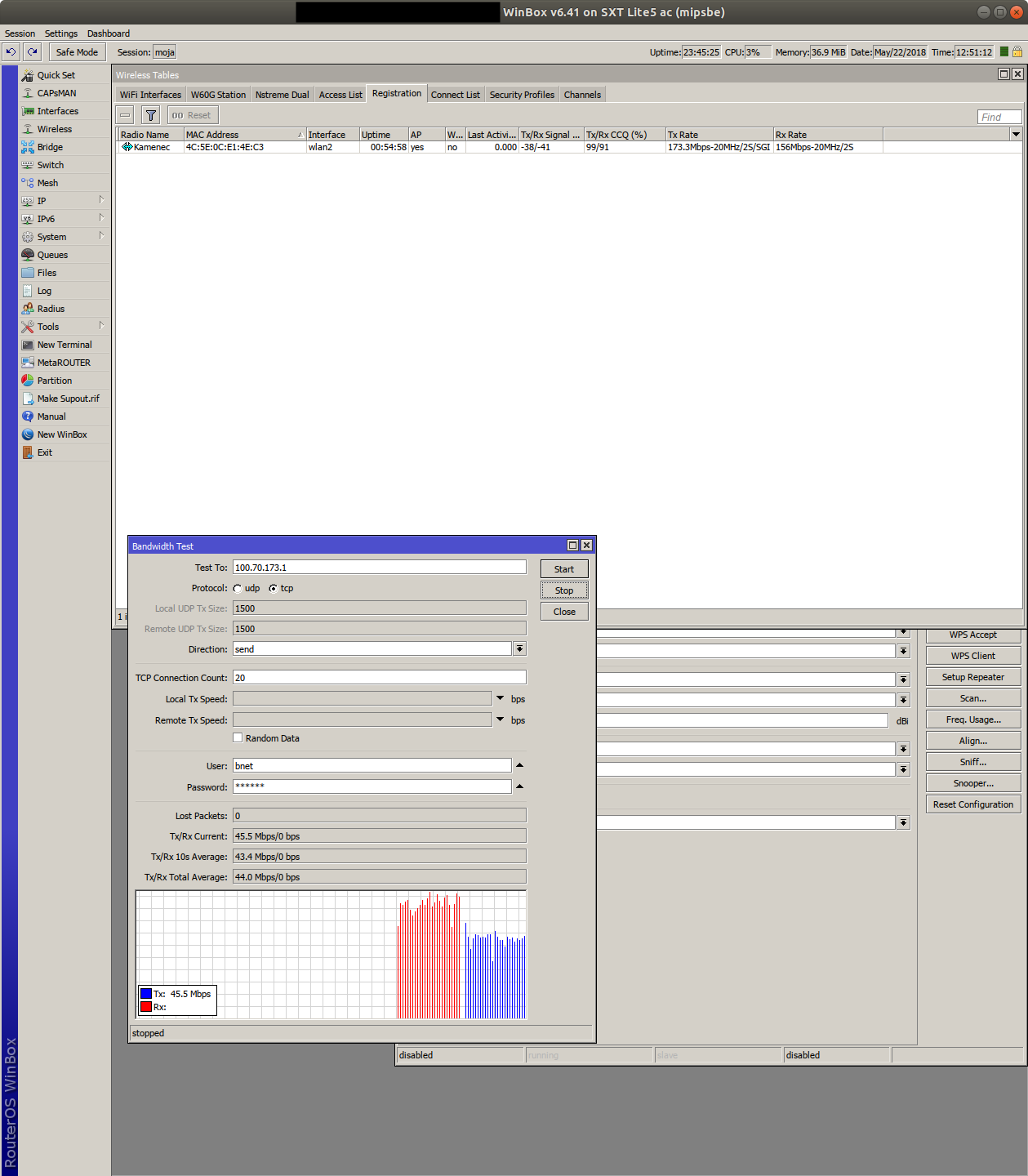

  2. PtMP - AP RB922, ROS 6.42.3, 7 clients. One of out technitians have his client device (SXT AC, ROS 6.41) and we mounted LHG AC (ROS 6.43rc14) next to it. Results:
    We reported this problem to Mikrotik but no solution at the moment.

Does anyone have similar problems with ARM devices?

IPQ4019 chipsets - random capacity loss
SXTsq 5 AC PTP 1km Link
Improve PTMP download
v6.43rc [release candidate] is released!
Should MikroTik make more powerful antennas and wireless protocols in 2019?
MantBox with sxtq and lhg ac - Bad CCQ
Newbie: LHG 5ac only hitting 100mbps
WI-FI bridje 5 Ghz
2

We have the same problem with SXTsq ac clients.
Fix it!

3

Because Disc lite5 have problems with radom http://forum.mikrotik.com/t/cracked-cover-on-routerboard-disc-lite5/119621/1
now we use DISC lite5 AC and we have the same problems with NV2. We use NV2 on all sectors in our network. Low P2MP speeds (unstable) is very big problem.
ROS 6.42.4 not solve it !

P2P links with nv2 also works slow [Ticket#2018042522004921]
Ticket opened 25.4.2018 - no solution yet :frowning:

@Mikrotik When do you make the update for ARM? Thanks

4

This problem is know about 6 Month old, we sended all ARM ac devices back to Distribution and stock a lot of old ones.

Now we are seeing that SXT ac and SXT HG ac are out of stock at our distributions and another distri has removed them from shop, looks like these are going to be legacy’s.

But the bad news is that the new ones still not working!

5

Hi, we have the same problems with nv2 only, nstreme and other protocols work correctly

6

Hi,

Ignoring the performance issue on this, I have stability issues with ARM and NV2. On my SXT SQ AC box my NV2 link stays up for about 3 to 4 days and then the entire system reboots. I believe this was meant to be fixed with 6.42.4, but it obviously still seems to be happening.

Anyone else having this issue with ARM and NV2?

Thanks,

Chris

7

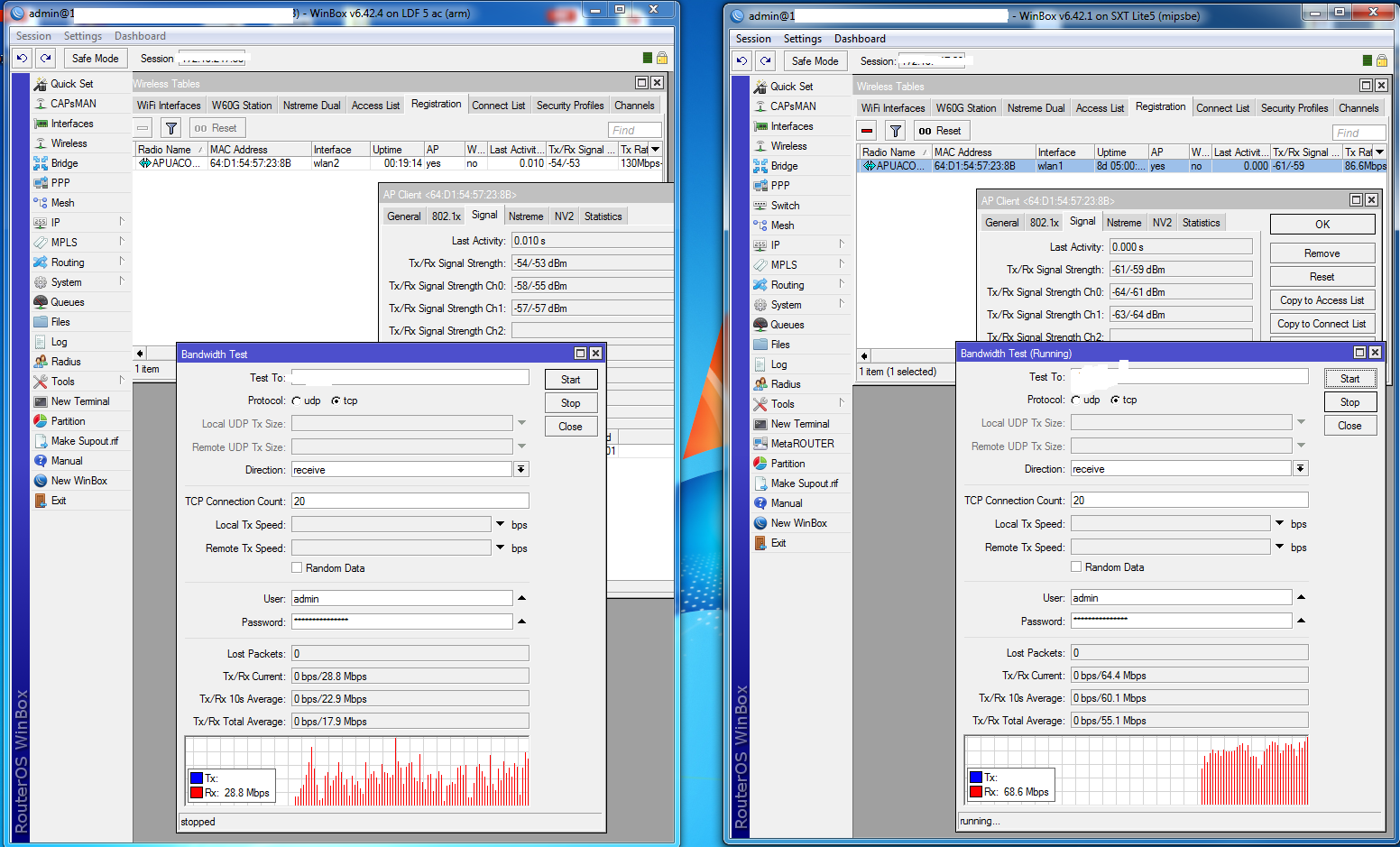

I confirm the problem, here a print screen on the same AP an LDF with better signal as worst perfomance than an old lite 5 N.

8

any update? ARM devices are not usable at the moment in the next months we have to deploy something like 200 new customers and we need a solutions that wokrs like SXT 5 lite ac

Thank you

9

Solution?
Mikrotik?

10

Maybe is an hardware problem: NV2 needs an accurate timing and the bad performance seems to be caused from antenna loosing the Nv2 slot. It’s not an RF hardware related problem beacuse it work with 802.11/nestreme.

No words from mikrotik and no old SXT AC lite available it’s pain for me :frowning:

11

Yeah, NV2 doesn’t work with 802.11AC :frowning:

12

memento :slight_smile:

13

Hi guys it’s not a joke SXT AC lite is no more available and new arm hardware with NV2 don’t work.

Mikrotik please let know us something

HELP :frowning:

14

What if you compare it with ARM and 802.11 protocol (not NV2), what is the speed then?

15

Normis in 802.11 works like a charm :slight_smile:

In NV2 seems that antenna has timing problem loosing the slot

16

then why use Nv2 if you have better speed than non-ARM with nv2 ?
Nv2 was made when devices were different and needed optimisations that are no longer needed. Maybe it is simply time to use 802.11 in the new devices.

17

you want to say if I have all devices in network in NV2, I need to switch to 802.11 ? You understand what you give bad answer ?
After your answer, I think many have the thought that you can not just make a correction of errors. you release a notoriously bad devices and you cannot change errrors…

Very very bad answer and very very bad devices lately …

18

I understand that mixed network might have compatibility problems, you have a good point. Have you considered to switch them all to 802.11 and seeing if you don’t get better results than Nv2 ?

19

Normis 802.11 is not efficient like NV2 in noisy enviroment and on busy AP and it not solve the problem of hidden nodes. Are you saying us to switch to 802.11 when you released some months a go GREAT improvments to NV2? WOW I am without words…

We install something like 800/1000 new customers per year and we need to have back an antenna that work well with NV2.

Nv2 is the core of our business for many of us we can’t switch to 802.11!!!

Please give us back the SXT lite 5 AC

20

I am trying to give you realistic alternatives until ARM doesn’t work as fast as other systems.
