[ASK] default configuration second part

RouterOS General
1

From default configuration:

add action=accept chain=forward comment=“defconf: accept in ipsec policy” disabled=yes ipsec-policy=in,ipsec
add action=accept chain=forward comment=“defconf: accept out ipsec policy” disabled=yes ipsec-policy=out,ipsec

Does it affect only for tunnel mode?

Thanks

2

no.

3

transport?

4

actually what it does?

5

Documentation clearly describes what it does:
https://wiki.mikrotik.com/wiki/Manual:IP/Firewall/Filter#Properties

Matches the policy used by IpSec. Value is written in following format: direction, policy. Direction is Used to select whether to match the policy used for decapsulation or the policy that will be used for encapsulation.

in - valid in the PREROUTING, INPUT and FORWARD chains
out - valid in the POSTROUTING, OUTPUT and FORWARD chains

ipsec - matches if the packet is subject to IpSec processing;
none - matches packet that is not subject to IpSec processing (for example, IpSec transport packet).

For example, if router receives Ipsec encapsulated Gre packet, then rule ipsec-policy=in,ipsec will match Gre packet, but rule ipsec-policy=in,none will match ESP packet.

6

It shows excellent the process how it goes. Just i’m wondering in which scenario can i use like for example L2TP-IPSec or some other situacion.

That was my question

7

I have been testing many tunnel like EoIP-IPSec, IPIP-IPSec, L2TP-IPSec. Only i found that this rules makes traffic when i’m playing with tunnel mode, on any other it doesn’t make any traffic at all.

i’m waiting for your comment

8

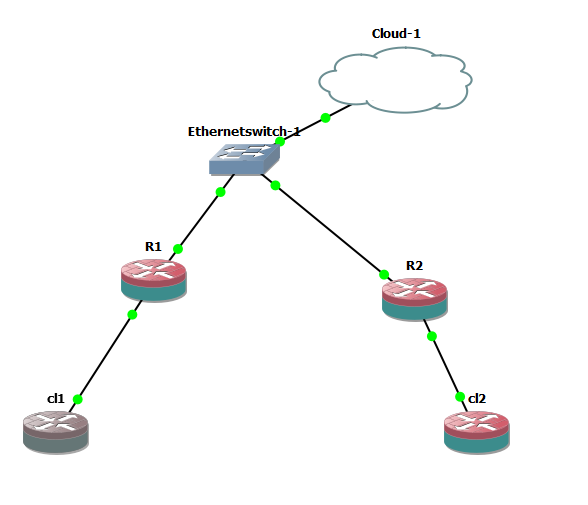

This log comes form R1 and it says:
IPsec_IN = 0c:5b:54:40:0b:00 belongs to “R2”
IPSec_OUT = 0c:5b:54:98:f9:00 belongs to “cl1”
