Good day
I know this will have people pulling their hair out there heads, but I really need help with our configuraion (please see the attachment). I will add more details soon.
The problem is as follows: We’ve connected new AP’s to the system (AP3 + AP4). Initially, when you can connected to AP3 and AP4 (IP’s are assigned by PPPoE); however, for some reason, there is now Internet traffic that passes through. Even when you sign onto the AP with winbox, no Internet traffic seems to pass through. When you sign onto the older AP’s, Internet traffic passthrough takes place.
Now, one cannot even sign onto AP3 (username and password does not get authenticated - timeout occurs). One can still sign onto AP4, but still no Internet. This problem seems to be occuring now in AP2 as well.

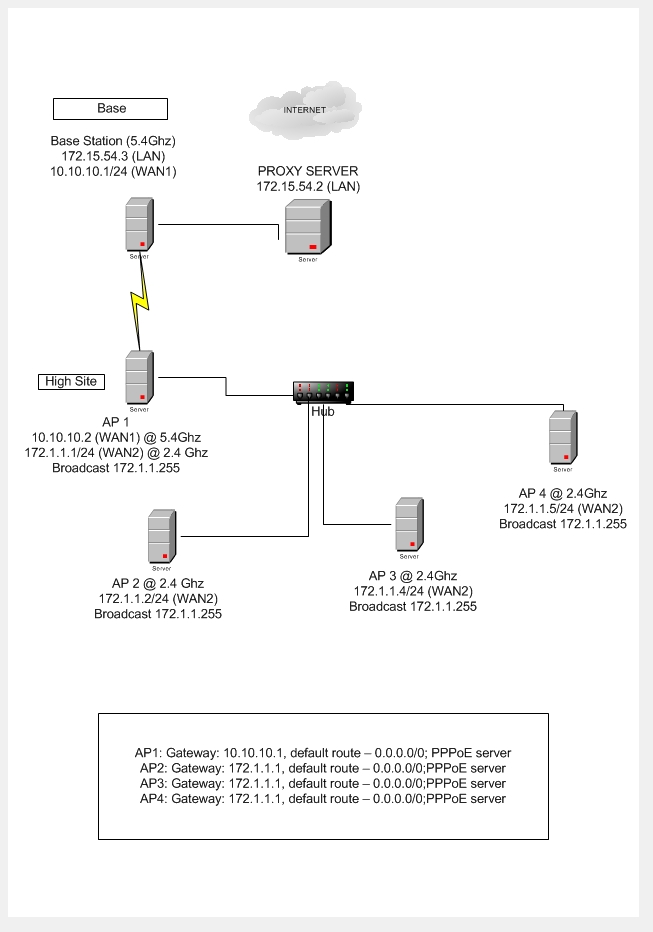

I would appreciate it if someone can look at the configuration in the attachment and make recommendations. For arguments sake, the setup at the base station is working fine.
Thanks
Hein
