Recently two AX AP's added to my network. Found out that CAPsMAN V2 is required, configured (initially on the same CAPsMAN V1 machine but later on a different machine) the CAPsMAN V2, connect the AX devices and all work fine, almost ........ When I provision the AX AP's new WiFi interfaces are assigned but they are not automatically added to the bridge for some reason. I need to manually added them to the bridge. This is not the correct way of course.
In the new OS release, I read the following:
Changelog van V7.23
*) bridge - fixed dynamic VLAN update for WiFi interfaces;
*) wifi - improved interface provisioning for WiFi 7 access points;
*) wifi - improved on-capsman traffic processing;

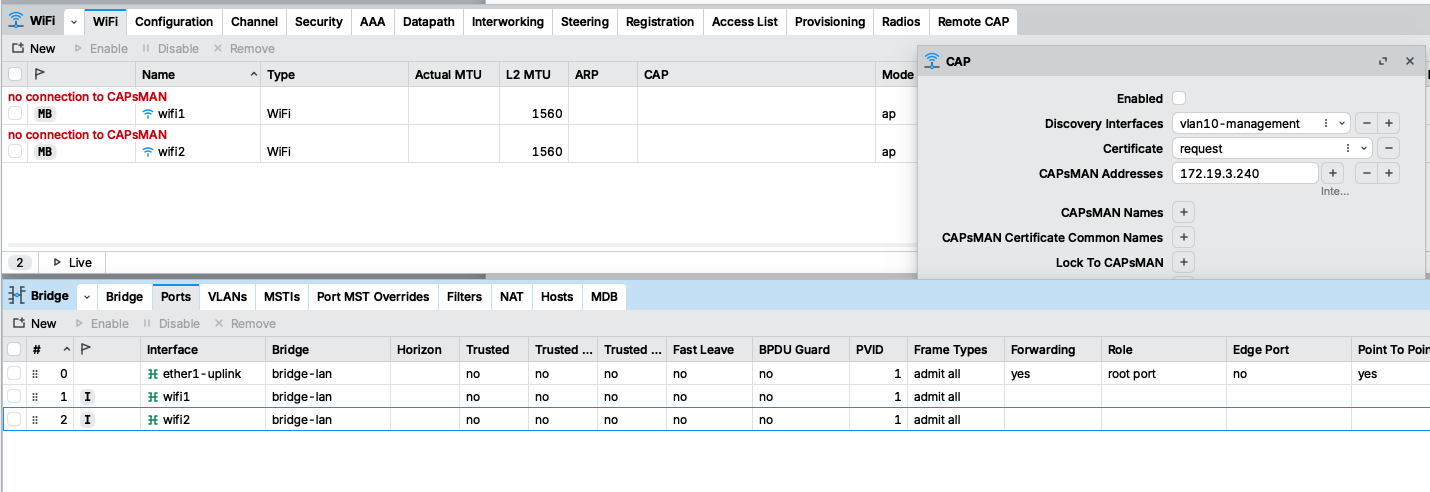

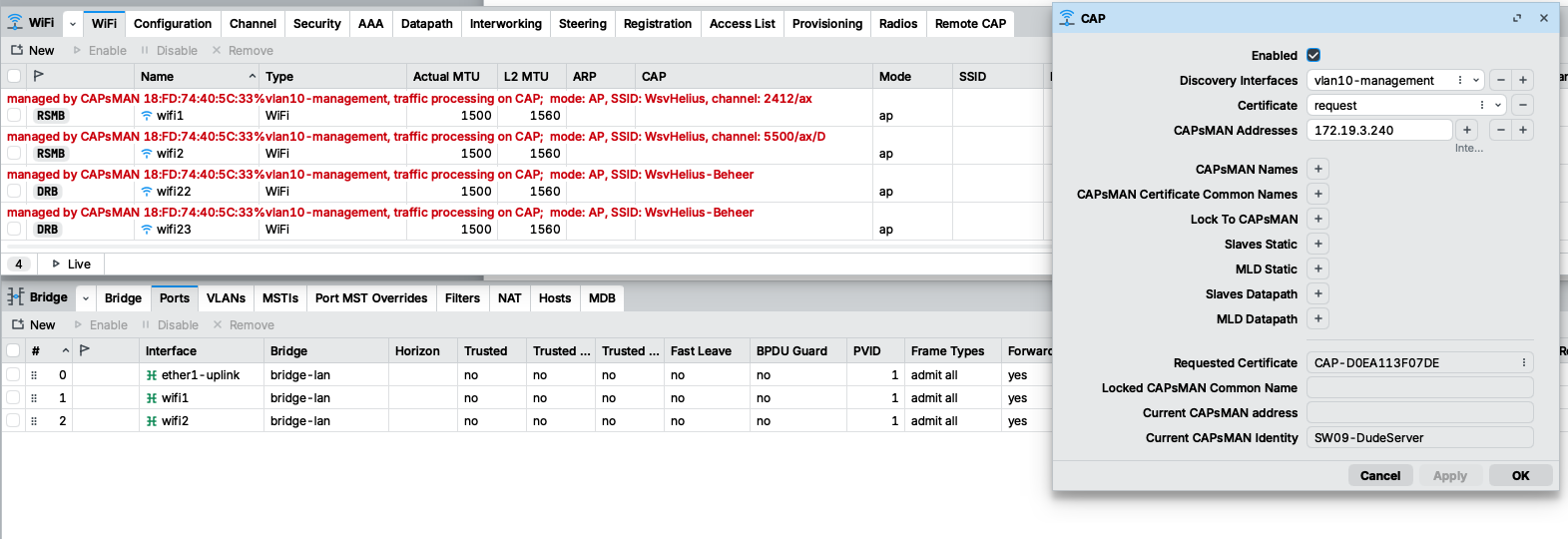

I tried the new firmware but this doesn't solve the problem. Any suggestion on how to address this? How to solve this?

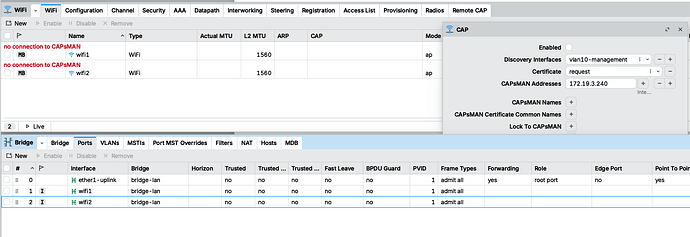

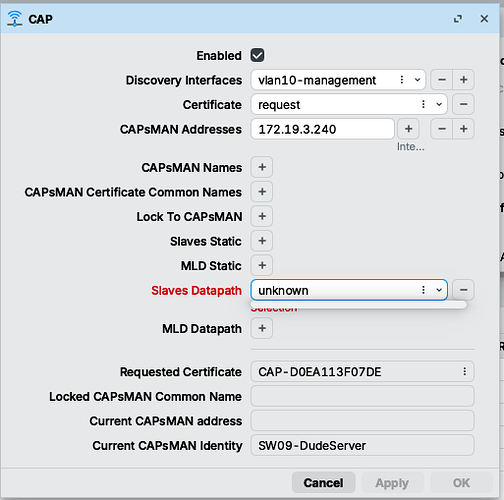

My current CAPsMAN v2 config:
/caps-man channel
add band=2ghz-onlyn control-channel-width=20mhz frequency=2412,2437,2462
name=2.4Ghz-Channels skip-dfs-channels=yes
add band=5ghz-onlyac control-channel-width=20mhz frequency=
5180,5200,5220,5240 name=5Ghz-Channels skip-dfs-channels=yes
add band=2ghz-onlyn control-channel-width=20mhz frequency=2412 name=
2.4Ghz-Channel-1 skip-dfs-channels=yes tx-power=12
add band=2ghz-onlyn control-channel-width=20mhz frequency=2437 name=
2.4Ghz-Channel-6 skip-dfs-channels=yes tx-power=12
add band=2ghz-onlyn control-channel-width=20mhz frequency=2462 name=
2.4Ghz-Channel-11 skip-dfs-channels=yes tx-power=12
add band=5ghz-onlyac control-channel-width=20mhz frequency=5180 name=
5Ghz-Channel-1 skip-dfs-channels=yes tx-power=30
add band=5ghz-onlyac control-channel-width=20mhz frequency=5200 name=
5Ghz-Channel-2 skip-dfs-channels=yes tx-power=30
add band=5ghz-onlyac control-channel-width=20mhz frequency=5220 name=
5Ghz-Channel-3 skip-dfs-channels=yes tx-power=30
add band=5ghz-onlyac control-channel-width=20mhz frequency=5240 name=
5Ghz-Channel-4 skip-dfs-channels=yes tx-power=30
add band=5ghz-onlyac control-channel-width=20mhz frequency=5825 name=
5Ghz-Channel-5 skip-dfs-channels=yes tx-power=30
/interface bridge
add name=bridge-lan port-cost-mode=short vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] name=ether1-UplinkToRouter
set [ find default-name=ether5 ] comment="Camera Managent Poort" name=
ether5-CAMManagement
set [ find default-name=sfp1 ] advertise=
10M-baseT-half,10M-baseT-full,100M-baseT-half,100M-baseT-full
/interface vlan
add interface=bridge-lan name=vlan10-Management vlan-id=10
add interface=bridge-lan name=vlan101-Wifi-Haven-Gasten vlan-id=101
add interface=bridge-lan name=vlan103-Wifi-Haven-Management vlan-id=103
add interface=bridge-lan name=vlan104-Cameras vlan-id=104
add interface=bridge-lan name=vlan105-Restaurant vlan-id=105
add interface=bridge-lan name=vlan106-Havenkantoor vlan-id=106

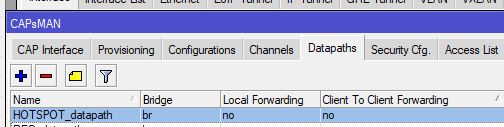

/caps-man datapath
add bridge=bridge-lan local-forwarding=yes name=datapath101 vlan-id=101
vlan-mode=use-tag
add bridge=bridge-lan local-forwarding=yes name=datapath103 vlan-id=103
vlan-mode=use-tag
/caps-man configuration
add channel=5Ghz-Channels country=netherlands datapath=datapath101
installation=any mode=ap name=WiFi-5Ghz-Gast ssid=WiFi
add channel=5Ghz-Channel-1 country=netherlands datapath=datapath101
installation=any mode=ap name=WiFi-5Ghz-Gast-1 ssid=WiFi
add channel=5Ghz-Channel-2 country=netherlands datapath=datapath101
installation=any mode=ap name=WiFi-5Ghz-Gast-2 ssid=WiFi
add channel=5Ghz-Channel-3 country=netherlands datapath=datapath101
installation=any mode=ap name=WiFi-5Ghz-Gast-3 ssid=WiFi
add channel=2.4Ghz-Channels country=netherlands datapath=datapath101
installation=outdoor mode=ap name=WiFi-2.4Ghz-Gast ssid=WiFi
add channel=5Ghz-Channel-4 country=netherlands datapath=datapath101
installation=any mode=ap name=WiFi-5Ghz-Gast-4 ssid=WiFi
/caps-man interface
add configuration=WiFi-5Ghz-Gast-3 disabled=no l2mtu=1600 mac-address=
2C:C8:1B:5B:6F:B7 master-interface=none name=WF21-Restaurant_GRP1-1
radio-mac=2C:C8:1B:5B:6F:B7 radio-name=2CC81B5B6FB7
/caps-man rates
add basic=12Mbps comment=2.4Ghz name=2.4Ghz supported=
6Mbps,9Mbps,12Mbps,18Mbps,24Mbps,36Mbps,48Mbps,54Mbps
/caps-man configuration
add channel=2.4Ghz-Channel-1 country=netherlands datapath=datapath101
installation=outdoor name=WiFi-2.4Ghz-Gast-Channel-1 rates=2.4Ghz
ssid=WiFi
add channel=2.4Ghz-Channel-6 country=netherlands datapath=datapath101
installation=outdoor mode=ap name=WiFi-2.4Ghz-Gast-Channel-6 rates=
2.4Ghz ssid=WiFi
add channel=2.4Ghz-Channel-11 country=netherlands datapath=datapath101
installation=outdoor mode=ap name=WiFi-2.4Ghz-Gast-Channel-11 rates=
2.4Ghz ssid=WiFi
/caps-man interface
add configuration=WiFi-2.4Ghz-Gast-Channel-11 disabled=no l2mtu=1600
mac-address=2C:C8:1B:5B:6F:B6 master-interface=none name=
WF21-Restaurant_GRP1-2 radio-mac=2C:C8:1B:5B:6F:B6 radio-name=
2CC81B5B6FB6
/caps-man security
add authentication-types=wpa2-psk encryption=aes-ccm name=WiFi-Beheer
/caps-man configuration
add channel=2.4Ghz-Channel-1 country=netherlands datapath=datapath103
installation=outdoor load-balancing-group="" mode=ap name=
WiFi-2.4Ghz-Beheer-Channel-1 rates=2.4Ghz security=WiFi-Beheer
ssid=WiFi-Beheer
add channel=5Ghz-Channels country=netherlands datapath=datapath103
installation=any mode=ap name=WiFi-5Ghz-Beheer security=
WiFi-Beheer ssid=WiFi-Beheer
add channel=2.4Ghz-Channel-6 country=netherlands datapath=datapath103
installation=outdoor mode=ap name=WiFi-2.4Ghz-Beheer-Channel-6
rates=2.4Ghz security=WiFi-Beheer ssid=WiFi-Beheer
add channel=2.4Ghz-Channel-11 country=netherlands datapath=datapath103
installation=outdoor mode=ap name=WiFi-2.4Ghz-Beheer-Channel-11
rates=2.4Ghz security=WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-1 country=netherlands datapath=datapath103
installation=any mode=ap name=WiFi-5Ghz-Beheer-1 security=
WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-2 country=netherlands datapath=datapath103
installation=any mode=ap name=WiFi-5Ghz-Beheer-2 security=
WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-3 country=netherlands datapath=datapath103
installation=any mode=ap name=WiFi-5Ghz-Beheer-3 security=
WiFi-Beheer ssid=WiFi-Beheer
add channel=2.4Ghz-Channels country=netherlands datapath=datapath103
installation=outdoor mode=ap name=WiFi-2.4Ghz-Beheer security=
WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-4 country=netherlands datapath=datapath103
installation=any mode=ap name=WiFi-5Ghz-Beheer-4 security=
WiFi-Beheer ssid=WiFi-Beheer
/caps-man interface
add configuration=WiFi-5Ghz-Beheer-3 disabled=no l2mtu=1600 mac-address=
2E:C8:1B:5B:6F:B7 master-interface=WF21-Restaurant_GRP1-1 name=
WF21-Restaurant_GRP1-1-1 radio-mac=00:00:00:00:00:00 radio-name=
2EC81B5B6FB7
add configuration=WiFi-2.4Ghz-Beheer-Channel-11 disabled=no l2mtu=1600
mac-address=2E:C8:1B:5B:6F:B6 master-interface=WF21-Restaurant_GRP1-2
name=WF21-Restaurant_GRP1-2-1 radio-mac=00:00:00:00:00:00 radio-name=
2EC81B5B6FB6
/interface wifi channel
add band=5ghz-ax disabled=no frequency=5500 name=5Ghz-Channel-1 width=20mhz
add band=5ghz-ax disabled=no frequency=5520 name=5Ghz-Channel-2
skip-dfs-channels=10min-cac width=20mhz
add band=5ghz-ax disabled=no frequency=5560 name=5Ghz-Channel-4
skip-dfs-channels=10min-cac width=20mhz
add band=2ghz-ax disabled=no frequency=2412 name=2.4Ghz-Channel-1 width=20mhz
add band=2ghz-ax deprioritize-unii-3-4=no disabled=no frequency=2437 name=
2.4Ghz-Channel-6 width=20mhz
add band=2ghz-ax disabled=no frequency=2462 name=2.4Ghz-Channel-11 width=
20mhz
add band=5ghz-ax disabled=no frequency=5540 name=5Ghz-Channel-3
skip-dfs-channels=all width=20mhz
add band=5ghz-ax disabled=no frequency=5580 name=5Ghz-Channel-5
skip-dfs-channels=10min-cac width=20mhz

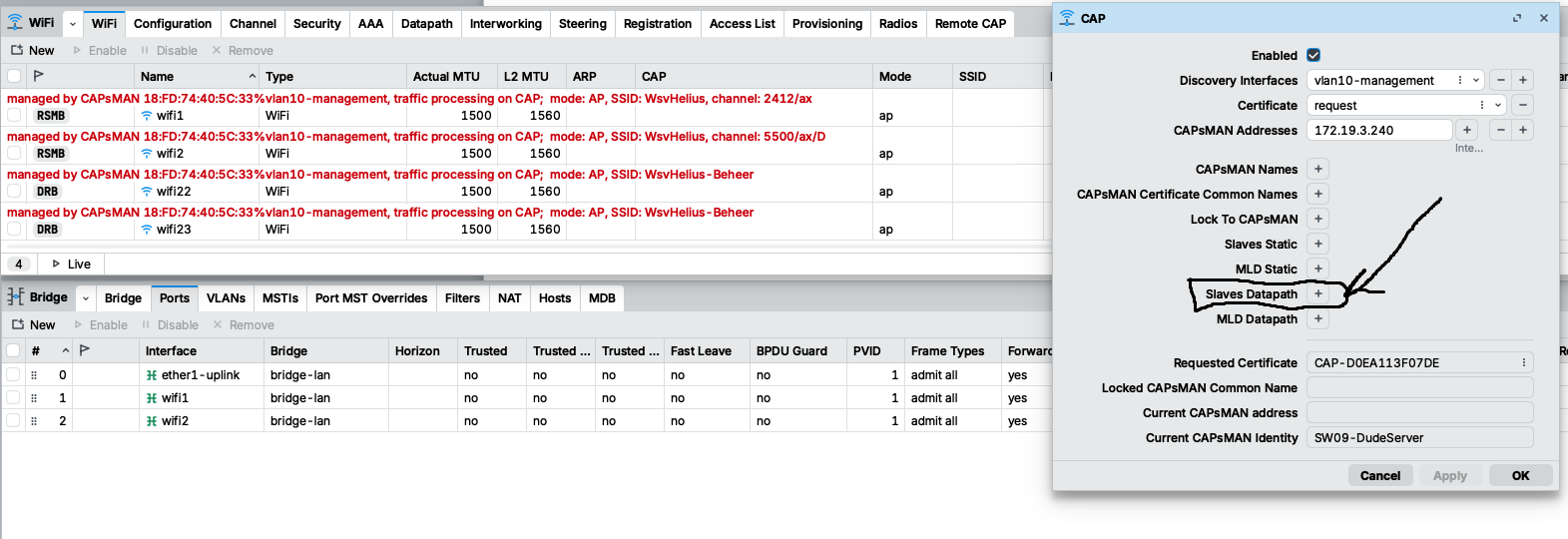

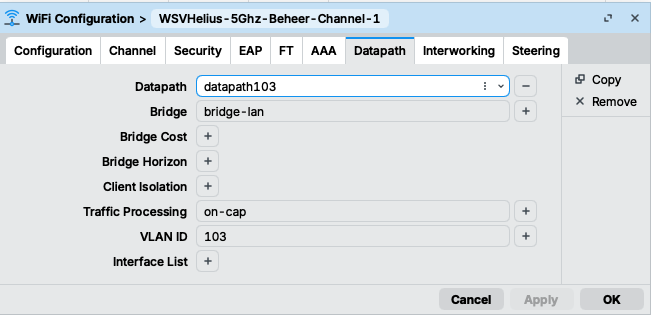

/interface wifi datapath
add bridge=bridge-lan client-isolation=yes disabled=no name=datapath101
vlan-id=101
add bridge=bridge-lan disabled=no name=datapath103 vlan-id=103
/interface wifi configuration
add channel=2.4Ghz-Channel-1 channel.deprioritize-unii-3-4=no country=
Netherlands datapath=datapath101 disabled=no installation=outdoor mode=ap
name=WiFi-2.4Ghz-Gast-Channel-1 ssid=WiFi
add channel=5Ghz-Channel-1 country=Netherlands datapath=datapath101 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Gast-Channel-1 ssid=
WiFi
add channel=2.4Ghz-Channel-6 channel.deprioritize-unii-3-4=no country=
Netherlands datapath=datapath101 disabled=no installation=outdoor mode=ap
name=WiFi-2.4Ghz-Gast-Channel-2 ssid=WiFi
add channel=2.4Ghz-Channel-11 channel.deprioritize-unii-3-4=no country=
Netherlands datapath=datapath101 disabled=no installation=outdoor mode=ap
name=WiFi-2.4Ghz-Gast-Channel-3 ssid=WiFi
add channel=5Ghz-Channel-2 country=Netherlands datapath=datapath101 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Gast-Channel-2 ssid=
WiFi
add channel=5Ghz-Channel-3 country=Netherlands datapath=datapath101 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Gast-Channel-3 ssid=
WiFi
add channel=5Ghz-Channel-4 country=Netherlands datapath=datapath101 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Gast-Channel-4 ssid=
WiFi
add channel=5Ghz-Channel-5 country=Netherlands datapath=datapath101 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Gast-Channel-5 ssid=
WiFi
/interface wifi security
add authentication-types=wpa2-psk,wpa3-psk disabled=no encryption=ccmp,gcmp
ft=no ft-over-ds=no name=WiFi-Beheer
/interface wifi configuration
add channel=2.4Ghz-Channel-1 country=Netherlands datapath=datapath103
disabled=no installation=outdoor mode=ap name=
WiFi-2.4Ghz-Beheer-Channel-1 security=WiFi-Beheer ssid=
WiFi-Beheer
add channel=5Ghz-Channel-1 country=Netherlands datapath=datapath103 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Beheer-Channel-1
security=WiFi-Beheer ssid=WiFi-Beheer
add channel=2.4Ghz-Channel-6 country=Netherlands datapath=datapath103
disabled=no installation=outdoor mode=ap name=
WiFi-2.4Ghz-Beheer-Channel-2 security=WiFi-Beheer ssid=
WiFi-Beheer
add channel=2.4Ghz-Channel-11 country=Netherlands datapath=datapath103
disabled=no installation=outdoor mode=ap name=
WiFi-2.4Ghz-Beheer-Channel-3 security=WiFi-Beheer ssid=
WiFi-Beheer
add channel=5Ghz-Channel-2 country=Netherlands datapath=datapath103 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Beheer-Channel-2
security=WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-3 country=Netherlands datapath=datapath103 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Beheer-Channel-3
security=WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-4 country=Netherlands datapath=datapath103 disabled=
no installation=outdoor mode=ap name=WiFi-5Ghz-Beheer-Channel-4
security=WiFi-Beheer ssid=WiFi-Beheer
add channel=5Ghz-Channel-5 channel.deprioritize-unii-3-4=no country=
Netherlands datapath=datapath103 disabled=no installation=outdoor mode=ap
name=WiFi-5Ghz-Beheer-Channel-5 security=WiFi-Beheer ssid=
WiFi-Beheer
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/caps-man access-list
add action=accept allow-signal-out-of-range=always disabled=no signal-range=
-75..120
add action=reject allow-signal-out-of-range=10s disabled=no signal-range=
-120..-76
/caps-man manager
set ca-certificate=auto certificate=auto enabled=yes

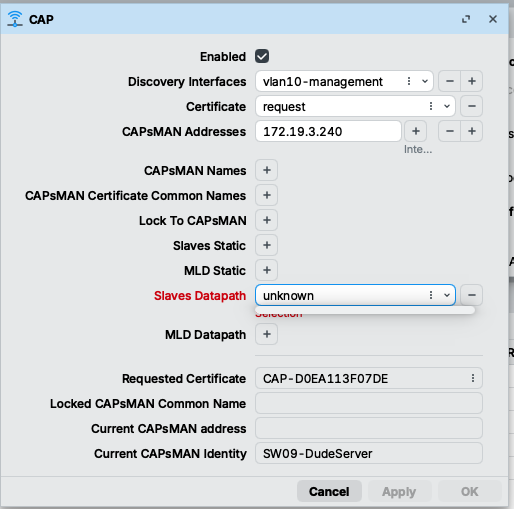

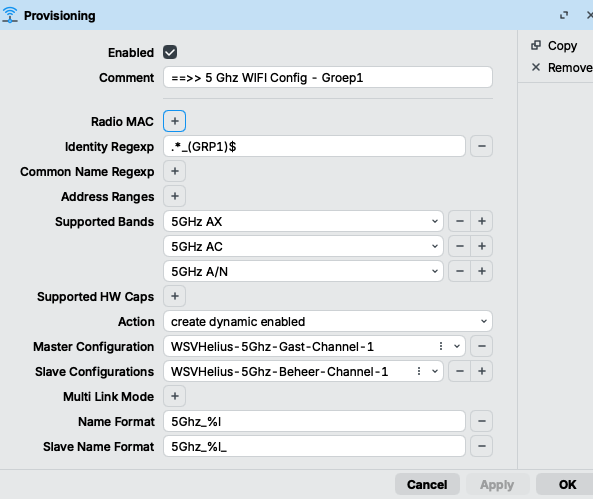

/caps-man provisioning
add action=create-dynamic-enabled comment="==>> 2.4Ghz WIFI Config - Groep1"
hw-supported-modes=gn identity-regexp="._(GRP1)$" master-configuration=
WiFi-2.4Ghz-Gast-Channel-1 name-format=identity
slave-configurations=WiFi-2.4Ghz-Beheer-Channel-1
add action=create-dynamic-enabled comment="==>> 2.4Ghz WIFI Config - Groep2"
hw-supported-modes=gn identity-regexp=".(GRP2)$" master-configuration=
WiFi-2.4Ghz-Gast-Channel-6 name-format=identity
slave-configurations=WiFi-2.4Ghz-Beheer-Channel-6
add action=create-dynamic-enabled comment="==>> 2.4Ghz WIFI Config - Groep3"
hw-supported-modes=gn identity-regexp=".*(GRP3)$" master-configuration=
WiFi-2.4Ghz-Gast-Channel-11 name-format=identity
slave-configurations=WiFi-2.4Ghz-Beheer-Channel-11
add action=create-dynamic-enabled comment="==>> 5Ghz WIFI Config - Groep1"
hw-supported-modes=ac identity-regexp="._(GRP1)$" master-configuration=
WiFi-5Ghz-Gast-1 name-format=identity slave-configurations=
WiFi-5Ghz-Beheer-1
add action=create-dynamic-enabled comment="==>> 5Ghz WIFI Config - Groep2"
hw-supported-modes=ac identity-regexp=".(GRP2)$" master-configuration=
WiFi-5Ghz-Gast-2 name-format=identity slave-configurations=
WiFi-5Ghz-Beheer-2
add action=create-dynamic-enabled comment="==>> 5Ghz WIFI Config - Groep3"
hw-supported-modes=ac identity-regexp=".*(GRP3)$" master-configuration=
WiFi-5Ghz-Gast-3 name-format=identity slave-configurations=
WiFi-5Ghz-Beheer-3
add action=create-dynamic-enabled comment="==>> 5Ghz WIFI Config - Groep4"
hw-supported-modes=ac identity-regexp="._(GRP4)$" master-configuration=
WiFi-5Ghz-Gast-4 name-format=identity slave-configurations=
WiFi-5Ghz-Beheer-4
/interface bridge port
add bridge=bridge-lan interface=ether1-UplinkToRouter internal-path-cost=10
path-cost=10
add bridge=bridge-lan frame-types=admit-only-untagged-and-priority-tagged
interface=ether5-CAMManagement internal-path-cost=10 path-cost=10 pvid=
104
add bridge=bridge-lan interface=ether2 internal-path-cost=10 path-cost=10
add bridge=bridge-lan interface=ether3 internal-path-cost=10 path-cost=10
add bridge=bridge-lan interface=ether4 internal-path-cost=10 path-cost=10
/ip firewall connection tracking
set udp-timeout=10s
/ipv6 settings
set disable-ipv6=yes
/interface bridge vlan
add bridge=bridge-lan tagged=bridge-lan,ether1-UplinkToRouter untagged=
ether5-CAMManagement vlan-ids=10
add bridge=bridge-lan tagged=bridge-lan,ether1-UplinkToRouter vlan-ids=101
add bridge=bridge-lan tagged=bridge-lan,ether1-UplinkToRouter vlan-ids=103
add bridge=bridge-lan tagged=bridge-lan,ether1-UplinkToRouter vlan-ids=104
add bridge=bridge-lan tagged=bridge-lan,ether1-UplinkToRouter vlan-ids=105
add bridge=bridge-lan tagged=bridge-lan,ether1-UplinkToRouter vlan-ids=106
/interface ovpn-server server
add mac-address=FE:06:B5:FF:1C:D9 name=ovpn-server1
/interface wifi access-list
add action=accept allow-signal-out-of-range=always disabled=yes interface=any
signal-range=-75..120
add action=reject allow-signal-out-of-range=10s disabled=yes interface=any
signal-range=-120..-76
/interface wifi capsman
set ca-certificate=auto certificate=auto enabled=yes interfaces=
vlan10-Management upgrade-policy=none
/interface wifi provisioning
add action=create-dynamic-enabled comment="==>> 5 Ghz WIFI Config - Groep1"
disabled=no identity-regexp=".(GRP1)$" master-configuration=
WiFi-5Ghz-Gast-Channel-1 name-format=5Ghz%I slave-configurations=
WiFi-5Ghz-Beheer-Channel-1 slave-name-format=5Ghz_%I_
supported-bands=5ghz-ax,5ghz-ac,5ghz-n
add action=create-dynamic-enabled comment="==>> 5 Ghz WIFI Config - Groep3"
disabled=no identity-regexp=".(GRP3)$" master-configuration=
WiFi-5Ghz-Gast-Channel-3 name-format=%I slave-configurations=
WiFi-5Ghz-Beheer-Channel-3 slave-name-format=%I supported-bands=
5ghz-ax
add action=create-dynamic-enabled comment="==>> 5 Ghz WIFI Config - Groep4"
disabled=no identity-regexp=".(GRP4)$" master-configuration=
WiFi-5Ghz-Gast-Channel-4 name-format=%I slave-configurations=
WiFi-5Ghz-Beheer-Channel-4 slave-name-format=%I supported-bands=
5ghz-ax
add action=create-dynamic-enabled comment="==>> 5 Ghz WIFI Config - Groep2"
disabled=no identity-regexp=".(GRP2)$" master-configuration=
WiFi-5Ghz-Gast-Channel-2 name-format=%I slave-configurations=
WiFi-5Ghz-Beheer-Channel-2 slave-name-format=%I supported-bands=
5ghz-ax
add action=create-dynamic-enabled comment="==>> 2.4 Ghz WIFI Config - Groep1"
common-name-regexp="" disabled=no identity-regexp=".(GRP1)$"
master-configuration=WiFi-2.4Ghz-Gast-Channel-1 name-format=
2.4Ghz%I slave-configurations=WiFi-2.4Ghz-Beheer-Channel-1
slave-name-format=2.4Ghz_%I_ supported-bands=2ghz-ax,2ghz-g,2ghz-n
add action=create-dynamic-enabled comment="==>> 2.4 Ghz WIFI Config - Groep2"
common-name-regexp="" disabled=no identity-regexp=".(GRP2)$"
master-configuration=WiFi-2.4Ghz-Gast-Channel-2 name-format=%I
slave-configurations=WiFi-2.4Ghz-Beheer-Channel-2 slave-name-format=
%I supported-bands=2ghz-ax
add action=create-dynamic-enabled comment="==>> 2.4 Ghz WIFI Config - Groep3"
common-name-regexp="" disabled=no identity-regexp=".(GRP3)$"
master-configuration=WiFi-2.4Ghz-Gast-Channel-3 name-format=%I
slave-configurations=WiFi-2.4Ghz-Beheer-Channel-3 slave-name-format=
%I supported-bands=2ghz-ax
/ip address
add address=172.x.x.x/24 interface=vlan10-Management network=172.x.x.x
/ip dns
set servers=172.x.x.x
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip route
add dst-address=0.0.0.0/0 gateway=172.x.x.x
/system clock
set time-zone-name=Europe/Amsterdam
/system identity
set name=SW09-DudeServer
/system logging
add comment=CAPS topics=caps
