Basebox 2 "bricks"

krafg · February 1, 2017, 12:14am

Hello, I have a BaseBox 2 with ROS 6.35 and when I shutdown this router and then power on again, sometimes boot ok, until that can’t boot anymore.
When this occurs I reinstall ROS 6.35 with NetInstall, and works ok, but after some restarts, it brick again.
How can I fix it?

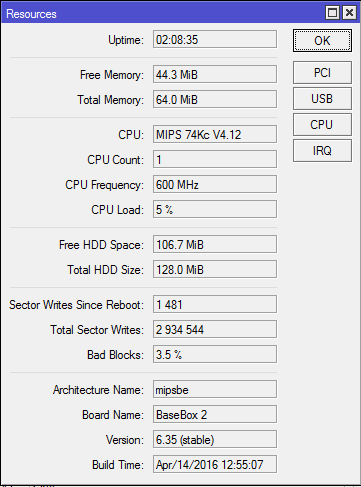

I leave a screenshoot of “Resources” menu.
Thanks and regards.

krafg · February 2, 2017, 2:11am

Any idea? D:

p3rad0x · February 2, 2017, 9:20am

If netinstall doesn’t fix the issue then you should consider replacing the unit

krafg · February 2, 2017, 10:08am

Ok, thanks.

Regards.

ErfanDL · February 2, 2017, 1:29pm

Format nand from routerboot. before formating, export your license

krafg · February 5, 2017, 12:35am

How can I format the NAND without serial port?

Regards.

ErfanDL · February 5, 2017, 5:58am

You must open basebox2 case and using serial uart converter ( usb to ttl module or usb to uart module) connect to routerboard tx and rx pin then connect to routerboot bios with putty software.

krafg · February 5, 2017, 11:22pm

Incredible.

Actually I haven’t any of these converters, but i’m going to buy one later and I’ll try.

A question: Where can I connect the module?

Thanks a lot!
Regards.

krafg · February 11, 2017, 10:43pm

It can be possible?

ErfanDL · February 12, 2017, 5:55am

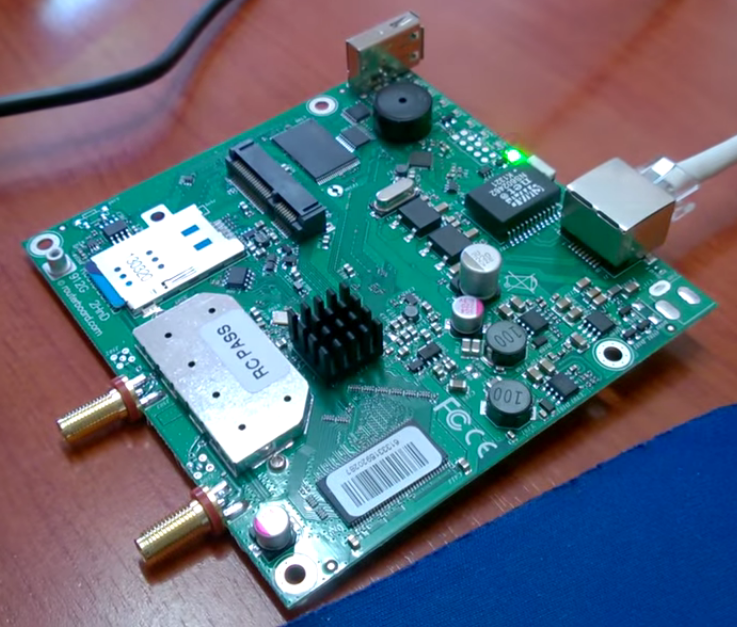

The pins inside the buzzer tx rx gnd vcc.
Connect routerboard tx to rx of ttl module and connect routerboard rx to tx of ttl module. The vcc must be connected to 3.3 volt of the ttl module and gnd to gnd module

Sent from my C6833 using Tapatalk

krafg · January 16, 2019, 12:22pm

After ROS 6.42, no more problems with the unit. Weird.

Anyway, some day I’m going to test this.

Regards.
