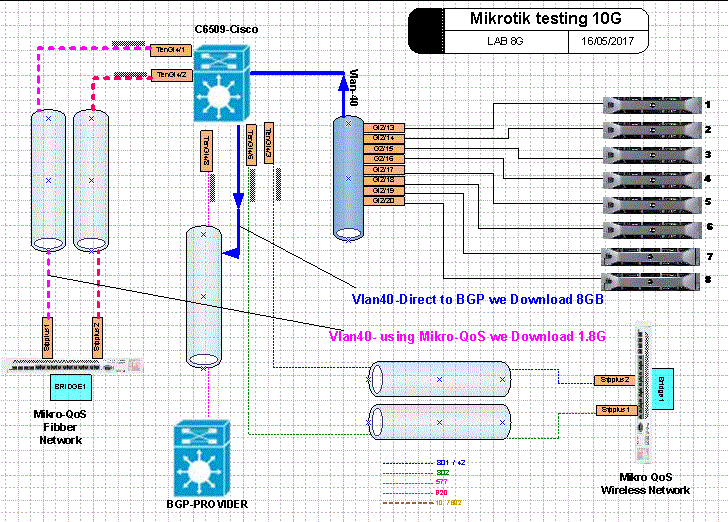

Mikrotik Engineer.- We are testing Mikrotik CCR1072 and CCR1036 with SFP-10G with objetive to be use how QoS or Firewall on the last version of Mikrotik.- I attach the picture and I expect that you understand more clear.
Situation:
If I connect 8 Server using a Vlan40 where I set to each server and Public IP Address with mask /28 I set the first Ip to the Vlan40.- I testing download without pass over the Mikrotik QoS/Fibber I Get 8GB on the probe.- If I setup that the traffic that come from my BGp provider that download from the Mikrotik QoS-Fiber and I make the test using my 8 Server just i get 1.8G of traffic.
A. I disable my firewall rule
B. I disable my mangle and Queue Tree
C. I disable the bridge Settng use IP Firewall
But I get 1.8G
Question:
Do you consider that I need to put Fibber cable that come from my BGP provider direct to the Mikrotik-QoS-Fiber and After from the Mikrotik to the Cisco, on this way you consider that I can get 8G If I make the test with the Server?
Do you consider that Mikrotik CCR1072+10G-SFP On bridge SFP1/SPF2 dont pass more than 1.8G of traffic?

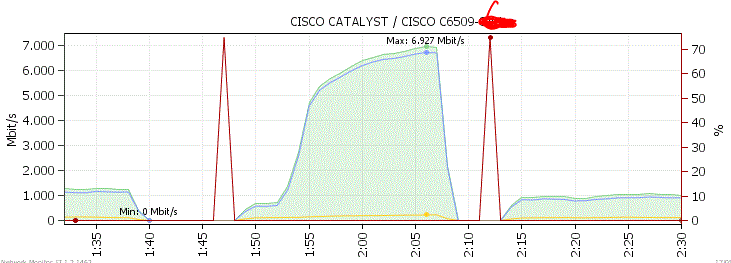

This morning, we pass the traffic direct without the Mikrotik QoS - Fibber, after we make a download using 8 Debian Server, and the result was more than 7GB aprox.- on This case if you note Mikrotik using Bridge of the SFP+ just to permit pass 1.8G.- The main point here is how do you can pass over the Mikrotik on this LAB 10G without any firewall rule or any Mangle.

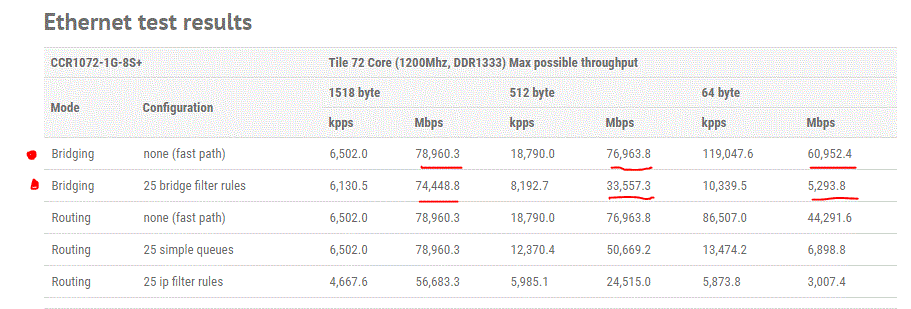

I see on the https://routerboard.com/CCR1072-1G-8Splus, the Ethernet test result, where on bridge none (fast path) mode aparently permit to be pass 1518(78,960.3), 512(76,963., 64(60,952.4) but on this case I can reach that result on the real traffic.
Mikrotik Staff or Mikrotik User
For what reason I cant pass on this LAB the maximun capacity on bridge mode None (fast path)
a. What is the step by step of this configuration
About the cabling do you consider that I need to change something
How I know if exist a compatibility problem between SFP-Mikrotik and SFP-Cisco and for this reason just I be have 1.8G of Capacity over it
Hello,
I sent an email to Mikrotik Support to report this situation and understand more clear Why.- Apparently this CCR1072/1036 is not support this type of configuration or structure.- I have other idea but I will be continue testing.

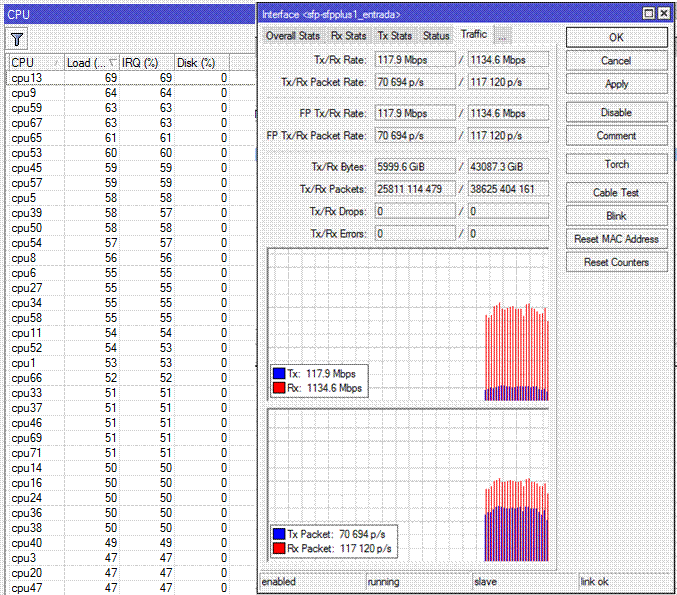

I coming working with Mikrotik CCR1016/1036 from the last few year, using how Firewall and QoS moving 1GB with out any problem.- The same firewall configuration I put over the CCR1072 after that I upgrade to 10G, my problem was when I notes that my traffic not increase up to 1.8G.
Mikrotik Architecture

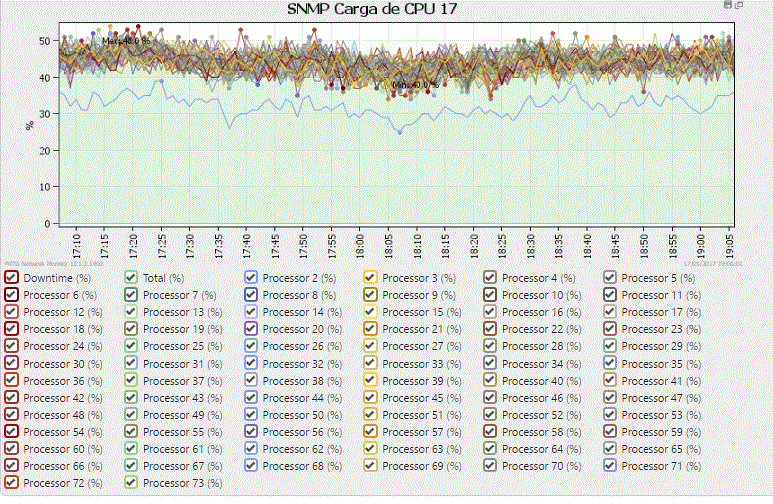

I understand that all traffic that go across the Mikrotik use 1CPU-Core like Simple-Queue, becasue is one stream.- If I use a Queue tree I am creating a different stream on this way the traffic is share for all the differents CPU and we not have a High CPU and not limit in theory the Traffic.
I will be make the following LAB:
Delete all the rule of Firewall Filter, Mangle and Queue tree
I setup the Bridge how none (fast path)
After that I remove the before, I will be start with the test-Performance:
If the CPU is lower with this configuration I get 10G the problem will be on the Mangle/Filter/Queue Tree configuration,
If the CPU is High and just one CPU has 100% the problem is on hardware
