Hello,
I implemented a network with the following topology:
Later, I set up the bond in ‘active backup’ mode using ARP.

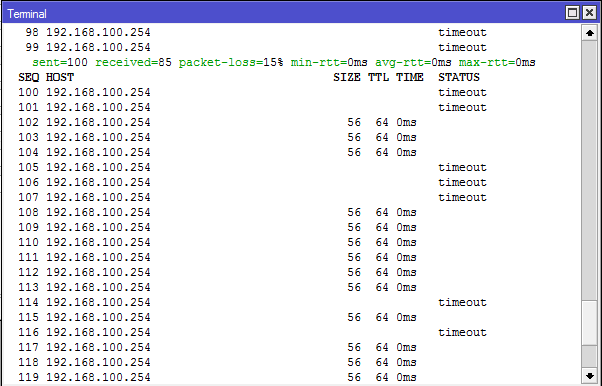

However, 15% of the packets are lost because it is constantly switching between ether1 and ether2.
How to solve?
Configuration:
[admin@R1] /interface bonding> print
Flags: X - disabled, R - running
0 R name="bonding1"
mtu=1500
mac-address=6C:3B:6B:FE:6D:08
arp=enabled
arp-timeout=auto
slaves=ether1,ether2
mode=active-backup
primary=ether1
link-monitoring=arp
arp-interval=100ms
arp-ip-targets=192.168.100.254
mii-interval=100ms
down-delay=0ms
up-delay=0ms
lacp-rate=30secs
transmit-hash-policy=layer-2
min-links=0
