Bridge filter rules not working

gigabyte091 · February 6, 2024, 5:30am

I’m having a problem with bridge rules on my L009 that is used as a switch. In my testing I wanted to block access for a device with some MAC address.

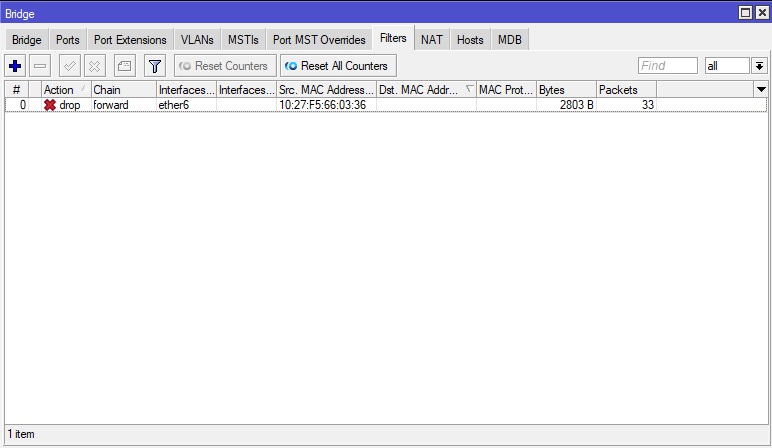

I created rule, added option to log and when I connect device to ether6 for which I created rule to block that device, that device connects to network… But what is strange I see that I have about 40 dropped packets and I can see in logs that rule is doing something but device still connects.
Like something is bypassing rules. I tried to disable HW offload but then there is no connection with or without rules.

Here is my config:

# 2024-02-06 06:17:16 by RouterOS 7.13.3
# software id =
#
# model = L009UiGS
# serial number =
/interface bridge
add name=bridge1 vlan-filtering=yes
/interface vlan
add interface=bridge1 name=VLAN_100_MGMT vlan-id=100
/port
set 0 name=serial0
/interface bridge filter
add action=drop chain=forward in-interface=ether6 log=yes log-prefix=filter \
    src-mac-address=10:27:F5:66:03:36/FF:FF:FF:FF:FF:FF
/interface bridge port
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether2 pvid=100
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether3 pvid=200
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether4 pvid=200
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether5 pvid=200
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether6 pvid=200
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether7 pvid=200
add bridge=bridge1 frame-types=admit-only-untagged-and-priority-tagged \
    interface=ether8 pvid=200
add bridge=bridge1 frame-types=admit-only-vlan-tagged interface=sfp1
/interface bridge settings
set use-ip-firewall-for-vlan=yes
/ipv6 settings
set disable-ipv6=yes
/interface bridge vlan
add bridge=bridge1 tagged=bridge1,sfp1 vlan-ids=100
add bridge=bridge1 tagged=sfp1 vlan-ids=150
add bridge=bridge1 tagged=sfp1 vlan-ids=200
/ip address
add address=172.16.0.1/24 comment=OFF_BRIDGE_MGMT interface=ether1 network=\
    172.16.0.0
/ip dhcp-client
add interface=VLAN_100_MGMT
/system clock
set time-zone-name=Europe/Zagreb
/system note
set show-at-login=no
/system routerboard settings
set enter-setup-on=delete-key

mkx · February 6, 2024, 7:15am

Using bridge port as in-interface isn’t correct AFAIK. If using use-ip-firewall=yes, then it should be possible to use in-bridge-interface instead. But I don’t know what one should do when using use-ip-firewall-for-vlan, there are quite a few forum threads where people are having problems with this, so it seems a bit hard to figure it out.

When looking at packet flow in the old wiki page (the new one lacks the VLAN example), I’m lost when it comes to interpretation about what is considered as in-bridge-port in your particular use case … obviously it still is a bridge port as flow of frame/packet shows (after step 8 it takes path via bridging decision rectangle), but is it the original ingress port (where it entered device as tagged frame)? You may try to omit this matching criterion in your rule to see if it makes any difference.

holvoetn · February 6, 2024, 7:29am

Off-topic: funny you’re trying to block TP-Link using Mikrotik
(can’t help it, when I see a MAC address I usually try to see what it is about)

On a serious note:
I was also thinking about removing any filter criteria except for the MAC address.
Then see in the log rule if it provides more detail on the used port/interface so you can refine the rule working from there.

On the other hand: why specify the interface when blocking that MAC address ? Don’t you want it to be blocked always ? Or only for that specific MAC/port combination ?

gigabyte091 · February 6, 2024, 7:44am

Well this setup is just for learning, what I tried to achieve is one port one allowed MAC address, but I tried everything, bridge in interface, only interface in, heck I even tried drop all, just forward, action drop without any other condition and nothing, i can see that packet count is rising but that’s it.

Now I have hap ac lite acting as a switch, without VLANs just to see if there is any difference and no, same thing is happening. Tried searching on forum, tried to use input instead of forward as I saw in another topic that logic between ip firewall and bridge filter is not the same.

This is what L009 outputs to the logs:

 08:40:45 interface,info ether6 link up (speed 1G, full duplex)
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:16, eth-proto 0800, 2, 192.
168.200.88->224.0.0.22, len 40
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (t
ype 143, code 0), fe80::48be:9798:e2ac:b1a6->ff02::16, len 36
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (t
ype 143, code 0), fe80::48be:9798:e2ac:b1a6->ff02::16, len 36
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:16, eth-proto 0800, 2, 192.
168.200.88->224.0.0.22, len 40
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (t
ype 143, code 0), fe80::48be:9798:e2ac:b1a6->ff02::16, len 36
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (t
ype 143, code 0), fe80::48be:9798:e2ac:b1a6->ff02::16, len 36
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:16, eth-proto 0800, 2, 192.
168.200.88->224.0.0.22, len 48
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 19
2.168.200.88:5353->224.0.0.251:5353, len 67
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [f
e80::48be:9798:e2ac:b1a6]:5353->[ff02::fb]:5353, len 47
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [f
e80::48be:9798:e2ac:b1a6]:62139->[ff02::1:3]:5355, len 41
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:fc, eth-proto 0800, UDP, 19
2.168.200.88:62139->224.0.0.252:5355, len 61
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [f
e80::48be:9798:e2ac:b1a6]:5353->[ff02::fb]:5353, len 85
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 19
2.168.200.88:5353->224.0.0.251:5353, len 105
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:48 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 0.
0.0.0:68->255.255.255.255:67, len 350
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (t
ype 143, code 0), fe80::48be:9798:e2ac:b1a6->ff02::16, len 56
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:16, eth-proto 0800, 2, 192.
168.200.88->224.0.0.22, len 48
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:01:00:02, eth-proto 86dd, UDP, [f
e80::48be:9798:e2ac:b1a6]:546->[ff02::1:2]:547, len 103
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:49 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:02, eth-proto 86dd, ICMP (t
ype 133, code 0), fe80::48be:9798:e2ac:b1a6->ff02::2, len 16
 08:40:50 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:40:50 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:40:50 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:50 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:50 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 19
2.168.200.88:137->192.168.200.255:137, len 96
 08:40:50 firewall,info filter forward: in:ether6 out:ether3, connection-state:inv
alid src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806

This is without interface specified:

 08:54:02 interface,info ether6 link down
 08:54:07 interface,info ether6 link up (speed 1G, full duplex)
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (typ
e 143, code 0), fe80::48be:9798:e2ac:b1a6->ff02::16, len 56
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:00:00:16, eth-proto 0800, 2, 192.16
8.200.88->224.0.0.22, len 48
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 0.0.
0.0:68->255.255.255.255:67, len 350
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:10 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac 33:33:00:00:00:02, eth-proto 86dd, ICMP (typ
e 133, code 0), fe80::48be:9798:e2ac:b1a6->ff02::2, len 16
 08:54:11 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:54:11 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:54:11 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:11 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:11 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:11 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:54:12 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:12 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:12 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.200.88:137->192.168.200.255:137, len 96
 08:54:12 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 08:54:12 firewall,info filter forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 10:27:f5:66:03:36, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.
168.200.88:52913->239.255.255.250:1900, len 203

This is shown in bridge filters:

bridge filter.jpg
I mean it drops 33 packets… But PC connects just fine, internet is at full speed…

gigabyte091 · February 6, 2024, 7:48am

Using bridge port as in-interface isn’t correct AFAIK.

I removed ether6 as a condition, so now is just MAC address as a condition. Same thing. I tried to delete the lease in DHCP server but connects everytime…

vingjfg · February 6, 2024, 7:54am

Hmm… a summary read of your logs shows only broadcasts and multicasts.

gigabyte091 · February 6, 2024, 7:58am

So when I connect device to switch i only see dropped packets that time, after that whatever I do on PC nothing is logged. I tried transferring data to and from NAS, speedtest etc.

gigabyte091 · February 6, 2024, 10:20am

http://forum.mikrotik.com/t/bridging-different-vlans-and-apply-filtering-rules/154691/1

Is it possible that bridge filtering in ros 7 is broken ??

holvoetn · February 6, 2024, 10:21am

Could be.
In that case there is only 1 place to turn to: support@mikrotik.com

mkx · February 6, 2024, 10:30am

The thing is: as long as HW offload is active, you won’t be able to block unicast traffic between pair of offloaded ports using firewall … for that traffic has to pass via CPU. The reason you’re seeing multicasts and broadcasts (and dropped as per rule) is that these are … flooded to all ports, including switch_chip-CPU interconnect.

But what you wrote about things getting completely broken if you disable HW offload … that’s concerning at least. So I’m with @holvoetn: open bug ticket with support.

gigabyte091 · February 6, 2024, 2:17pm

It’s probably not a bug but misconfiguration on my side.

Tested with two hAP ac2, ROS 7.12, one acting as a router other as switch and when I disable HW offload on all ports that are bridge members my rule works like it should.

Error on my side could be is that i disabled HW offload on ether6 and not on the other ports…

Will test tomorrow in office with L009.

mkx · February 6, 2024, 7:43pm

So far I lived with belief that it’s enough to disable HW offload on one of ports involved in communication and the whole (bi-directional) traffic should pass CPU.
It does serm that sometimes a power cycle is needed for ASIC setup to actually get applied. But it might be a bug in L009 bridge offload code (in which case support@mikrotik.com might be intetested in details).

gigabyte091 · February 7, 2024, 5:41am

Rebooted the router, now it’s fine, disabled HW offload on all ports and now my rule is working. What i find out is that if i for eg. create rules like this:

 0   chain=forward action=accept
     src-mac-address=10:27:F5:66:03:36/FF:FF:FF:FF:FF:FF log=no log-prefix=""

 1   chain=forward action=drop log=no log-prefix=""

I can see packet on accept rule but also on drop rule, so this isn’t like firewall rules ? That order of rules matter ?

mkx · February 7, 2024, 7:02am

According to docs, bridge filter rules should behave like firewall filter rules (i.e. rule order matters, first matching executes and processing of further rules does not happen).

Action to take if packet is matched by the rule:

accept - accept the packet. No action, i.e., the packet is passed through without undertaking any action, and no more rules are processed in the relevant list/chain

So if you’re seeing both rules to get executed on very same frame might indicate a bug. But you have to be sure that subsequent log entries actually refer to same packet.

gigabyte091 · February 7, 2024, 9:11am

So i created rules and i set it to log, drop rule is marked drop, accept ofc is accept:

id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:18 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:18 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:18 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:19 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:19 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:19 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:19 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:19 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:19 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:19 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:19 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 162
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:59320->[ff02::1:3]:5355, len 30
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fc, eth-proto 0800, UDP, 192.
168.100.53:59320->224.0.0.252:5355, len 50
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:62490->[ff02::1:3]:5355, len 30
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fc, eth-proto 0800, UDP, 192.
168.100.53:62490->224.0.0.252:5355, len 50
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:137->192.168.100.255:137, len 78
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fc, eth-proto 0800, UDP, 192.
168.100.53:62490->224.0.0.252:5355, len 50
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fc, eth-proto 0800, UDP, 192.
168.100.53:59320->224.0.0.252:5355, len 50
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:137->192.168.100.255:137, len 78
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:62490->[ff02::1:3]:5355, len 30
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:59320->[ff02::1:3]:5355, len 30
 10:08:20 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:20 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.
168.100.53:5353->224.0.0.251:5353, len 56
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.16
8.100.113:37265->224.0.0.251:5353, len 62
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:55983->255.255.255.255:4984, len 52
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:7711->255.255.255.255:7701, len 290
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:7711->255.255.255.255:7701, len 362
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:55927->255.255.255.255:69, len 50
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:137->192.168.100.255:137, len 78
 10:08:21 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:137->192.168.100.255:137, len 78
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:57926->255.255.255.255:62976, len 50
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:43282->255.255.255.255:43282, len 36
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:43282->255.255.255.255:43282, len 36
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:43282->255.255.255.255:43282, len 36
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:43282->255.255.255.255:43282, len 36
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:0b:0b, eth-proto 0800, UDP, 192.16
8.100.113:49603->239.255.11.11:5008, len 813
 10:08:21 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 1c:98:ec:24:3a:32, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0800, UDP, 192.16
8.100.107:1900->192.168.100.53:1900, len 280
 10:08:22 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 0.0.
0.0:68->255.255.255.255:67, len 350
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.100:67->255.255.255.255:68, len 328
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:37625->255.255.255.255:5048, len 88
 10:08:22 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:137->192.168.100.255:137, len 78
 10:08:22 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:137->192.168.100.255:137, len 78
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:00:00:fb, eth-proto 0800, UDP, 192.16
8.100.113:37265->224.0.0.251:5353, len 62
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.113:51001->255.255.255.255:51000, len 58
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:49406->239.255.255.250:3702, len 777
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:49406->239.255.255.250:3702, len 773
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:49406->239.255.255.250:3702, len 760
 10:08:22 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:22 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::3e50:9544:d3e0:847d->ff02::1:ff3f:395, len 32
 10:08:23 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.
168.100.53:27036->192.168.100.255:27036, len 223
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 162
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::3e50:9544:d3e0:847d->ff02::1:ff3f:395, len 32
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 1c:98:ec:24:3a:32, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0800, UDP, 192.16
8.100.107:1900->192.168.100.53:63363, len 280
 10:08:23 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:23 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:23 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac a6:5d:5b:21:0b:27, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:24 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 182
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::3e50:9544:d3e0:847d->ff02::1:ff3f:395, len 32
 10:08:24 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac a6:5d:5b:21:0b:27, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:25 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:25 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:25 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:25 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:25 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:25 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:25 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac a6:5d:5b:21:0b:27, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 162
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:26 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac dc:2c:6e:d9:04:c9, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 182
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:26 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:27 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:27 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:27 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:27 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 182
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:28 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 162
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:29 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:29 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 182
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:30 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (typ
e 143, code 0), fe80::e4eb:cab3:b63f:395->ff02::16, len 36
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (typ
e 143, code 0), fe80::e4eb:cab3:b63f:395->ff02::16, len 36
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (typ
e 143, code 0), fe80::e4eb:cab3:b63f:395->ff02::16, len 36
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (typ
e 143, code 0), fe80::e4eb:cab3:b63f:395->ff02::16, len 36
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 47
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 69
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 47
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 69
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:61653->[ff02::c]:3702, len 1101
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:0b:0b, eth-proto 0800, UDP, 192.16
8.100.113:49603->239.255.11.11:5008, len 813
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 103
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 135
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63348->[ff02::c]:3702, len 632
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:61653->[ff02::c]:3702, len 1101
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:3702->[fe80::e4eb:cab3:b63f:395]:63348, len 1456
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:24586->[fe80::e4eb:cab3:b63f:395]:12250, len 584
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:64:cb, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:64cb->ff02::1:ff3f:395, len 32
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:16, eth-proto 86dd, ICMP (typ
e 143, code 0), fe80::e4eb:cab3:b63f:395->ff02::16, len 36
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:65:6c, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:656c->ff02::1:ff3f:395, len 32
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:64:a2, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:64a2->ff02::1:ff3f:395, len 32
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 103
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63348->[ff02::c]:3702, len 632
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:61653->[ff02::c]:3702, len 1101
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:3702->[fe80::e4eb:cab3:b63f:395]:63348, len 1456
 10:08:31 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:24586->[fe80::e4eb:cab3:b63f:395]:12250, len 584
 10:08:31 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 127
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:1900->[ff02::c]:1900, len 508
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63340->[ff02::c]:1900, len 129
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 146
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 9a:7a:8d:64:5f:7a, dst-mac 01:00:5e:7f:ff:fa, eth-proto 0800, UDP, 192.16
8.100.113:41647->239.255.255.250:1900, len 162
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:61653->[ff02::c]:3702, len 1101
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63348->[ff02::c]:3702, len 632
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 1c:98:ec:24:3a:32, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::1e98:ecff:fe24:3a32->ff02::1:ff3f:395, len 32
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 1c:98:ec:24:3a:32, dst-mac 33:33:00:01:00:02, eth-proto 86dd, UDP, [fe80:
:1e98:ecff:fe24:3a32]:546->[ff02::1:2]:547, len 75
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:3702->[fe80::e4eb:cab3:b63f:395]:63348, len 1456
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:24586->[fe80::e4eb:cab3:b63f:395]:12250, len 584
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 182
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:64:cb, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:64cb->ff02::1:ff3f:395, len 32
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::3e50:9544:d3e0:847d->ff02::1:ff3f:395, len 32
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:65:6c, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:656c->ff02::1:ff3f:395, len 32
 10:08:32 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:64:a2, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:64a2->ff02::1:ff3f:395, len 32
 10:08:32 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:1900->[ff02::c]:1900, len 456
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:0c, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:63348->[ff02::c]:3702, len 632
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:3702->[fe80::e4eb:cab3:b63f:395]:63348, len 1456
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 00:18:ae:c6:cc:b5, dst-mac 40:ed:00:a2:4a:b5, eth-proto 86dd, UDP, [fe80:
:20c:29ff:fe37:3729]:24586->[fe80::e4eb:cab3:b63f:395]:12250, len 584
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 1c:98:ec:24:3a:32, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::1e98:ecff:fe24:3a32->ff02::1:ff3f:395, len 32
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::3e50:9544:d3e0:847d->ff02::1:ff3f:395, len 32
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:59804->[ff02::1:3]:5355, len 30
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 36
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:01:00:03, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:52450->[ff02::1:3]:5355, len 30
 10:08:33 firewall,info accept forward: in:ether6 out:sfp1, connection-state:inval
id src-mac 40:ed:00:a2:4a:b5, dst-mac 33:33:00:00:00:fb, eth-proto 86dd, UDP, [fe8
0::e4eb:cab3:b63f:395]:5353->[ff02::fb]:5353, len 51
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:64:cb, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:64cb->ff02::1:ff3f:395, len 32
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:65:6c, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:656c->ff02::1:ff3f:395, len 32
 10:08:33 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac b4:a3:82:64:64:a2, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::b6a3:82ff:fe64:64a2->ff02::1:ff3f:395, len 32
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac 1c:98:ec:24:3a:32, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::1e98:ecff:fe24:3a32->ff02::1:ff3f:395, len 32
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac 33:33:ff:3f:03:95, eth-proto 86dd, ICMP (type
135, code 0), fe80::3e50:9544:d3e0:847d->ff02::1:ff3f:395, len 32
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 166
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 182
 10:08:34 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid
 src-mac e6:4d:6e:4b:a7:03, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0800, UDP, 192.16
8.100.110:61485->255.255.255.255:20561, len 50
 10:08:34 interface,info ether6 link down

And this go on and on until i disconnect cable.

mkx · February 7, 2024, 1:44pm

I’m pretty sure that accept and drop packets are different … and thus trigger different rules. E.g.:

10:08:18 firewall,info accept forward: in:ether6 out:sfp1, connection-state:invalid src-mac 40:ed:00:a2:4a:b5, dst-mac ff:ff:ff:ff:ff:ff, eth-proto 0806
10:08:18 firewall,info drop forward: in:sfp1 out:ether6, connection-state:invalid src-mac 6e:db:7f:16:a3:e4, dst-mac 40:ed:00:a2:4a:b5, eth-proto 0806

First one has src-mac set to 40:ed:00:a2:4a:b5 (and is passing from ether6 towards sfp1) … and is allowed to pass through (if you have something like chain=forward action=accept src-mac-address=40:ed:00:a2:4a:b5/FF:FF:FF:FF:FF:FF set. The second one has dst-mac set to same value (and is passing in the opposite direction, from sfp1 towards ether6) and is, failing to match other filter rules, dropped by last (unconditional rule). To allow bi-directional traffic, you have to construct accept rules in pairs:

chain=forward action=accept src-mac-address=40:ed:00:a2:4a:b5/FF:FF:FF:FF:FF:FF
chain=forward action=accept dst-mac-address=40:ed:00:a2:4a:b5/FF:FF:FF:FF:FF:FF

Keep in mind that bridge filter has no notion of connections (which allow e.g. firewall filter rules to be uni-directional and yet, with one single appropriate rule, return traffic is magically passed through). Similarly to ip firewall raw one has to manually configure both forward and return paths.

gigabyte091 · February 7, 2024, 3:00pm

I assumed that it will work as ip firewall… I was looking at mikrotik wiki and there is no mention of that unfortunately. Will do like that tomorrow.

Is it a good idea to put that unconditional rule at the end ? I mean it’s more efficient to accept what we want to pass and drop all else. Or is it different with bridge rules ? I failed to find some examples.

In the meantime i bought CRS310 as L009 CPU definitely don’t like to have much traffic through it. L009 will be switch for some more lighter applications. And there are some examples for CRS310 on mikrotik wiki

mkx · February 7, 2024, 3:52pm

I’d say that with bridge filters is similar to firewall filter: the lower the number of filters the better performance. But it all depends on what needs to be done. Which includes the ultimate drop all rule.

gigabyte091 · February 8, 2024, 6:58am

It’s working now like it should but i must say, performance is horrendous… That poor thing can achieve 500 Mbps max with 5 filter rules.

Also I created trunk for my CRS310 and I have to add rules for it to work so now it looks like this:

 0   chain=forward action=accept
     src-mac-address=70:85:C2:9F:A7:37/FF:FF:FF:FF:FF:FF log=yes
     log-prefix="accept"

 1   chain=forward action=accept
     dst-mac-address=70:85:C2:9F:A7:37/FF:FF:FF:FF:FF:FF log=yes
     log-prefix="accept"

 2   chain=forward action=accept in-interface=sfp1 out-interface=ether3 log=no
     log-prefix=""

 3   chain=forward action=accept in-interface=ether3 out-interface=sfp1 log=no
     log-prefix=""

 4   chain=forward action=drop log=no log-prefix=""

For CRS310 i create VLANs and all of that in interface/bridge menu but for filtering i have to go to /interface/ethernet/switch/rule ?

gigabyte091 · February 8, 2024, 9:35am

CRS310 works like a charm, port security from example on mikrotik wiki works like it should but i’m wondering, why there is no lock on first option ?

Also i tried to understand what each step in Router OS wiki does as i don’t want to blindly copy/paste cmd lines.

So this command tells the switch that traffic that enters the switch on port ether1 with MAC address of 64:D1:54:81:EF:8E is allowed to pass through the switch.

/interface ethernet switch rule
add ports=ether1 src-mac-address=64:D1:54:81:EF:8E/FF:FF:FF:FF:FF:FF switch=switch1

This command just tell us to drop everything else coming into ether1 port because switch will drop all packets that don’t match src-mac-address we enter in command above and no new dst-port is selected.

add new-dst-ports="" ports=ether1 switch=switch1

With this command we disable mac learning so no dynamic host entries will be created in host list. With unknown-unicast-flood=no we prevent switch to flood ether1 port with traffic with unknown destination MAC address as it’s not needed because src-mac-address we specified is also dst-mac address for traffic coming to our device.

/interface bridge port
add bridge=bridge1 interface=ether1 hw=yes learn=no unknown-unicast-flood=no

This command adds static host entry for port ether1 because we disabled mac learning so without this switch will not be able to learn MAC address of the connected device and connection can’t be established. I also added VID=100 in my case as in my case port is untagged for VLAN100.

/interface bridge host
add bridge=bridge1 interface=ether1 mac-address=64:D1:54:81:EF:8E

This is how I understood those commands so if I’m wrong feel free to correct me.
