Bridging two phy interfaces and client can't ping.

Screen Shot 2022-06-10 at 10.03.55 PM.png

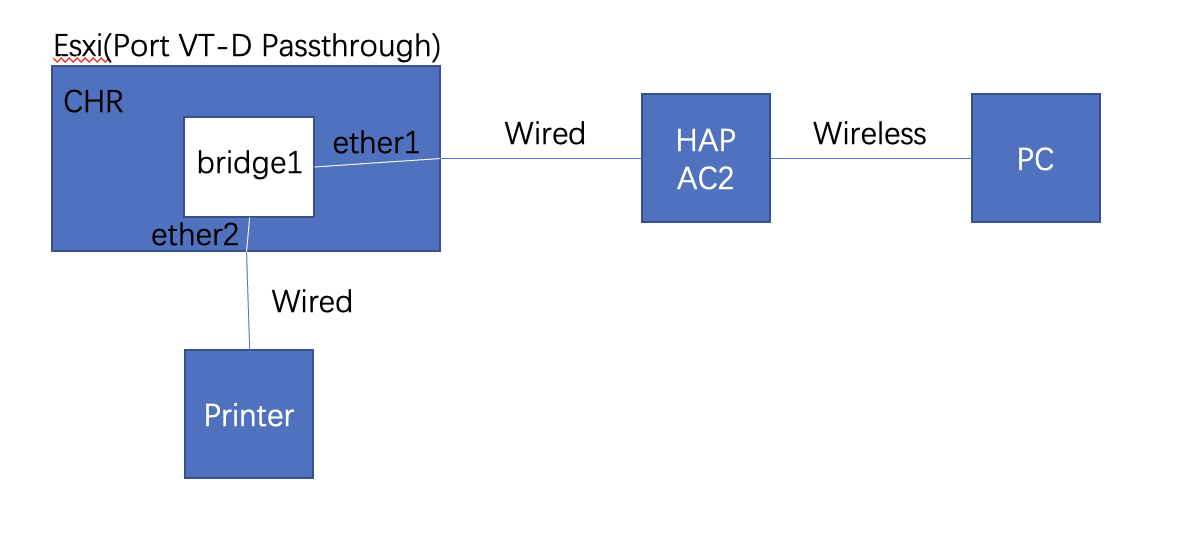

try to bridge two interfaces together in CHR, the printer connected to ether2, ether1 connected to hap ac2, ether2 and ether1 in the same bridge(bridge1), dhcp set on bridge1

Printer(ether2) can get ip address from dhcp, but my pc can not ping my printer.

Try ping from CHR with /tools ping 192.168.1.222 interface=bridge1 , and it works.

Wat is your hAP ac configuration? Get your PC his IP-address from the CHR or from the hAP ac? Are PC and Printer in the same network?
The hAP ac is not only a simple access point, depending on the configuration it can be a complete router with a firewall.

Fixed by turning the esxi vswitch promiscuous mode on.

Thanks all.
