Browse Problem With Dhcp

zaidiatd · October 28, 2009, 4:28am

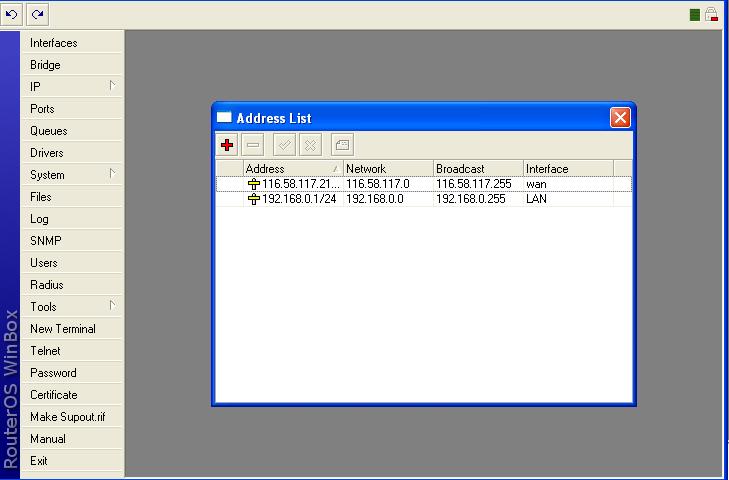

I have a dhcp server
Wan Ip=116.58.117.21
LanIp=192.168.0.1

Dhcp server assigned ip to Clients but client are not able to browse any thing kindly help me

Client ip assigned by dhcp

Ip=192.168.0.10
subnet=255.255.255.0
gateway=192.168.0.1

fewi · October 28, 2009, 4:34am

Are the clients NAT’d correctly? Is the NAT rule counting packets? Do you have a default route set up on the router out the WAN interface?

Without your specific configuration it’s hard to troubleshoot this.

zaidiatd · October 28, 2009, 5:00am

kindly tell me how i set routes nat etc etc according to this configuration

thanks

fewi · October 28, 2009, 5:08am

/ip firewall nat add chain=srcnat src-address=192.168.0.0/24 action=src-nat to-addresses=116.58.117.21 out-interface=wan

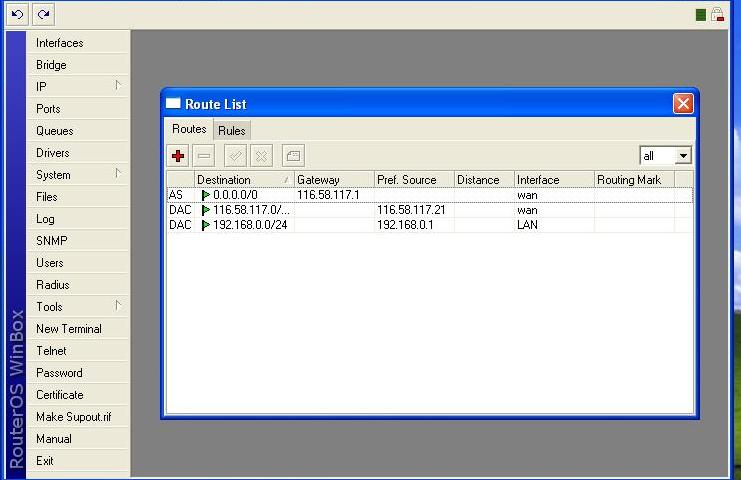

should work. It looks like you already have a default route.

zaidiatd · October 28, 2009, 5:19am

Thanks Alot its Working Now Thanks u very much sir

now i want to this server as hotspot and pppoe server will u help me

fewi · October 28, 2009, 5:24am

The wiki contains examples for both.
http://wiki.mikrotik.com/

zaidiatd · October 28, 2009, 5:31am

Hotspot and pppoe will work on same mikrotik?

fewi · October 28, 2009, 5:38am

Should be fine as long as you separate the two (run Hotspot on one interface, PPPoE separate from that).

zaidiatd · October 28, 2009, 5:55am

then i need three or four interface

1 Wan
2 Lan
3 PPPOE
5 Hotspot

Or
1 Wan
2 Lan
3 PPPOE/LAN
4 Hotspot

zaidiatd · October 28, 2009, 5:57am

t
then i need three or four interface

1 Wan
2 Lan
3 PPPOE
5 Hotspot

Or
1 Wan
3 PPPOE/LAN
4 Hotspot

zaidiatd · October 28, 2009, 6:18am

how much interface i will need for wan,lan,dhcp,pppoe,hotspot in one mikrotik OS
