Bug: default configuration fails on 7.1beta6

RouterOS RouterOS beta
1
  • Version number: 7.1beta6


  • Router’s model: RB4011iGS+5HacQ2HnD

I decided to reset configuration and I found out that default configuration script fails. I ended up with a device without IP address. I was able to get the device working through serial console.

Steps to reproduce the issue:

[admin@router] > /system reset-configuration skip-backup=yes
Dangerous! Reset anyway? [y/N]:
y
system configuration will be reset

Rebooting...
[42031.635046] reboot: Restarting system
:00000050
AL31400X-140


RouterBOOT booter 7.1beta6

RB4011iGS+5HacQ2HnD

… (wait for login prompt) … After login with admin and no password I get:

SCRIPT ERROR: expected end of command (line 101 column 16)

and to show more details:

[admin@MikroTik] > /log/print without-paging
00:00:04 system,info crossfig will upgrade version 6 configuration
00:00:04 system,info router rebooted
00:00:17 system,error,critical error while running default configuration script: expected end of command (line 101 column 16)
00:00:17 system,error,critical
00:00:18 system,info,account user admin logged in via local

When I print default config:

[admin@MikroTik] > /system default-configuration print without-paging

I see:
…

                      /interface wireless {

…

                        set $ifcId channel-width=20/40/80mhz-XXXX;
                        set $ifcId secondary-channel=auto
                        set $ifcId frequency=auto

Syntax highlighting shows first “s” in “secondary-channel” with red and after that text is not highlighted. I believe it is because it doesn’t exist anymore:

[admin@MikroTik] > /interface/wireless/
access-list  channels      interworking-profiles  nstreme-dual        sniffer  add      edit    find               print   reset-configuration  setup-repeater    wps-client
align        connect-list  manual-tx-power-table  registration-table  snooper  comment  enable  frequency-monitor  remove  scan                 spectral-history  wps-push-button
cap          info          nstreme                security-profiles   wds      disable  export  monitor            reset   set                  spectral-scan

And just to add, device doesn’t have IP address set:

[admin@MikroTik] > /ip/address/print

[admin@MikroTik] >

Since I wanted to get default config, I followed First Time Configuration to set IP address, uploaded stable version of firmware, switched to it, reset again which worked and only then switch back to beta.

2

Confirmed. Same hardware, same result.

Additionally, applying previous exported config through :

/system reset-configuration no-defaults=yes run-after-reset=myexport.txt.rsc

fails unless you add

:delay 20

on top of script.

3

For any future Google searches. I am also seeing this issue on the RB4011iGS+5HacQ2HnD, but I’m NOT running (and NEVER have) a beta firmware. Running 6.49.1

There is a bad bug with the default-configuration of RB4011iGS+5HacQ2HnD and 6.49.1.

Steps to reproduce:

  • Get a RB4011iGS+5HacQ2HnD
  • Flash with 6.49.1
  • Perform a system reset:
  • /system reset-configuration
  • y
    Wait for reboot, and you’ll receive this console/error message[/list]

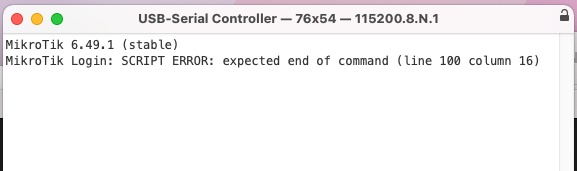

    Screen Shot 2021-12-03 at 3.31.11 pm.png
    The lines in question that is failing is:
    Line 99: set $ifcId channel-width=20/40/80mhz-XXXX;
    Line 100: set $ifcId secondary-channel=auto
    Line 101: set $ifcId frequency=auto


    Expected result:
    Router factory reset with default config, such as DHCP running on ether2

Actual result:
No default configuration restored

Testing:
I’ve replicated this on 2x RB4011iGS+5HacQ2HnD devices.
