Can someone point me in the right direction?

Hey there..

I’m looking for some general advice from people who have tackled this scenario before so that I can purchase and configure the right equipment the first time!

Looking to link two buildings approx 1/2 mile apart via wireless. They have a clear line of sight and clients need to be able to either route correctly between networks or better still be on the same subnet.

Can anyone recommend a good hardware/software combination which would serve this purpose?

Secondly, I have been installing wireless solutions for leisure sites for a while now but resorting to Cisco gear. Which combos would be suitable to serve which purpose of providing public hotspots and routing through a squid proxy?

** Sorry if this seems a bit of a basic topic, but I would rather bow to greater knowledge that make a real muck up and get put off this great kit **

Kind Regards,

Adam :smiley:

A pair of SXTs would do the job.

SXT, Hmmmmm… A reliable and cost effective solution by Mikrotik :smiley:

Configure it as http://www.wispforum.net/entry.php?6-How-to-Connect-two-Mikrotik-SXT-5D-s-In-Bridge-Mode-Part-II&goto=prev says

Thanks!

SXTs arrived this morning. I followed the walkthrough that you referred me to and everything went well on part 1, but when I created the bridge in part 2 you couldn’t winbox to either device?

Any advice you could offer would be great!

Adam

Do you mean you can’t connect to the remote SXT?
Did you add ether1 and wlan1 to bridge port?
Do the configuration step by step. It should have no problem.

Yes, followed it step by step and as soon as I add ether and wlan ports to both SXTs they stop responding?

When looking at the back of the boxes, one has 5 bars of signal, and the other has only 1.
Adam

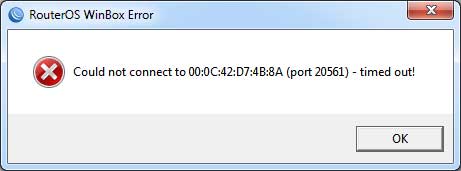

try to connect via IP instead of mac address. I think you are using Win 7 or Vista and the firewall is not turned off.
For connecting to RB via mac address the firewall should turn off or has an exception for port 20561

If it was a firewall issue wouldn’t that mean I wouldn’t have been able to connect in the first place?

No, I mean the winbox use port 20561 for connecting to RB via MAC. If firewall is on etc …

Are able to ping your remote SXT through local STX ? or can you log on to local SXT? If yes, go to tools ping and try to ping the remote SXT!

just another thing, did you use SXT default configuration or remove it at the first start up time?
