Cannot access to WIFI from vlan

RouterOS General
1

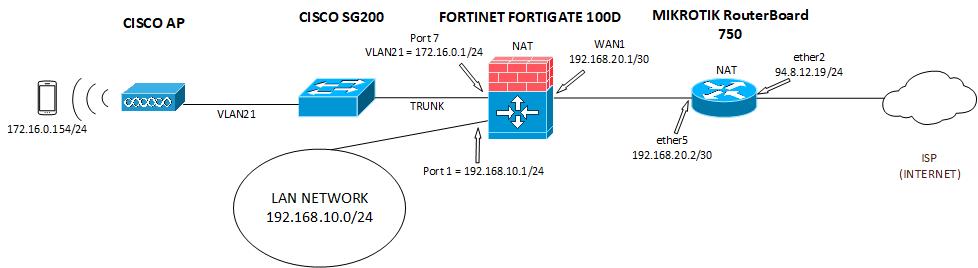

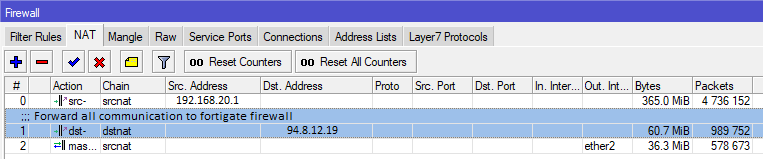

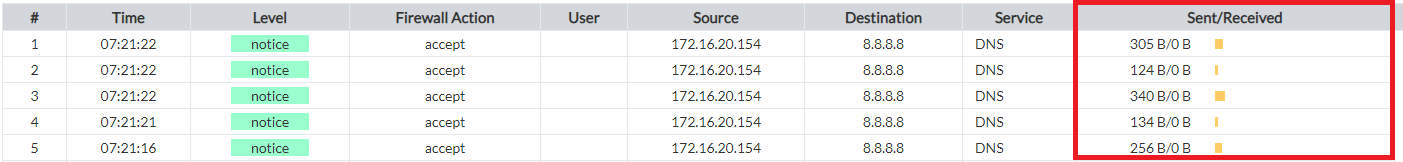

Hello I have got topology as shown below. The internet (like www.google.com) work for LAN network (192.168.10.0/24). The main problem is WIFI (172.16.0.0/24) I can access to internet on smartphone in applications like facebook, instagram etc. but when I want to use a web browser and try access to www.google.com or something else nothing happend. On firewall I can see that DNS request was successfully sent but there is no response. On firewall there is a policy that allows traffic for TCP, UDP, DNS, HTTP, HTTPS so I do not know where can be problem. Maybe in NAT? Because I translate private address to private address on firewall and then translate private address (from firewall) to public address.

Can somebody help me please?

Thank you

2

I have a few questions based on your topology:

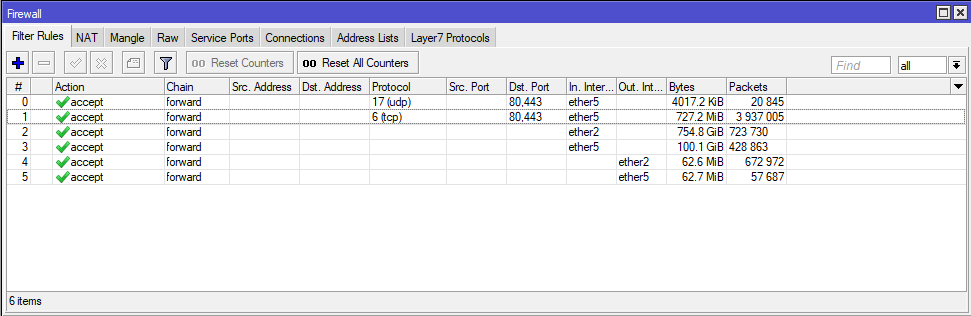

  • Why are you doing NAT at both locations? I assume by looking at your configuration that the Mikrotik is just doing 1:1 NAT, Filter Rules are doing nothing, because they are all Accept. That will bring me to the second question.


  • What is the purpose of the Mikrotik router? Only two reasons I can think of to put a router outside a firewall and that would be to handle future multiple Internet providers or your firewall cannot handle the delivery media.


  • Would it be possible to swap the Firewall with the router? This depends on the last question in the purpose of the router, just asking.
