I used http://www.youtube.com/watch?v=Iad-Cb2gBnw to do a simple load balancing between the 2 ADSL lines and its working great.
BUT got a problem . I can’t ping/access the Radius server from MT2 or MT3 as long as I use Mangle for routing marks on MT1.
Using traceroute (from MT2 and MT3) to see where the routing is going to, as soon as I ping the Radius server, 192.168.1.222, the traffic goes out via one of the ADSL lines onto the Internet. What causes that? I thought that it would by default use eth4 to route to the Radius.
I can however, ping the eth4 which is the interface for the Radius network on MT1 from both MT2 and MT3.
Please note that the public IP’s of the 2 ADSL lines and eth1,2 of MT1 has been modifed for this post.
The prob must be on MT1.

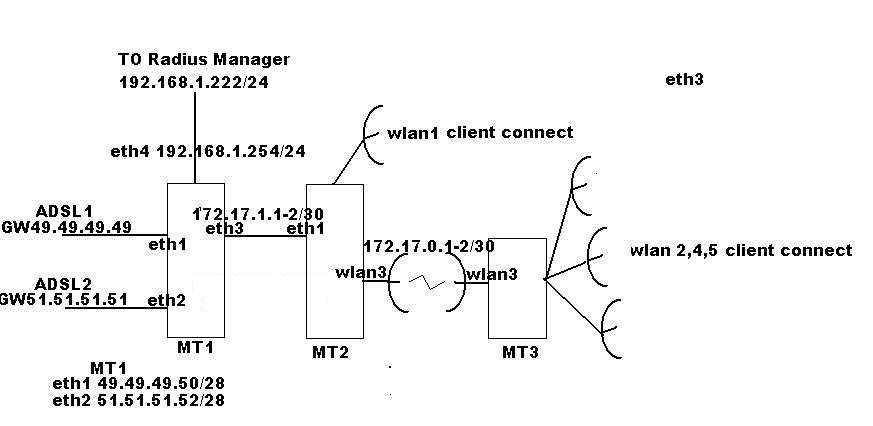

Details as follows.
[ /ip address> print detail
Flags: X - disabled, I - invalid, D - dynamic
0 ;;; 1st Public IP on ADSL Router 1
address=49.49.49.50/28 network=49.etc broadcast=49. etc
interface=ether1 actual-interface=ether1
1 ;;; Link to Radius Server
address=192.168.1.254/24 network=192.168.1.0 broadcast=192.168.1.255
interface=ether4 actual-interface=ether4
2 ;;; Link to Wireless Network
address=172.17.1.1/30 network=172.17.1.0 broadcast=172.17.1.3
interface=ether3 actual-interface=ether3
3 ;;; 1st Public IP on ADSL Router 2
address=51.51.51.52/28 network=51.etc
broadcast=51. etc
interface=ether2 actual-interface=ether2
4 address=192.168.10.1/24 network=192.168.10.0 broadcast=192.168.10.255
interface=ether4 actual-interface=ether4
[ /interface> print
Flags: D - dynamic, X - disabled, R - running, S - slave
NAME TYPE MTU L2MTU
0 R ;;; Link to ADSL Router 1
ether1 ether 1500 1524
1 R ;;; Link to ADSL Router 2
ether2 ether 1500 1524
2 R ;;; Link to Wireless Network
ether3 ether 1500 1524
3 R ;;; Link to Radius Server
ether4 ether 1500 1524 ]
[ /ip firewall> export
/# jan/03/1970 16:17:06 by RouterOS 4.11
software id = A6YG-5A3U
/ip firewall connection tracking
set enabled=yes generic-timeout=10m icmp-timeout=10s tcp-close-timeout=10s
tcp-close-wait-timeout=10s tcp-established-timeout=1d
tcp-fin-wait-timeout=10s tcp-last-ack-timeout=10s
tcp-syn-received-timeout=5s tcp-syn-sent-timeout=5s tcp-syncookie=no
tcp-time-wait-timeout=10s udp-stream-timeout=3m udp-timeout=10s
/ip firewall mangle
add action=mark-connection chain=prerouting comment=“” disabled=no
in-interface=ether3 new-connection-mark=list_1 passthrough=yes
add action=mark-routing chain=prerouting comment=“” disabled=no in-interface=
ether3 new-routing-mark=list_1 passthrough=yes src-address-list=list_1
add action=mark-connection chain=prerouting comment=“” disabled=no
in-interface=ether3 new-connection-mark=list_2 passthrough=yes
add action=mark-routing chain=prerouting comment=“” disabled=no in-interface=
ether3 new-routing-mark=list_2 passthrough=yes src-address-list=list_2
add action=mark-connection chain=prerouting comment=“” connection-state=new
disabled=no in-interface=ether3 new-connection-mark=list_1 nth=4,1
passthrough=yes
add action=add-src-to-address-list address-list=list_1 address-list-timeout=
1d chain=prerouting comment=“” connection-mark=list_1 disabled=no
in-interface=ether3
add action=mark-routing chain=prerouting comment=“” connection-mark=list_1
disabled=no in-interface=ether3 new-routing-mark=list_1 passthrough=yes
add action=mark-connection chain=prerouting comment=“” connection-state=new
disabled=no in-interface=ether3 new-connection-mark=list_2 nth=4,2
passthrough=yes
add action=add-src-to-address-list address-list=list_2 address-list-timeout=
1d chain=prerouting comment=“” connection-mark=list_2 disabled=no
in-interface=ether3
add action=mark-routing chain=prerouting comment=“” connection-mark=list_2
disabled=no in-interface=ether3 new-routing-mark=list_2 passthrough=yes
/ip firewall nat
add action=masquerade chain=srcnat comment=“Load balancing Router1” disabled=no
out-interface=ether1
add action=masquerade chain=srcnat comment=“Load balancing Router2” disabled=no
out-interface=ether2
add action=dst-nat chain=dstnat comment=“” disabled=no dst-port=8080
protocol=tcp to-addresses=192.168.1.222 to-ports=80
add action=masquerade chain=srcnat comment=“” disabled=yes
add action=dst-nat chain=dstnat comment=“Remote Radius” disabled=no
dst-address=41.134.31.59 protocol=tcp to-addresses=192.168.1.222
/ip firewall service-port
set ftp disabled=no ports=21
set tftp disabled=no ports=69
set irc disabled=no ports=6667
set h323 disabled=no
set sip disabled=no ports=5060,5061
set pptp disabled=no ]
no bridges or anything.
