Cannot use Mikrotik Omnitik U-5HnD as the Access Point

RouterOS Wireless Networking
1

I recently bought Mikrotik Omnitik U-5HnD but cannot use it as the WiFi AP.
The SSID which I defined on the Mikrotik does not appears.

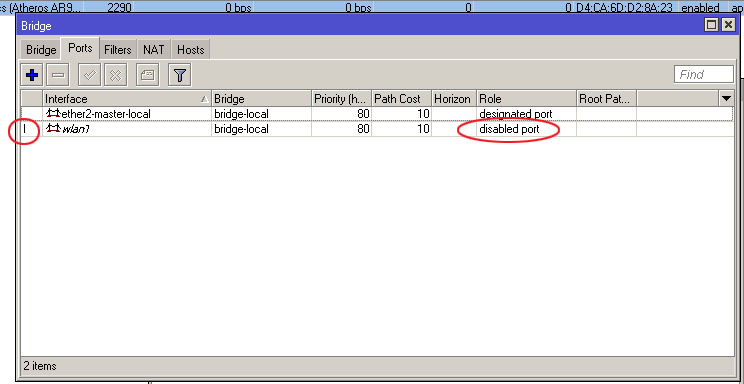

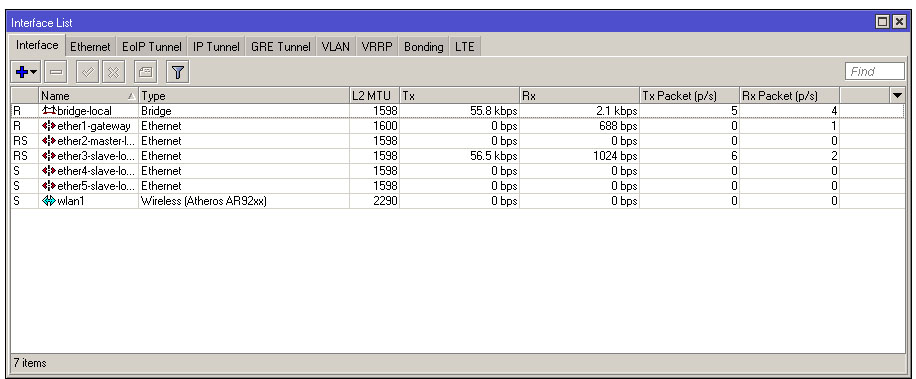

The wlan1 interface shows as “Inactive” and Port Role is “Disabled Port” under the
Bridge-Ports. See attached picture.
I have upgraded Mikrotik to the v6.5, reseted it to the Factory Defaults, wireless
Package is instaled and enabled but no results.
Is it a bug or misconfiguration. Please post your suggestions. Thnx in advance

2

Hi,

Just because nobody’s connected… Connect a client and the interface will be running…

Best Regards…

3

I cannot connect - the SSID does not appears. I also tried to create network profile manually on Windows 7 machine. This usually works if the SSID is hidden. But not this time. No results so far.

4

Sure that your device (notebook/ipad…or whatelse) can connect in band of 5Ghz?

Or are only 2Ghz?

5

Not sure. I will check it. But this means that Omnitik U-5HnD can not be used as real full fledged AP cause the most of the devices works mainly on 2.4 GHz. Is this correct?

6

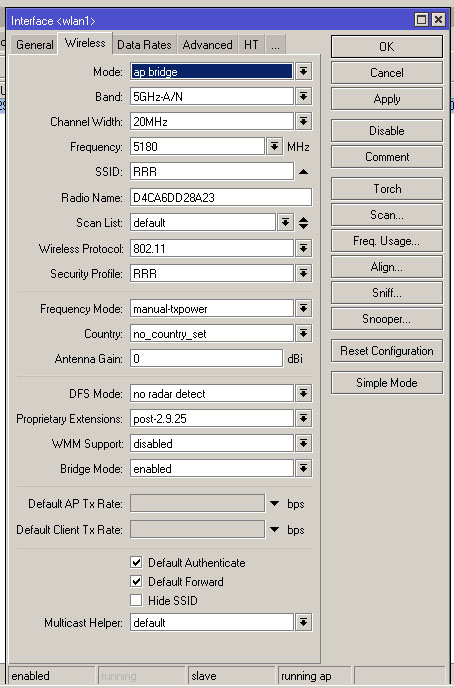

check the Status tab to see on what frequency the interface is running.

7

Frequency is 5180. I found it in the Wireless Tab

8

this is a 5ghz ap, you need a 2.4 ghz ap.

9

This is a 5GHz device. If your devices only support 2GHz, you need a different model. Omnitik doesn’t work in 2GHz
