Hello ,
Help me please I have a problem with ping , and also I don’t know if
necessary to use routing RIP, just for point to point link .
thank you
Upload picture using attachment not as hotlink to your computer
No you don’t need use RIP for p2p link.

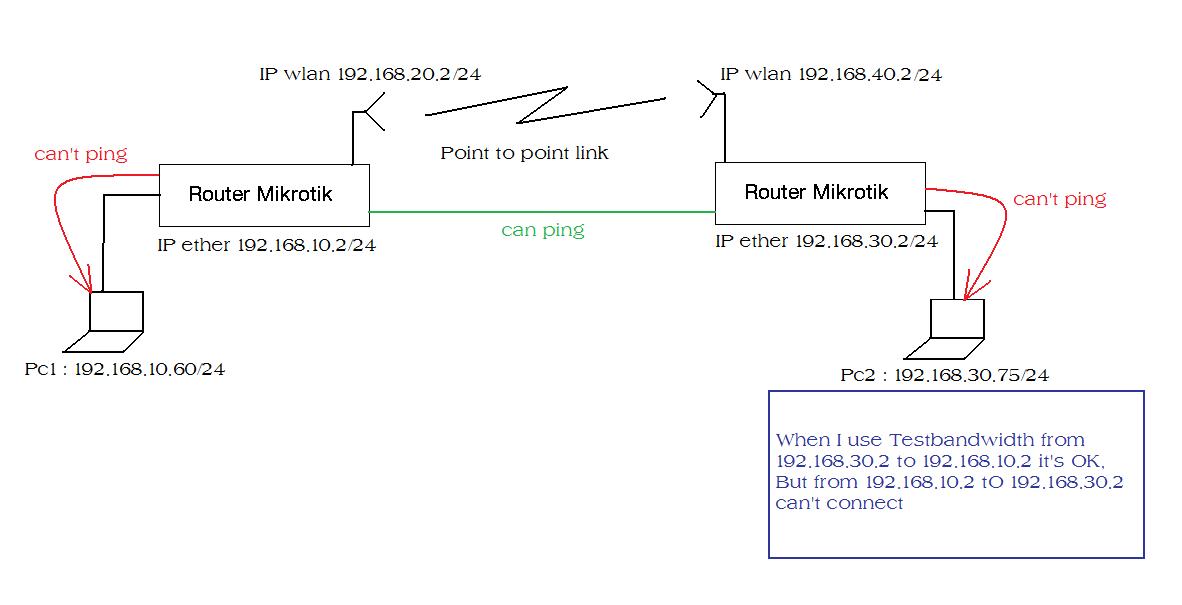

This is my problem in this picture, any idea please
Hello
Please help me
Firewall on PC if Windows
Agree with jrecabeitia. By default XP (since SP2) blocks ICMP Ping. Turn off the XP firewall. It might work then! If you need the firewall on, but wish to be able to ping, then you can modify the firewall rules on the XP client to allow ICMP pings.
Ron
Thank you jrecabeitia and nest
Hi
But is only firewall can block the ICMP , and please if anybody have
a suggestion for a configuration possible for that network, I’m
a beginer
Thanks
The two ends of the links and the PCs are all on completely different subnets. That is your problem. They will not route traffic between them, unless you put some changes into place. Either make all equipment have the same shared subnet or add routing.
Ron.
sorry for beeing blunt, but you have to have some networking background (well, some more than you currently have)
so this is good idea to go to that page and study how routing is working and what routes you should set and where. Then this all will be clear.
Good luck!
http://www.mikrotik.com/testdocs/ros/3.0/ip/route.php
Thanks nest it’s Ok now
No problem.
