Hello,
i have a problem with provisioning my cAP ax with CAPsMAN.

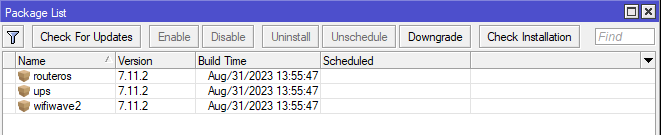

I have start the cAP ax normal and install the latest OS: 7.11.2

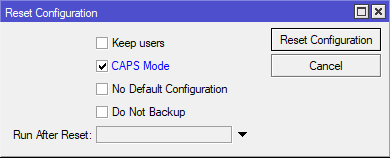

In a second step i reset the cAP ax to CAPS Mode

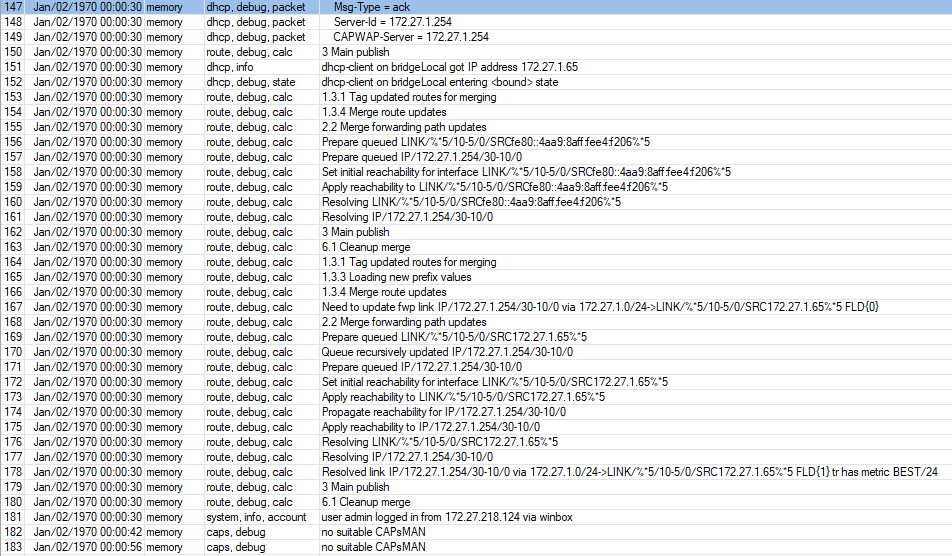

I get an IP address from my router und can also ping it.
My router is an RB5009 with a bride and 4 configured vlan.

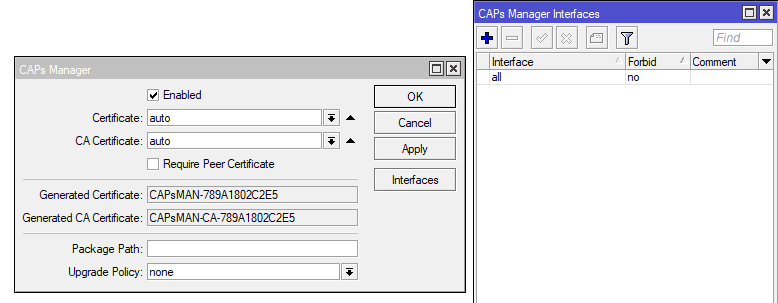

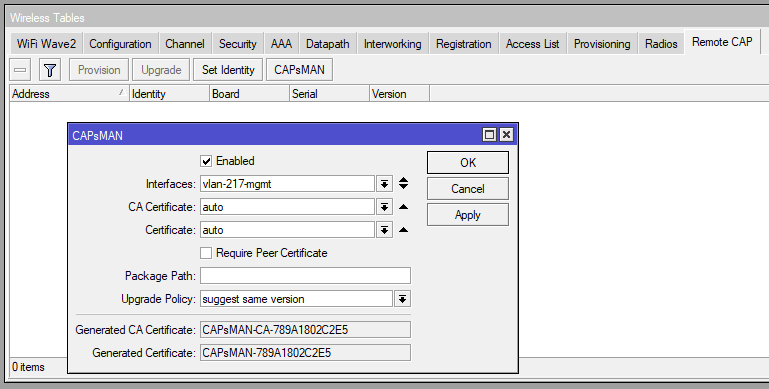

The CAPsMAN is configured to all interfaces

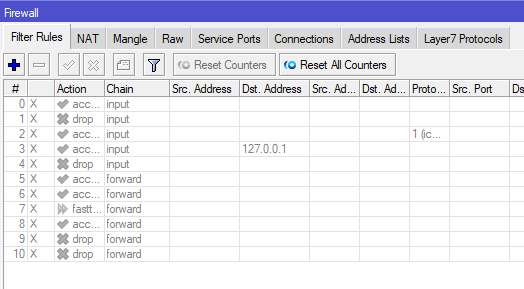

And the Firewall is turend off for truble shooting:
Also my config from the router on the end,
i hope someone can help me to solve the issue or design misstake from me
Thanks
# 2023-10-21 22:21:13 by RouterOS 7.11.2
#
# model = RB5009UG+S+
/caps-man configuration
add country=austria distance=indoors installation=indoor mode=ap name=\
cfg1 security.authentication-types=wpa2-psk .encryption=aes-ccm \
ssid=WiFi
/interface bridge
add admin-mac=78:9A:18:02:C2:E6 auto-mac=no frame-types=\
admit-only-vlan-tagged name=bridge vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] name=ether1-pppoe
set [ find default-name=ether2 ] name=ether2-mac-winbox
set [ find default-name=ether3 ] name=ether3-vlan-216-dmz
set [ find default-name=ether4 ] name=ether4-vlan-217-mgmt
set [ find default-name=ether5 ] name=ether5-vlan-218-inside
set [ find default-name=ether6 ] name=ether6-test
set [ find default-name=ether7 ] name=ether7-bonding1
set [ find default-name=ether8 ] name=ether8-bonding1
set [ find default-name=sfp-sfpplus1 ] name=sfp1-trunk
/interface vlan
add interface=bridge name=vlan-1-default vlan-id=1
add interface=bridge name=vlan-216-dmz vlan-id=216
add interface=bridge name=vlan-217-mgmt vlan-id=217
add interface=bridge name=vlan-218-inside vlan-id=218
add interface=bridge name=vlan-219-domain vlan-id=219
/interface bonding
add mode=802.3ad name=bonding1-trunk slaves=ether7-bonding1,ether8-bonding1
/interface list
add comment="contains the interfaces to the internet" name=WAN
add comment="contains all interfaces for intranet" name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/ip dhcp-server option
add code=119 name=domain-search value="0x03'dmz'0x09'schloff'0x02'co'0x0004'\
mgmt'0xC00406'inside'0xC00406'domain'0xC004"
add code=43 name=disable-netbios value=0x010400000002
/ip pool
add name=pool-dmz ranges=172.27.216.65-172.27.216.126
add name=pool-mgmt ranges=172.27.217.129-172.27.217.199
add name=pool-inside ranges=172.27.218.65-172.27.218.126
add name=pool-domain ranges=172.27.219.65-172.27.219.126
add name=pool-default ranges=172.27.1.65-172.27.1.126
/ip dhcp-server
add address-pool=pool-mgmt interface=vlan-217-mgmt name=mgmt
add address-pool=pool-dmz interface=vlan-216-dmz name=dmz
add address-pool=pool-inside interface=vlan-218-inside name=inside
add address-pool=pool-default interface=vlan-1-default name=default
/caps-man manager
set ca-certificate=auto certificate=auto enabled=yes
/caps-man provisioning
add action=create-dynamic-enabled master-configuration=cfg1
/interface bridge port
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether3-vlan-216-dmz pvid=216
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether4-vlan-217-mgmt pvid=217
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether5-vlan-218-inside pvid=218
add bridge=bridge interface=ether6-test
add bridge=bridge interface=bonding1-trunk
add bridge=bridge interface=sfp1-trunk
/ip neighbor discovery-settings
set discover-interface-list=all
/ipv6 settings
set disable-ipv6=yes
/interface bridge vlan
add bridge=bridge tagged=bridge,bonding1-trunk,sfp1-trunk vlan-ids=216
add bridge=bridge tagged=bridge,bonding1-trunk,sfp1-trunk vlan-ids=217
add bridge=bridge tagged=bridge,bonding1-trunk,sfp1-trunk vlan-ids=218
add bridge=bridge tagged=bridge,bonding1-trunk untagged=sfp1-trunk vlan-ids=\
219
add bridge=bridge tagged=bridge,bonding1-trunk,sfp1-trunk vlan-ids=1
/interface list member
add interface=bridge list=LAN
add interface=ether1-pppoe list=WAN
add interface=ether2-mac-winbox list=LAN
/ip address
add address=172.27.217.254/25 interface=vlan-217-mgmt network=172.27.217.128
add address=172.27.216.254/24 interface=vlan-216-dmz network=172.27.216.0
add address=172.27.218.254/24 interface=vlan-218-inside network=172.27.218.0
add address=172.27.1.254/24 interface=vlan-1-default network=172.27.1.0
/ip dhcp-client
add interface=ether1-pppoe use-peer-dns=no use-peer-ntp=no
/ip dhcp-server network
add address=172.27.1.0/24 caps-manager=172.27.1.254 dns-server=172.27.1.254 \
gateway=172.27.1.254
add address=172.27.216.0/24 dhcp-option=domain-search,disable-netbios \
dns-server=172.27.216.254 domain=dmz.schloff.co gateway=172.27.216.254
add address=172.27.217.128/25 dhcp-option=domain-search,disable-netbios \
dns-server=172.27.217.254 domain=mgmt.schloff.co gateway=172.27.217.254
add address=172.27.218.0/24 dhcp-option=domain-search,disable-netbios \
dns-server=172.27.218.254 domain=inside.schloff.co gateway=\
172.27.218.254
/ip dns
set allow-remote-requests=yes use-doh-server=https://1.1.1.1/dns-query \
verify-doh-cert=yes
/ip firewall filter
add action=accept chain=input comment="accept established,related,untracked!" \
connection-state=established,related,untracked disabled=yes
add action=drop chain=input comment="drop invalid!" connection-state=invalid \
disabled=yes
add action=accept chain=input comment="accept ICMP!" disabled=yes protocol=\
icmp
add action=accept chain=input comment=\
"accept to local loopback (for CAPsMAN)!" disabled=yes dst-address=\
127.0.0.1
add action=drop chain=input comment="drop all not coming from LAN!" disabled=\
yes in-interface-list=!LAN
add action=accept chain=forward comment="accept in ipsec policy!" disabled=\
yes ipsec-policy=in,ipsec
add action=accept chain=forward comment="accept out ipsec policy!" disabled=\
yes ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment=fasttrack! \
connection-state=established,related disabled=yes hw-offload=yes
add action=accept chain=forward comment=\
"accept established,related, untracked!" connection-state=\
established,related,untracked disabled=yes
add action=drop chain=forward comment="drop invalid!" connection-state=\
invalid disabled=yes
add action=drop chain=forward comment="drop all from WAN not DSTNATed!" \
connection-nat-state=!dstnat connection-state=new disabled=yes \
in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment=masquerade! ipsec-policy=out,none \
out-interface-list=WAN
/system identity
set name=fw
/system logging
add topics=debug
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp server
set enabled=yes
/system ntp client servers
add address=time-a-b.nist.gov
add address=time-a-g.nist.gov
/tool mac-server
set allowed-interface-list=LAN
