Cap ax in attic.. what could go wrong?

Tired of fighting with a collection of Wyze cameras.. the Mrs just got a few more on sale.. they are floodlight pros.. and keep having weird issues.. so I want to put them on a dedicated 2.4ax AP..

I’ve never had a mktk AP.. couple hundred Unifi at work.. I just don’t want to run a full controller for an AP.. and wanted to see about capsman (I have an ax2)..

the Cap ax can be installed as a bridge right? I don’t need to learn capsman at this time.. I could get the AP, connect it, update it, configure it, mount it in the attic (it will get to 70c)..

is there anything else anyone could share which I might be missing or over looking?

Thanks in advance..

You get 70°C in the attic ?? That device will not last long at such high ambient temperature.

I live in NY, USA.. summer is coming..

35-40c outside 50-55c in the attic easy..

Peak daytime and summer months.. wouldn’t think 70 to be the norm.. but it’s an attic, in a house, in the summer..

I was thinking about maybe crawling out and putting it in the soffit..

Maybe two.. front and back..

(I think the world is getting crazy with all the wireless things..)

I went from thousands of wired devices to thousands of wireless devices in just a few years at work..

My Cap ax idles @59c

/sys/health/print
Columns: NAME, VALUE, TYPE

NAME VALUE TYPE

0 cpu-temperature 59 C

Cap ax is $129 and the comparable is a U6+ for the same $129

wanted to try something else..

Where does it live? inside? outside?

On my ceiling inside my house which atm moment is 20.6c, measured the ceiling temp with an Infrared Thermometer.

Attics get surprisingly hot baking in the sun.

Much more so than most people would assume. The heat kind of gets trapped in there, especially if you like most people - have a black roof, poor/no ventilation and all of your insulation in the attic floor to insulate the living spaces below It’s worse than a sauna in some cases.

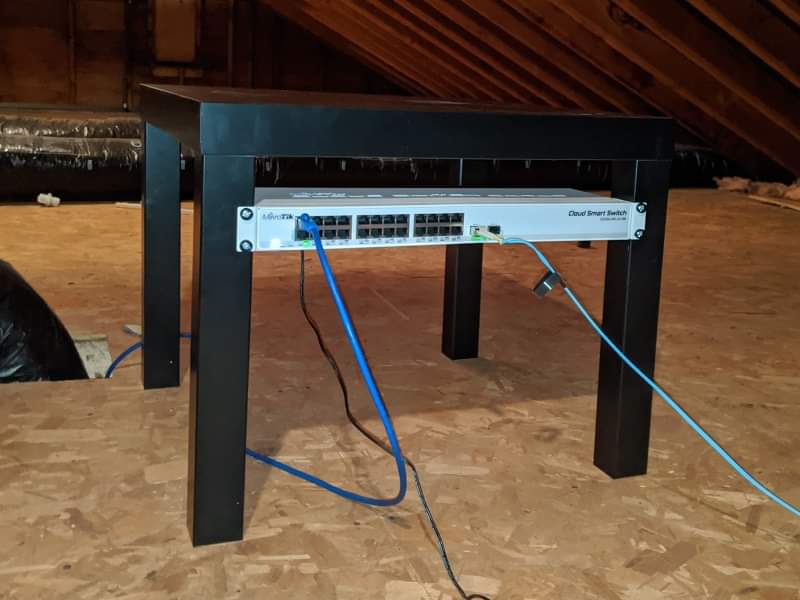

I haven’t checked on a cAP ax but I used to run a CSS-326-24G-2S+RM switch in my attic (in an IKEA Lack Rack) for a while.
I can’t remember the exact numbers, but without additional airflow it definitely ran much hotter than I was comfortable with in the summer heat.

I wound up suspending a big box fan from the rafters using bungee cords (to isolate vibration noise) blowing straight at it. From the factory, the CSS-326-24G-2S+RM does not have a fan installed in it, but there is a fan slot on the case, I popped a 5V 40mm fan in there and powered it using an old USB charger, to get some extra air moving through it.

With these precautions I was able to keep both the switch and the 10gig fiberoptic transceiver within readonable temperatures. There is no way I could have used the hot running 10gig copper S+RJ10 SFP+ adapter up there though, regardless of airflow.

I think that if you are creative, keep an eye on temps and add some form of forced air you can make it work.

Even with these precautions it may wind up accelerating the aging process of the unit a little bit, but these things last so far beyond their useful lives anyway that I don’t think this is an issue.

That said, you won’t know until you try.

In my case the switch is still going strong 3 years later. It was up there for about 14 months until I moved to a new house. I no longer have the need for any networking equipment in the attic.

AP’s and switches are different though, so YMMV.

The good news is that the cAP ax units are so much cheaper than competing products out there that it isn’t too expensive to just try and see.

Check out outdoor access points, they are often rated for extreme environments
https://mikrotik.com/product/RB912UAG-2HPnD-OUT#fndtn-downloads -40 to +70 Celcius ( -40 to 158 fahrenheit )/

No AX outdoor models in 2ghz, though.

The capax states same temperature environment as the outdoor model!! -40 to +70c
