Caps network connectivity issue dhcp deassigned assigned

RouterOS Wireless Networking
1

Hello everyone,
I am having issue with this capsman setup.
CAP server (main router Hap AC), caps - hap ac lite. powered by POE.
all devices have no issue with power, no restart cause power issue or else.
3 caps at the beginning - middle and - the end of the floor.

network 192.168.1.0 staff, no dhcp server.
network 192.168.100.0 guest wifi, with dhcp server

The issue is that wifi is dropping. For 3-5 minutes wifi disappear, clients (tv, phones)
cannot connect. After few minutes all done - they are connected and everythink works.

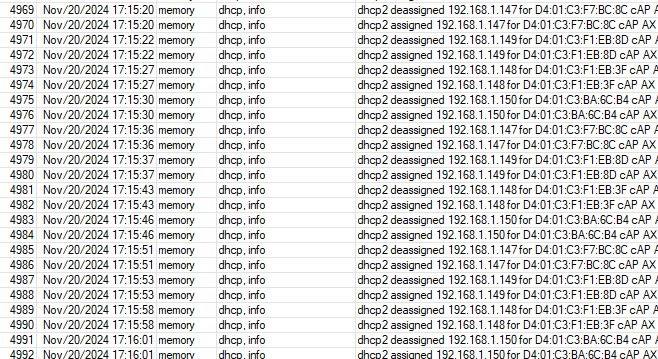

A lot of dhcp messages like:

16:30:50 dhcp,info dhcp1 deassigned 192.168.100.126 for 64:D8:1B:18:AE:51
16:30:50 dhcp,info dhcp1 assigned 192.168.100.126 for 64:D8:1B:18:AE:51
16:42:46 dhcp,info dhcp1 deassigned 192.168.100.166 for 64:D8:1B:31:4A:73
16:42:46 dhcp,info dhcp1 assigned 192.168.100.166 for 64:D8:1B:31:4A:73
16:44:01 dhcp,info dhcp1 deassigned 192.168.100.101 for 64:D8:1B:31:4C:35
16:44:01 dhcp,info dhcp1 assigned 192.168.100.101 for 64:D8:1B:31:4C:35
16:48:39 dhcp,info dhcp1 deassigned 192.168.100.112 for 64:D8:1B:31:50:D7
16:48:39 dhcp,info dhcp1 assigned 192.168.100.112 for 64:D8:1B:31:50:D7

What is wrong my config?
I try to have stable 2.4 GHz and 5 GHz connections, speed is not important (for example 200mbsp connection, 30-40 is enough)
Can you help me with caps and network settings?
Some TV's one time see 2.4 network, sometimes only 5 GHz network.

Thanks in advance!

this hap ac config:
# 2024-11-14 19:02:52 by RouterOS 7.16.1
# software id = LI54-CF11
#
# model = RBD52G-5HacD2HnD
# serial number = HFK...
/caps-man channel
add band=5ghz-n/ac control-channel-width=20mhz extension-channel=Ce \
    frequency=5180,5220,5260,5300,5500,5540,5580,5620 name=5
add band=2ghz-g/n control-channel-width=20mhz extension-channel=disabled \
    frequency=2412,2437,2462 name=2.4
/caps-man configuration
add country=bulgaria distance=indoors installation=any mode=ap name=2.4 ssid=\
    MyNet
add country=bulgaria distance=indoors installation=any mode=ap name=5 ssid=\
    MyNet-ac
/interface bridge
add admin-mac=78:9A:18:F5:5A:16 auto-mac=no comment=defconf name=bridge
/interface wireless
# managed by CAPsMAN
set [ find default-name=wlan1 ] band=2ghz-b/g/n channel-width=20/40mhz-XX \
    distance=indoors frequency=auto installation=indoor mode=ap-bridge ssid=\
    MikroTik-F55A1A wireless-protocol=802.11
# managed by CAPsMAN
set [ find default-name=wlan2 ] band=5ghz-a/n/ac channel-width=\
    20/40/80mhz-XXXX distance=indoors frequency=auto installation=indoor \
    mode=ap-bridge ssid=MikroTik-F55A1A wireless-protocol=802.11
/caps-man datapath
add bridge=bridge client-to-client-forwarding=no local-forwarding=no name=\
    datapath1
/caps-man security
add authentication-types=wpa2-psk encryption=aes-ccm group-encryption=aes-ccm \
    name=security1
/caps-man interface
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FB:3F master-interface=none name=cap11-2.4 radio-mac=\
    78:9A:18:5E:FB:3F radio-name=789A185EFB3F security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FB:3E master-interface=none name=cap11-5 radio-mac=\
    78:9A:18:5E:FB:3E radio-name=789A185EFB3E security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:73:66:F3 master-interface=none name=cap12-2.4 radio-mac=\
    64:D1:54:73:66:F3 radio-name=64D1547366F3 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:73:66:F2 master-interface=none name=cap12-5 radio-mac=\
    64:D1:54:73:66:F2 radio-name=64D1547366F2 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:69:66:DD master-interface=none name=cap13-2.4 radio-mac=\
    64:D1:54:69:66:DD radio-name=64D1546966DD security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:69:66:DC master-interface=none name=cap13-5 radio-mac=\
    64:D1:54:69:66:DC radio-name=64D1546966DC security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:60:EB:AD master-interface=none name=cap14-2.4 radio-mac=\
    78:9A:18:60:EB:AD radio-name=789A1860EBAD security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:60:EB:AC master-interface=none name=cap14-5 radio-mac=\
    78:9A:18:60:EB:AC radio-name=789A1860EBAC security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:77:8E:F8 master-interface=none name=cap15-2.4 radio-mac=\
    64:D1:54:77:8E:F8 radio-name=64D154778EF8 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:77:8E:F7 master-interface=none name=cap15-5 radio-mac=\
    64:D1:54:77:8E:F7 radio-name=64D154778EF7 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:69:0B:58 master-interface=none name=cap16-2.4 radio-mac=\
    64:D1:54:69:0B:58 radio-name=64D154690B58 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:69:0B:57 master-interface=none name=cap16-5 radio-mac=\
    64:D1:54:69:0B:57 radio-name=64D154690B57 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:60:EB:BB master-interface=none name=cap17-2.4 radio-mac=\
    78:9A:18:60:EB:BB radio-name=789A1860EBBB security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:60:EB:BA master-interface=none name=cap17-5 radio-mac=\
    78:9A:18:60:EB:BA radio-name=789A1860EBBA security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:77:8E:F1 master-interface=none name=cap18-2.4 radio-mac=\
    64:D1:54:77:8E:F1 radio-name=64D154778EF1 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:77:8E:F0 master-interface=none name=cap18-5 radio-mac=\
    64:D1:54:77:8E:F0 radio-name=64D154778EF0 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:73:67:6A master-interface=none name=cap19-2.4 radio-mac=\
    64:D1:54:73:67:6A radio-name=64D15473676A security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:73:67:69 master-interface=none name=cap19-5 radio-mac=\
    64:D1:54:73:67:69 radio-name=64D154736769 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:60:EC:05 master-interface=none name=cap20-2.4 radio-mac=\
    78:9A:18:60:EC:05 radio-name=789A1860EC05 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:60:EC:04 master-interface=none name=cap20-5 radio-mac=\
    78:9A:18:60:EC:04 radio-name=789A1860EC04 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:7A:3B:CA master-interface=none name=cap21-2.4 radio-mac=\
    64:D1:54:7A:3B:CA radio-name=64D1547A3BCA security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    64:D1:54:7A:3B:C9 master-interface=none name=cap21-5 radio-mac=\
    64:D1:54:7A:3B:C9 radio-name=64D1547A3BC9 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FC:D3 master-interface=none name=cap22-2.4 radio-mac=\
    78:9A:18:5E:FC:D3 radio-name=789A185EFCD3 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FC:D2 master-interface=none name=cap22-5 radio-mac=\
    78:9A:18:5E:FC:D2 radio-name=789A185EFCD2 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FC:E8 master-interface=none name=cap23-2.4 radio-mac=\
    78:9A:18:5E:FC:E8 radio-name=789A185EFCE8 security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FC:E7 master-interface=none name=cap23-5 radio-mac=\
    78:9A:18:5E:FC:E7 radio-name=789A185EFCE7 security=security1
add configuration=2.4 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FB:8C master-interface=none name=cap24-2.4 radio-mac=\
    78:9A:18:5E:FB:8C radio-name=789A185EFB8C security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 datapath=datapath1 disabled=no l2mtu=1600 mac-address=\
    78:9A:18:5E:FB:8B master-interface=none name=cap24-5 radio-mac=\
    78:9A:18:5E:FB:8B radio-name=789A185EFB8B security=security1
add configuration=2.4 configuration.multicast-helper=full datapath=datapath1 \
    disabled=yes l2mtu=1600 mac-address=78:9A:18:F5:5A:1A master-interface=\
    none name=hapac-2.4 radio-mac=78:9A:18:F5:5A:1A radio-name=789A18F55A1A \
    security=security1
add channel=5 channel.frequency=5180,5220,5260,5300,5500,5540,5580,5620 \
    configuration=5 configuration.multicast-helper=full datapath=datapath1 \
    disabled=yes l2mtu=1600 mac-address=78:9A:18:F5:5A:1B master-interface=\
    none name=hapac-5 radio-mac=78:9A:18:F5:5A:1B radio-name=789A18F55A1B \
    security=security1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] authentication-types=wpa2-psk comment=defconf \
    disable-pmkid=yes mode=dynamic-keys supplicant-identity=MikroTik
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
add name=dhcp_pool1 ranges=192.168.100.51-192.168.100.199
/ip dhcp-server
add address-pool=dhcp_pool1 interface=bridge name=dhcp1
/queue simple
add disabled=yes name=queue1 target=""
add disabled=yes max-limit=2M/2M name=tec target=192.168.1.9/32
add disabled=yes limit-at=2M/2M max-limit=5M/5M name=Client_C target=\
    192.168.1.9/32
add max-limit=999M/999M name="ALL Bandwith" queue=\
    pcq-upload-default/pcq-download-default target=192.168.100.0/24
add max-limit=2M/2M name=reception parent="ALL Bandwith" queue=\
    pcq-upload-default/pcq-download-default target=192.168.1.9/32
/caps-man access-list
add allow-signal-out-of-range=10s disabled=no mac-address=7A:E9:BD:EE:B3:B1 \
    ssid-regexp=""
add action=reject disabled=no interface=all signal-range=-120..-65
/caps-man manager
set ca-certificate=auto certificate=auto enabled=yes
/caps-man provisioning
add action=create-disabled hw-supported-modes=gn master-configuration=2.4 \
    name-format=prefix-identity name-prefix=2.4
add action=create-disabled hw-supported-modes=ac master-configuration=5 \
    name-format=prefix-identity name-prefix=5
/disk settings
set auto-media-interface=bridge auto-media-sharing=yes auto-smb-sharing=yes
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wlan1
add bridge=bridge comment=defconf interface=wlan2
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/interface wireless cap
#
set caps-man-addresses=127.0.0.1 enabled=yes interfaces=wlan1,wlan2
/ip address
add address=192.168.100.1/24 comment=defconf interface=bridge network=\
    192.168.100.0
add address=192.168.1.1/24 interface=bridge network=192.168.1.0
/ip cloud
set ddns-enabled=yes ddns-update-interval=1h
/ip dhcp-client
add comment=defconf interface=ether1
/ip dhcp-server lease
add address=192.168.100.185 client-id=1:12:c6:97:41:47:a3 mac-address=\
    12:C6:97:41:47:A3 server=dhcp1
/ip dhcp-server network
add address=192.168.100.0/24 comment=defconf dns-server=192.168.100.1,8.8.8.8 \
    gateway=192.168.100.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan type=A
/ip firewall address-list
add address=IP_IP list=my
add address=IP_IP list=my
add address=IP_IP comment=test1 list=my
add address=IP_IP comment=test1 list=my
/ip firewall filter
add action=accept chain=input comment=\
    "defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
    "defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
    ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
    ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
    connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
    "defconf: accept established,related, untracked" connection-state=\
    established,related,untracked
add action=accept chain=input comment="winbox enable" dst-port=8291 protocol=\
    tcp src-address-list=my
add action=accept chain=input comment="winbox enable" dst-port=8443 protocol=\
    tcp
add action=drop chain=forward comment="defconf: drop invalid" \
    connection-state=invalid
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
    in-interface-list=!LAN
add action=drop chain=forward comment=\
    "defconf: drop all from WAN not DSTNATed" connection-nat-state=!dstnat \
    connection-state=new in-interface-list=WAN
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
    invalid
/ip firewall mangle
add action=mark-packet chain=forward disabled=yes new-packet-mark=\
    Client1_Packet passthrough=no src-address=192.168.1.15
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" \
    ipsec-policy=out,none out-interface-list=WAN
add action=dst-nat chain=dstnat comment="truenas www access" dst-port=40015 \
    in-interface-list=WAN protocol=tcp to-addresses=192.168.100.15 to-ports=\
    28291
add action=dst-nat chain=dstnat comment="cap winbox" dst-port=18888 \
    in-interface-list=WAN protocol=tcp to-addresses=192.168.1.4 to-ports=80
add action=dst-nat chain=dstnat comment="Server RDP" dst-port=13389 \
    in-interface-list=WAN protocol=tcp src-address-list=my to-addresses=\
    192.168.1.7 to-ports=3389
add action=dst-nat chain=dstnat comment=Video dst-port=8088 \
    in-interface-list=WAN protocol=tcp to-addresses=192.168.1.8 to-ports=80
/ip hotspot profile
set [ find default=yes ] html-directory=hotspot
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip service
set www disabled=yes port=8888
set www-ssl certificate=my-rtr disabled=no port=8443
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
    "defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
    invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=\
    icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" \
    dst-port=33434-33534 protocol=udp
add action=accept chain=input comment=\
    "defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
    udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
    protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
    ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
    ipsec-esp
add action=accept chain=input comment=\
    "defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
    "defconf: drop everything else not coming from LAN" in-interface-list=\
    !LAN
add action=accept chain=forward comment=\
    "defconf: accept established,related,untracked" connection-state=\
    established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" \
    connection-state=invalid
add action=drop chain=forward comment=\
    "defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment=\
    "defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
    hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
    icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=\
    500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
    ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
    ipsec-esp
add action=accept chain=forward comment=\
    "defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
    "defconf: drop everything else not coming from LAN" in-interface-list=\
    !LAN
/system clock
set time-zone-name=Europe/Sofia
/system identity
set name="HAP AC"
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=europe.pool.ntp.org
add address=pool.ntp.org
/tool graphing interface
add interface=ether1
add interface=bridge
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
2

Can you add lease-time to dhcp-server:

/ip dhcp-server
add address-pool=dhcp_pool1 interface=bridge name=dhcp1 lease-time=8h

By default it is 10m, which can cause problems.

3

Also check log files both on AP and controller around the time disconnects happen.
They might give you a better idea to find the reason.

4

Yes, I change lease to 22h (for test)
Logs from few caps
cap24
06:10:36 caps,info CAP sent max keepalives without response
06:10:36 caps,info CAP disconnected from HAP AC (::ffff:192.168.100.1:5246)
06:10:38 caps,info CAP selected CAPsMAN HAP AC (78:9A:18:F5:5A:16/14/0)
06:10:58 caps,info CAP connect to HAP AC (78:9A:18:F5:5A:16/14/0) failed: timeou
t
06:10:58 caps,info CAP failed to join HAP AC (78:9A:18:F5:5A:16/14/0)
06:10:58 caps,info CAP selected CAPsMAN HAP AC (::ffff:192.168.100.1:5246)
06:10:58 caps,info CAP connected to HAP AC (::ffff:192.168.100.1:5246), CommonNa
me ‘CAPsMAN-789A18F55A15’
06:10:58 caps,info CAP joined HAP AC (::ffff:192.168.100.1:5246)

cap15
11-13 13:29:27 caps,info CAP selected CAPsMAN HAP AC (78:9A:18:F5:5A:16/13/0)
11-13 13:29:47 caps,info CAP connect to HAP AC (78:9A:18:F5:5A:16/13/0) failed: timeout
11-13 13:29:47 caps,info CAP failed to join HAP AC (78:9A:18:F5:5A:16/13/0)
11-13 13:29:47 caps,info CAP selected CAPsMAN HAP AC (::ffff:192.168.100.1:5246)
11-13 13:29:47 caps,info CAP connected to HAP AC (::ffff:192.168.100.1:5246), CommonName ‘CAPsMAN-789A18F55A15’
11-13 13:29:47 caps,info CAP joined HAP AC (::ffff:192.168.100.1:5246)
11-14 10:22:36 system,critical,info cloud change time Nov/13/2024 13:30:36 => Nov/14/2024 10:22:36


cap18
1-13 15:29:43 system,critical,info ntp change time Nov/13/2024 15:29:43 => Nov/14/2024 12:21:37
11-14 12:21:48 caps,info CAP connect to HAP AC (78:9A:18:F5:5A:16/13/0) failed: timeout
11-14 12:21:48 caps,info CAP failed to join HAP AC (78:9A:18:F5:5A:16/13/0)
11-14 12:21:48 caps,info CAP selected CAPsMAN HAP AC (::ffff:192.168.100.1:5246)
11-14 12:21:48 caps,info CAP connected to HAP AC (::ffff:192.168.100.1:5246), CommonName ‘CAPsMAN-789A18F55A15’
11-14 12:21:48 caps,info CAP joined HAP AC (::ffff:192.168.100.1:5246)

5

Can you share the CAP config as well?

From the log I understand that the connection between the CAPsMAN and the CAP’s is interrupted. Which explains the behavior. Any idea why this is happening? Are all devices connected with network cable? Are the cables tested? What is the number of link downs?

6

And logs on controller please.

7

Controller is the main device hap ac?
Nothing except ghcp message and web/winbox login.

All devices are connected via new rj45 cables.
Test was few ping iperf tests, no issues.

All caps are connected using poe method to power supply via passive poe patch pannel. Also testet and metterd - no issues, no interrupts or reboots.

What logs, settings, scenario can I provide?

8

How many caps and connected to which power source ? Sure it can handle the combined load ?

9

Yes it can. We make test with 20 caps, now they are 14
It is not power issue, I think some network problem - caps connection, switche port, that they using or else.

Tomorrow will try other type of setup.
Main router hap ac with setup for gw, router, ssid and etc
Other mikrotik devices be configured this way:
All ports bridge to lan (no wan), no dhcp,same ssid and password. They will passthrough the connections to the main in this way, l have done this scenario twice and it works for years.
Yes I know that no management and easy monitoring in this way, but I don’t know what to do in this scenario.

Can you suggest me save 2.4ghz mikrotik settings like modes b-g-n, channels, speed, frequency or what to leave automatic for more compatible devices?

10

Little updates. Destroy caps manager and configure every device as different wifi router with own ssid just for testing.
There few tv’s which are connected to to main hap ac router via rj45 cable in switch attached to the router.
I mark all tv connection as static - in dhcp server - leases - select and make static.
I run from one computer in the network ping for 24 hours (will resume it for more) to few tv’s and two computers which also connected by lan.
The results is 99% 1ms packet, max 17ms, average 2ms, no packet loss for any!

I am still having this dhcp deassigned assigned message.

I thought there where some network - switch, cable, port. I transfer two computer to the ports of the switch where was “problem” tv and no issue with computers.

Can you help me, what else I should try?

Thanks in advance !

Update:
Set debug log in to memory. Could that bridge has both ip’s 192.168.100.1 + 192.168.1.1 could be the problem?

07:46:03 dhcp,debug dhcp1 received discover id 3082835515 from 0.0.0.0 '1:64:d8:1b:31:4f:3c'
 07:46:03 dhcp,debug,packet     ciaddr = 0.0.0.0
 07:46:03 dhcp,debug,packet     chaddr = 64:D8:1B:31:4F:3C
 07:46:03 dhcp,debug,packet     Msg-Type = discover
 07:46:03 dhcp,debug,packet     Parameter-List = Subnet-Mask,Router,Domain-Server,Domain-Name,Interface-MTU,Broadcast-Address,Address-Time,Renewal-Time,Rebinding-Time,Vendor-Specific,Captive-Por
tal
 07:46:03 dhcp,debug,packet     Max-DHCP-Message-Size = 1500
 07:46:03 dhcp,debug,packet     Class-Id = "android-dhcp-11"
 07:46:03 dhcp,debug,packet     Client-Id = 01-64-D8-1B-31-4F-3C
 07:46:03 dhcp,debug,packet     Unknown(80) =
 07:46:03 dhcp,debug lease found, bound, offer
 07:46:03 dhcp,info dhcp1 deassigned 192.168.100.118 for 64:D8:1B:31:4F:3C
 07:46:03 dhcp,debug,packet dhcp1 on bridge sending offer with id 3082835515 to 192.168.100.118
 07:46:03 dhcp,debug,packet     ciaddr = 0.0.0.0
 07:46:03 dhcp,debug,packet     yiaddr = 192.168.100.118
 07:46:03 dhcp,debug,packet     siaddr = 192.168.1.1
 07:46:03 dhcp,debug,packet     chaddr = 64:D8:1B:31:4F:3C
 07:46:03 dhcp,debug,packet     Subnet-Mask = 255.255.255.0
 07:46:03 dhcp,debug,packet     Router = 192.168.100.1
 07:46:03 dhcp,debug,packet     Domain-Server = 192.168.100.1,8.8.8.8
 07:46:03 dhcp,debug,packet     Address-Time = 79200
 07:46:03 dhcp,debug,packet     Msg-Type = offer
 07:46:03 dhcp,debug,packet     Server-Id = 192.168.1.1
 07:46:03 dhcp,debug dhcp1 received request id 3082835515 from 0.0.0.0 '1:64:d8:1b:31:4f:3c'
 07:46:03 dhcp,debug,packet     ciaddr = 0.0.0.0
 07:46:03 dhcp,debug,packet     chaddr = 64:D8:1B:31:4F:3C
 07:46:03 dhcp,debug,packet     Address-Request = 192.168.100.118
 07:46:03 dhcp,debug,packet     Msg-Type = request
 07:46:03 dhcp,debug,packet     Server-Id = 192.168.1.1
 07:46:03 dhcp,debug,packet     Parameter-List = Subnet-Mask,Router,Domain-Server,Domain-Name,Interface-MTU,Broadcast-Address,Address-Time,Renewal-Time,Rebinding-Time,Vendor-Specific,Captive-Por
tal
 07:46:03 dhcp,debug,packet     Max-DHCP-Message-Size = 1500
 07:46:03 dhcp,debug,packet     Class-Id = "android-dhcp-11"
 07:46:03 dhcp,debug,packet     Client-Id = 01-64-D8-1B-31-4F-3C
 07:46:03 dhcp,debug lease offered, addressed to me
 07:46:03 dhcp,info dhcp1 assigned 192.168.100.118 for 64:D8:1B:31:4F:3C
 07:46:03 dhcp,debug,packet dhcp1 on bridge sending ack with id 3082835515 to 192.168.100.118
 07:46:03 dhcp,debug,packet     ciaddr = 0.0.0.0
 07:46:03 dhcp,debug,packet     yiaddr = 192.168.100.118
 07:46:03 dhcp,debug,packet     siaddr = 192.168.1.1
 07:46:03 dhcp,debug,packet     chaddr = 64:D8:1B:31:4F:3C
 07:46:03 dhcp,debug,packet     Subnet-Mask = 255.255.255.0
 07:46:03 dhcp,debug,packet     Router = 192.168.100.1
 07:46:03 dhcp,debug,packet     Domain-Server = 192.168.100.1,8.8.8.8
 07:46:03 dhcp,debug,packet     Address-Time = 79200
 07:46:03 dhcp,debug,packet     Msg-Type = ack
 07:46:03 dhcp,debug,packet     Server-Id = 192.168.1.1
11

hey netaccs,
I’m facing with absolutely same issue on my ax3 (capsman) and 4 cAP ax (caps). Can’t figure out why they continuously disconnecting and reconnecting again (according to logs).

12

Probably same error. Is it from the router or it is configuration , network equipment issue?

13

Probably it’s equipment (cAP AX) cause I have 2 more CAPs in my network and those caps are routers (ax lite & ac2) so they do not have this reassigning issue and working fine.

14

hey folks- has anybody been able to record any progress on this issue? I started having “CAP sent max keepalives without response” after updating to 7.17. It started with 1 of my 3 APs I’ve got in Capsman. After few days, 2nd out of my 3 CAPs started doing the same thing. I did not change anything in my config and it has been working fine for years. I dont have physical access to the HW to do netinstall, but I’m seriously concerned about the stability of this setup. I’m using CAP AC XL that exhibit this behavior. The third CAP is WAP AC and has been fine.

EDIT: all these issues disappeared after update to 7.17.1 - attributing it to:
*) bridge - fixed endless MAC update loop (introduced in v7.17);
*) dhcpv4-server - fixed lease assigning when server address is not bind to server interface (introduced in v7.17);

15

hello
Updated my ax3 to 7.17.2 and no changes, issue still exist. I’m currently having 24 caps in my Capsman and only cAP AX have this deassigned assigned problem other caps are cAP ac and hAP ac.
Still searching for solution..
