Caps Traffic to internet via switch

RouterOS Wireless Networking
1

Hello all

Is there way to setup Capsman to a act as manager ONLY not passing the caps traffic toward the internet (RBwAP2nD-BE MikroTik wAP )

I am using RB2011UiAS-2HnD-IN as Capsman and RBwAP2nD-BE MikroTik wAP as access point

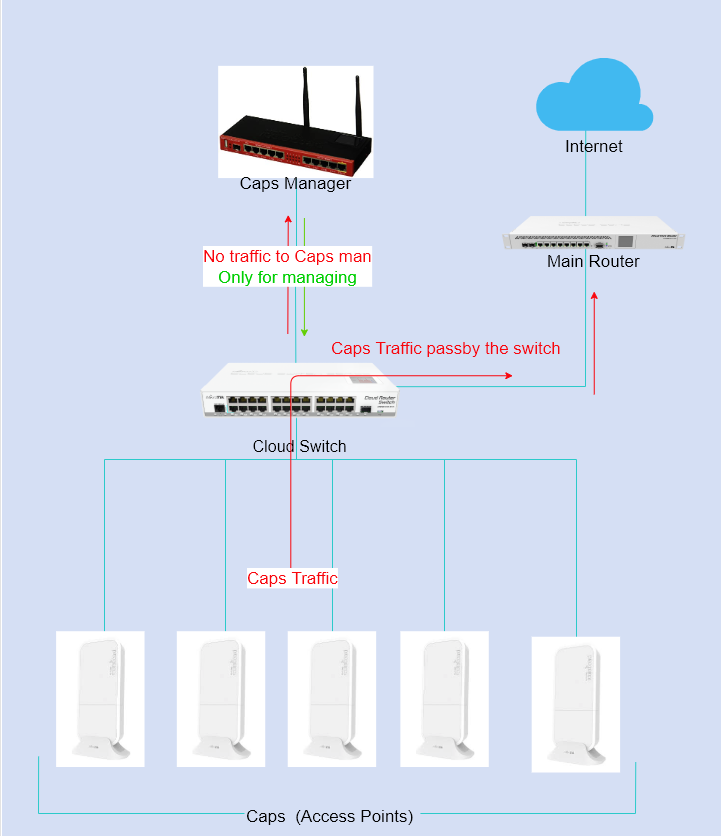

Please the the diagram just to clarify



2

Yes, enable local-forwarding in CAPsMAN datapath and the CAPs will pass traffic through the bridge set in CAP configuration.

Nice picture :slight_smile:

3

nescafe2002

Ist possible to provide me simple configuration

thank you

4

https://wiki.mikrotik.com/wiki/Manual:CAPsMAN#Local_Forwarding_Mode

On caps controller:

/caps-man configuration
add datapath.local-forwarding=yes mode=ap name=MyNetwork ssid=MyNetwork
/caps-man manager
set enabled=yes
/caps-man provisioning
add action=create-dynamic-enabled master-configuration=MyNetwork

You will have to set security, country, etc.
On caps client:

/interface bridge
add name=bridgeLocal
/interface bridge port
add bridge=bridgeLocal interface=ether1
add bridge=bridgeLocal interface=ether2
add bridge=bridgeLocal interface=ether3
/interface wireless cap
set bridge=bridgeLocal discovery-interfaces=bridgeLocal enabled=yes interfaces=wlan1,wlan2

When connected to the same switch, all wlan-to-internet traffic will flow through bridgeLocal and then through switch, not via controller.
