Hi.
There is a strange problem when downloading large files via Wi-Fi - downloading stuck after downloading 50-100 MB.
There is a connection in the Connections Tracking, but the traffic does not go.
The problem is reproducible on all clients - Windows, MacOS, Linux.
I suspect that the problem is the switch CRS328-24P-4S+ in SwOS mode malfunctioning.
Plugging the access point directly into the router solves the problem, replacing the switch with an unmanaged one also solves the problem.
The computer directly plugged into the switch port is working normally.
Router CCR1009-7G-1C-1S+ is configured for CAPsMAN
The CAPs are managed in vlan100.
CAPsMAN settings:
/system routerboard print
routerboard: yes
model: CCR1009-7G-1C-1S+
firmware-type: tilegx
factory-firmware: 6.45.3
current-firmware: 6.47.2
upgrade-firmware: 6.47.2
/caps-man manager
set enabled=yes package-path=/files upgrade-policy=suggest-same-version
/caps-man manager interface
set [ find default=yes ] forbid=yes
add disabled=no interface=vlan100_CAPsMAN
/interface bridge
add igmp-snooping=yes name=bridge-guest protocol-mode=none
add name=bridge-loopback
add name=bridge-staff-lan priority=0x4096 vlan-filtering=yes
add igmp-snooping=yes name=bridge-staff-wifi priority=0x4092
/interface bridge port
add bridge=bridge-staff-lan interface=ether2-to-CRS-p1
add bridge=bridge-staff-lan interface=ether3
add bridge=bridge-staff-lan interface=ether4
add bridge=bridge-staff-wifi interface=ether7
add bridge=bridge-staff-lan interface=ether5 pvid=100
/interface bridge vlan
add bridge=bridge-staff-lan tagged=ether2-to-CRS-p1,bridge-staff-lan vlan-ids=50
add bridge=bridge-staff-lan tagged=ether2-to-CRS-p1,bridge-staff-lan untagged=ether5 vlan-ids=100
/interface vlan
add interface=bridge-staff-lan name=vlan50_video vlan-id=50
add interface=bridge-staff-lan name=vlan100_CAPsMAN vlan-id=100
/ip address
add address=192.168.40.1/24 interface=bridge-guest network=192.168.40.0
add address=192.168.50.1/24 interface=vlan50_video network=192.168.50.0
add address=192.168.25.1/24 interface=bridge-staff-lan network=192.168.25.0
add address=172.30.30.30/27 interface=vlan100_CAPsMAN network=172.30.30.0
add address=192.168.30.1/24 interface=bridge-staff-wifi network=192.168.30.0
CAP settings:
/system routerboard print
routerboard: yes
board-name: wAP ac
model: RBwAPG-5HacT2HnD
firmware-type: qca9550L
factory-firmware: 6.44
current-firmware: 6.47.2
upgrade-firmware: 6.47.2
/interface ethernet print
Flags: X - disabled, R - running, S - slave
NAME MTU MAC-ADDRESS ARP SWITCH
0 R ether1 1500 C4:AD:34:1B:B6:7A enabled
ip address print
Flags: X - disabled, I - invalid, D - dynamic
ADDRESS NETWORK INTERFACE
0 172.30.30.1/27 172.30.30.0 ether1
/interface wireless cap
set bridge=bridge caps-man-addresses=172.30.30.30 enabled=yes interfaces=wlan1,wlan2

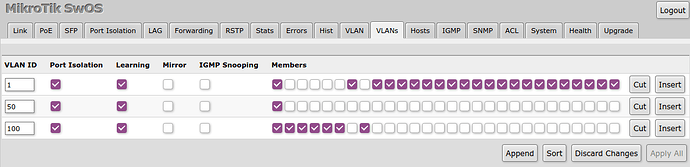

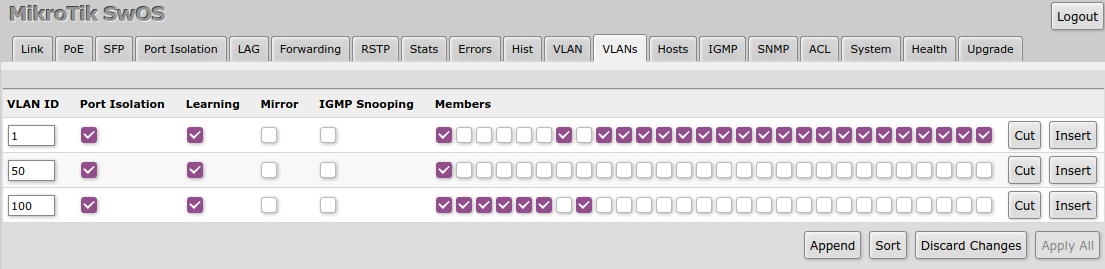

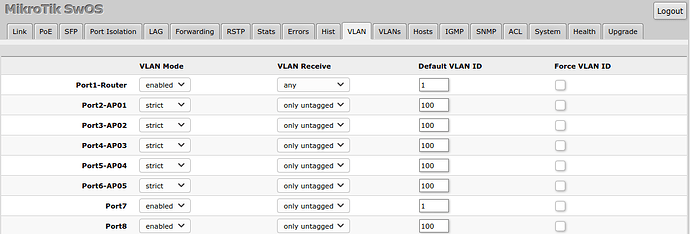

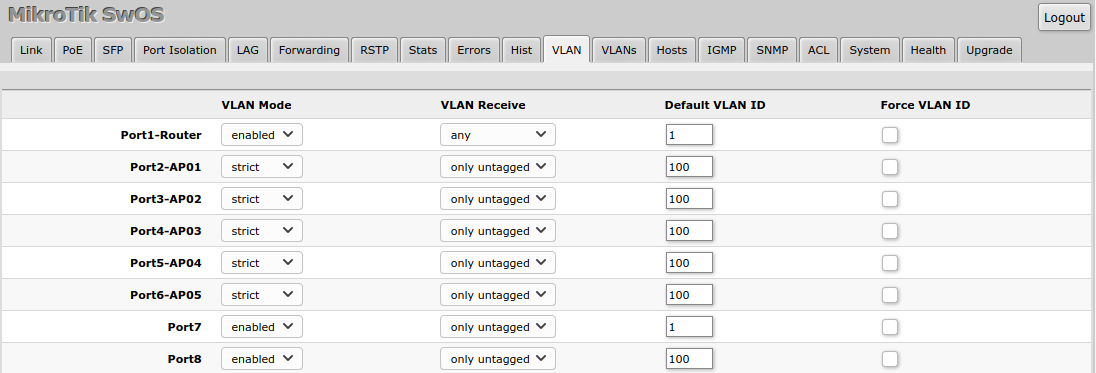

Switch settings in attachments
