CAPsMAN and Dual Band APs?

RouterOS Beginner Basics
1

Hi!
I have RB2011UiAS and four hAP ac lite.
I’d like to manage all APs with CAPsMAN, and I’ve read the manuals… but!
But there is nothing about how to manage dual bands simultaneously.
Is it possible with CAPsMAN?

hAP ac lite works fine as “Home AP Dual Band” by themselves.
But how about “Dual Band” with CAPsMAN?

Help :frowning:

2

Just create two configurations, one for 2g/n, one for 5g/a/n/ac band,
and then two provision profiles with this two configurations, and that all :slight_smile:

3

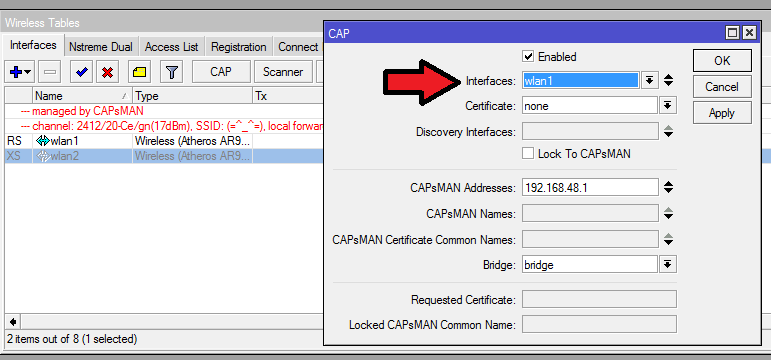

But I can choose only one interface to manage with CAPsMAN on hAP:

4

Click the down arrow next to the interface

Nick

5

Ok, I feel myself completely stupid now :smiley:
But it’s not the end.

There is errors in log now.
And it don’t want to recognize 5GHz radio :frowning:

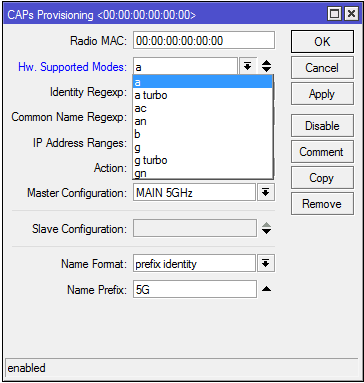

By the way, is it necessary to add “Hw. Supported Modes” in Provisioning?

6

It is not needed to put hw supported modes since I’m using capsman without them. You are trying to create an already stablished connection. It seems like capsman has not had enough idle time for decting as down. Try to reboot capsman and I think you’re done.

And about feeling stupid I’ve not seen thath arrow first time too :laughing:

7

Yep, its working now :slight_smile:
Thanks!!!
