Dear all, hope someone can point me in the right direction. I started to use CAPsMAN as it seems a great tool. But how do you manage different interfaces?
If I set Configurations (capconfig) wifi only Country, it works with most computers, but windows computers cannot log in to “ac” network. Apple computers can. If I force a windows adapter to switch to the “n” network, they do work.
If I set width 20 extension Ceee it works on 5Ghz band, but the other interfaces are not functioning. (in red: no supported channel).
Currently use these types: RB2011UiAS-2HnD, RB951G-2HnD, RBwAPG-5HacT2HnD
Note: I like to have one network name for 2.4 and 5 Ghz (the same name)
Please start by sharing your configuration (/capsman export hide-sensitive).
“If I set width 20 extension Ceee it works on 5Ghz band, but the other interfaces are not functioning. (in red: no supported channel).”
Ceee = 4 x 20 = 80 MHz channel width. On the 2.4GHz radio, 40 MHz is the maximum bandwidth. Hence the message.
# aug/02/2020 23:17:51 by RouterOS 6.47.1
# software id = FV6E-0J54
#
# model = RB760iGS
# serial number = AXXXXX
/caps-man configuration
add country=netherlands datapath.bridge=bridge-LAN name=CapConfig security.authentication-types=wpa-psk,wpa2-psk security.encryption=aes-ccm security.passphrase=XXXXX ssid=WIFI
/caps-man security
add authentication-types=wpa-psk,wpa2-psk encryption=aes-ccm name=security1 passphrase=XXXXXXX
/caps-man manager
set enabled=yes upgrade-policy=require-same-version
/caps-man manager interface
set [ find default=yes ] forbid=yes
add disabled=no interface=bridge-LAN
add disabled=no interface=ether5-WiFi
/caps-man provisioning
add action=create-dynamic-enabled master-configuration=CapConfig
And current settings 5GHz:
Current State running-ap
Current Channel 5640/20-eCee/ac/DP(27dBm)
Current Rate Set OFDM:6-54 BW:1x-4x SGI:1x-4x HT:0-23 VHTMCS:SS1=0-9,SS2=0-9,SS3=0-9
Current Basic Rate Set OFDM:6

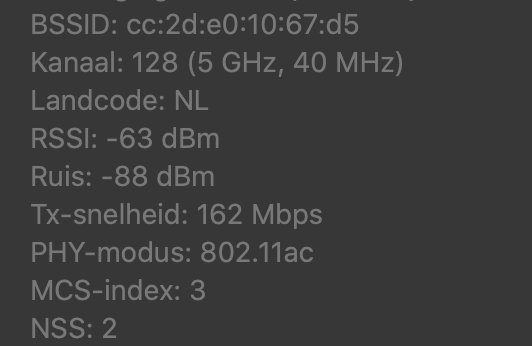

Macbook works (same with phones)
Windows mentions: “could not connect to this network”. If I kill the 5Ghz network and windows needs to change to 2.4Ghz, or force with network-wifi-adapter to “n” standard, they do work.
You will generally have two provisioning rules at a minimum for a dual band radio. One for 2.4 and one for 5 GHz radiios. Just specify the correct settings for each radio and keep the ssid the same if that is what you want.
Thank you! That should work
Missed that part.
Thanks. Tested, creating a second provisioning with a different configuration solved the problem.
