CAPSMAN - no 80 MHz channel width on 5 GHz band

RouterOS Wireless Networking
1

Hi,

I just finished my initial CAPSMAN setup with two hAP AC Mikrotik APs. One of the serves as a CAPSMAN also. Everything is working fine except one thing. I can’t setup the 5 GHz radios for 5 GHz to use a channel width of 80 MHz (just 5, 10, 20 and 40 MHz turbo).

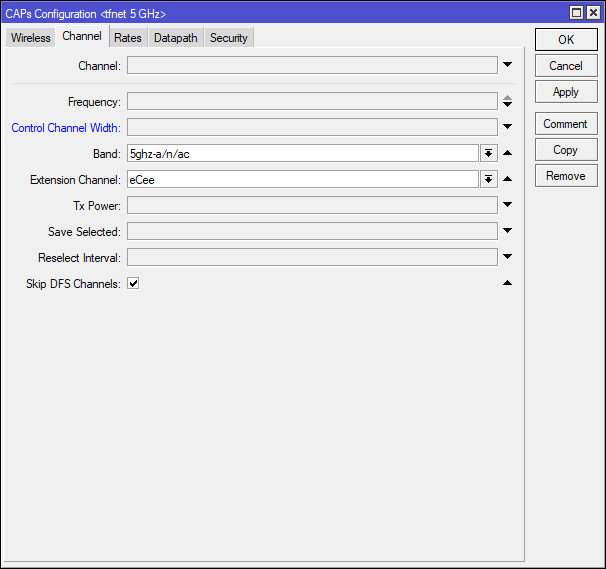

Why is that, or am I doing something wrong? Currently I configured the channel configuration as shown in the attachment.

Thanks in advance!

2

eCee is 4 channels. 4*20=80MHz.

http://forum.mikrotik.com/t/capsman-5ghz-wireless-channel-problems/96078/1

3

That was exactly what I was looking for.

Thanks a lot!
