Thanks, I thought print is readable better. I cleaned the configuration, tried to learn more, but no success/no change.Also tried to to change the bridge as untagged member of VLAN1 - no change.AX3, the device with CAPsMAN, works well when all datapath are disabled. Doesn’t matter if CAP is connected or not or CAPsMAN itself is enabled or disabled.
About VLANs on CAP - in the Mikrotik’s example in Confluence no VLANs are defined on CAP. This is why I’ve VLANs defined, but disabled.
CAPsMAN configuration:
# 2026-02-15 21:59:18 by RouterOS 7.20.8
# software id = xxxx
#
# model = C53UiG+5HPaxD2HPaxD
# serial number = xxxx
/interface bridge
add admin-mac=48:A9:8A:0D:D9:B9 auto-mac=no name=bridge port-cost-mode=short \
protocol-mode=none vlan-filtering=yes
/interface ethernet
set [ find default-name=ether2 ] comment="Broken, 100M only" disabled=yes
set [ find default-name=ether4 ] disabled=yes
/interface vlan
add interface=bridge loop-protect=off name=vlan22 vlan-id=22
add interface=bridge loop-protect=off name=vlan33 vlan-id=33
add interface=bridge loop-protect=off name=vlan66 vlan-id=66
/interface wifi channel
add band=5ghz-ax disabled=no frequency=5220,5280 name=5G skip-dfs-channels=\
disabled width=20/40/80mhz
add band=2ghz-ax disabled=no frequency=2422,2467 name=2G skip-dfs-channels=\
disabled width=20mhz
/interface wifi datapath
add bridge=bridge disabled=no name=spcam vlan-id=22
add bridge=bridge disabled=no name=piot vlan-id=66
add bridge=bridge client-isolation=yes disabled=no name=pgst vlan-id=33
add bridge=bridge disabled=no name=Tzcocot
/interface wifi security
add authentication-types=wpa2-psk,wpa2-psk-sha2,wpa3-psk disable-pmkid=yes \
disabled=no ft=yes ft-over-ds=yes ft-preserve-vlanid=yes \
management-protection=allowed name=spcam wps=disable
add authentication-types=wpa3-psk disable-pmkid=yes disabled=no ft=yes \
ft-over-ds=yes ft-preserve-vlanid=yes management-protection=required \
name=Tzcocot wps=disable
add authentication-types=wpa2-psk,wpa2-psk-sha2,wpa3-psk disable-pmkid=yes \
disabled=no ft=yes ft-over-ds=yes ft-preserve-vlanid=yes \
management-protection=allowed name=piot wps=disable
add disable-pmkid=yes disabled=no ft=yes ft-over-ds=yes ft-preserve-vlanid=\
yes management-protection=allowed name=gsts wps=disable
/interface wifi configuration
add channel=5G country=Czech datapath=spcam disabled=no installation=indoor \
mode=ap name=spcam security=spcam ssid=spcam
add channel=2G country=Czech datapath=piot disabled=no installation=indoor \
mode=ap name=piot security=piot ssid=piot
add channel=5G country=Czech datapath=Tzcocot disabled=no installation=indoor \
mode=ap name=Tzcocot security=Tzcocot ssid=Tzcocot
add country=Czech datapath=pgst disabled=no installation=indoor mode=ap name=\
gsts security=gsts ssid=pgst
/interface wifi
set [ find default-name=wifi2 ] channel=2G configuration=piot \
configuration.mode=ap disabled=no name=2g_iot
set [ find default-name=wifi1 ] configuration=spcam configuration.mode=ap \
disabled=no name=5g_spcam
add configuration=Tzcocot configuration.country=Czech .mode=ap disabled=no \
mac-address=4A:A9:8A:0D:D9:BD master-interface=5g_spcam name=5g_tzcocot
add configuration=gsts configuration.country=Czech .mode=ap mac-address=\
4A:A9:8A:0D:D9:BE master-interface=2g_iot name=2g_gsts
add configuration=gsts configuration.country=Czech .mode=ap mac-address=\
4A:A9:8A:0D:D9:BF master-interface=5g_spcam name=5g_gsts
/ip dhcp-server
add bootp-support=none disabled=yes interface=bridge lease-time=10m name=\
dhcp_main
/ip ipsec proposal
set [ find default=yes ] disabled=yes
/ip pool
add name=dhcp_pool_spcam ranges=192.168.22.190-192.168.22.199
add name=dhcp_pool_gsts ranges=192.168.33.11-192.168.33.99
add name=dhcp_pool_iot ranges=192.168.66.190-192.168.66.199
/ip dhcp-server
add address-pool=dhcp_pool_spcam bootp-support=none disabled=yes interface=\
vlan22 lease-time=2h name=dhcp_spcam
add address-pool=dhcp_pool_gsts bootp-support=none disabled=yes interface=\
vlan33 lease-time=2h name=dhcp_gsts
add address-pool=dhcp_pool_iot bootp-support=none disabled=yes interface=\
vlan66 lease-time=2h name=dhcp_iot
/port
set 0 name=serial0
/queue interface
set "2g_gsts" queue=only-hardware-queue
set "2g_iot" queue=only-hardware-queue
set "5g_gsts" queue=only-hardware-queue
set "5g_spcam" queue=only-hardware-queue
set "5g_tzcocot" queue=only-hardware-queue
/system logging action
set 3 remote=192.168.91.1 syslog-severity=notice
add name=Mayo remote=192.168.91.1 remote-log-format=syslog src-address=\
192.168.91.252 syslog-facility=local0 syslog-severity=info target=remote
/certificate settings
set builtin-trust-anchors=not-trusted
/ip smb
set enabled=no
/interface bridge port
add bridge=bridge interface=ether1 internal-path-cost=10 path-cost=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=5g_tzcocot internal-path-cost=10 path-cost=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=5g_spcam internal-path-cost=10 path-cost=10 pvid=22
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=2g_iot internal-path-cost=10 path-cost=10 pvid=66
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=2g_gsts internal-path-cost=10 path-cost=10 pvid=33
add bridge=bridge disabled=yes interface=ether2 internal-path-cost=10 \
path-cost=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=5g_gsts internal-path-cost=10 path-cost=10 pvid=33
add bridge=bridge ingress-filtering=no interface=ether5 internal-path-cost=10 \
path-cost=10
add bridge=bridge frame-types=admit-only-untagged-and-priority-tagged \
interface=ether3 pvid=33
add bridge=bridge disabled=yes interface=ether4
/ip firewall connection tracking
set udp-timeout=10s
/ip neighbor discovery-settings
set discover-interface-list=*2000011
/ip settings
set ip-forward=no secure-redirects=no send-redirects=no
/ipv6 settings
set disable-ipv6=yes forward=no max-neighbor-entries=15360
/interface bridge vlan
add bridge=bridge comment=vlan22 tagged=ether5,bridge,ether1 untagged=\
5g_spcam vlan-ids=22
add bridge=bridge comment=vlan1 tagged=bridge untagged=\
ether5,ether1,5g_tzcocot vlan-ids=1
add bridge=bridge comment=vlan33 tagged=ether5,bridge,ether1 untagged=\
ether3,2g_gsts,5g_gsts vlan-ids=33
add bridge=bridge comment=vlan66 tagged=ether5,ether1,bridge untagged=2g_iot \
vlan-ids=66
/interface wifi access-list
add action=accept client-isolation=yes comment=cam4 disabled=no mac-address=\
xxxxx ssid-regexp="^spcam\$"
add action=accept comment=van+ disabled=no mac-address=xxxx
ssid-regexp="^Tzcocot\$"
# about 30 MACs removed
add action=accept disabled=no ssid-regexp="^pgst\$"
add action=accept disabled=no ssid-regexp="^pgst\$"
add action=reject comment="Last entry - reject all" disabled=no
/interface wifi capsman
set enabled=yes interfaces=bridge package-path="" require-peer-certificate=no \
upgrade-policy=none
/interface wifi provisioning
add action=create-dynamic-enabled comment=5G disabled=no \
master-configuration=spcam slave-configurations=Tzcocot,gsts \
supported-bands=5ghz-ax
add action=create-dynamic-enabled comment=2G disabled=no \
master-configuration=piot slave-configurations=gsts supported-bands=\
2ghz-ax
/ip address
add address=192.168.91.252/24 interface=bridge network=192.168.91.0
add address=192.168.22.252/24 interface=vlan22 network=192.168.22.0
add address=192.168.33.252/24 interface=vlan33 network=192.168.33.0
add address=192.168.66.252/24 interface=vlan66 network=192.168.66.0
/ip cloud
set update-time=no
/ip dhcp-server config
set accounting=no store-leases-disk=never
/ip dhcp-server lease
add address=192.168.66.40 comment=Riden mac-address=xxxxxx server=\
dhcp_iot
# leases removed, DHCP servers are all time disabled, turned on for specific reason only, rare condition
/ip dhcp-server network
add address=192.168.22.0/24 dns-server=192.168.22.1 gateway=192.168.22.1 \
netmask=24
add address=192.168.33.0/24 dns-server=192.168.33.1 gateway=192.168.33.1
add address=192.168.66.0/24 dns-server=192.168.66.1 gateway=192.168.66.1 \
netmask=24
add address=192.168.91.0/24
/ip ipsec policy
set 0 disabled=yes
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip service
set ftp disabled=yes
set winbox disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/ipv6 nd
set [ find default=yes ] disabled=yes
/system clock
set time-zone-autodetect=no time-zone-name=Europe/Prague
/system identity
set name=ax3
/system leds settings
set all-leds-off=after-1h
/system logging
set 0 disabled=yes
set 1 disabled=yes
set 2 disabled=yes
set 3 action=memory disabled=yes
add action=Mayo prefix=mikrotik topics=!debug
add topics=!debug
/system note
set show-at-login=no
/system ntp client
set enabled=yes
/system ntp client servers
add address=192.168.91.1
/system routerboard settings
set auto-upgrade=yes
/system watchdog
set automatic-supout=no watchdog-timer=no
/tool bandwidth-server
set enabled=no
/tool graphing interface
add store-on-disk=no
/tool graphing queue
add store-on-disk=no
/tool graphing resource
add store-on-disk=no
/tool mac-server
set allowed-interface-list=*2000011
/tool mac-server mac-winbox
set allowed-interface-list=*2000011
/tool sniffer
set filter-interface=ether1 filter-ip-address=192.168.66.77/32 memory-limit=\
1000KiB only-headers=yes
CAP configuration:
# 2026-02-15 21:59:31 by RouterOS 7.20.8
# software id = xxxx
#
# model = cAPGi-5HaxD2HaxD
# serial number = xxxx
/interface bridge
add name=bridge port-cost-mode=short protocol-mode=none vlan-filtering=yes
/interface ethernet
set [ find default-name=ether1 ] loop-protect=off
set [ find default-name=ether2 ] disabled=yes loop-protect=off poe-out=off
/interface vlan
add disabled=yes interface=bridge loop-protect=off name=vlan22 vlan-id=22
add disabled=yes interface=bridge loop-protect=off name=vlan33 vlan-id=33
add disabled=yes interface=bridge loop-protect=off name=vlan66 vlan-id=66
/interface wifi datapath
add bridge=bridge disabled=no name=capdp
/interface wifi
# managed by CAPsMAN 48:A9:8A:0D:D9:B9%bridge, traffic processing on CAP
# mode: AP, SSID: spcam, channel: 5280/ax/eCee/DI
set [ find default-name=wifi1 ] configuration.manager=capsman .mode=ap \
datapath=capdp disabled=no
# managed by CAPsMAN 48:A9:8A:0D:D9:B9%bridge, traffic processing on CAP
# mode: AP, SSID: piot, channel: 2467/ax
set [ find default-name=wifi2 ] configuration.manager=capsman .mode=ap \
datapath=capdp disabled=no
/system logging action
set 3 remote=192.168.91.1
/ip smb
set enabled=no
/interface bridge port
add bridge=bridge interface=ether1 internal-path-cost=10 path-cost=10
/ip settings
set ip-forward=no secure-redirects=no send-redirects=no
/ipv6 settings
set disable-ipv6=yes

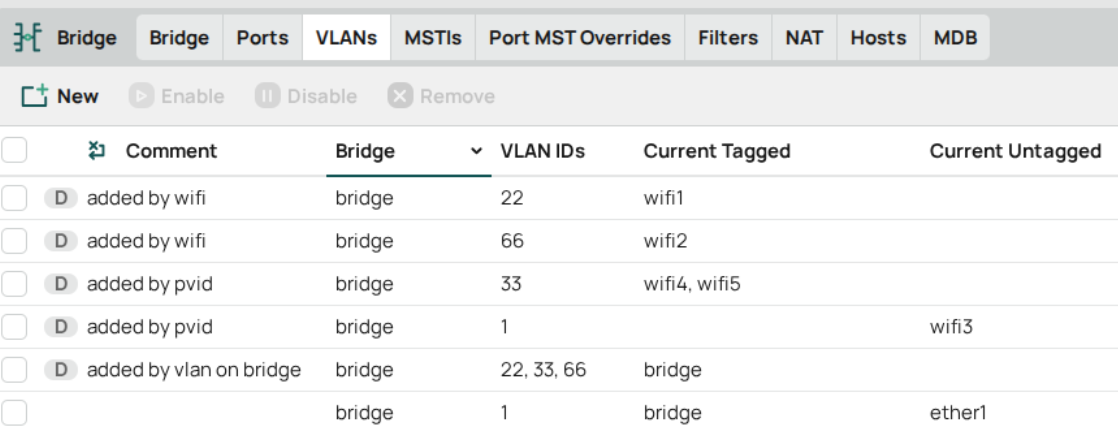

/interface bridge vlan
add bridge=bridge tagged=bridge untagged=ether1 vlan-ids=1
/interface wifi cap
set caps-man-addresses=192.168.91.252 discovery-interfaces=bridge enabled=yes
/ip address
add address=192.168.91.130/24 interface=bridge network=192.168.91.0
/ip cloud
set update-time=no
/ip ipsec policy
set 0 disabled=yes
/ip ipsec profile
set [ find default=yes ] dpd-interval=2m dpd-maximum-failures=5
/ip service
set ftp disabled=yes
set winbox disabled=yes
set api disabled=yes
set api-ssl disabled=yes
/ipv6 nd
set [ find default=yes ] disabled=yes
/system clock
set time-zone-autodetect=no time-zone-name=Europe/Prague
/system identity
set name=capx
/system leds settings
set all-leds-off=after-1h
/system logging
set 3 action=memory
/system ntp client
set enabled=yes
/system ntp client servers
add address=192.168.91.1
I think why wifi stopps working for all VLANs except VLAN1 on CAPsMAN device should be solved first. Maybe became tagged similar to CAP?
Thanks for help.
