Hi there. I have updated my RB951Ui-2HnD to from 6.49 to 7.13

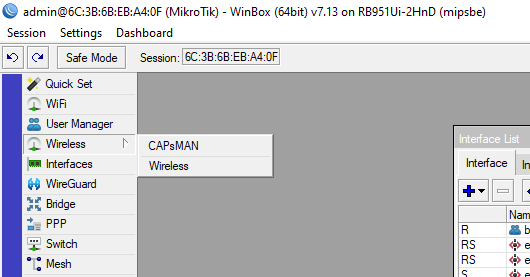

There is something strange in my WIFI interfaces and it doesnt give me access to install CAPsMAN client
Was my update finished unsuccessfully? Need I to downgrade back?
Read first page of release notes for 7.13.
The whole wireless/wifi structure has been redone/moved/reworked.
Exactly what is not working ?
Cant install connection with CAPsMAN master.

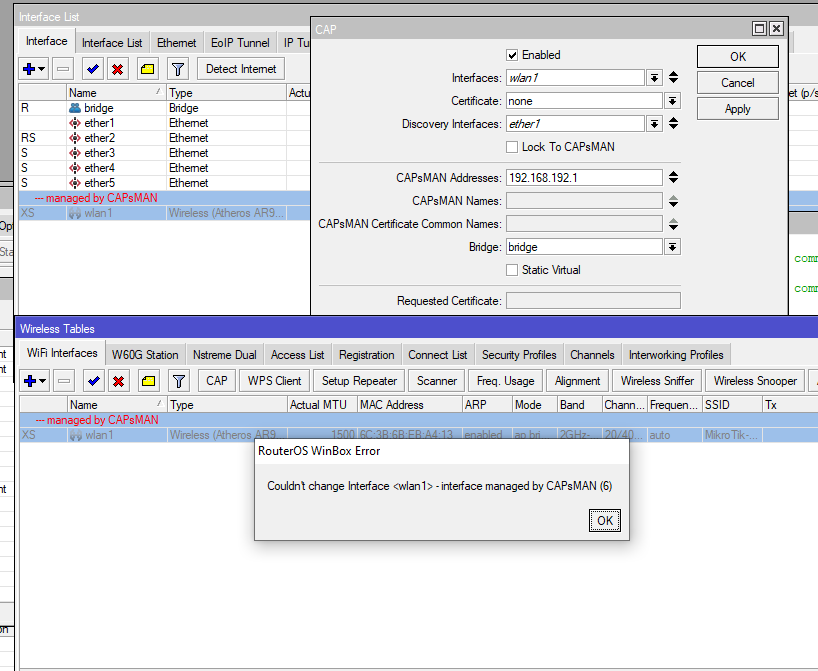

Wifi is disabled and shows error when I try to enable
Screenshot shows it IS being managed by capsman.
Which device is acting as capsman controller ?
The Capsman controller is the other router in a network (192.168.192.1) and there is one CAPsMAN client connected to the controller successfuly
Check MAC address of radio on capsman controller.
Then check MAC addresses on RB951Ui-2HnD.
I guess it will be the same.
I still fail to see what actually is the problem ?
Do you or do you not intend to use capsman ?
Is that RB951Ui-2HnD yes or no to be used as caps device (=controlled by capsman) ?
Client cant see capsman controller. There is no place to input it
RB951Ui-2HnD has never been a part of this network. This network has been working without it.
I have tried to add one more capsman client but couldnt make it with RB951Ui-2HnD RouterOS 6.49 then I updated it to 7.13
Ok. Time to put all info on the table then.
Full drawing of your network inc. connections and subnets ( can be on paper, just make a picture).
Also indicate type of each Mikrotik device in there.
On rb951:
Terminal
Export file=anynameyouwish
Move file to pc
Edit file and remove serial, password, etc.
Post file here between code quotes for easier readability.
/interface bridge
add admin-mac=6C:3B:6B:EB:A4:0F auto-mac=no comment=defconf name=bridge
/interface wireless
# managed by CAPsMAN
set [ find default-name=wlan1 ] band=2ghz-b/g/n channel-width=20/40mhz-XX \
distance=indoors frequency=auto installation=indoor mode=ap-bridge ssid=\
MikroTik-EBA413 wireless-protocol=802.11
/caps-man datapath
add bridge=bridge name=datapath1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/iot lora servers
add address=eu.mikrotik.thethings.industries name=TTN-EU protocol=UDP
add address=us.mikrotik.thethings.industries name=TTN-US protocol=UDP
add address=eu1.cloud.thethings.industries name="TTS Cloud (eu1)" protocol=UDP
add address=nam1.cloud.thethings.industries name="TTS Cloud (nam1)" protocol=\
UDP
add address=au1.cloud.thethings.industries name="TTS Cloud (au1)" protocol=UDP
add address=eu1.cloud.thethings.network name="TTN V3 (eu1)" protocol=UDP
add address=nam1.cloud.thethings.network name="TTN V3 (nam1)" protocol=UDP
add address=au1.cloud.thethings.network name="TTN V3 (au1)" protocol=UDP
/ip pool
add name=default-dhcp ranges=192.168.88.10-192.168.88.254
/ip dhcp-server
add address-pool=default-dhcp interface=bridge lease-time=10m name=defconf
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wlan1
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/interface wireless cap
#
set bridge=bridge caps-man-addresses=192.168.192.1 discovery-interfaces=ether1 \
enabled=yes interfaces=wlan1
/ip address
add address=192.168.88.1/24 comment=defconf interface=bridge network=\
192.168.88.0
/ip dhcp-client
add comment=defconf interface=ether1
/ip dhcp-server network
add address=192.168.88.0/24 comment=defconf dns-server=192.168.88.1 gateway=\
192.168.88.1
/ip dns
set allow-remote-requests=yes
/ip dns static
add address=192.168.88.1 comment=defconf name=router.lan
/ip firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMP" protocol=icmp
add action=accept chain=input comment=\
"defconf: accept to local loopback (for CAPsMAN)" dst-address=127.0.0.1
add action=drop chain=input comment="defconf: drop all not coming from LAN" \
in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept in ipsec policy" \
ipsec-policy=in,ipsec
add action=accept chain=forward comment="defconf: accept out ipsec policy" \
ipsec-policy=out,ipsec
add action=fasttrack-connection chain=forward comment="defconf: fasttrack" \
connection-state=established,related hw-offload=yes
add action=accept chain=forward comment=\
"defconf: accept established,related, untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=\
invalid
add action=drop chain=forward comment="defconf: drop all from WAN not DSTNATed" \
connection-nat-state=!dstnat connection-state=new in-interface-list=WAN
/ip firewall nat
add action=masquerade chain=srcnat comment="defconf: masquerade" ipsec-policy=\
out,none out-interface-list=WAN
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=\
invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=\
33434-33534 protocol=udp
add action=accept chain=input comment=\
"defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=\
udp src-address=fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=input comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment=\
"defconf: accept established,related,untracked" connection-state=\
established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=\
invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" \
src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" \
dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" \
hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=\
icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 \
protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=\
ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=\
ipsec-esp
add action=accept chain=forward comment=\
"defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment=\
"defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/system clock
set time-zone-name=Asia/Bishkek
/system note
set show-at-login=no
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
Why is this enabled ?
This makes it search for a capsman controller and be controlled by it.
Someone put it there, that's not by accident.
/interface wireless cap
set bridge=bridge caps-man-addresses=192.168.192.1 discovery-interfaces=ether1
enabled=yes interfaces=wlan1
Yes, I need it to make RB951Ui-2HnD controlled by another controller. But I cant, RB951Ui-2HnD couldnt find it
Then that problem needs to be solved first.

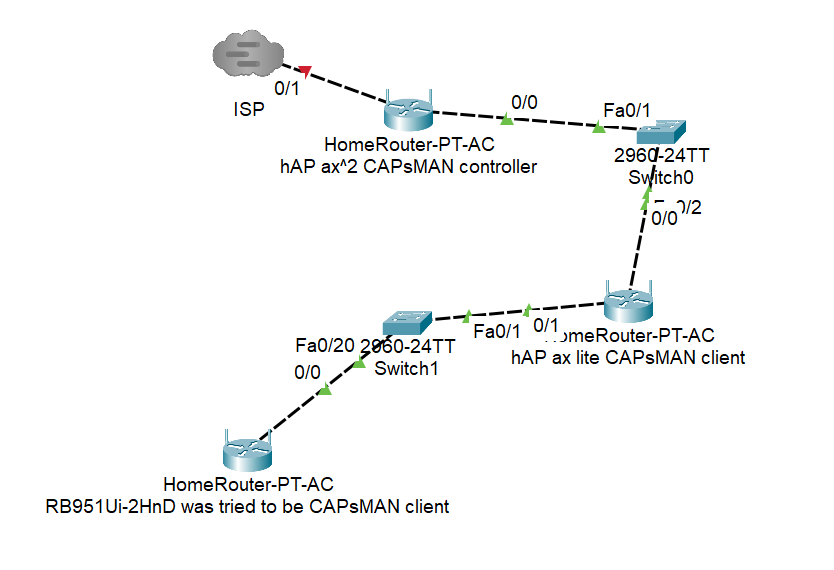

Drawing !
topology
Still not clear.
Where is which subnet ?
/interface bridge
add admin-mac=6C:3B:6B:EB:A4:0F auto-mac=no comment=defconf name=bridge
/interface wireless
# managed by CAPsMAN
set [ find default-name=wlan1 ] band=2ghz-b/g/n channel-width=20/40mhz-XX distance=indoors frequency=auto installation=indoor mode=\
ap-bridge ssid=MikroTik-EBA413 wireless-protocol=802.11
/caps-man datapath
add bridge=bridge name=datapath1
/interface list
add comment=defconf name=WAN
add comment=defconf name=LAN
/interface wireless security-profiles
set [ find default=yes ] supplicant-identity=MikroTik
/iot lora servers
add address=eu.mikrotik.thethings.industries name=TTN-EU protocol=UDP
add address=us.mikrotik.thethings.industries name=TTN-US protocol=UDP
add address=eu1.cloud.thethings.industries name="TTS Cloud (eu1)" protocol=UDP
add address=nam1.cloud.thethings.industries name="TTS Cloud (nam1)" protocol=UDP
add address=au1.cloud.thethings.industries name="TTS Cloud (au1)" protocol=UDP
add address=eu1.cloud.thethings.network name="TTN V3 (eu1)" protocol=UDP
add address=nam1.cloud.thethings.network name="TTN V3 (nam1)" protocol=UDP
add address=au1.cloud.thethings.network name="TTN V3 (au1)" protocol=UDP
/interface bridge port
add bridge=bridge comment=defconf interface=ether2
add bridge=bridge comment=defconf interface=ether3
add bridge=bridge comment=defconf interface=ether4
add bridge=bridge comment=defconf interface=ether5
add bridge=bridge comment=defconf interface=wlan1
add bridge=bridge interface=ether1
/ip neighbor discovery-settings
set discover-interface-list=LAN
/interface list member
add comment=defconf interface=bridge list=LAN
add comment=defconf interface=ether1 list=WAN
/interface wifi cap
set caps-man-addresses=192.168.192.1 discovery-interfaces=bridge enabled=yes
/interface wireless cap
#
set bridge=bridge caps-man-addresses=192.168.192.1 discovery-interfaces=bridge enabled=yes interfaces=wlan1
/ip dhcp-client
add interface=bridge
/ip dns
set allow-remote-requests=yes
/ipv6 firewall address-list
add address=::/128 comment="defconf: unspecified address" list=bad_ipv6
add address=::1/128 comment="defconf: lo" list=bad_ipv6
add address=fec0::/10 comment="defconf: site-local" list=bad_ipv6
add address=::ffff:0.0.0.0/96 comment="defconf: ipv4-mapped" list=bad_ipv6
add address=::/96 comment="defconf: ipv4 compat" list=bad_ipv6
add address=100::/64 comment="defconf: discard only " list=bad_ipv6
add address=2001:db8::/32 comment="defconf: documentation" list=bad_ipv6
add address=2001:10::/28 comment="defconf: ORCHID" list=bad_ipv6
add address=3ffe::/16 comment="defconf: 6bone" list=bad_ipv6
/ipv6 firewall filter
add action=accept chain=input comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=input comment="defconf: drop invalid" connection-state=invalid
add action=accept chain=input comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=input comment="defconf: accept UDP traceroute" port=33434-33534 protocol=udp
add action=accept chain=input comment="defconf: accept DHCPv6-Client prefix delegation." dst-port=546 protocol=udp src-address=\
fe80::/10
add action=accept chain=input comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=input comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=input comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=input comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=input comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
add action=accept chain=forward comment="defconf: accept established,related,untracked" connection-state=established,related,untracked
add action=drop chain=forward comment="defconf: drop invalid" connection-state=invalid
add action=drop chain=forward comment="defconf: drop packets with bad src ipv6" src-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: drop packets with bad dst ipv6" dst-address-list=bad_ipv6
add action=drop chain=forward comment="defconf: rfc4890 drop hop-limit=1" hop-limit=equal:1 protocol=icmpv6
add action=accept chain=forward comment="defconf: accept ICMPv6" protocol=icmpv6
add action=accept chain=forward comment="defconf: accept HIP" protocol=139
add action=accept chain=forward comment="defconf: accept IKE" dst-port=500,4500 protocol=udp
add action=accept chain=forward comment="defconf: accept ipsec AH" protocol=ipsec-ah
add action=accept chain=forward comment="defconf: accept ipsec ESP" protocol=ipsec-esp
add action=accept chain=forward comment="defconf: accept all that matches ipsec policy" ipsec-policy=in,ipsec
add action=drop chain=forward comment="defconf: drop everything else not coming from LAN" in-interface-list=!LAN
/system clock
set time-zone-name=Asia/Bishkek
/system note
set show-at-login=no
/tool mac-server
set allowed-interface-list=LAN
/tool mac-server mac-winbox
set allowed-interface-list=LAN
There is no other subnet except of 192.168.192.0/24
All other were turned off. I have delete them not to confuse your look
Your main router is ax2 ?
Does ping from rb951 reach ax2 ?
If not, your problem is in ax lite.
Does it have all ports in bridge ? No nat ?
Yes, the CAPsMAN controller is hAP ax^2. Sure, the RB951Ui-2HnD has even internet

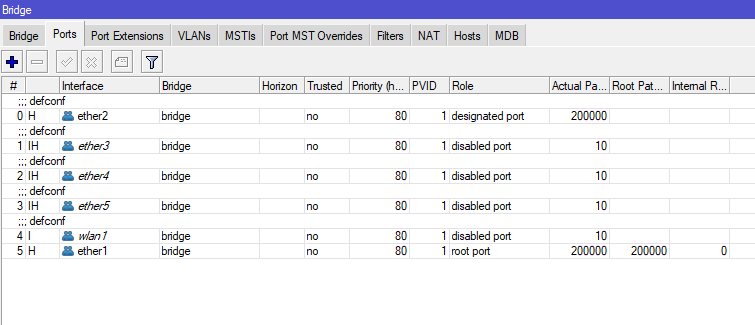

Do you mean the RB951Ui-2HnD? Yep, all ports are added to the single bridge.

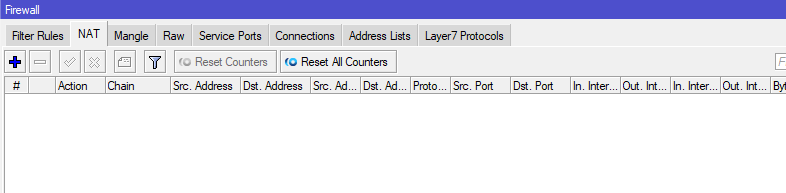

There is no any NAT rules.
Wait a minute …
Rb951 is device with legacy wifi.
It can not be controlled by wifiwave2 capsman !!
Unless you try 7.13 and also install wireless package on ax2. Then it would theoretically be possible to have 2 capsman controllers on the same device. One for wave2 radios, one for legacy radios.
But … never tested it myself.
Only easy way out, is disable caps mode on rb951 and setup wireless manually there.
Lol. Thanks a lot. You have spent a lot of time. It was stupid of me not to explain everything at first.
